A graphite dosing system fails long before it reaches the mixing head. In most polyurethane shops, the problem is not the graphite grade; it is the assumption that graphite can be handled like a pigment or a liquid additive. Graphite is abrasive, it settles, and at the loadings used for antistatic or flame-retardant compounds it changes the rheology of the polyol stream enough to shift metering accuracy.
The design sequence that works is the reverse of how many lines are specified. Start from the graphite particle size and addition rate, then select the feed path, then the metering element, then the mixing and wear strategy. This article works through that sequence, with the failure mechanisms that matter at each step.
Why Graphite Dosing Breaks Ordinary Polyurethane Lines
Two properties dominate. First, flake graphite particles are thin, angular platelets that are soft at the macroscopic level but damaging as loose agglomerates in a moving stream; commercial fine flake fillers commonly span roughly 5–75 µm, while expandable graphite used for fire protection is often in the 150–500 µm range [1]. Second, the density difference between graphite and most polyols is large enough that stratification begins quickly in an unstirred day tank.
The failure pattern is consistent. A gear pump specified for clean polyol carries graphite slurry and the clearances open. Filter elements blind as fines pack the media surface. The mixing head accumulates graphite at the chamber wall, raising backpressure, and the finished part misses its resistivity target because the actual graphite concentration drifts below the setpoint. Each failure has a design fix, but the fix must be built in at the feed end, not patched after wear has already started.
If you are retrofitting an existing machine rather than building from scratch, the most useful next step is a material-and-flow audit: record graphite loading, particle size, carrier fluid, required throughput, and current mixing head condition. Send these parameters to Info@chinahaifeng.com and we will return a written compatibility note for the metering and mixing stage.
Start With the Graphite, Not the Machine
Graphite does one of three jobs in polyurethane. As a conductive filler it lowers volume and surface resistivity for antistatic rollers, wheels, and flooring; as a solid lubricant it reduces friction in rollers and seals; as expandable graphite it provides intumescent char in rigid foam. Each role points to a different particle size, loading, and feed strategy.

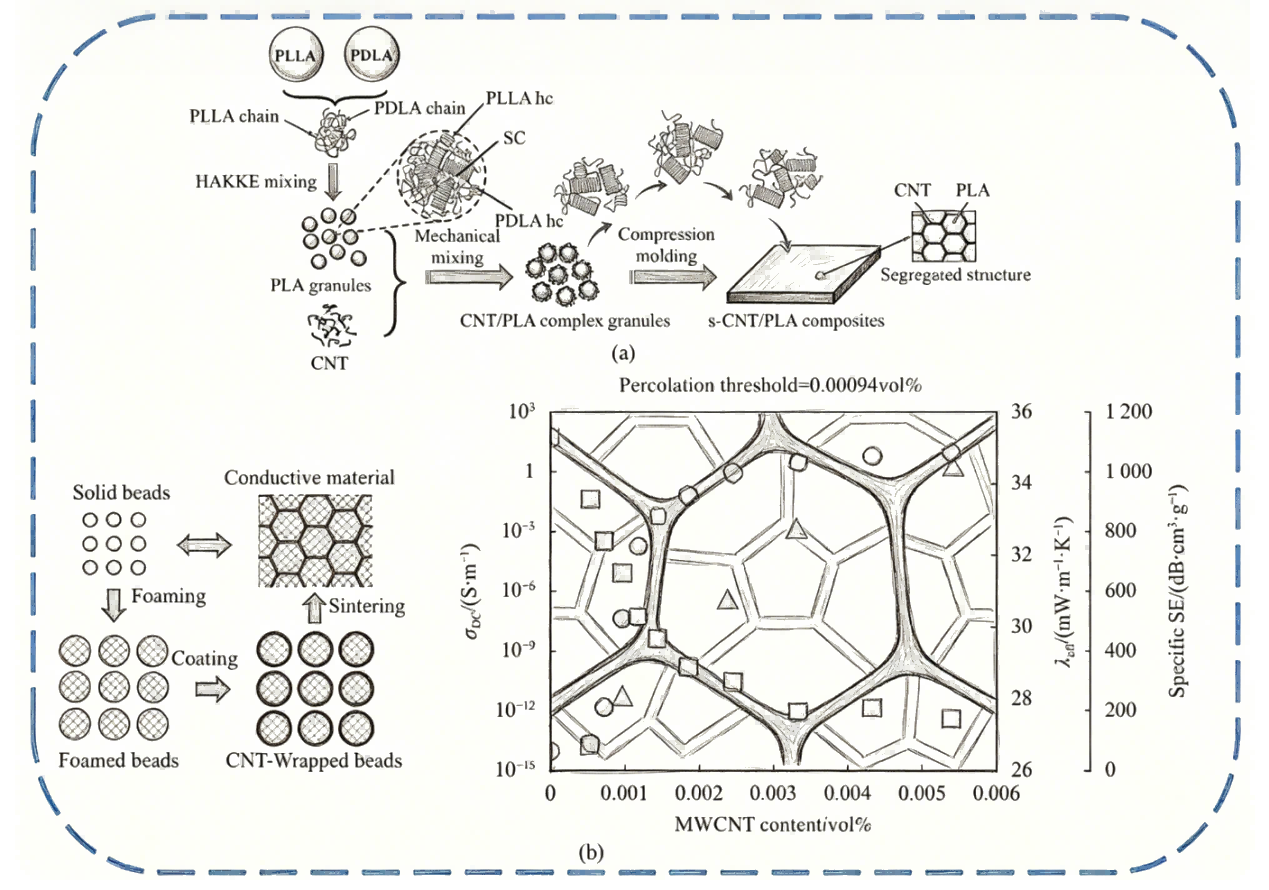

Conductive compounds are the most sensitive. Surface resistivity targets below 10^9 Ω, a common ESD-safe range [2], usually require meaningful filler loadings—often in the 10–25 wt% range depending on graphite type, surface area, and base polymer—with fine flake or synthetic grades giving higher surface area per unit weight [3]. At those loadings the polyol stream viscosity can rise enough that a standard centrifugal or gear pump no longer holds its rated throughput. Expandable graphite is typically added at lower loadings, commonly 5–15 phr and sometimes higher for demanding fire classes, but its larger particles amplify wear and require wider clearances and no fine filtration.
Specify the part in the same document as the machine. A graphite-filled part is defined by two interacting numbers: surface resistivity and final hardness. Graphite raises compound viscosity and can shift the cured hardness of an elastomer slightly by acting as a filler; it is not a softener and does not replace hardness specification. Pin the hardness and resistivity ranges before choosing any dosing hardware.
Graphite-filled elastomers are still specified on the same Shore scale as unfilled compounds. <Shore A Vs Shore D Hardness In Polyurethane> covers the measurement choices and when each scale applies.
Feed Path: Dry Side Feed Versus Pre-Dispersed Slurry
Choose the feed path before the pump. Two practical routes exist. Dry loss-in-weight side feeding meters graphite powder directly into the mixing stream or the polyol tank; it avoids pre-dispersion but demands a sealed feeder, dust collection, and a feed element that tolerates abrasive powder. Pre-dispersed slurry keeps graphite wetted and suspended in polyol or a compatible carrier, which reduces wear at the metering element but adds a stirred tank, a slow recirculation loop, and mixing energy to maintain suspension.
For most low-output lines, slurry is easier to control. For high-output lines with large graphite consumption, dry side feeding removes the slurry batch variable but pushes the wear problem to the feeding screw and the point where powder meets liquid. There is no universal better option; the choice follows throughput, the graphite grade, and whether the plant can manage a stirred slurry tank without settling.
The metering element then follows from throughput. Shot weight and pour rate are the working numbers. If the machine must deliver, say, a 400–800 g/s pour while holding graphite content within a narrow band, the metering element must be stable across that full flow range, not just at the top end. This is where equipment selection mistakes appear: a pump chosen for nominal output drifts at the low end of the range, and the graphite loading in the pour shifts with it.
Sizing the metering stage starts from the shot the mold actually needs. <How To Calculate Shot Weight In Polyurethane> covers calculating shot weight from part volume, density, and pour allowance before equipment sizing.
What to send for a graphite dosing review:
- Graphite grade and particle size, plus loading in phr or wt%
- Target surface resistivity or flame rating
- Required throughput and shot size
- Carrier fluid and current machine model
Send the list to Info@chinahaifeng.com or WhatsApp: 86 13566296633. We will confirm whether the existing metering and mixing elements can run the grade you have, or what must change.
Dispersion, Mixing, and the Wear Problem
Once the graphite is metered, dispersion does the rest of the work. Flake graphite agglomerates if it is dumped into a low-shear stream; the result is resistivity islands inside the part rather than a uniform conductive network. Effective handling wets the graphite into the liquid stream with staged shear: an initial disperser, then the main mixing head, then a low-shear transfer path that does not re-agglomerate the dispersion.
High-shear mixing heads in polyurethane casting machines commonly run in the 6,000–12,000 r/min range, which is sufficient for many fine grades when the graphite is pre-wetted, but it does not remove the need for pre-dispersion of larger flake grades. The practical test is not mixer speed alone; it is whether the finished part shows consistent surface resistivity from edge to center and whether pump and filter inspections come back clean.
Wear concentrates at three points: metering element clearances, mixing chamber walls, and the seals and valves in the recirculation loop. Graphite is not the most abrasive filler available, but it is abrasive enough that unlined standard components fail early. Hardened rotors, wear-resistant stator liners, and replaceable mixing chamber liners are standard provisions on graphite-duty systems [1].
Graphite-filled rollers are a common application because the filler combines electrical dissipation with solid lubrication. The casting sequence—degassing, metered pour, cure—is the same as for unfilled rollers, but the graphite changes the viscosity curve and the wear interval of the pouring equipment.
Graphite-filled rollers still follow the mold-filling and cure logic of standard elastomer rollers. <How Polyurethane Rollers Are Made From Casting To Cure> covers the casting-to-cure sequence these systems are built around.
Verification: Resistivity, Shot Weight, and Drift
A dosing system is only as good as its verification loop. Three checks catch most drift before parts ship. First, record shot weight per pour; a falling shot weight at constant pump speed is an early wear signal. Second, measure surface resistivity on cured specimens against the target using a controlled test voltage per ASTM D257 [2]; this catches dispersion failure that visual inspection misses. Third, log pressure across the filter and the mixing head; both rise as graphite accumulates.
Electrostatic-dissipative parts used in electronics assembly areas are often validated against broader ESD-control requirements such as IEC 61340-5-1 [4], so record the test method the customer uses in the same log as the resistivity value. A number without its test voltage and conditioning history is not a specification.
Over time, graphite fines settle in the day tank if agitation stops between shifts. Start the recirculation loop before production, not after, and verify the slurry is homogeneous before the first pour. The first pour of a cold, stratified batch is the classic source of a resistivity failure that appears only in the morning shift.
A Working Sizing Method
Work through these decisions in order:
- Define the job—conductive dissipation, lubrication, or intumescent fire protection—and the required loading.
- Choose the feed path: slurry or dry side feed.
- Select the metering element for the full flow range, not nominal output, with hardened wear surfaces.
- Size the dispersion step so agglomerates do not reach the mixing head.
- Fix the verification loop: shot weight, resistivity, and pressure logging.
Build the Dosing Specification Before You Buy the Machine
If you are specifying a new graphite-duty line or correcting an existing one, contact Haifeng Polyurethane Machinery at Info@chinahaifeng.com or WhatsApp: 86 13566296633. Send the graphite grade, loading, required throughput, and resistivity or flame target. We will propose a feed path and metering configuration matched to the material rather than recommend a generic machine.
Frequently Asked Questions
What graphite loading is needed for antistatic polyurethane?
There is no single number. It depends on the graphite type, particle size, surface area, and the base resin. Conductive compounds often require meaningful loadings, frequently in the 10–25 wt% range, while some synthetic grades act at different levels because of higher surface area [3]. The target surface resistivity, tested per a defined method, is the specification that matters [2].
Can I feed graphite through a standard PU pouring machine?
Not without checking the hardware. Unlined gear pumps, tight clearances, and fine filters fail early with graphite. The machine can sometimes be converted with hardened wear components, revised filtration, and a stirred or recirculated slurry feed, but this must be confirmed against the graphite grade rather than assumed.
Is expandable graphite handled the same as flake graphite?
Only in broad terms. Expandable graphite has larger particles, is commonly added at lower loadings, and cannot tolerate fine filtration or tight metering clearances. Because it functions as a flame-retardant filler, verification focuses on fire performance rather than surface resistivity.
Why does surface resistivity vary across a graphite-filled part?
The usual cause is uneven dispersion or settling in the feed. Agglomerates create isolated regions where the conductive network is incomplete, and a morning-shift pour from a stratified slurry can produce a part that is borderline despite a correct nominal loading. Measure resistivity from edge to center and log the slurry condition at each pour.
How often should graphite dosing hardware be inspected?
Base inspection on operating hours rather than visible failure. Log shot weight and differential pressure, and inspect metering element wear surfaces, seals, and liners on that schedule. The logs usually show drift before a failed part is caught at final testing.
References
[1] G. Wypych, Handbook of Fillers, 4th ed. Toronto, ON, Canada: ChemTec Publishing, 2016.
[2] Standard Test Methods for DC Resistance or Conductance of Insulating Materials, ASTM D257-14, ASTM International, West Conshohocken, PA, USA, 2014.
[3] H. Zweifel, R. D. Maier, and M. Schiller, Plastics Additives Handbook, 6th ed. Munich, Germany: Hanser Publishers, 2009.
[4] Electrostatics — Part 5-1: Protection of Electronic Devices from Electrostatic Phenomena — General Requirements, IEC 61340-5-1:2016, IEC, Geneva, Switzerland, 2016.
