MoS2-Modified MC Nylon Casting Solution
Ultrasonic additive dispersion, suspension circulation and reactive casting for modified MC Nylon bushing formulations.
Wear and Lubrication Process Engineering for Heavy Machinery Bearings
Ultrasonic additive dispersion, suspension circulation and reactive casting for modified MC Nylon bushing formulations.
Equipment and process scope
Heated monomer feed, configured ultrasonic preparation, additive circulation, metering/mixing and controls. Lubricant/additive chemistry, tooling and final wear qualification are separate.
Validation and production planning
Dry-friction coefficient, wear and grease-free life depend on specimen, load, speed and counterface. The reported 12-month/8,000-hour field run is not supported by the supplied implementation dates and March 2026 report without an earlier trial history. Powder suspension and additive compatibility require formulation trials.

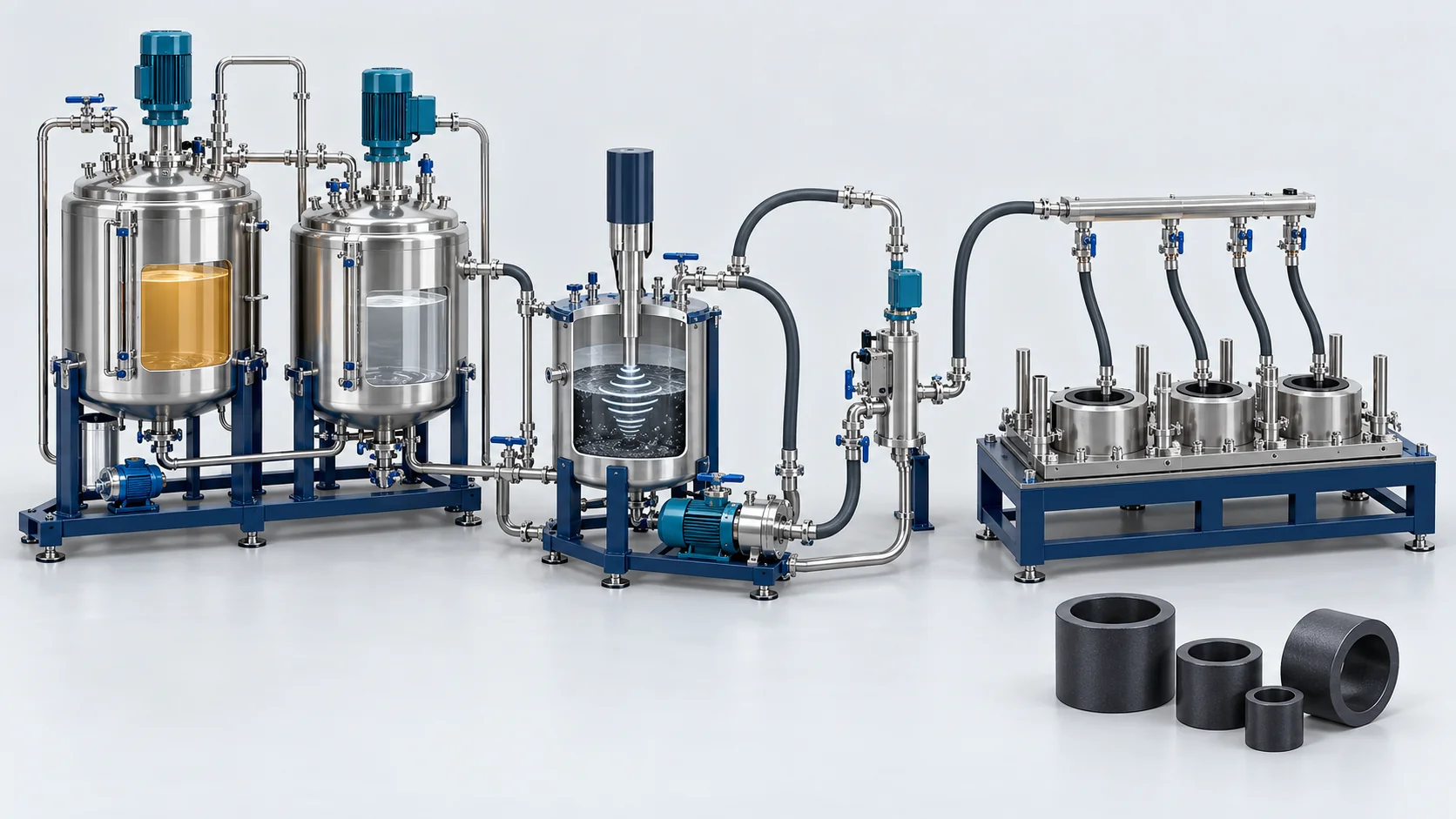

Heated monomer feed, configured ultrasonic preparation, additive circulation, metering/mixing and controls. Lubricant/additive chemistry, tooling and final wear qualification are separate. Dry-friction coefficient, wear and grease-free life depend on specimen, load, speed and counterface. The reported 12-month/8,000-hour field run is not supported by the supplied implementation dates and March 2026 report without an earlier trial history. Powder suspension and additive compatibility require formulation trials.Generated concept illustration for process discussion; not a photograph of the specified machine, a customer facility or a delivered project.
Turnkey Self-Lubricating Bushing Casting Workflow
Configuration sequence from the supplied brief. Material, tool, pressure/temperature basis and complete line balance require verification. Dry-friction coefficient, wear and grease-free life depend on specimen, load, speed and counterface. The reported 12-month/8,000-hour field run is not supported by the supplied implementation dates and March 2026 report without an earlier trial history. Powder suspension and additive compatibility require formulation trials.
Monomer Dehydration & Ultrasonic Dispersion
Supplied process reference: Caprolactam is dried at 135°C under 0.01 kPa vacuum; 3.5 wt% MoS₂ and 3.0 wt% oil are inducted and dispersed by 20 kHz ultrasonic horns.
High-Velocity Anti-Settling Fluid Recirculation
Supplied process reference: The filled monomer recirculates through thermal lines at > 1.5 m/s, preventing particle sedimentation during machine waiting intervals.
Wear-Resistant Ceramic-Lined Metering
Supplied process reference: Zirconia-lined gear pumps displace Stream A and Stream B (1:1 ratio) under Coriolis mass flow measurement within ±0.3% accuracy.
Reference Solution Engineering Envelope
Supplied configuration and validation references; material/component results are separate from equipment ratings.
| Parameter | Value / Unit | Applicable Configuration / Conditions |
|---|---|---|
| Continuous Casting Flow Rate | 3.0 to 25.0 kg/min | Zirconia ceramic-lined positive displacement pump skid; supplied configuration or material target, pending the applicable original records |
| Dynamic Friction Coefficient | 0.08 to 0.12 (Dry unlubricated friction) | ASTM G99 pin-on-disk test under 35 MPa contact pressure; supplied configuration or material target, pending the applicable original records |
| Ultrasonic Cavitation Frequency | 20 kHz (Continuous acoustic horn) | High-power ultrasonic generator inside molten vessel; supplied configuration or material target, pending the applicable original records |
| Supported MoS₂ Powder Loading | 1.0% to 6.0% by weight | Sub-micron 1– 3 µm particle size de-agglomerated; supplied configuration or material target, pending the applicable original records |
| Grease-Free Bushing Wear Life | Greater than or equal to 8,000 Hours | Verified radial wear under 0.1 mm in abrasive dust service; supplied configuration or material target, pending the applicable original records |
| Annealing Oil Bath Temperature | Up to 150°C | Multi-zone thermal oil immersion tank relieving stress; supplied configuration or material target, pending the applicable original records |
Core Equipment for This Solution
Heated monomer feed, configured ultrasonic preparation, additive circulation, metering/mixing and controls. Lubricant/additive chemistry, tooling and final wear qualification are separate.
Core Advantages of Haifeng Tribological Systems
Configured equipment functions and interfaces for the selected material and tooling.
0.08 Friction Superiority
Supplied configuration function: Synergistic MoS₂ and micro-oil encapsulation cuts dry friction to 0.08, one-third of standard cast nylon. Project-dependent performance requires validation.
20 kHz Ultrasonic Anti-Settling
Supplied configuration function: In-situ ultrasonic transducers break sub-micron particle clumps, maintaining complete powder suspension at 135°C. Project-dependent performance requires validation.
8,000-Hour Grease-Free Life
Supplied configuration function: Eliminates daily grease lubrication in harsh port dumper environments, with wear under 0.1 mm over 8,000 hours. Project-dependent performance requires validation.
Ceramic Anti-Abrasive Durability
Supplied configuration function: Zirconia ceramic sleeves and tungsten rotors resist aggressive wear from high-volume mineral powders. Project-dependent performance requires validation.

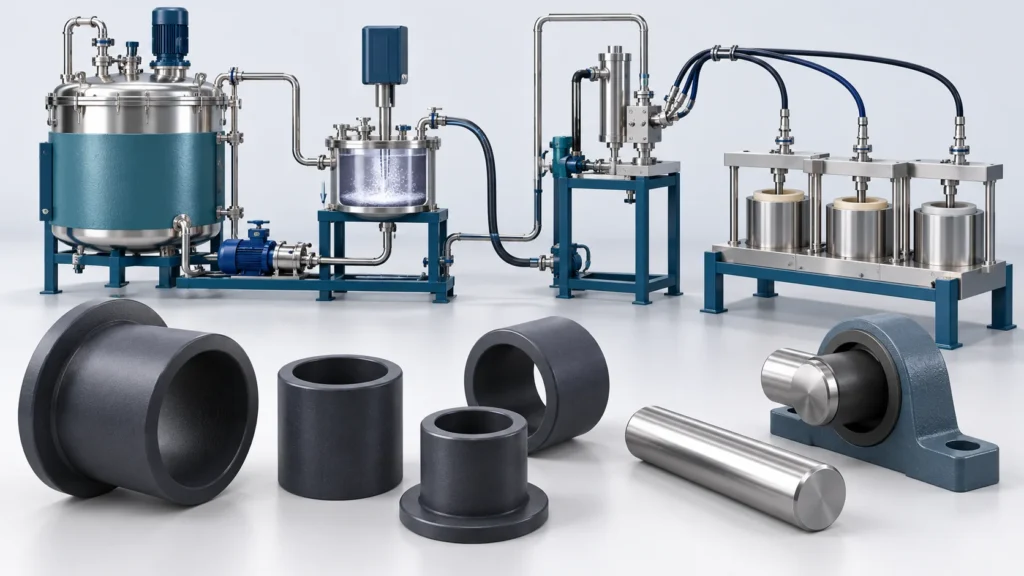

Related Project Draft
An anonymous project brief from the supplied document. Original attribution, dates, acceptance and outcome records require verification before public use.
Frequently Asked Questions
How does ultrasonic dispersion prevent MoS₂ powder settling at 135°C?
Why is the friction coefficient of this material reduced to 0.08?
What prevents abrasive MoS₂ particles from destroying metering pumps?
Can these bushings operate in wet port coal-dust environments without seizing?
