Demold time is one of those variables that looks small in a spreadsheet and compounds quickly on the plant floor. If a mold stays occupied an extra 60 seconds beyond the point of safe release, the cost is not one minute per mold. It is one minute multiplied by every mold in the rotation, every cycle in the shift, and every shift on the schedule.

Cellular foam sample with inset views of different pore structures

Why Demold Time Sits Inside the Output Equation

Production output from a casting or foaming line is not set by the machine’s nominal pouring rate alone. It is set by how many complete cycles the mold set finishes in a fixed amount of time.

Cycle time on a molded polyurethane part usually includes:

  1. Pouring or injection.
  2. Cream time and rise time for foam, or gel time for elastomers.
  3. Cure until the part reaches green strength.
  4. Demold.
  5. Mold cleaning, release-agent application, and mold closing.

Demold time is the boundary between two failure modes. If the part leaves the mold too early, it can distort, tear, or shrink. If it leaves too late, the mold is idle while it could already be filling again. A production team may therefore be paying twice: once for scrap from early release and once for lost capacity from late release.

The cure-to-release window is governed by reaction kinetics. The isocyanate and polyol reaction must proceed far enough to build molecular weight and crosslink density so the part can support itself [1]. The exact window depends on the system, temperature, part mass, and mold design, not on a fixed standard demold time printed in a general table.

The Cost of Demolding Too Early

Demolding too early does not always show up immediately. A part may look dimensionally stable on the line and then drift after cooling or after 24 hours in storage. Elastic parts may pass visual inspection and later fail compression set or springback checks because the network was not fully formed at release [2]. Molded foam with an underdeveloped internal structure can continue to rise, collapse, or shrink after release [3].

Too-early release also increases handling damage. During demolding, operators apply force to remove the part from the mold, and a weak green state turns that force into tears, dents, or stretched flash. Manual handling gives operators another reason to hold parts too long, particularly when they are not sure whether the material has reached the release window. That uncertainty creates a hidden buffer between the actual safe demold time and the scheduled demold time.

At the same time, early demold failures often erode the very output gain they were meant to create. If saving two minutes per mold generates one additional scrap part per ten cycles, the plant can lose more in material and rework than it gains in mold availability. The goal is not the shortest demold time; it is the shortest demold time that keeps the defect rate unchanged.

Demolding before the part reaches stable crosslink density is a common root cause of dimensional drift and sink marks. Causes Of Shrinkage In Polyurethane Foam How To Control It covers the formulation and mold-temperature levers that keep shrinkage under control.

The Cost of Demolding Too Late

Late demolding is easier to hide than early demolding because the part usually looks fine. The loss appears as lower utilization: molds wait closed after the part could already be released.

A simple example makes the effect clear. Suppose a line has eight single-cavity molds, and the full cycle is eight minutes including a four-minute safe demold wait. Each mold produces 7.5 parts per hour, so the line produces about 60 parts per hour. If the operator adds a two-minute safety buffer, the cycle becomes ten minutes, output falls to 48 parts per hour, and the plant loses 20 percent of capacity without buying any new equipment.

That two-minute buffer also consumes more than mold time. It occupies the machine station longer, delays the next pour, and can push a multi-station rotary line out of balance. On a rotary mold carrier, the carrier cannot index until the slowest station completes its task. A late demold at one station therefore becomes the cycle time of the entire carrier.

Late demold can also create quality problems of a different kind. Some thermoset polyurethane systems become more difficult to remove cleanly if held past a certain point because the part shrinks onto the core or the release agent loses effectiveness. Long mold residence can reduce flexibility in production scheduling, because a mold set tied up in an overcautious cycle is unavailable for an urgent order or small-batch changeover.

The decision to add a safety buffer is rational when it reduces scrap, but it should be treated as temporary. If the team does not record the actual demold window and instead keeps adding buffer over time, the line can lose output gradually without a single visible failure event.

What Actually Drives Demold Time

Demold time is a dependent variable. It is determined by the material system, mold temperature, part geometry, and equipment consistency.

First, the raw material system. Fast-gelling systems with high catalyst activity reach release strength earlier, but they also narrow the pouring window and can create flow marks or incomplete fill. Slow systems stay open longer and can fill large or complex molds more reliably, but they hold the mold longer. The demold time cannot be chosen separately from these properties.

Second, mold temperature. Higher mold temperature generally accelerates cure and shortens the safe demold time, but only within the system’s tolerance. A mold that is too hot can cause surface defects, internal stresses, or blowing and foaming issues. Temperature must be controlled uniformly across the mold area, not just at a single probe point [1]. Uneven mold temperature produces uneven cure, so the operator must wait for the coldest area of the part to reach release strength.

Third, part geometry and mass. Thinner sections cool and cure more quickly than thick sections. The demold time is set by the slowest point in the part, usually the thickest cross-section or the area farthest from the mold temperature control.

Fourth, equipment consistency. A machine that meters the component ratio within ±0.3 percent across the full dynamic range delivers a repeatable exotherm and repeatable demold window. A machine that drifts by ±2 percent can make some shots cure early and some shots cure late. Operators respond to that inconsistency by holding every shot longer than necessary just to be safe.

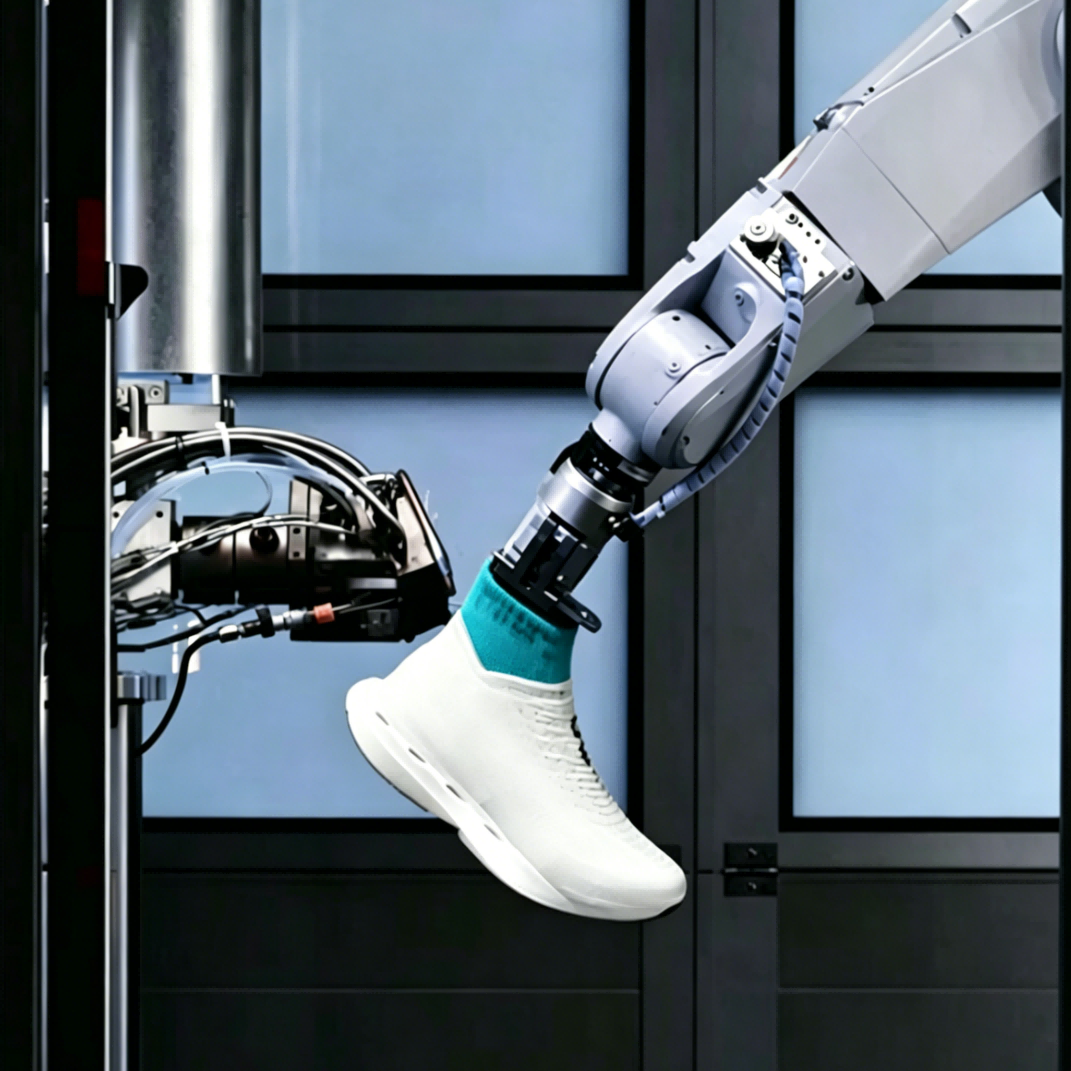

Robot handling a white shoe near a production fixture

These drivers explain why demold time cannot be copied from another plant. A four-minute demold that works in one polyurethane sole operation may be unsafe in another shop running a different polyol, a larger cavity, or a lower mold temperature.

For molded parts, accurate shot weight is one of the variables that determines whether a mold fills completely before the gel window closes. How To Calculate Shot Weight In Polyurethane covers the calculation and its effect on cycle reliability.

How Demold Time Changes the Output Math

The output equation for a mold-limited line is:

parts per hour = (molds × 60) / cycle time in minutes

The formula assumes one cavity per mold and no multi-cavity factor. Add cavities by multiplying by the number of cavities.

The easiest way to evaluate a demold-time change is to compare the same line before and after. For instance, if a line has twelve molds and a cycle time of 8.5 minutes, output is 12 × 60 / 8.5, or about 84.7 parts per hour. Reducing the safe demold wait by 1.5 minutes shortens the cycle to 7 minutes and raises output to about 102.9 parts per hour. The extra 18 parts per hour is equivalent to adding more than two molds to the rotation without buying them.

But the same math only helps if the shorter demold time is real. Cutting the clock without changing the material, temperature, or part design simply increases scrap. The 18 extra parts per hour disappear if two of every hundred are reworked or rejected for dimensional drift, sink marks, or poor compression set [2].

A better approach is to measure the three variables that make the demold window real:

  • Green strength at release.
  • Dimensional stability after 24 hours.
  • Scrap and rework rate at the new demold time.

If those variables hold, the faster demold time adds capacity. If they drift, the old demold time was not a buffer; it was part of the process.

Rolled colored flexible sheet materials

Equipment Decisions That Shorten Demold Time Safely

Equipment can shorten demold time by making cure more consistent, not by bypassing cure. The most useful levers are mold temperature control, metering repeatability, mold handling, and release-agent management.

Closed-loop mold temperature helps because it removes the main excuse for holding parts too long. If the operator can see that the mold surface is held within a narrow band, the release decision depends on a measured state rather than a guess. This is especially relevant for thick-section elastomer castings, where the center of the part must cure while the surface remains within tolerance.

Metering repeatability matters for the same reason. If the A/B ratio stays within ±0.3 percent over the production run, the exotherm peak and gel profile stay stable, and the safe demold window becomes predictable. A machine with repeatable metering lets the plant schedule demold at a fixed time without adding a safety factor for shot-to-shot variation.

Mold carriers and mold-change design also affect output when demold time changes. A rotary mold carrier does not shorten cure, but it lets the operator perform demold, release application, and mold preparation at separate stations while the rest of the molds continue curing. This reduces the pressure to pull a part early just because the operator needs to start the next cycle.

At Haifeng, one of the clearest examples came from a rail pad line in Hebei. A compact split-modular rotary disc system with a precision pouring nozzle and closed-loop mold temperature lifted daily output from about 80 pads to more than 200 pads. The gain did not come from cutting cure time; it came from making each part reach a stable release condition more consistently and moving the mold through the station faster. The same pattern applies to soles, elastomer rollers, and structural foam parts once the demold window is understood.

Square coated-fabric material swatches in brown, black and gray

The demold decision for cast elastomers is tied to the full casting-to-cure sequence, including mold temperature and post-cure. How Polyurethane Rollers Are Made From Casting To Cure covers the process stage by stage.

If the cycle math does not close, send your current shot weight, mold count, and target daily output to Info@chinahaifeng.com or message 86 13566296633 on WhatsApp. A process engineer will help you test whether demold time can move without raising scrap.

A Practical Demold-Time Checklist

Use this sequence before changing the demold clock:

  1. Record the current cycle breakdown: pour time, cure time, demold time, mold open/close time.
  2. Measure mold temperature at the slowest-curing area, not just the inlet.
  3. Run a release trial at the proposed shorter demold time and check green strength, surface finish, and dimensional stability after 24 hours.
  4. Count scrap and rework at both the current and proposed demold times.
  5. Compare the output gain from shorter demold time with the capital cost of adding molds or cavity stations.
  6. Lock the new demold time only after the quality metrics remain stable over at least three shifts.

Steady production output comes from a repeatable demold window, not from a shorter number written on a traveler.

Need help cutting demold time? Send your current cycle breakdown, part geometry, and material system to Info@chinahaifeng.com or WhatsApp 86 13566296633. We respond with process-level suggestions, not a brochure.

Frequently Asked Questions

What is a realistic demold time for molded polyurethane foam?

There is no universal answer. A molded foam sole may release in 3 to 6 minutes under controlled mold temperature, while a thick structural foam part may require substantially longer. The realistic demold time is the time at which the part has enough green strength to be handled without distortion and passes dimensional checks after cooling.

Can I reduce demold time by lowering mold temperature?

Usually the opposite. Lowering mold temperature slows the reaction and tends to lengthen the safe demold time. Raising mold temperature shortens demold time up to the system’s temperature limit, but excessive heat can create surface defects and internal stress. The temperature must remain within the range recommended for the material system.

Does faster demolding always increase production output?

Only if scrap does not rise. Faster demolding increases mold availability, but if parts are released too early, the plant may lose the extra output to rework, dimensional drift, or customer returns. Output increases when the demold time is shortened to the real safe release point, not below it.

How do I know if a part is ready to demold?

A simple field check is to demold a test part and measure it after cooling and after 24 hours. The part should not show surface tears, sink marks, excessive flash stretch, or measurable dimensional changes. For many molded foam and elastomer parts, the safe release point also correlates with the part being warm but not fully retaining heat from the exotherm.

Is there a universal demold time for all polyurethane parts?

No. Demold time must be developed for the specific mold, part geometry, and material system. Close mold temperature control and precise metering make the window repeatable, but each line must still confirm the shortest safe release time on its own process.

References

[1] G. Oertel, ed., Polyurethane Handbook, 2nd ed. Munich: Hanser, 1994.

[2] ASTM D3574-17, Standard Test Methods for Flexible Cellular Materials—Slab, Bonded, and Molded Urethane Foams. ASTM International, 2017. https://www.astm.org/d3574-17.html

[3] ISO 845:2006, Cellular plastics and rubbers — Determination of apparent density. International Organization for Standardization, 2006. https://www.iso.org/standard/39408.html
