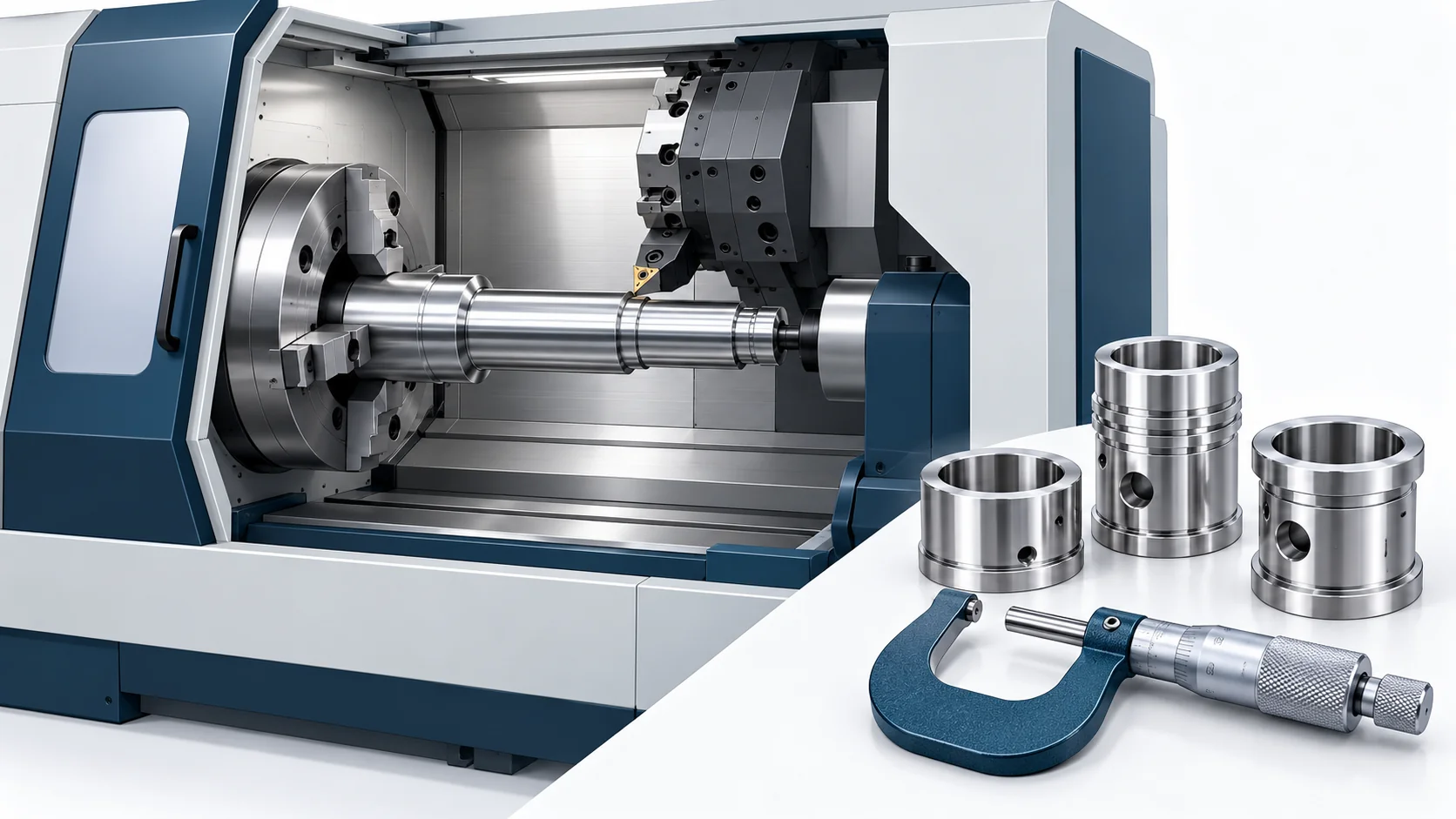

Standard Operating Procedure (SOP) for CNC Turning: Process Accuracy Specifications

[Haifeng Process Standards Quick Reference]

The metering accuracy of Haifeng polyurethane equipment depends heavily on the CNC turning accuracy of critical rotating components. Every 0.005 mm deviation in the metering-pump plunger journal tolerance can reduce clearance uniformity between the plunger and cylinder sleeve by more than 20%, causing metered-flow fluctuation above 1.5% and degrading ratio accuracy from ±0.3% to more than ±0.5%. Clearance between the mixing-head valve core and sleeve must be 0.005–0.015 mm, and sealing-surface roughness must be Ra ≤0.2 μm; otherwise, internal leakage during switching can upset the raw-material ratio.

Key process parameters at a glance:

1. Scope

1.1 Applicable operations

This SOP applies to CNC turning of these precision rotating parts for Haifeng polyurethane equipment:

2. Pre-Job Preparation and Machine Accuracy Verification

2.1 Review technical documents

2.2 Verify machine accuracy

Calibrate the CNC lathe regularly under its calibration procedure. Calibration error for critical parameters must be ≤0.003 mm.

2.3 Verify tool accuracy

Tool geometry directly affects dimensional accuracy and surface quality. Common CNC-lathe tools include OD turning tools, boring bars, grooving tools, and threading tools. Main cutting-edge radial circular runout must be ≤0.01 mm.

3. Structured CNC Turning Workflow

3.1 Pre-shift preparation and warm-up

3.1.1 Confirm machine status

Switch on the main power, then start the machine and CNC system. After the self-check completes without alarms, home each axis. The recommended sequence is X, then Z, to establish the machine coordinate system. After homing, warm up unloaded at low speed so spindle-bearing and guideway lubricant films distribute evenly and thermal deformation has less effect on accuracy.

Minimum warm-up times:

Thermal displacement accounts for approximately 40%–70% of machine-tool machining error. Lathe thermal displacement has an initial transient phase (the first three hours) and a later steady-state phase (after three hours); accuracy changes more sharply during the first phase.

3.1.2 Check coolant and lubrication systems

Check coolant level and concentration: use 8%–12% emulsion for stainless steel and 5%–8% for aluminum alloy. Check guideway lubricant and confirm the automatic lubrication system works. For precision machining, keep coolant at 20±2°C.

3.2 Clamp the workpiece and establish datums

3.2.1 Control clamping accuracy

Secure clamping directly affects machining safety and accuracy. Before clamping, clean chuck jaws and workpiece locating surfaces and remove burrs and oil.

3.2.2 Control tool-setting accuracy

Tool setting links the program coordinate system to the physical workpiece. Set each tool independently and enter its compensation value. Haifeng requires accuracy within ±0.003 mm. For critical parts such as metering-pump plungers and mixing-head valve cores, use a high-accuracy presetter or in-machine probe.

Select a tool-setting method:

3.3 Validate the program and cut the first article

3.3.1 Program simulation and dry run

Before automatic machining, use CNC graphical simulation or Dry Run mode to check for abnormal tool retraction, undefined axis movement, or possible collision with the chuck. Verify that the G codes at the beginning and end of the program (such as G90/G91 and G96/G97) match the intended operation.

3.3.2 First-article trial cut

Apply a “verify at low speed” approach to the first trial cut. Set feed override below 50% and enable Single Block mode. After machining the first feature (such as a face or OD), pause and measure critical dimensions with a micrometer or suitable gauge. Fine-tune tool compensation or work-coordinate offset if needed. Resume continuous machining at 100% override only after the part passes inspection.

3.4 Cutting parameters and accuracy control

3.4.1 Material groups and cutting parameters

CNC turning for Haifeng equipment mainly involves alloy tool steel, stainless steel (304/316L), aluminum alloy (6061/7075), and 17-4PH precipitation-hardening stainless steel.

Recommended turning parameters for 316L stainless steel (coated carbide tools):

For stainless steel such as 316L, use 120–180 m/min to control heat and extend tool-coating life. Proper speed control lowers the risk of premature tool fracture from work hardening. Since molybdenum makes 316L more prone to work hardening than 304, use a high-feed, moderate-depth-of-cut strategy and avoid repeatedly cutting a hardened layer.

Recommended turning parameters for aluminum alloy (6061-T6/7075):

The recommended cutting speed for aluminum alloy such as 6061-T6 is 300–800 m/min. With high-pressure coolant, speed can exceed 1000 m/min. An appropriate high speed can significantly reduce cycle time per part.

3.4.2 Relationship between surface roughness and feed

Feed rate directly controls surface-texture height. The theoretical roughness relationship is approximately:

Rz ≈ (f² ÷ 8rε) × 1000 (μm)

Where f = feed (mm/rev) and rε = tool nose radius (mm).

Recommended parameters by roughness requirement:

3.4.3 Control and compensate for thermal deformation

Thermal-deformation error is a key factor affecting CNC lathe accuracy. Apply these controls:

1. Warm up: Run the spindle unloaded at machining speed for 20–45 minutes so bearings and ball screws reach thermal equilibrium.

2. Control coolant: Maintain cutting-fluid temperature at 20±2°C to prevent heat from expanding the workpiece and tool.

3. Online compensation: Enable thermal-error compensation during long continuous operations. Systematic thermal management can reduce temperature-related machining error by more than 60%. Turning validation has shown error reductions above 75% across repeated machining and cold-start conditions.

4. Ambient temperature: Maintain the precision-machining area at 20±2°C.

3.4.4 Monitor tool wear

3.5 In-machine inspection and closed-loop machining

For IT5–IT6 precision parts such as metering-pump plungers and mixing-head valve cores, use in-machine inspection for a machining-inspection closed loop. One-way probe repeatability must be ≤0.002 mm.

Procedure:

1. After semi-finishing, call the in-machine inspection program.

2. The probe automatically contacts key points (OD, bore, face, groove dimensions, etc.).

3. The system compares measurements with tolerance requirements.

4. If deviation exceeds the warning range, the system automatically corrects tool compensation.

5. Finish the part after correction and confirm final dimensions pass.

4. Key Parameters for CNC Turning Accuracy

5. Common Problems and Process Pitfalls

5.1 Thermal deformation causes precision-part dimensional drift

Symptom: Parts that pass in the morning show a systematic OD increase in the afternoon (typically 0.005–0.02 mm), or dimensions drift during continuous machining. Chatter or waviness appears on the turned surface, and finish is out of specification.

Root cause: Cutting and friction heat expand the lathe spindle, ball screws, and workpiece. Thermal displacement accounts for approximately 40%–70% of machine-tool error. Lathe thermal displacement has an initial transient phase (first three hours) and a steady-state phase (after three hours); accuracy changes more sharply during the first phase. Spindle axial growth can reach 0.01–0.03 mm, and ball-screw growth can reach 0.02–0.05 mm over a 1 m travel. For Haifeng parts with tolerances of only ±0.005 mm, thermal deformation is a primary cause of batch accuracy drift.

Corrective actions:

1. Warm up the spindle unloaded at machining speed for 20–45 minutes; start only after thermal equilibrium.

2. Enable thermal-error compensation during long continuous runs; systematic thermal management can reduce temperature-related error by more than 60%.

3. Schedule finishing during the stable period after the machine reaches thermal equilibrium.

4. Use a staged process for precision parts: rough machining, natural cooling, then finish machining.

5.2 Tool wear causes gradual dimensional drift

Symptom: Batch OD dimensions drift in one direction from the tolerance midpoint toward an upper or lower limit, and CV increases.

Root cause: Flank wear reduces actual depth of cut (making an OD too large or a bore too small). As the edge dulls, cutting resistance increases and dimensional deviation becomes more likely. For IT5–IT6 precision parts, every 0.01 mm increase in flank wear can cause a dimensional deviation of about 0.005–0.01 mm.

Corrective actions:

1. Maintain a tool-life log and set replacement intervals by material and cutting parameters.

2. Sample-check critical dimensions every 10–20 parts; adjust tool compensation immediately if one-way drift appears.

3. Use a new or properly reground cutting edge for precision finishing; do not use a tool that has already performed roughing.

4. For 316L, use TiAlN- or AlTiN-coated carbide tools to improve resistance to crater wear.

5.3 Slim shafts bend during machining

Symptom: When turning a shaft with length-to-diameter ratio above 25, the center bends, cylindricity and straightness fall out of tolerance, and chatter marks appear.

Root cause: Slim shafts have low rigidity and are prone to chatter and deformation. Radial cutting force pushes the workpiece away from the tool, reduces actual depth of cut, and makes the middle diameter too large, producing a “barrel” shape. A follower rest helps resist radial and vertical cutting forces.

Corrective actions:

1. Support the workpiece with a follower rest; fit its fingers precisely to the finished surface.

2. Use reverse turning (feed from chuck toward tailstock) so the workpiece is under axial tension rather than compression.

3. Select a tool with a 93° entering angle to generate greater axial force and lower radial force, reducing shaft deflection.

4. Use progressively lighter cuts; reduce depth gradually after roughing to release residual stress.

5. For ultra-slim shafts (L/D >50), consider ultrasonic-vibration-assisted cutting.

5.4 Excessive sealing-surface roughness causes internal leakage

Symptom: Mixing-head valve-core/sleeve mating surfaces exceed Ra 0.2 μm; internal leakage during switching disrupts the raw-material ratio.

Root cause: Feed is too high or the tool nose radius is unsuitable. Roughness increases with the square of feed and decreases as nose radius increases. If finishing feed exceeds 0.10 mm/rev or nose radius is below 0.4 mm, Ra ≤0.2 μm is difficult to achieve. Worn edges or machine vibration also worsen roughness.

Corrective actions:

1. Keep finishing feed at 0.03–0.06 mm/rev and use a 0.4 mm tool nose radius.

2. Use a wiper insert to achieve better finish at higher feed.

3. If needed, add a lapping operation; lapping can reduce roughness to Ra ≤0.1 μm.

4. Inspect 100% of sealing surfaces after turning with a surface-roughness tester; nonconforming parts must not proceed.

5.5 Insufficient thread accuracy causes pipeline leakage

Symptom: Pipeline-fitting threads are too loose or tight, and the assembly fails the airtightness test (leakage at 0.02 MPa for 30 minutes).

Root cause: Thread angle, pitch, or pitch diameter is out of tolerance. Accuracy depends on machine condition, tool geometry, program accuracy, cutting parameters, material properties, and tool wear. For sealing threads, every 0.02 mm excess pitch-diameter deviation reduces contact area by about 15%, lowering sealing reliability.

Corrective actions:

1. Set the threading-tool tip slightly above workpiece center by 1% of the diameter to prevent digging in.

2. Select G32 straight infeed for high accuracy or G76 angled infeed for roughing, as appropriate.

3. Check every thread with a thread ring/plug gauge and confirm 6H/6g accuracy.

4. For sealing threads, perform both GO and NO-GO gauge checks.

5.6 Clamping deformation puts thin-wall sleeves out of round

Symptom: Thin-wall parts such as mixing-head valve sleeves become oval or out of tolerance after machining and spring back when unclamped.

Root cause: Excessive clamping force or poorly distributed clamping points elastically deform the part while held. The tool cuts material from this deformed state; springback after unclamping shifts actual dimensions. Thinner sleeve walls are more susceptible.

Corrective actions:

1. Use a precision hydraulic chuck instead of a three-jaw chuck; its force can be adjusted and distributed evenly.

2. Use axial clamping with auxiliary radial support to avoid concentrated radial force.

3. After roughing, release the fixture and allow the part to cool naturally; then finish with lower clamping force.

4. For high-accuracy thin-wall sleeves, use a dedicated mandrel fixture with mandrel-to-bore clearance ≤0.005 mm.

5. Reduce finishing feed as appropriate (0.03–0.08 mm/rev) to limit cutting-force deformation.
