Resin Transfer Molding Production Solution

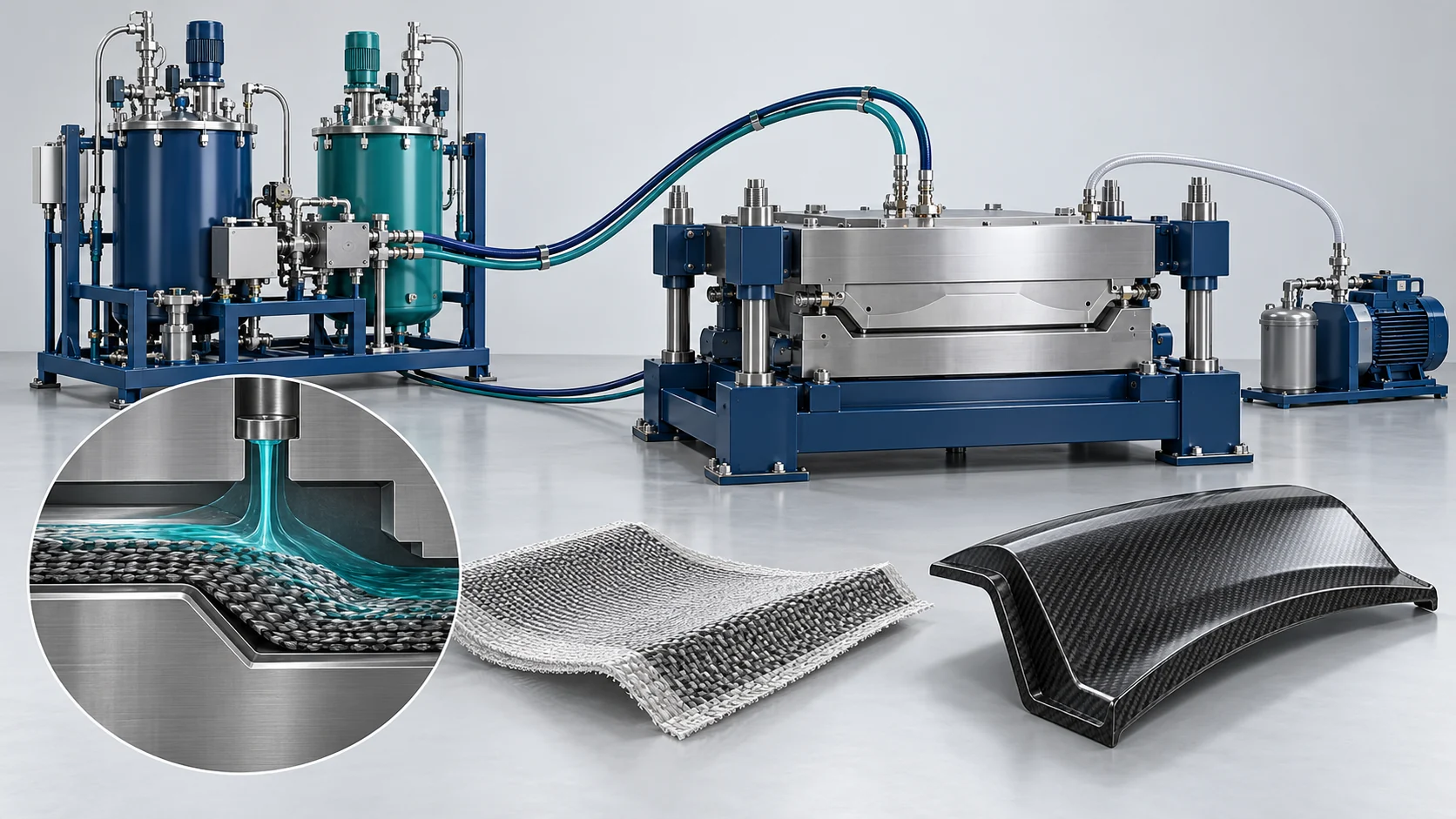

Build an RTM workflow for injecting a qualified liquid resin into dry reinforcement within a closed matched tool.
Build the Process Around Your Product
Build an RTM workflow for injecting a qualified liquid resin into dry reinforcement within a closed matched tool.
Product and material first
Start with the finished-product drawing, material system and acceptance requirements. The process route and equipment configuration are assessed together.
Capacity across the whole process
Define output with preparation, forming/reaction, curing, handling and inspection included. The slowest stage and product changes determine practical line capacity.
Haifeng configures resin feeding/metering/mixing with agreed preforming, tool, clamp, cure and inspection interfaces. No generic PU product is represented as automatically qualified for every resin.
From Preparation to Qualified Product
A planning sequence for the specified route. Final settings and acceptance conditions are established through material and part review.
Design the preform and flow
Review fiber architecture, resin viscosity, permeability and gate/vent positions.
Prepare the closed tool
Load the preform and inserts; confirm sealing, temperature and clamping.
Prepare and meter resin
Condition resin components and use the qualified mixing and degassing arrangement.
Information Needed to Configure the Line
Provide these inputs so the equipment range, interfaces and validation plan can be defined.
| Design input | Information required |
|---|---|
| Laminate design | Fiber form, volume fraction, thickness and inserts |
| Resin | Component ratio, viscosity, gel/cure window and material data |
| Tooling | Gate/vent layout, clamp and thermal capability |
| Production | Cycle, automation and quality targets |
Coordinate the Equipment With the Process
Evaluate repeatability, handling and acceptance across the full workflow.
Material-specific configuration
Component circuits, thermal control, mixing and receiving equipment are matched to the approved chemistry and processing window.
Defined interfaces
Haifeng configures resin feeding/metering/mixing with agreed preforming, tool, clamp, cure and inspection interfaces. No generic PU product is represented as automatically qualified for every resin.
Documented acceptance
The proposal defines trials, process records, inspection responsibilities and product-specific acceptance conditions.
Frequently Asked Questions
Clarify the production route before selecting a machine.
Is RTM the same as the whole LCM family?
What information is needed to size the production line?
What is included in the equipment package?
Are cycle time and finished-product performance fixed?
Submit Your Production Goals
Share the finished product, material, target capacity, automation requirements and factory conditions to discuss a project-specific line configuration.
