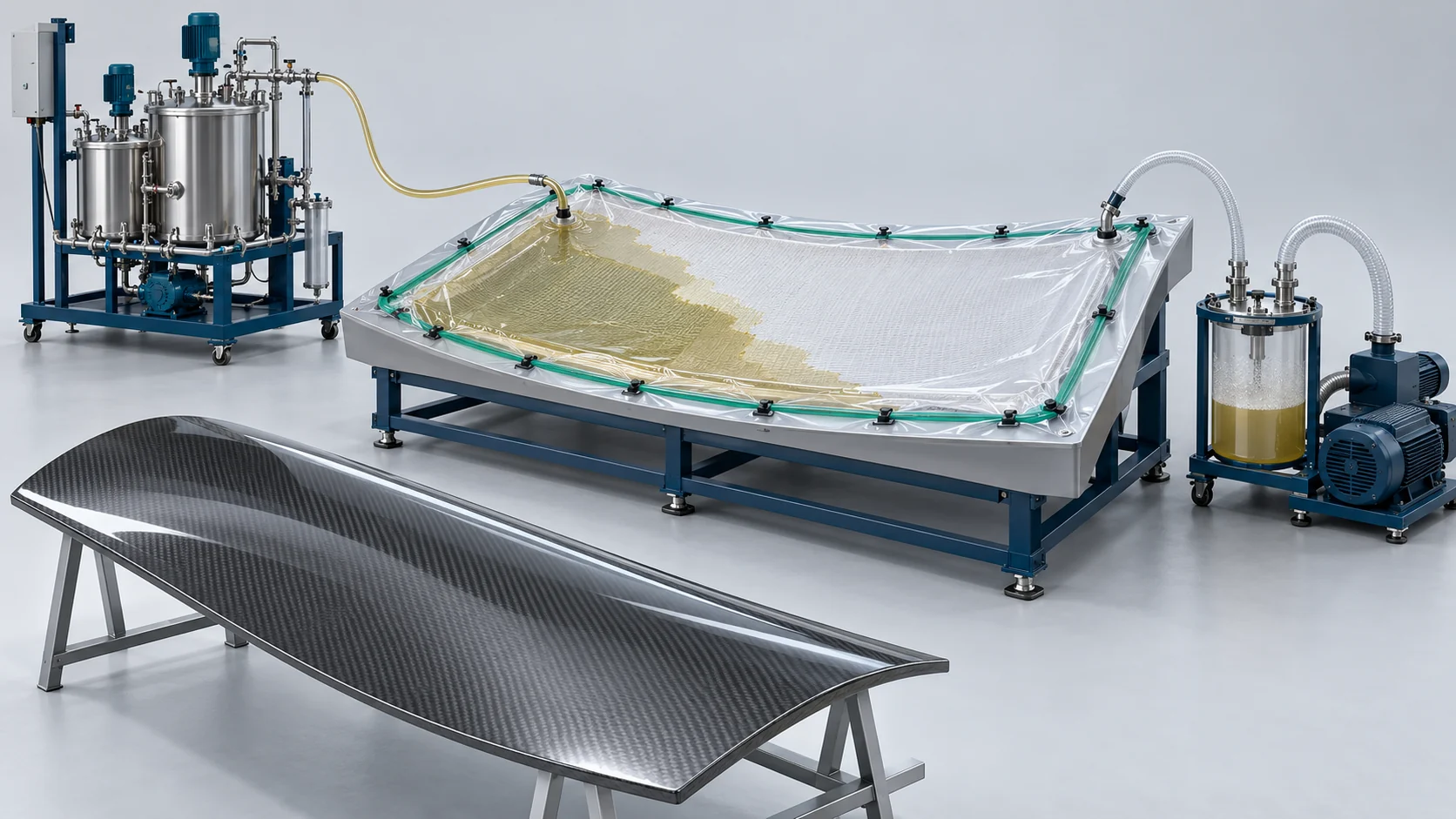

Vacuum Infusion Composite Production Solution
Plan vacuum infusion molding with dry reinforcement, a sealed bag arrangement and controlled resin delivery.
Build the Process Around Your Product
Plan vacuum infusion molding with dry reinforcement, a sealed bag arrangement and controlled resin delivery.
Product and material first
Start with the finished-product drawing, material system and acceptance requirements. The process route and equipment configuration are assessed together.
Capacity across the whole process
Define output with preparation, forming/reaction, curing, handling and inspection included. The slowest stage and product changes determine practical line capacity.
Haifeng resin preparation/metering/mixing interfaces with vacuum, bagging, tooling and cure equipment as agreed. Vacuum infusion is grouped under LCM.
From Preparation to Qualified Product
A planning sequence for the specified route. Final settings and acceptance conditions are established through material and part review.
Plan infusion
Review laminate, permeability, flow media and resin inlet/vacuum layout.
Lay up and bag
Position dry fibers and inserts, apply bagging materials and check leaks.
Prepare resin
Condition and mix the approved resin while controlling usable process time.
Information Needed to Configure the Line
Provide these inputs so the equipment range, interfaces and validation plan can be defined.
| Design input | Information required |
|---|---|
| Part | Geometry, laminate and inserts |
| Infusion layout | Bag materials, flow media, inlet/outlet and leak criteria |
| Resin | Viscosity, pot life, mixing and cure instructions |
| Factory | Vacuum, thermal equipment and handling |
Coordinate the Equipment With the Process
Evaluate repeatability, handling and acceptance across the full workflow.
Material-specific configuration
Component circuits, thermal control, mixing and receiving equipment are matched to the approved chemistry and processing window.
Defined interfaces
Haifeng resin preparation/metering/mixing interfaces with vacuum, bagging, tooling and cure equipment as agreed. Vacuum infusion is grouped under LCM.
Documented acceptance
The proposal defines trials, process records, inspection responsibilities and product-specific acceptance conditions.
Frequently Asked Questions
Clarify the production route before selecting a machine.
Is VIMP the same process as VBO prepreg curing?
What information is needed to size the production line?
What is included in the equipment package?
Are cycle time and finished-product performance fixed?
Submit Your Production Goals
Share the finished product, material, target capacity, automation requirements and factory conditions to discuss a project-specific line configuration.
