Rail Mounted Horizontal Foam Slicer | Long Foam Buns
Slices long foam buns into sheets using digital thickness settings and automatic reciprocating rail travel. It can form part of the downstream cutting arrangement of a slabstock plant.
Equipment
Rail Mounted Horizontal Foam Slicer
Application
Long Foam Buns
Configuration
2 listed options

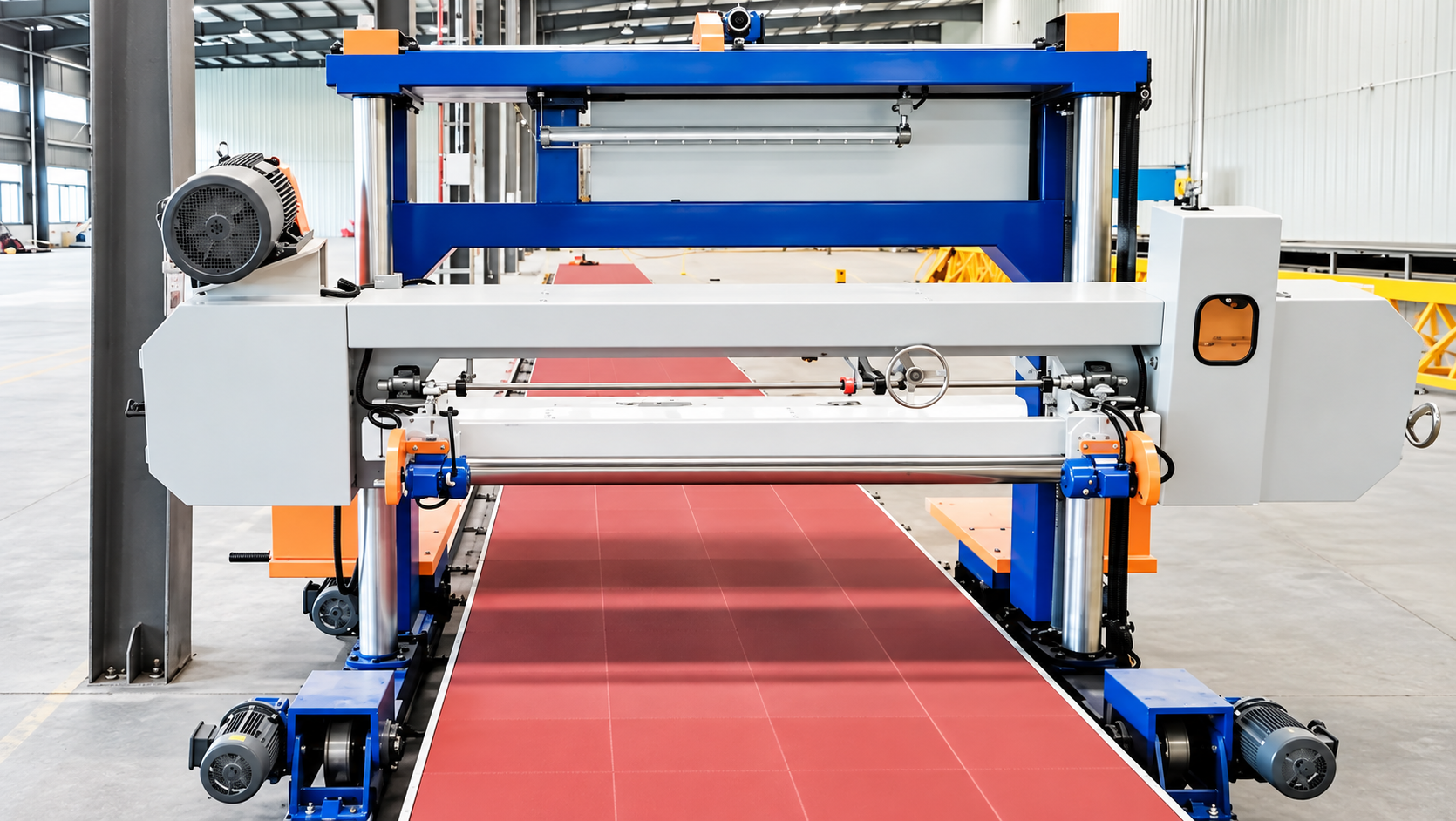

Product Overview
Slices long foam buns into sheets using digital thickness settings and automatic reciprocating rail travel. It can form part of the downstream cutting arrangement of a slabstock plant.
Slices long foam buns into sheets using digital thickness settings and automatic reciprocating rail travel. It can form part of the downstream cutting arrangement of a slabstock plant.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval.
| Technical Parameter | Configuration A | Configuration B |
|---|---|---|
| Dimensions (L×W×H) | 3600 × 2200 × 2350 mm | 4500 × 2200 × 2350 mm |
| Cutting width | 1650 mm | 2450 mm |
| Cutting height | 1350 mm | 1350 mm |
| Cutting thickness | 2–60 mm | 2–60 mm |
| Travel speed | 0–60 m/min | 0–60 m/min |
| Blade length | 6780 mm | 8970 mm |
| Total power | 10.38 kW | 10.38 kW |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Digital thickness control
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Reciprocating rail cutting
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Optional automatic receiving
Optional configuration to be agreed for the application.
Optional automatic edge trimming
Optional configuration to be agreed for the application.
