Foam Sheet Joining Machine | Continuous Foam Webs
Joins foam rolls into a continuous web. Joining time is adjusted for foam density and thickness, and the machine can be paired with a length meter and rewinder.
Equipment
Foam Sheet Joining Machine
Application
Continuous Foam Webs
Configuration
2 listed options

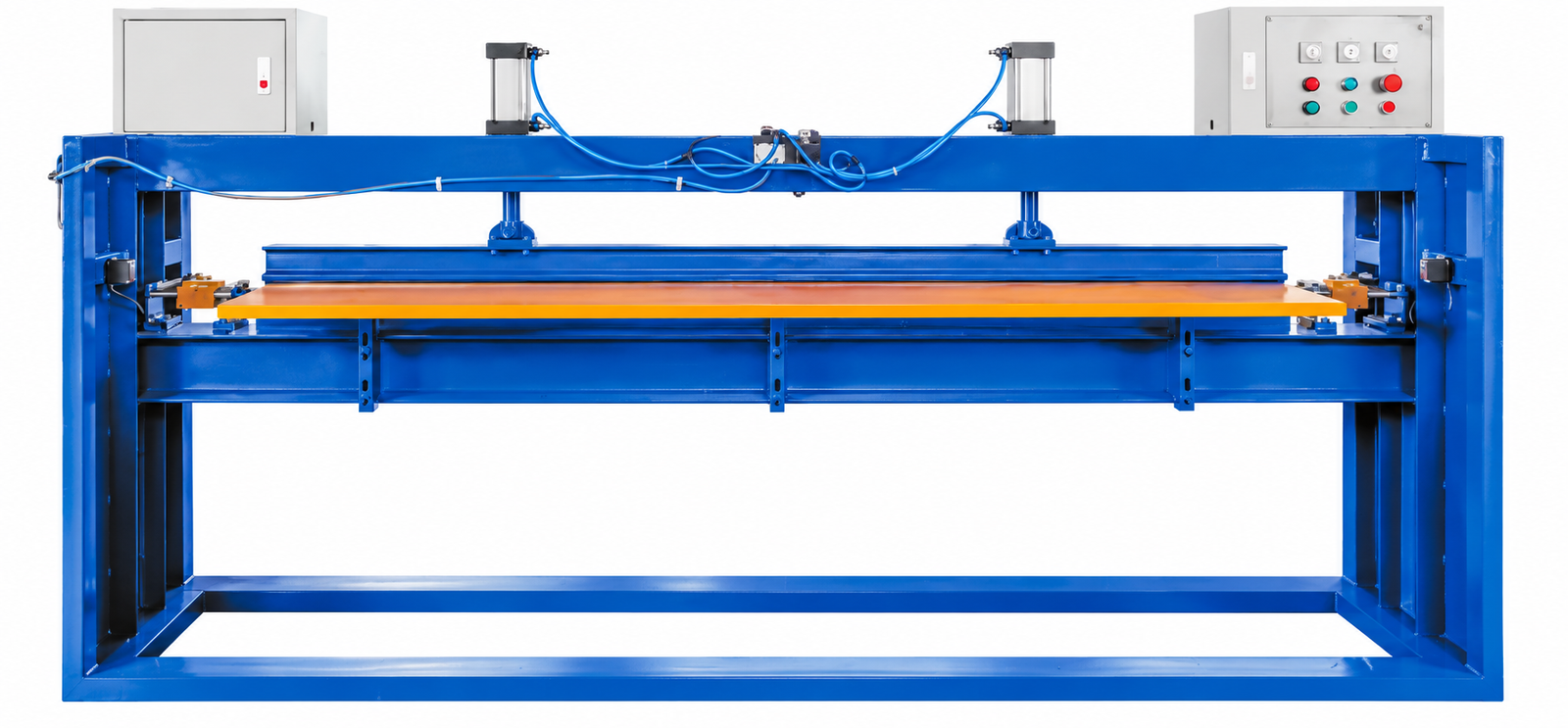

Product Overview
Joins foam rolls into a continuous web. Joining time is adjusted for foam density and thickness, and the machine can be paired with a length meter and rewinder.
Joins foam rolls into a continuous web. Joining time is adjusted for foam density and thickness, and the machine can be paired with a length meter and rewinder.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval. Joining mechanism and consumables need confirmation; no sewing, adhesive or thermal method is specified.
| Technical Parameter | Configuration A | Configuration B |
|---|---|---|
| Dimensions (L×W×H) | 2600 × 1000 × 1500 mm | 3000 × 1000 × 1500 mm |
| Joining width | 1650 mm | 2150 mm |
| Listed joining thickness | 0–20 mm | 0–20 mm |
| Total power | 3 kW | 3 kW |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Adjustable joining time
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Foam-web joining
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Length-meter and rewinder integration
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Related Foam Processing Equipment
Compare equipment options for the selected process. Not every listed machine is required for every project.
Foam Handling Clamp | Slabstock Foam Handling
Polyurethane Machinery &Equipment
Precision Vacuum Horizontal Foam Cutter | Thin Foam Sheets
Polyurethane Machinery &Equipment
High Density Rail Foam Slicer | High Density Foam Sheets
Polyurethane Machinery &Equipment

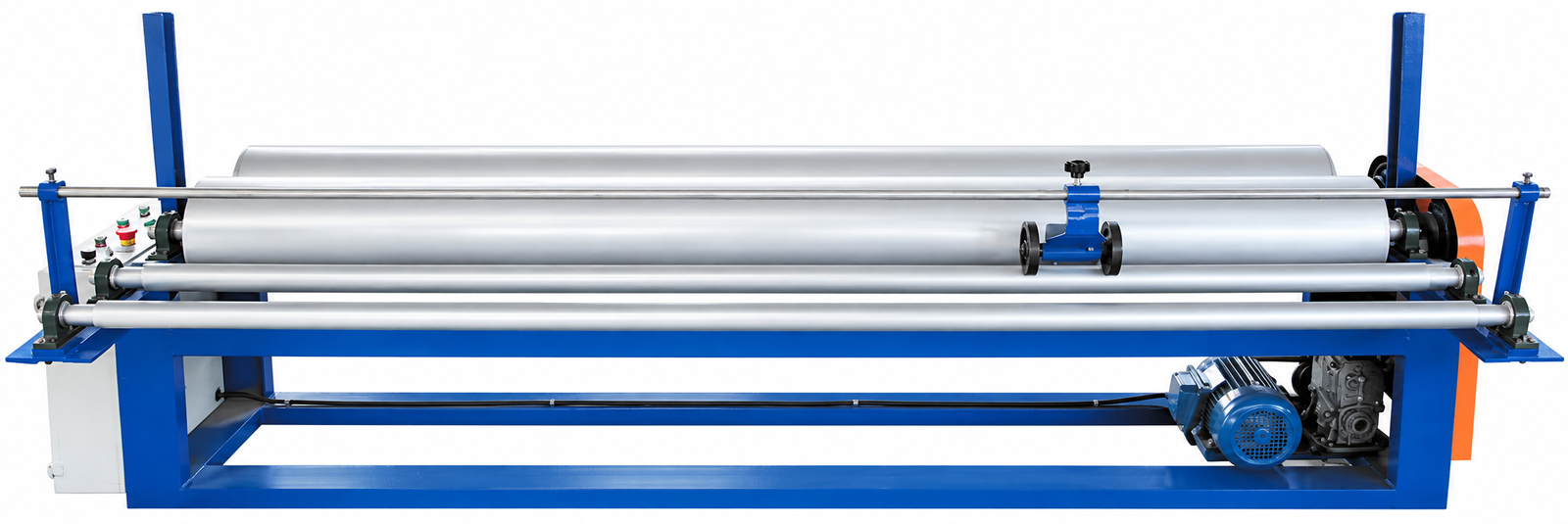

Foam Length Meter and Rewinder | Foam Web Finishing
