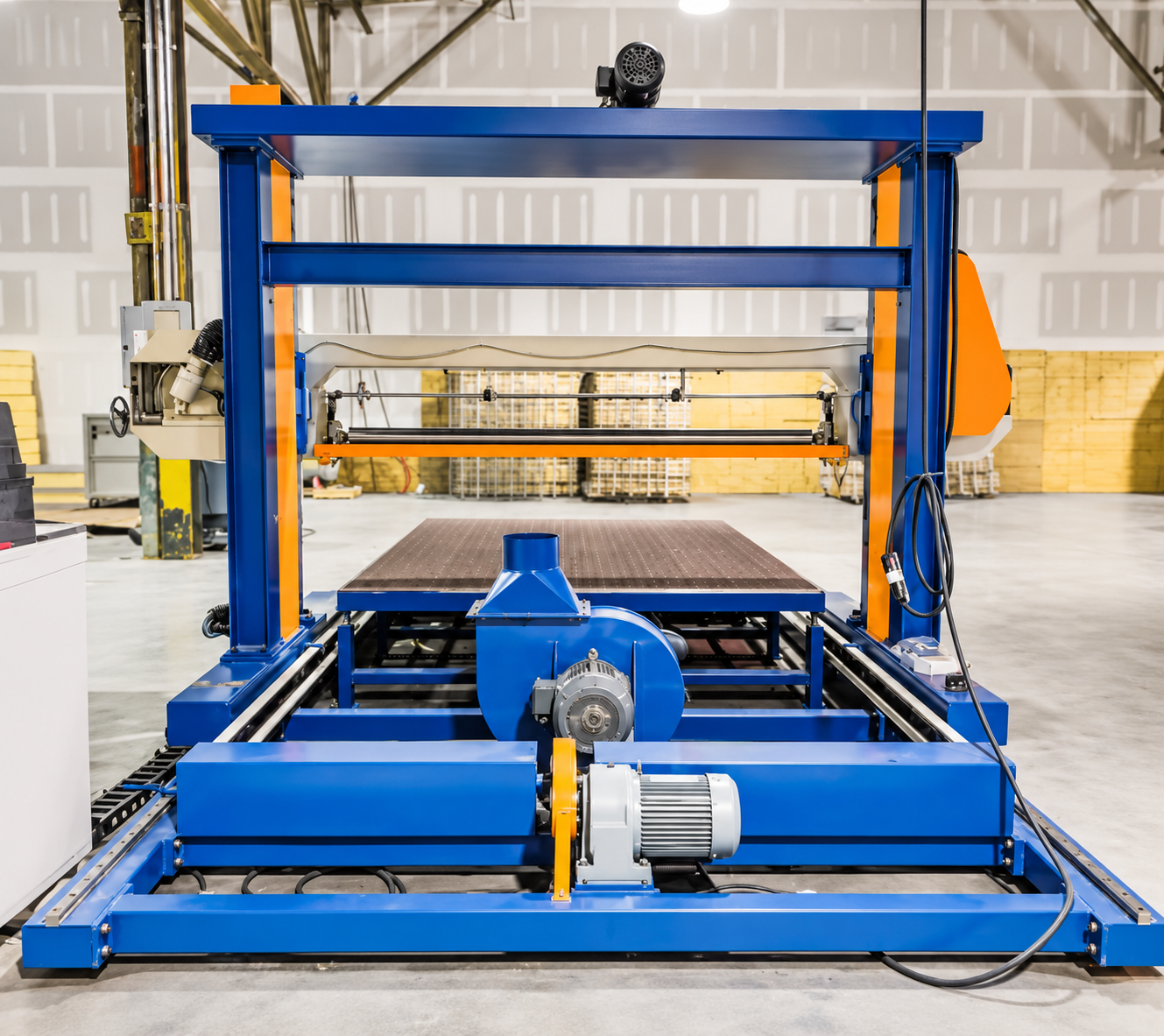

Precision Vacuum Horizontal Foam Cutter | Thin Foam Sheets
Slices foam blocks using digital settings, automatic reciprocating travel on rails and a vacuum worktable. Pressure rollers help retain the foam during cutting.
Equipment
Precision Vacuum Horizontal Foam Cutter
Application
Thin Foam Sheets
Configuration
3 listed options
Product Overview
Slices foam blocks using digital settings, automatic reciprocating travel on rails and a vacuum worktable. Pressure rollers help retain the foam during cutting.
Slices foam blocks using digital settings, automatic reciprocating travel on rails and a vacuum worktable. Pressure rollers help retain the foam during cutting.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval.
| Technical Parameter | Configuration A | Configuration B | Configuration C |
|---|---|---|---|
| Dimensions (L×W×H) | 2000 × 2200 × 1800 mm | 2800 × 2200 × 2500 mm | 3800 × 2200 × 2500 mm |
| Foam block size (L × W × H) | 1500 × 1250 × 1200 mm | 2000 × 1650 × 1200 mm | 3000 × 2150 × 1200 mm |
| Listed cutting thickness | 1–60 mm | 1–60 mm | 1–60 mm |
| Travel speed | 0–15 m/min | 0–15 m/min | 0–15 m/min |
| Blade length | 6420 mm | 7300 mm | 8300 mm |
| Total power | 15.24 kW | 15.24 kW | 15.24 kW |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Digital thickness settings
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Vacuum worktable
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Pressure-roller restraint
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Reciprocating rail travel
Included in the described equipment arrangement; confirm implementation for the selected configuration.
