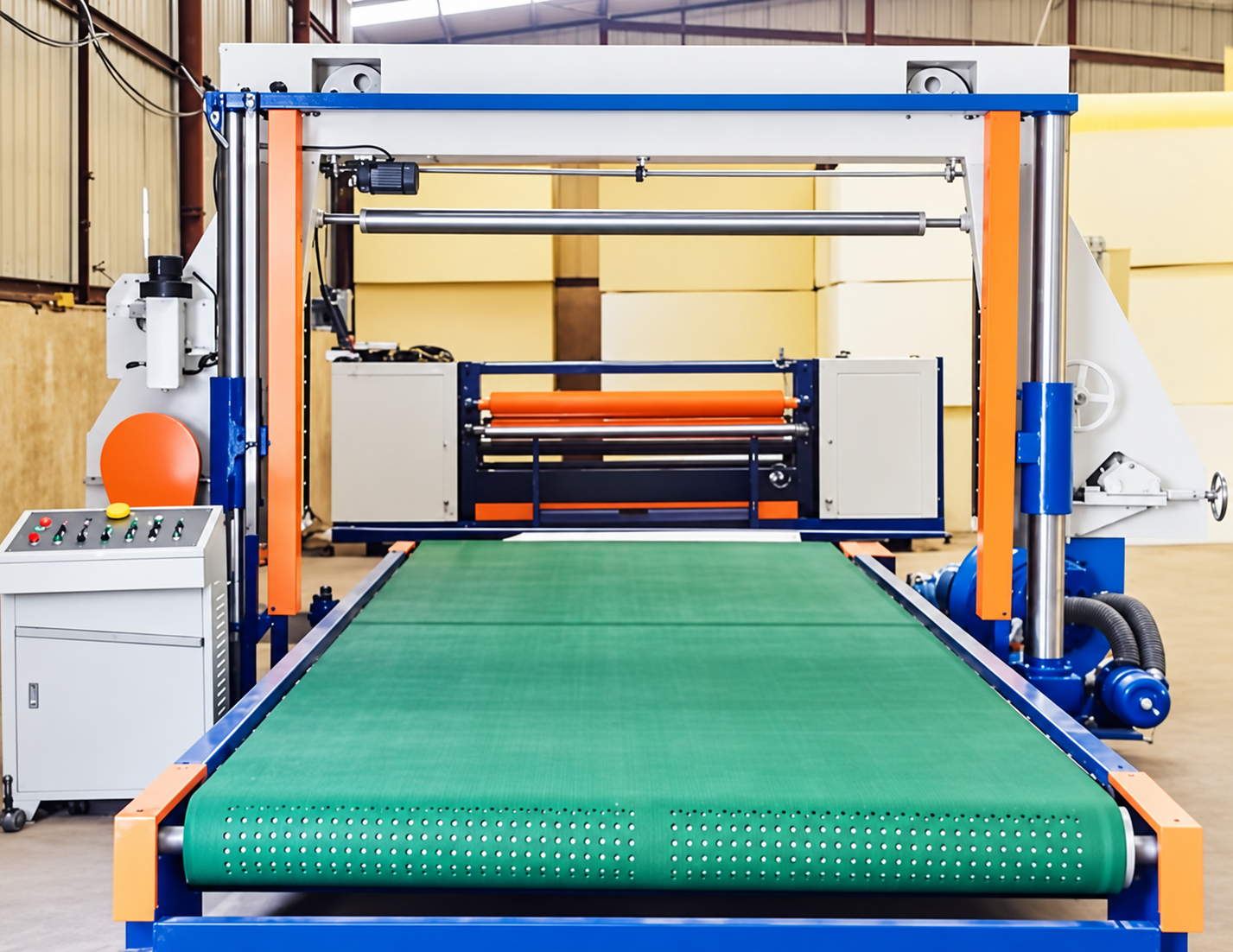

Mesh Belt Vacuum Foam Slicer | Horizontal Foam Cutting
Horizontally slices foam blocks using digital settings and a roller-supported mesh-belt vacuum table. Pressure rollers help retain foam during reciprocating cutting.
Equipment
Mesh Belt Vacuum Foam Slicer
Application
Horizontal Foam Cutting
Configuration
2 listed options

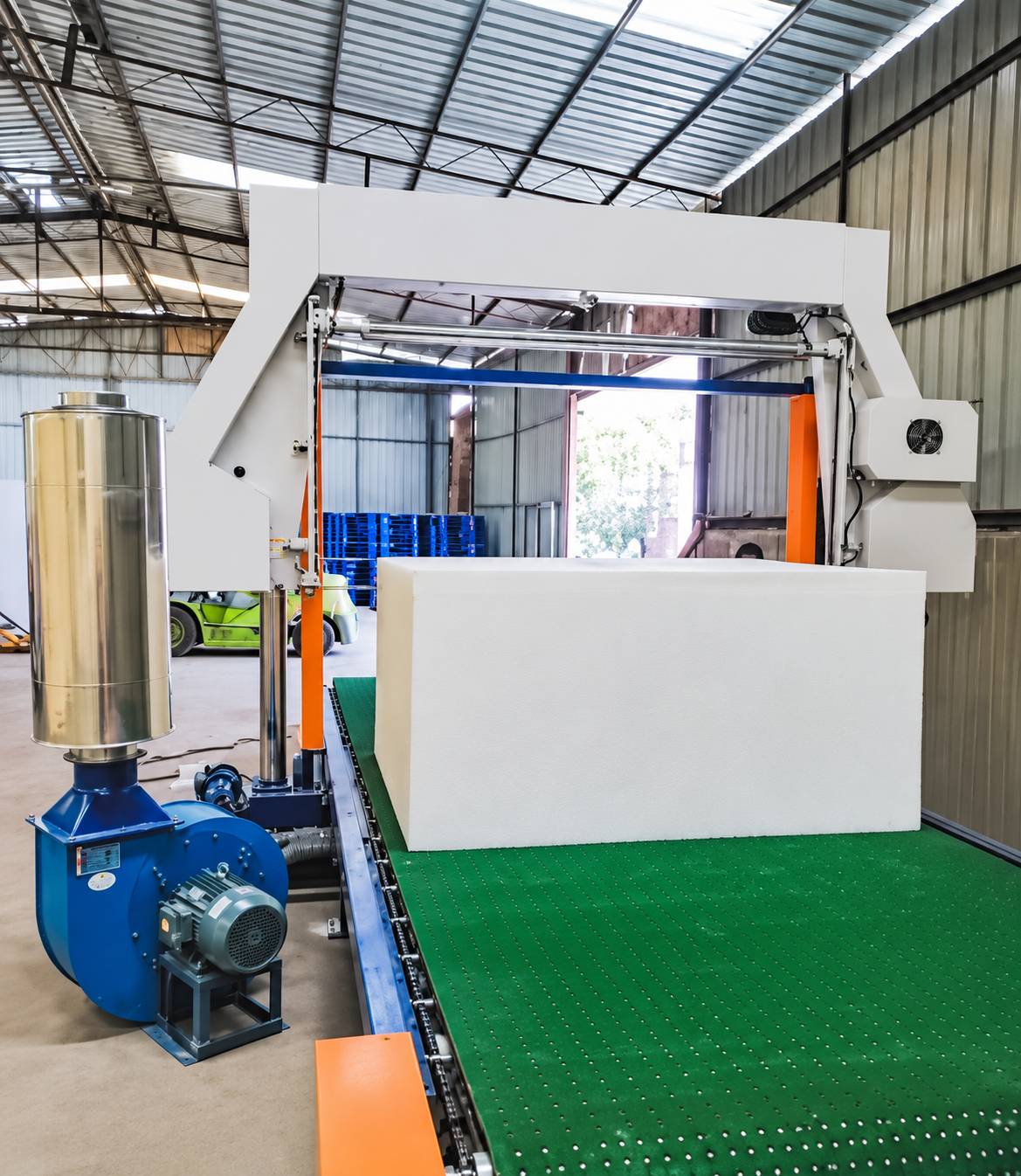

Product Overview
Horizontally slices foam blocks using digital settings and a roller-supported mesh-belt vacuum table. Pressure rollers help retain foam during reciprocating cutting.
Horizontally slices foam blocks using digital settings and a roller-supported mesh-belt vacuum table. Pressure rollers help retain foam during reciprocating cutting.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval.
| Technical Parameter | Configuration A | Configuration B |
|---|---|---|
| Dimensions (L×W×H) | 5000 × 4000 × 2500 mm | 7000 × 4500 × 2500 mm |
| Foam block size (L × W × H) | 2000 × 1650 × 1200 mm | 3000 × 2150 × 1200 mm |
| Cutting thickness | 2–150 mm | 2–150 mm |
| Travel speed | 0–30 m/min | 0–30 m/min |
| Blade length | 8940 mm | 10440 mm |
| Total power | 12.72 kW | 12.72 kW |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Mesh-belt vacuum worktable
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Digital thickness settings
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Pressure roller
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Reciprocating cutting
Included in the described equipment arrangement; confirm implementation for the selected configuration.
