Manual Vertical Foam Mixing Machine | Batch Flexible PU Foam
Mixes manually charged flexible PU foam raw materials in a bucket using timed high- and low-speed mixing. The mixed charge is poured into a separate mold for foaming.
Equipment
Manual Vertical Foam Mixing Machine
Application
Batch Flexible PU Foam
Configuration
2 listed options

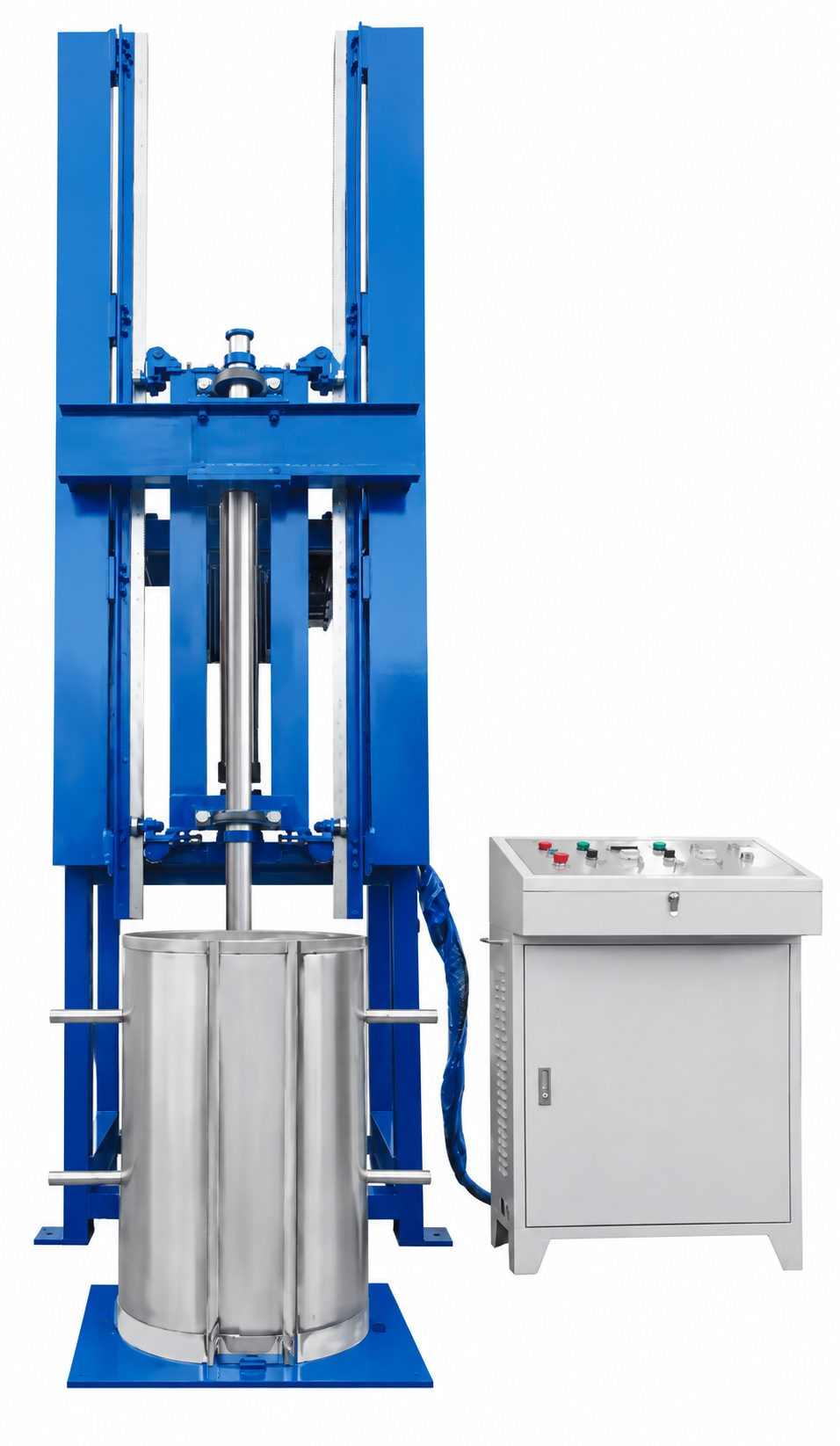

Product Overview
Mixes manually charged flexible PU foam raw materials in a bucket using timed high- and low-speed mixing. The mixed charge is poured into a separate mold for foaming.
Mixes manually charged flexible PU foam raw materials in a bucket using timed high- and low-speed mixing. The mixed charge is poured into a separate mold for foaming.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Review the Box Foaming Solution for batch foam mixing and mold forming.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval. Batch charge, vessel dimensions and the production schedule are confirmed for the selected formulation and mixing arrangement.
| Technical Parameter | Configuration A | Configuration B |
|---|---|---|
| Dimensions (L×W×H) | 1400 × 950 × 3000 mm | 1400 × 950 × 3000 mm |
| Batch charge | Confirmed for the selected formulation and vessel | Confirmed for the selected formulation and vessel |
| Total power | 11 kW | 15 kW |
| Mixing speed setting | 0–3000 rpm | 0–3000 rpm |
| Vessel dimensions | Confirmed during vessel selection | Confirmed during vessel selection |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Timed mixing
Included in the described equipment arrangement; confirm implementation for the selected configuration.
High- and low-speed operation
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Manual raw-material charging
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Separate mold pouring
Included in the described equipment arrangement; confirm implementation for the selected configuration.
