Automatic Box Foaming Machine | Flexible PU Foam

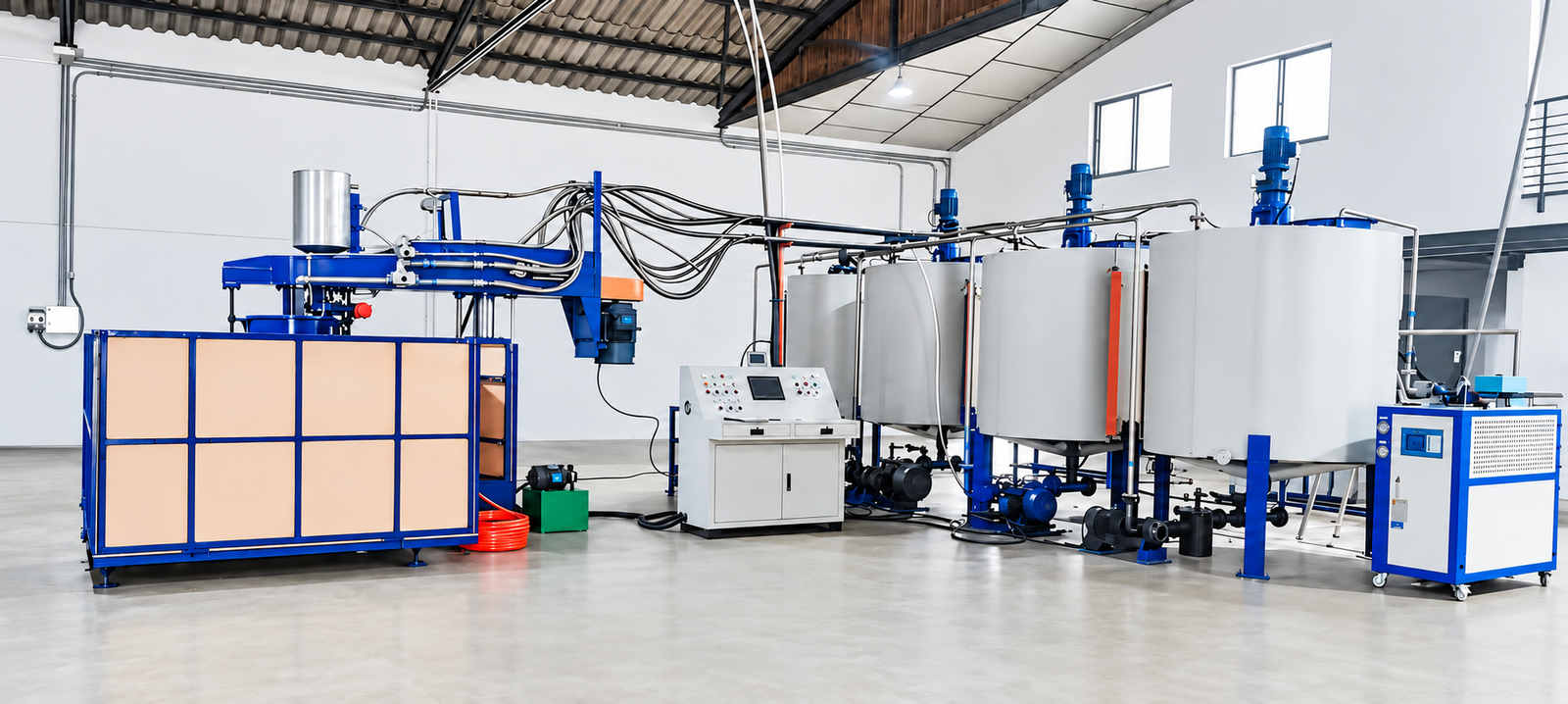

Automatic box foaming equipment for batch production of flexible polyurethane foam. The supplied configuration includes raw-material mixing, foam forming and a touchscreen control system for managing formulations, with automatic and manual operating modes. Foam blocks are produced in individual molds and then transferred to the agreed conditioning and downstream cutting stages.
Production Route
Batch box foaming
Control Modes
Automatic and manual
Reference Density
8–80 kg/m³; formulation dependent

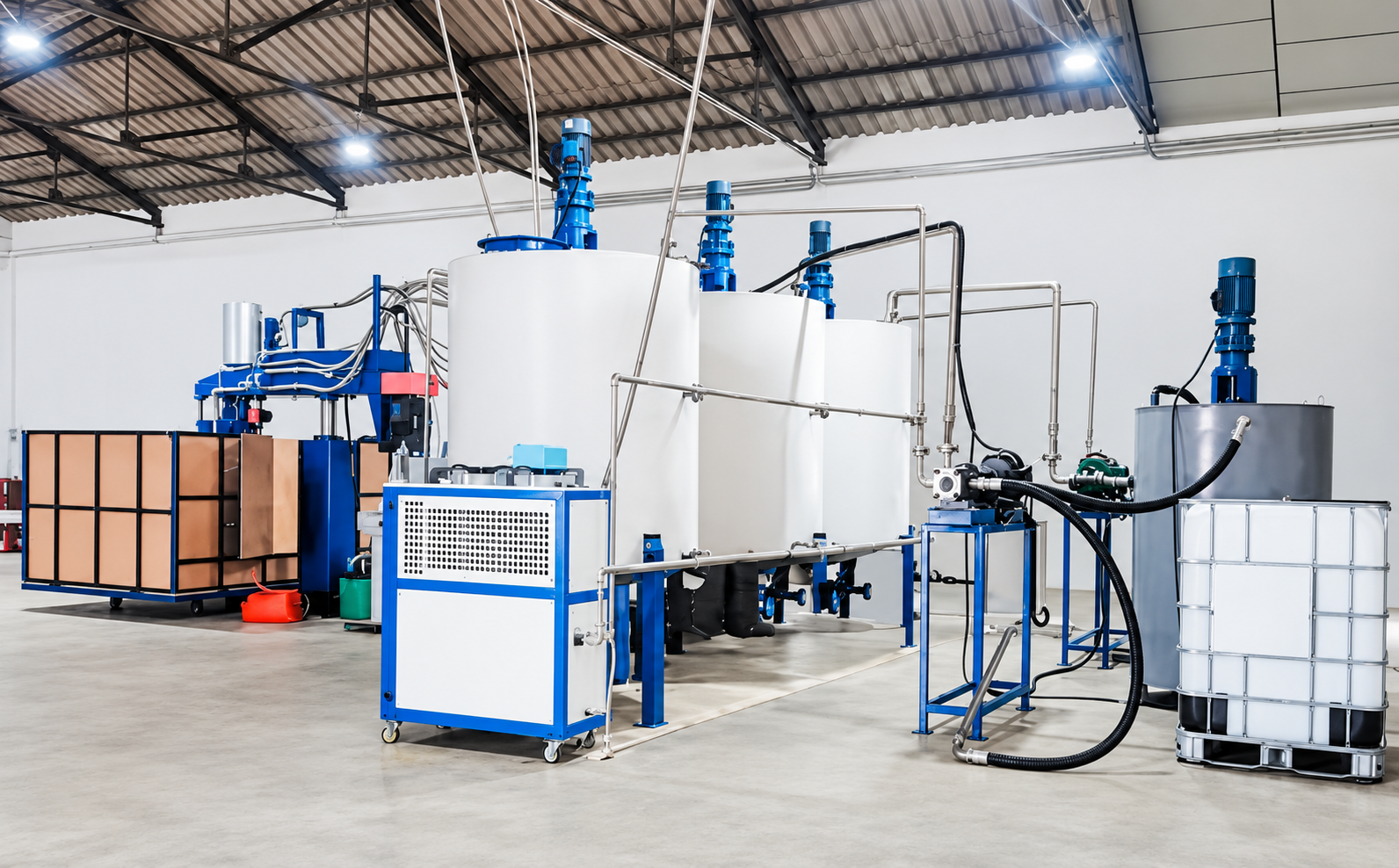

Product Overview
Touchscreen-controlled batch foaming with automatic and manual operating modes.
Automatic box foaming equipment for batch production of flexible polyurethane foam. The supplied configuration includes raw-material mixing, foam forming and a touchscreen control system for managing formulations, with automatic and manual operating modes. Foam blocks are produced in individual molds and then transferred to the agreed conditioning and downstream cutting stages.
Potential applications include furniture, packaging, automotive and aviation foam components. Suitability for a particular end use depends on the foam formulation and the relevant product requirements; this equipment description does not establish an end-product certification.

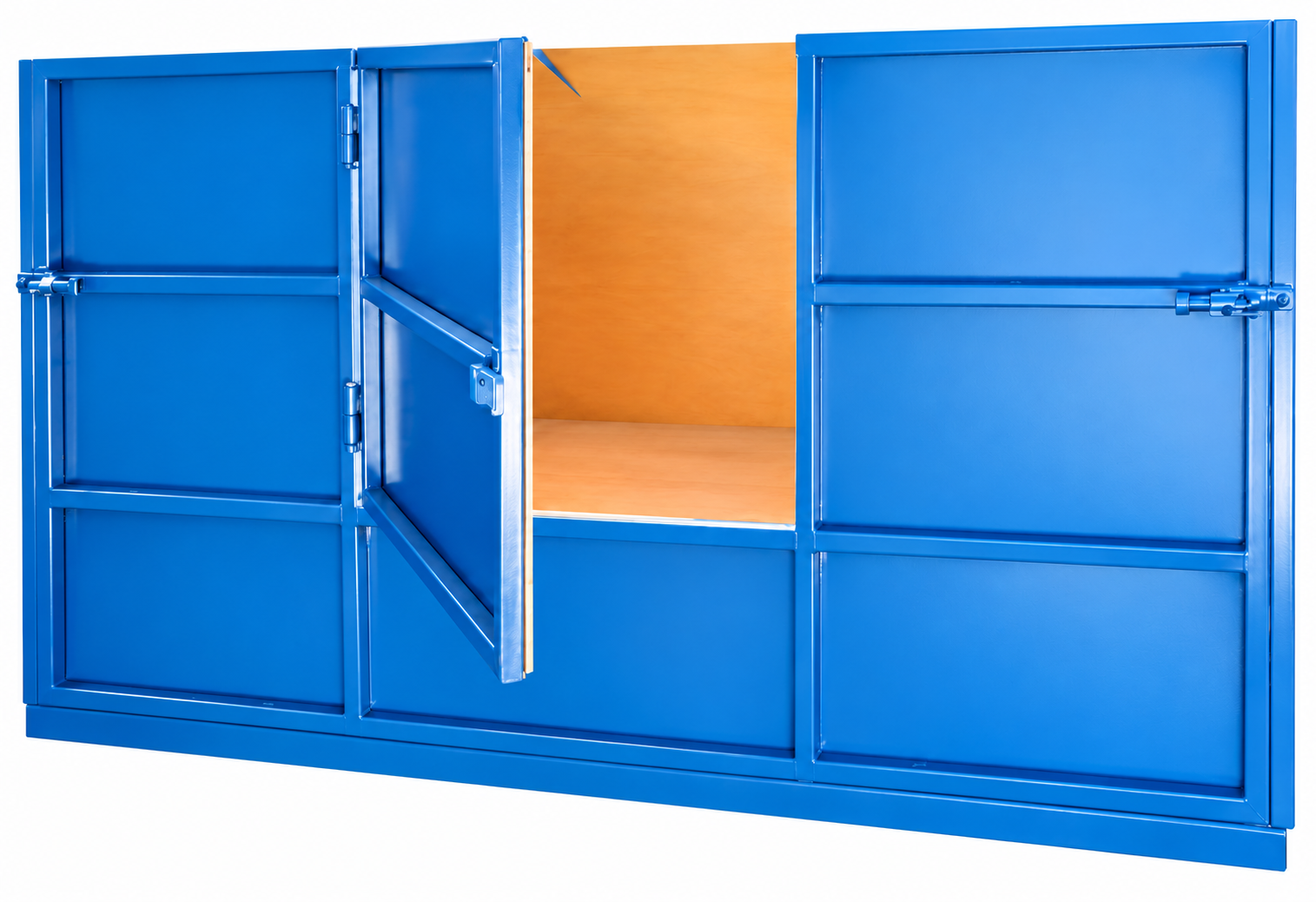

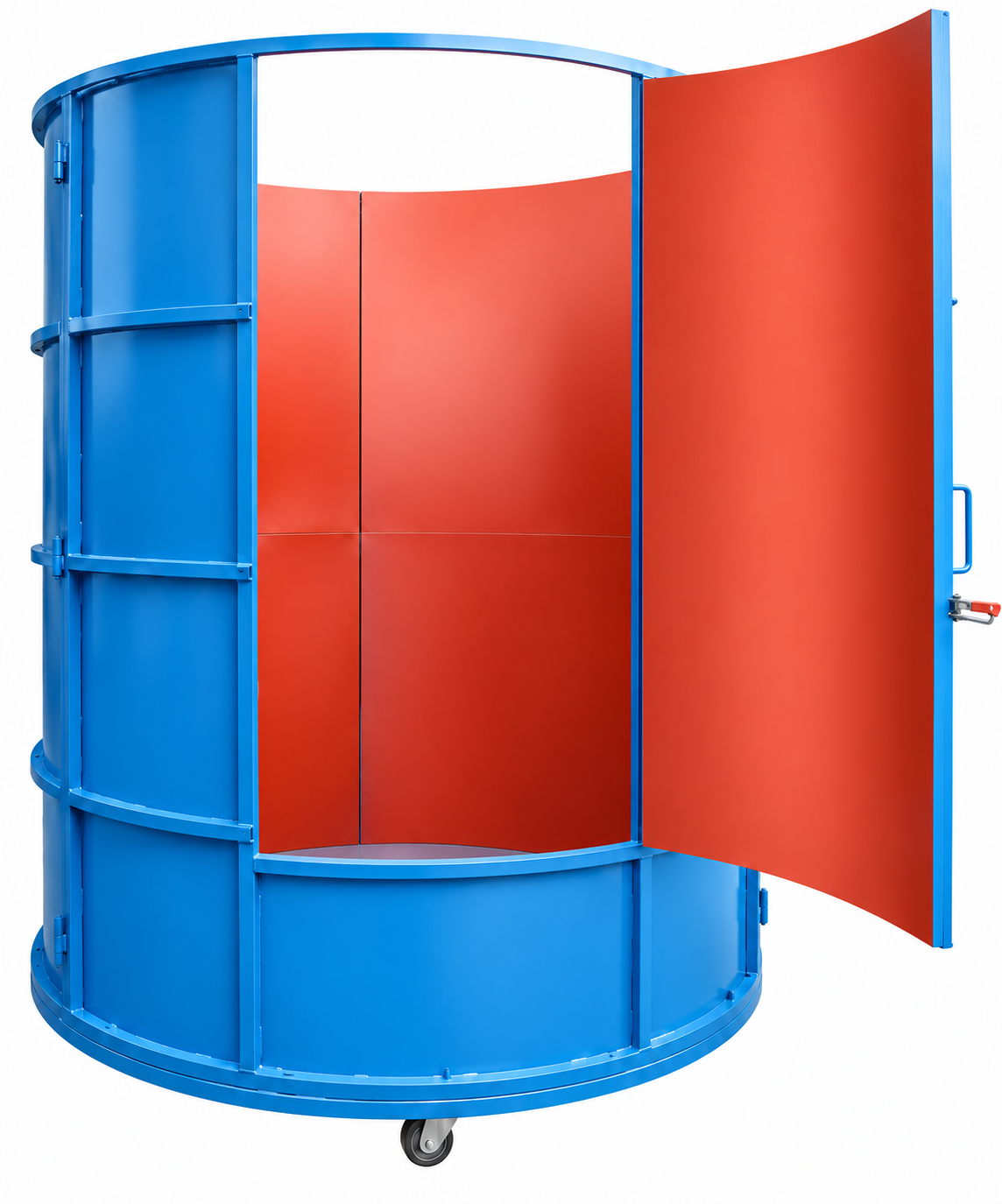

Rectangular and cylindrical molds are shown in the equipment images. Their dimensions, inclusion in the supply scope and compatibility with the selected material system are to be agreed for the final configuration.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Production Route
Prepare the Material System
Define the formulation, density target, material preparation and operating conditions.
Select the Mold Configuration
Confirm the mold geometry, batch size and supply scope.
Mix and Foam
Manage the selected formulation through the touchscreen and use the agreed automatic or manual sequence.
Condition and Finish
Agree the block conditioning, handling and downstream cutting arrangement separately.
Technical Specifications
Specifications describe a reference configuration. Material circuits, metering output and the output measurement method are confirmed for the selected formulation and mixing arrangement. No finished-foam hourly or daily production rate is established by this table. Overall dimensions exclude access, service and ventilation clearances, which require layout approval.
| Technical Parameter | Automatic Box Foaming Configuration |
|---|---|
| Dimensions (L×W×H) | 10,000 × 7,000 × 3,500 mm |
| Material and mixing arrangement | Confirmed during system configuration |
| Foaming width | 1,550–2,050 mm |
| Foaming length | 2,050–3,050 mm |
| Foaming height | 1,250 mm |
| Foam density range | 8–80 kg/m³ |
| Output capacity | Confirmed under agreed output measurement conditions |
| Mixing head power | 11 kW |
Equipment Functions
Functions of this equipment configuration. Final scope is configuration dependent.
Touchscreen Recipe Management
Manage different formulations and adjust the selected settings.
Automatic and Manual Control
Both operating modes are described for this configuration.
Batch Foam Forming
Produce individual flexible PU foam blocks in the selected molds.
Downstream Planning
Coordinate conditioning, handling and cutting with the factory layout.
Related Foam Production Equipment

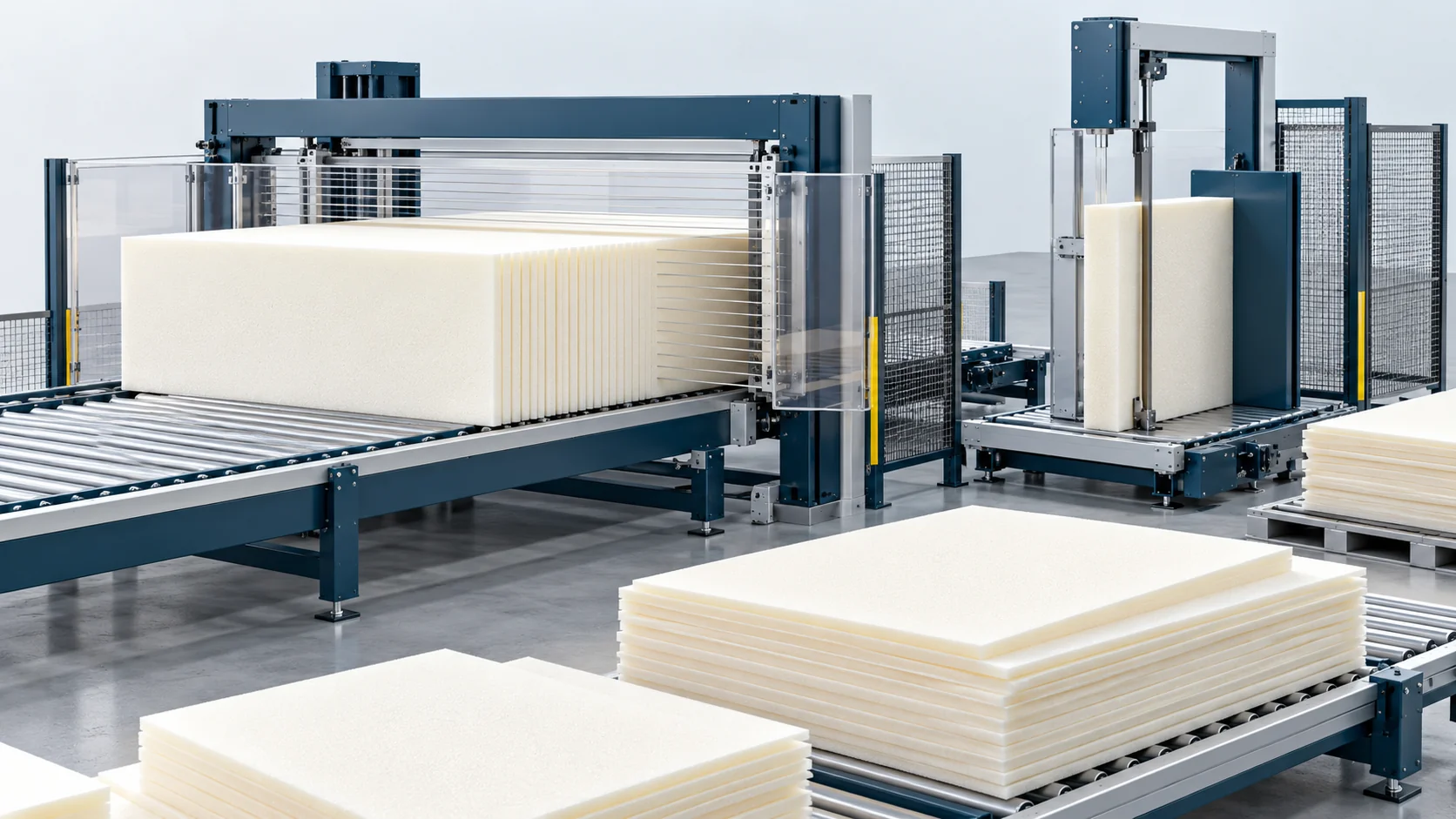

Compare the low-pressure mixing equipment, continuous slabstock route and downstream block-cutting equipment. Their roles and supply scopes differ from this automatic box foaming configuration.
Low-Pressure Box Foaming Machine | Foam Blocks
Low Pressure Polyurethane Machine

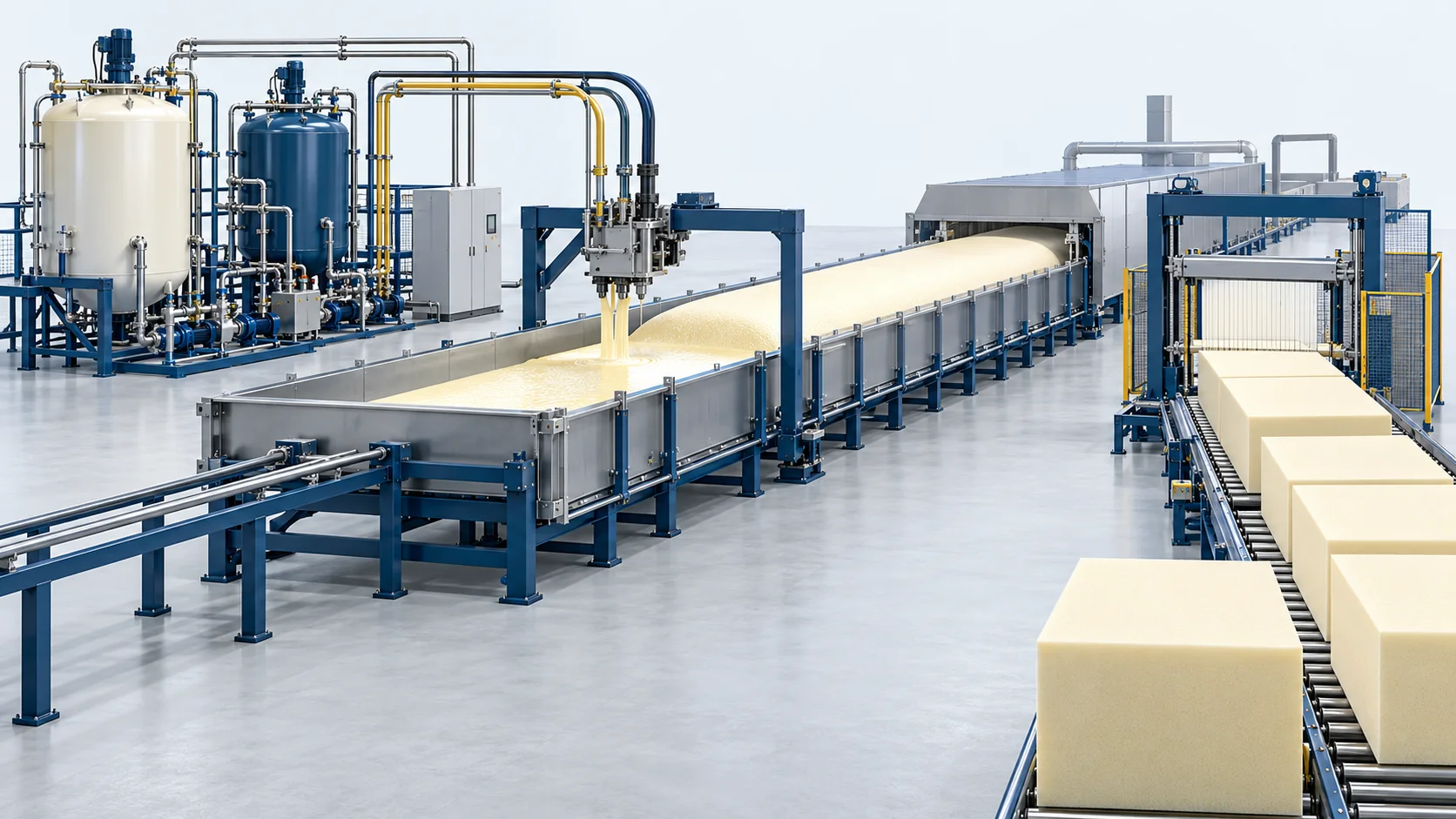

Continuous Slabstock Foaming Line | Foam Blocks
