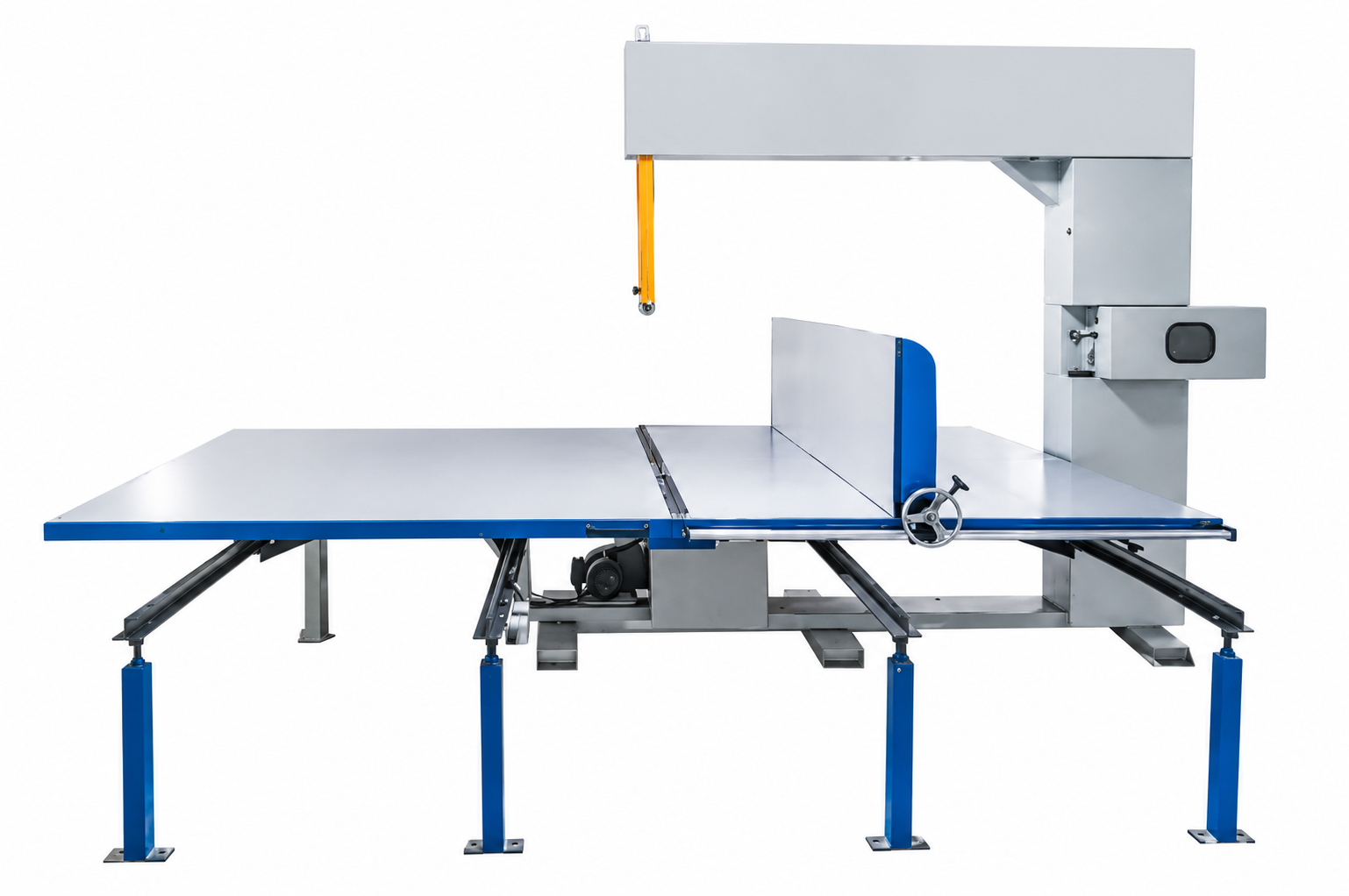

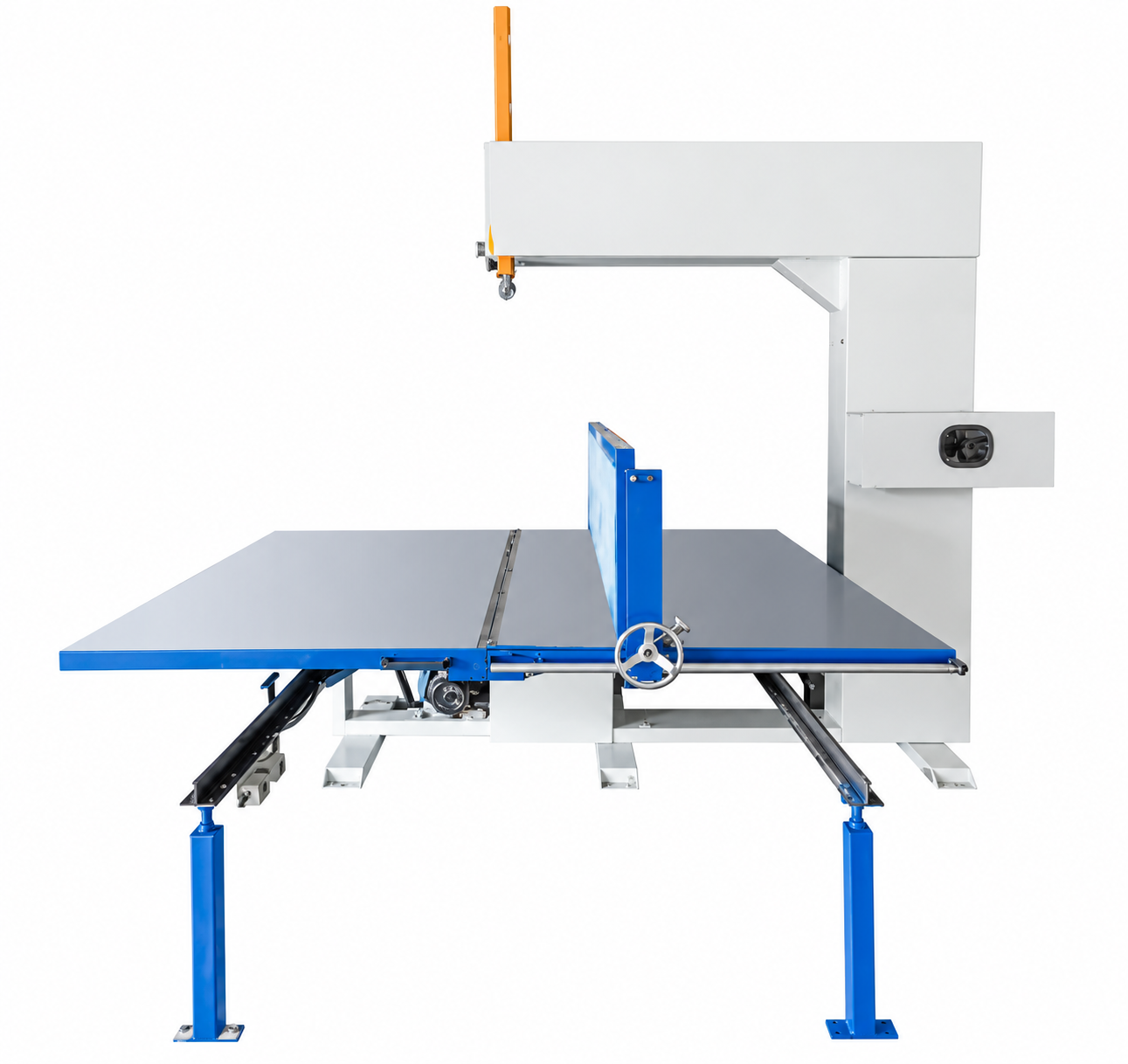

Manual Vertical Foam Cutter | Foam Sheet Conversion
Cuts foam vertically by positioning the foam on the worktable and moving the table along its rails. Cutting thickness and position are set before travel.
Equipment
Manual Vertical Foam Cutter
Application
Foam Sheet Conversion
Configuration
2 listed options
Product Overview
Cuts foam vertically by positioning the foam on the worktable and moving the table along its rails. Cutting thickness and position are set before travel.
Cuts foam vertically by positioning the foam on the worktable and moving the table along its rails. Cutting thickness and position are set before travel.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval. Incomplete 2– mm thickness range. Confirm linkage between height and blade-length options.
| Technical Parameter | Configuration A | Configuration B |
|---|---|---|
| Dimensions (L×W×H) | 4000 × 3500 × 2500 mm | 4000 × 4700 × 2500 mm |
| Inner table size (W × L) | 1320 × 2440 mm | 1720 × 2440 mm |
| Outer table size (W × L) | 1200 × 2440 mm | 2000 × 2440 mm |
| Listed cutting height options | 800 / 1200 mm | 800 / 1200 mm |
| Cutting thickness | To be confirmed | To be confirmed |
| Listed blade length options | 7320 / 8100 mm | 8100 / 8900 mm |
| Total power | 1.74 kW | 1.74 kW |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Manually moved rail worktable
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Adjustable cutting position
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Two table-size configurations
Included in the described equipment arrangement; confirm implementation for the selected configuration.
