Horizontal Latex Foam Slicer | Latex Foam Sheets
Horizontally slices latex foam using touchscreen and PLC settings with automatic reciprocating rail travel. Settings are selected for the required sheet thickness and foam density.
Equipment
Horizontal Latex Foam Slicer
Application
Latex Foam Sheets
Configuration
2 listed options

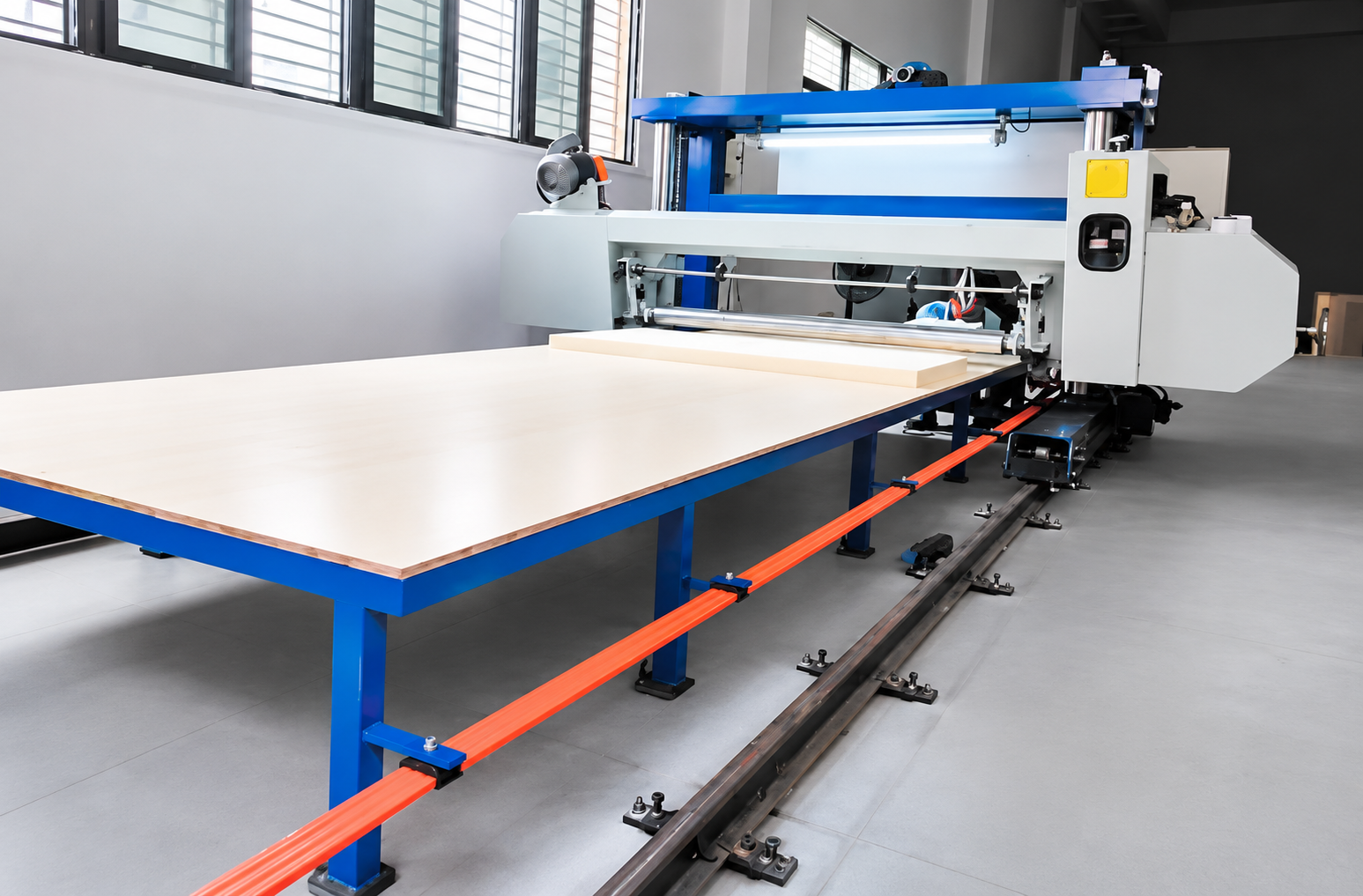

Product Overview
Horizontally slices latex foam using touchscreen and PLC settings with automatic reciprocating rail travel. Settings are selected for the required sheet thickness and foam density.
Horizontally slices latex foam using touchscreen and PLC settings with automatic reciprocating rail travel. Settings are selected for the required sheet thickness and foam density.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval.
| Technical Parameter | Configuration A | Configuration B |
|---|---|---|
| Dimensions (L×W×H) | 5000 × 2000 × 2000 mm | 5000 × 2500 × 2000 mm |
| Foam block size (L × W × H) | 4000 × 1650 × 500 mm | 4000 × 2150 × 500 mm |
| Cutting thickness | 1–60 mm | 1–60 mm |
| Travel speed | 0–60 m/min | 0–60 m/min |
| Blade length | 7650 mm | 8650 mm |
| Total power | 8.92 kW | 8.92 kW |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Touchscreen and PLC control
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Reciprocating rail travel
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Thickness setting
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Related Foam Processing Equipment
Compare equipment options for the selected process. Not every listed machine is required for every project.

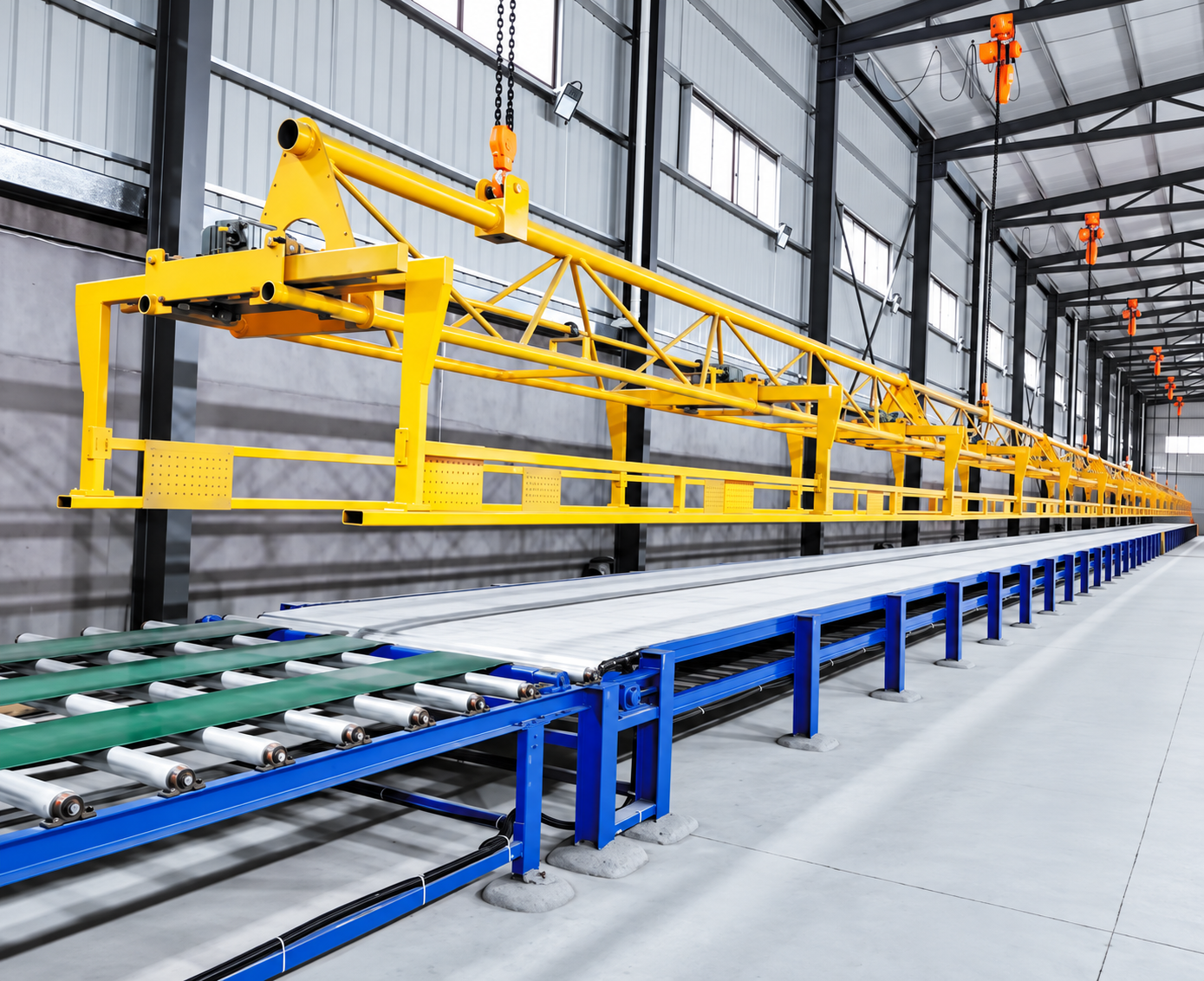

Foam Handling Clamp | Slabstock Foam Handling
Polyurethane Machinery &Equipment

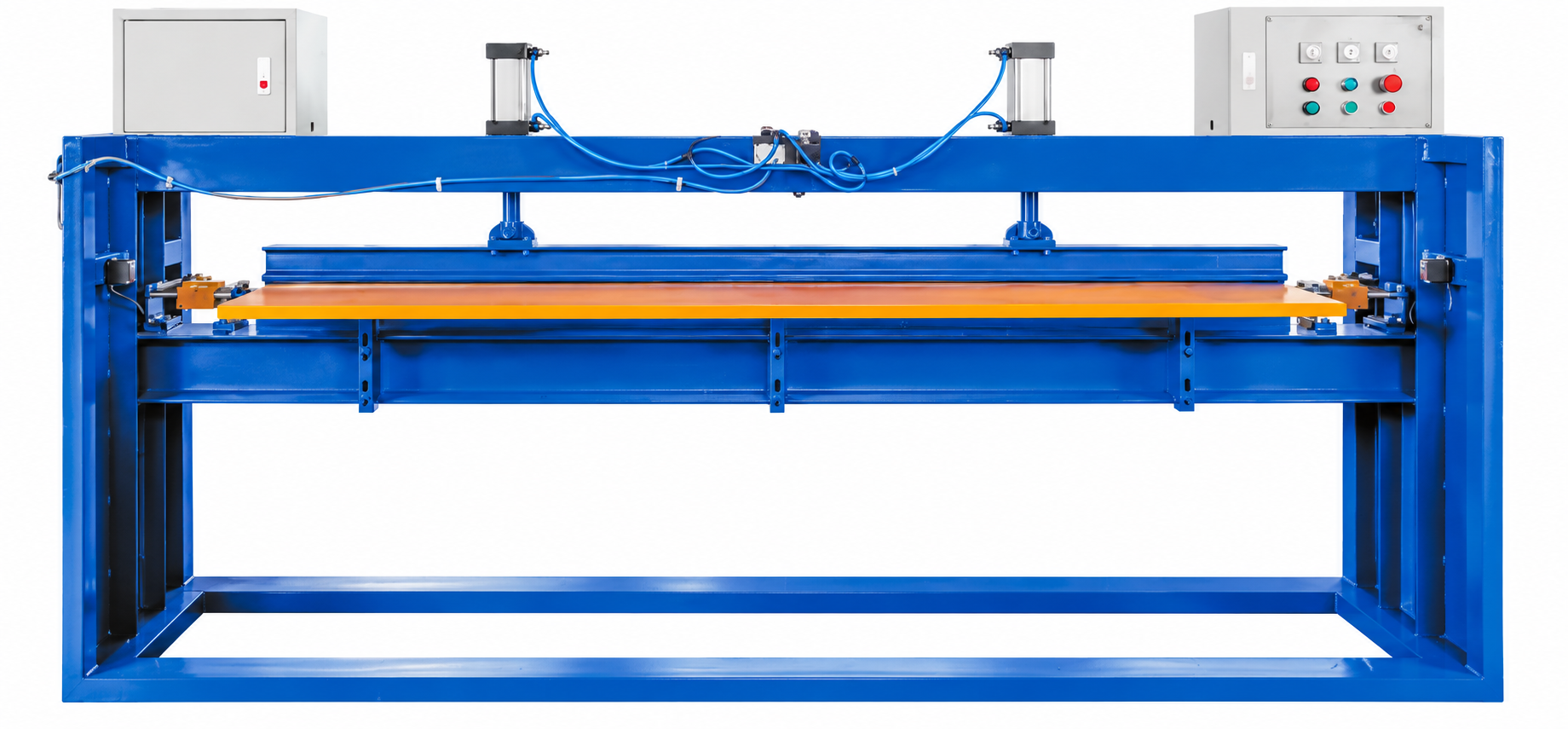

Foam Sheet Joining Machine | Continuous Foam Webs
Polyurethane Machinery &Equipment

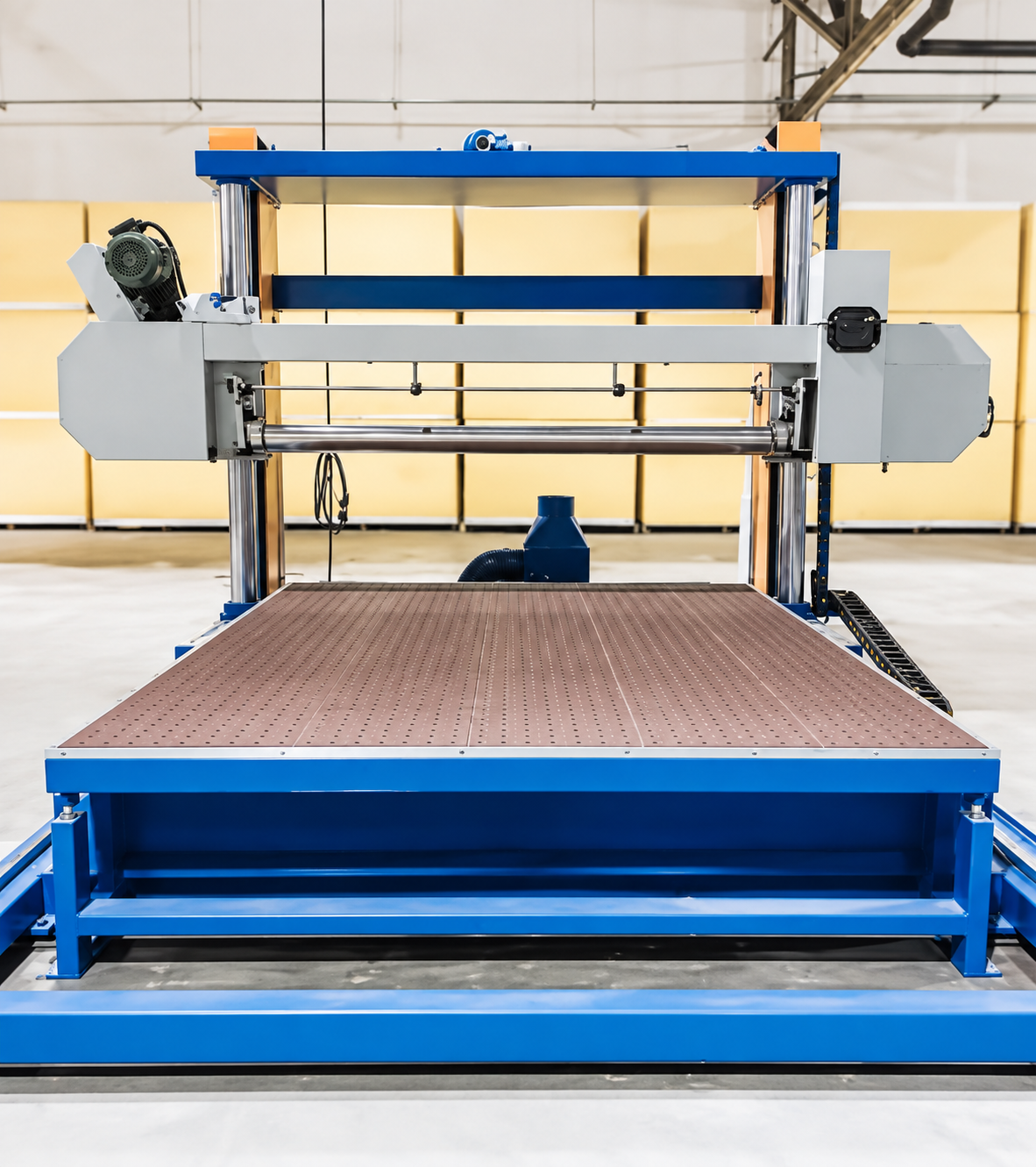

Precision Vacuum Horizontal Foam Cutter | Thin Foam Sheets
Polyurethane Machinery &Equipment

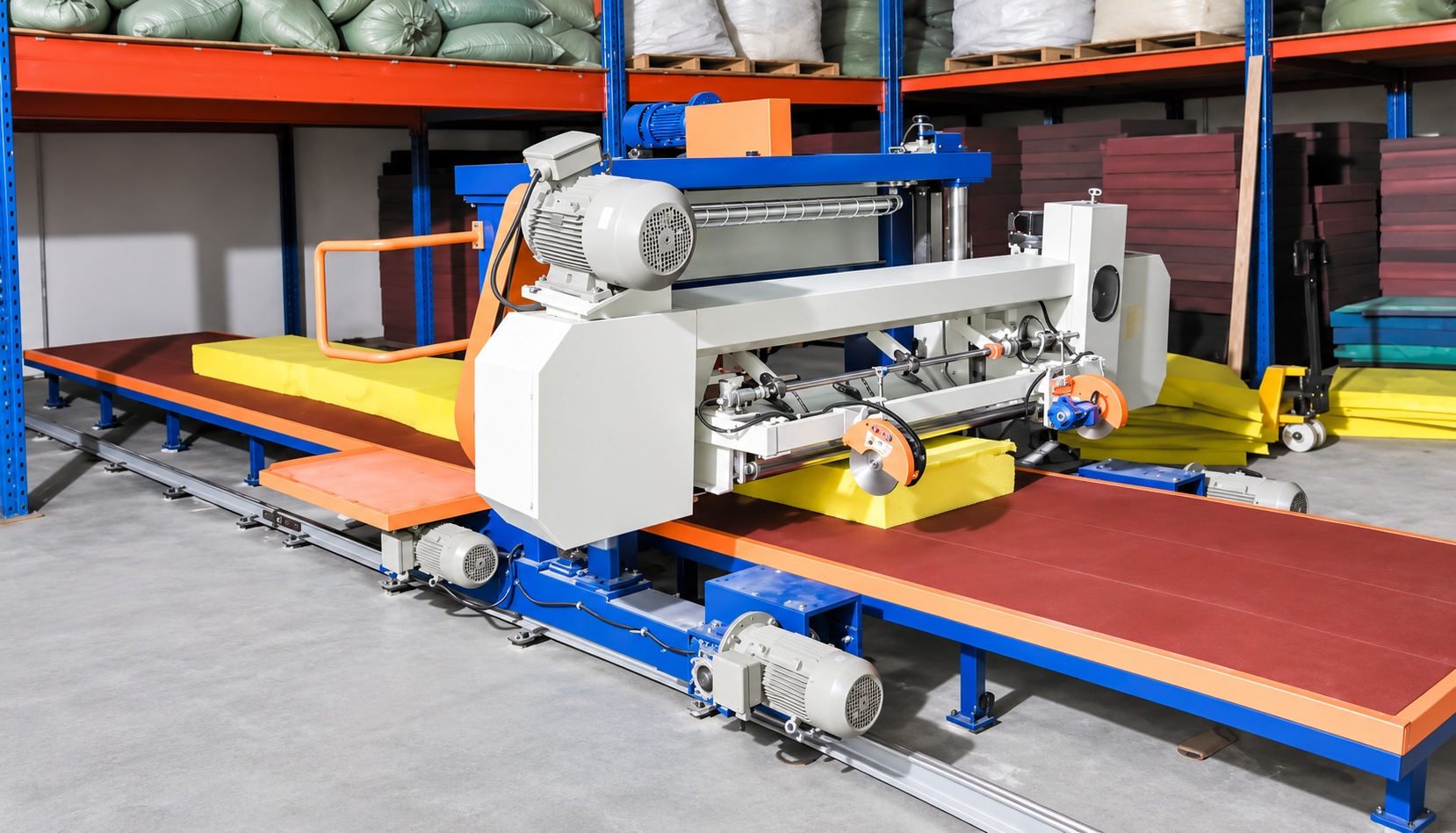

High Density Rail Foam Slicer | High Density Foam Sheets
