Horizontal Foam Core Drilling Machine | Cylindrical Foam Buns

Drills a core through cylindrical foam supported on a V-shaped worktable. The worktable is advanced for drilling before downstream rotary peeling.

Foam Cylinder Size

Ø2000 × 2150 mm

Drilled Hole Diameter

45 mm

Drill Speed

230 rpm

Total Power

1.5 kW

Availability on Request Delivery Schedule on Quotation 1-Year Warranty
Cylindrical Foam Buns

Product Overview

Drills a core through cylindrical foam supported on a V-shaped worktable. The worktable is advanced for drilling before downstream rotary peeling.

Drills a core through cylindrical foam supported on a V-shaped worktable. The worktable is advanced for drilling before downstream rotary peeling.

Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.

Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.

Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.

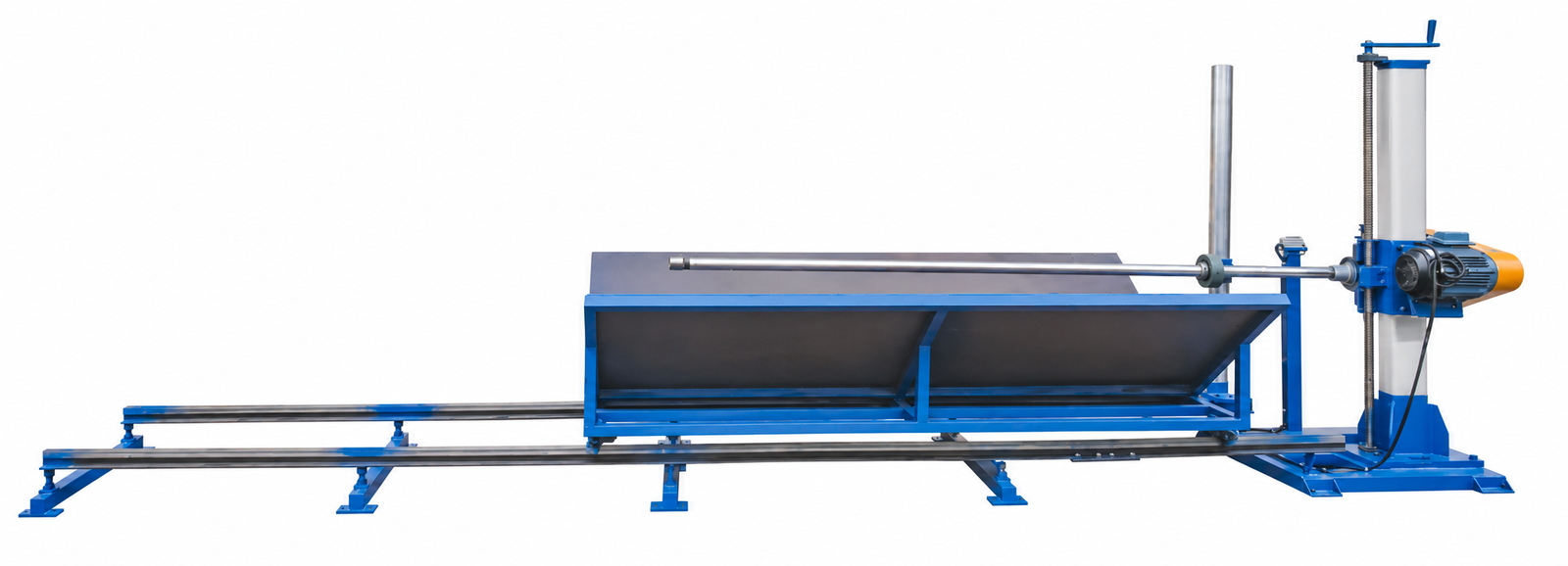

Horizontal foam core-drilling machine with a long spindle, V-shaped support bed and rail-mounted carriage

Haifeng

Cylindrical Foam Buns

Equipment Selection and Integration

Position the Cylindrical Bun

Support the cylindrical foam on the V-shaped worktable and align the core position.

Advance for Core Drilling

Move the worktable through the described horizontal drilling sequence.

Receive for Downstream Peeling

Inspect the drilled core and transfer the bun to the separately defined rotary-peeling stage.

Need a quote for this equipment?

Request a Quote
Equipment Configuration

Technical Specifications

Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval.

Technical ParameterConfiguration A
Dimensions (L×W×H)5800 × 1400 × 1800 mm
Foam cylinder size (diameter × width)Ø2000 × 2150 mm
Drilled hole diameter45 mm
Drill speed230 rpm
Total power1.5 kW
Cylindrical Foam Buns

Equipment Functions

Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.

V-shaped worktable

Included in the described equipment arrangement; confirm implementation for the selected configuration.

Horizontal core drilling

Included in the described equipment arrangement; confirm implementation for the selected configuration.

Rotary-peeling preparation

Included in the described equipment arrangement; confirm implementation for the selected configuration.

Discuss Your Equipment Configuration

Share your product, materials, tooling and production requirements so we can review the equipment and interfaces for your project.

Foam Production and Finishing

Compare equipment options for the selected process. Not every listed machine is required for every project.

Equipment Selection

Frequently Asked Questions

What is this equipment used for?
Drills a core through cylindrical foam supported on a V-shaped worktable. The worktable is advanced for drilling before downstream rotary peeling.
Which configuration should I select?
Provide input material, density, block or web dimensions, finished geometry, target production schedule and available factory space. Haifeng will review the working envelope and process interfaces.
Are all listed rates and tolerances guaranteed?
Listed technical values are reference configuration data. Confirm material conditions, operating settings, trials and acceptance criteria for the final order.
What must be confirmed before installation?
Confirm the electrical supply, utilities, guarding, access clearances, loading method and included auxiliary equipment.
