Horizontal Foam Block Slicer | Flexible Foam Sheets
Slices foam blocks into sheets using digital thickness settings and a reciprocating worktable. Pressure rollers help retain the foam; a vacuum arrangement is optional.
Equipment
Horizontal Foam Block Slicer
Application
Flexible Foam Sheets
Configuration
2 listed options

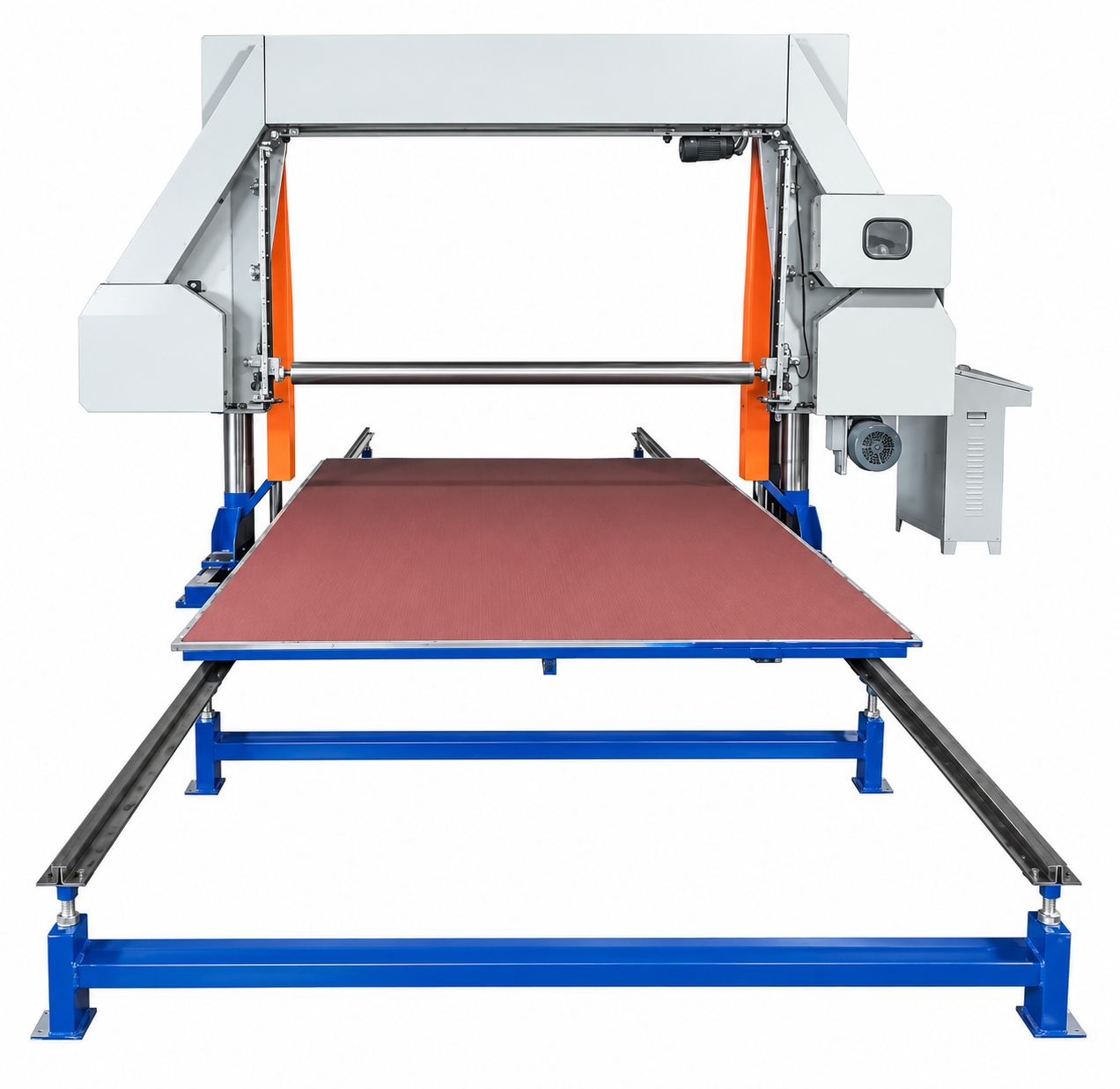

Product Overview
Slices foam blocks into sheets using digital thickness settings and a reciprocating worktable. Pressure rollers help retain the foam; a vacuum arrangement is optional.
Slices foam blocks into sheets using digital thickness settings and a reciprocating worktable. Pressure rollers help retain the foam; a vacuum arrangement is optional.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval.
| Technical Parameter | Configuration A | Configuration B |
|---|---|---|
| Dimensions (L×W×H) | 5000 × 3600 × 2500 mm | 7800 × 4200 × 2500 mm |
| Foam block size (L × W × H) | 2000 × 1650 × 1200 mm | 3000 × 2150 × 1200 mm |
| Cutting thickness | 2–200 mm | 2–200 mm |
| Travel speed | 0–30 m/min | 0–30 m/min |
| Blade length | 8500 mm | 9480 mm |
| Total power | 8.32 kW | 8.32 kW |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Digital thickness settings
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Reciprocating worktable
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Pressure roller
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Optional vacuum arrangement
Optional configuration to be agreed for the application.
