Horizontal Blade CNC Foam Contour Cutter | Shaped Foam Components

Follows programmed contours using computer control, multi-axis motion control and servo drives. A circulating band blade cuts shaped foam components; an automatic pressure-roller arrangement is optional.

Foam Block Size

2000 × 2000 × 1200 mm

Cutting Travel Speed

5–30 m/min, adjustable

Accuracy Reference

±0.5 mm, reference subject to acceptance conditions

Total Power

6 kW

Availability on Request Delivery Schedule on Quotation 1-Year Warranty
Shaped Foam Components

Product Overview

Follows programmed contours using computer control, multi-axis motion control and servo drives. A circulating band blade cuts shaped foam components; an automatic pressure-roller arrangement is optional.

Follows programmed contours using computer control, multi-axis motion control and servo drives. A circulating band blade cuts shaped foam components; an automatic pressure-roller arrangement is optional.

Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.

Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.

Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.

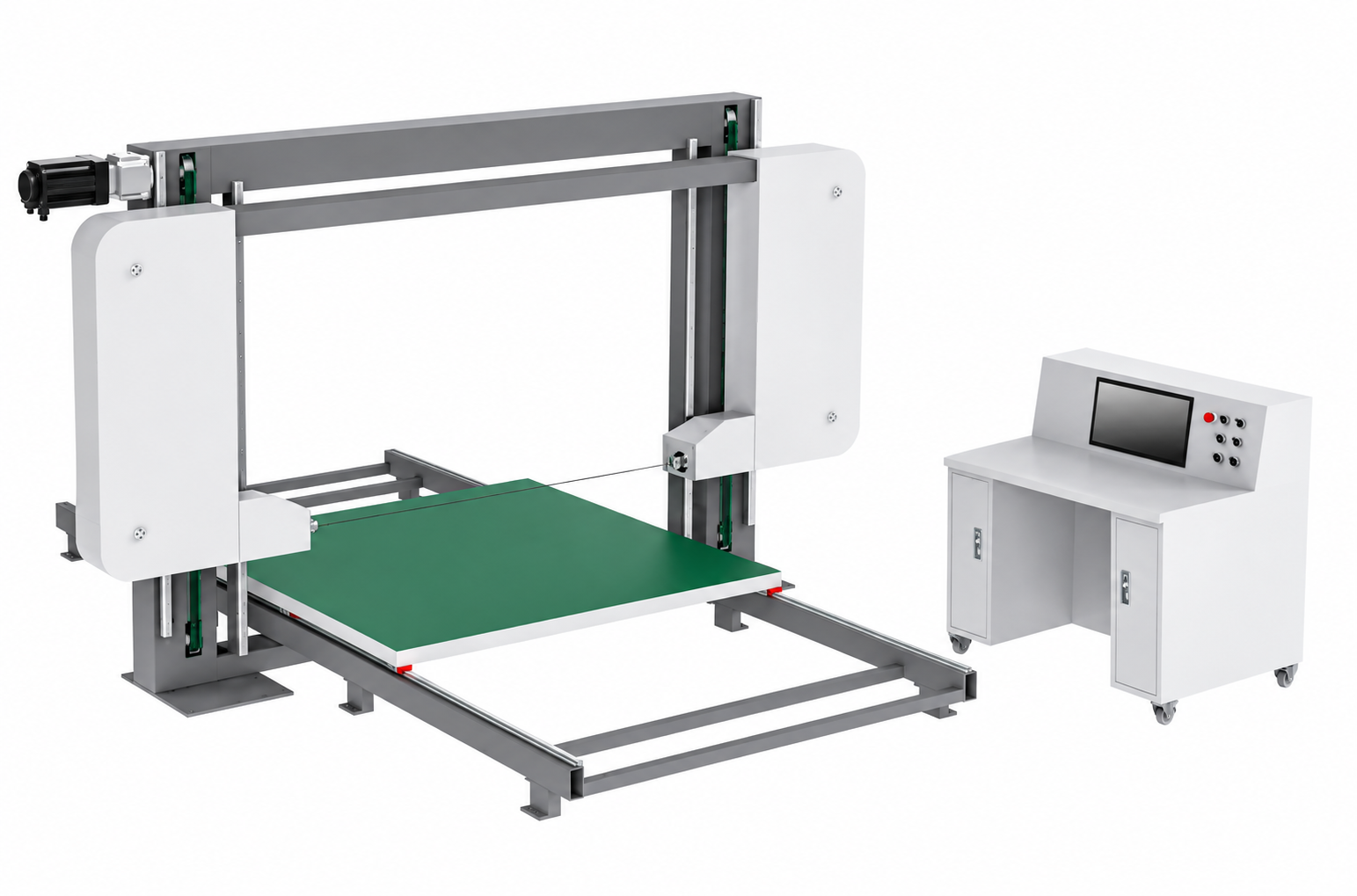

CNC foam contour cutter with a horizontal cutting frame, green worktable and separate touchscreen control console

Haifeng

Shaped Foam Components

Equipment Selection and Integration

Prepare the Contour Program

Define the foam profile and coordinate the cutting path with the selected material and blade.

Position and Cut the Foam

Run the programmed multi-axis horizontal-band-blade sequence. Pressure-roller retention is optional.

Unload and Inspect

Collect the shaped components and check the programmed contour and dimensions.

Need a quote for this equipment?

Request a Quote
Equipment Configuration

Technical Specifications

Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval. The listed cutting accuracy is a configuration reference. Confirm foam properties, contour, cutting speed, blade condition, measurement method and acceptance criteria; software supply and licensing follow the agreed scope.

Technical ParameterConfiguration A
Dimensions (L×W×H)4500 × 4300 × 2400 mm
Foam block size (L × W × H)2000 × 2000 × 1200 mm
Cutting travel speed5–30 m/min, adjustable
Listed accuracy reference±0.5 mm, reference subject to acceptance conditions
Cutting methodCirculating band blade
Blade speed500–1800 m/min
Software arrangementDedicated foam contour software; supply to be agreed
Control arrangementPC with multi-axis motion control card
Blade arrangementCustom loop sawtooth blade
Total power6 kW
Shaped Foam Components

Equipment Functions

Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.

Computer-controlled contour paths

Included in the described equipment arrangement; confirm implementation for the selected configuration.

Servo drives

Included in the described equipment arrangement; confirm implementation for the selected configuration.

Circulating horizontal band blade

Included in the described equipment arrangement; confirm implementation for the selected configuration.

Optional automatic pressure roller

Optional configuration to be agreed for the application.

Discuss Your Equipment Configuration

Share your product, materials, tooling and production requirements so we can review the equipment and interfaces for your project.

Foam Production and Finishing

Compare equipment options for the selected process. Not every listed machine is required for every project.

Equipment Selection

Frequently Asked Questions

What is this equipment used for?
Follows programmed contours using computer control, multi-axis motion control and servo drives. A circulating band blade cuts shaped foam components; an automatic pressure-roller arrangement is optional.
Is an automatic pressure roller standard?
It is described as optional. Confirm retention, loading and programmed cutting requirements for the selected foam and contour.
Are all listed rates and tolerances guaranteed?
Listed technical values are reference configuration data. Confirm material conditions, operating settings, trials and acceptance criteria for the final order.
What must be confirmed before installation?
Confirm the electrical supply, utilities, guarding, access clearances, loading method and included auxiliary equipment.
