Foam Convoluting Machine | Profiled Foam Sheets

Feeds foam through profiled compression rollers and splits it into two patterned sheets for cushions, mattresses and acoustic lining applications.

Working Width

Config. A: 1650 mm; Config. B: 2150 mm

Foam Thickness Range

0–200 mm

Linear Feed Speed

0–30 m/min

Total Power

10.74 kW

Availability on Request Delivery Schedule on Quotation 1-Year Warranty
Profiled Foam Sheets

Product Overview

Feeds foam through profiled compression rollers and splits it into two patterned sheets for cushions, mattresses and acoustic lining applications.

Feeds foam through profiled compression rollers and splits it into two patterned sheets for cushions, mattresses and acoustic lining applications.

Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.

Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.

Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.

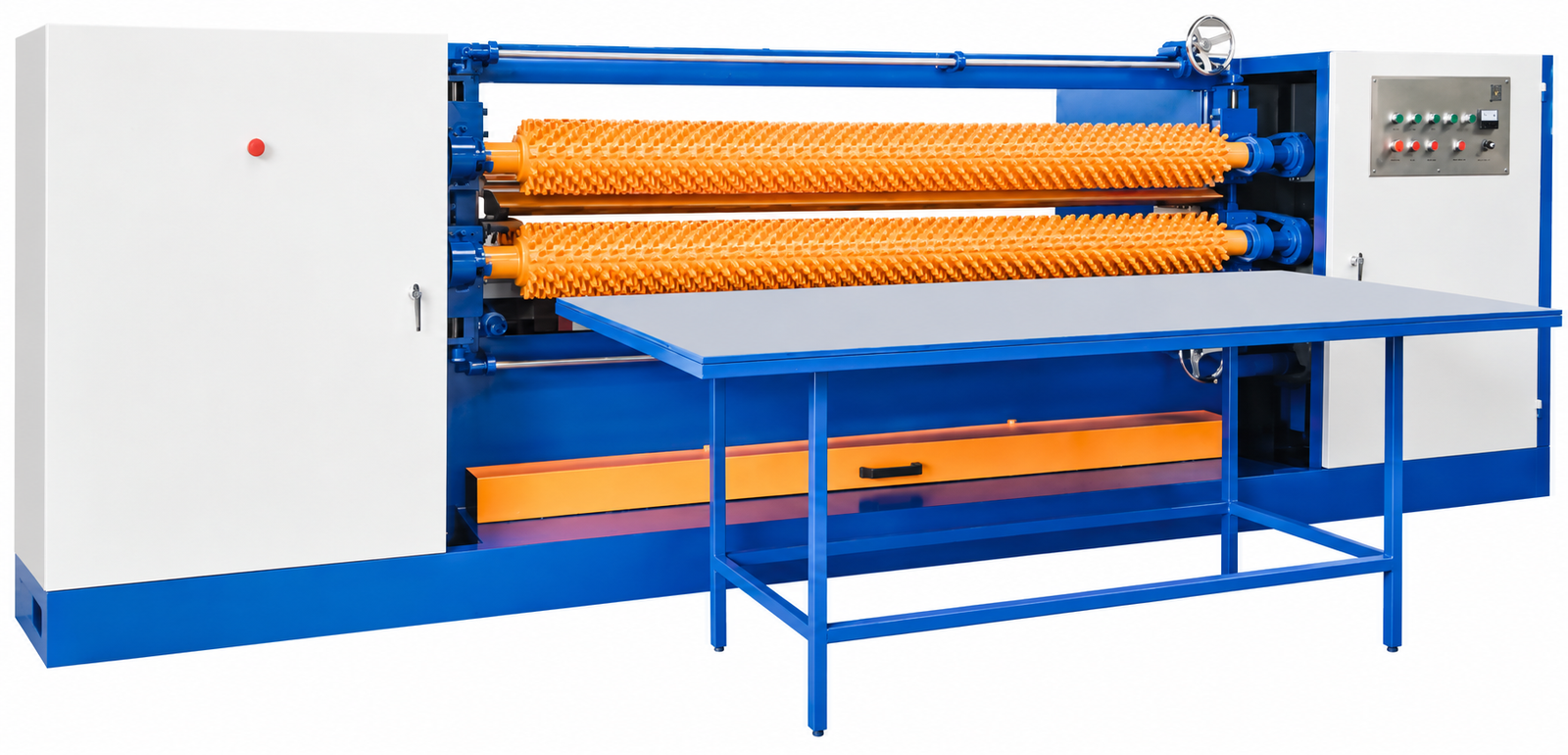

Foam profiling machine with two orange patterned rollers, a wide feed table and side control cabinets

Haifeng

Profiled Foam Sheets

Equipment Selection and Integration

Set the Profile Rollers

Select the roller profile and settings for the intended foam sheet.

Feed and Split the Foam

Pass the foam through the profiled compression rollers and splitting arrangement.

Receive the Patterned Sheets

Collect the two patterned sheets and check the profile and dimensions.

Need a quote for this equipment?

Request a Quote
Equipment Configuration

Technical Specifications

Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval. Zero is the listed setting endpoint, not a demonstrated zero-thickness cutting capability. A listed zero setting endpoint does not establish a zero-thickness processing capability.

Technical ParameterConfiguration AConfiguration B
Dimensions (L×W×H)4200 × 1300 × 1600 mm4800 × 1300 × 1600 mm
Working width1650 mm2150 mm
Listed thickness range0–200 mm0–200 mm
Linear feed speed0–30 m/min0–30 m/min
Blade length8800 mm9800 mm
Total power10.74 kW10.74 kW
Profiled Foam Sheets

Equipment Functions

Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.

Manual roller-depth adjustment

Included in the described equipment arrangement; confirm implementation for the selected configuration.

Custom roller patterns

Included in the described equipment arrangement; confirm implementation for the selected configuration.

Two working widths

Included in the described equipment arrangement; confirm implementation for the selected configuration.

Discuss Your Equipment Configuration

Share your product, materials, tooling and production requirements so we can review the equipment and interfaces for your project.

Foam Production and Finishing

Compare equipment options for the selected process. Not every listed machine is required for every project.

Equipment Selection

Frequently Asked Questions

What is this equipment used for?
Feeds foam through profiled compression rollers and splits it into two patterned sheets for cushions, mattresses and acoustic lining applications.
Which configuration should I select?
Provide input material, density, block or web dimensions, finished geometry, target production schedule and available factory space. Haifeng will review the working envelope and process interfaces.
Are all listed rates and tolerances guaranteed?
Listed technical values are reference configuration data. Confirm material conditions, operating settings, trials and acceptance criteria for the final order.
What must be confirmed before installation?
Confirm the electrical supply, utilities, guarding, access clearances, loading method and included auxiliary equipment.
