Automatic Foam Profile Cutting Machine | Thick Profiled Foam

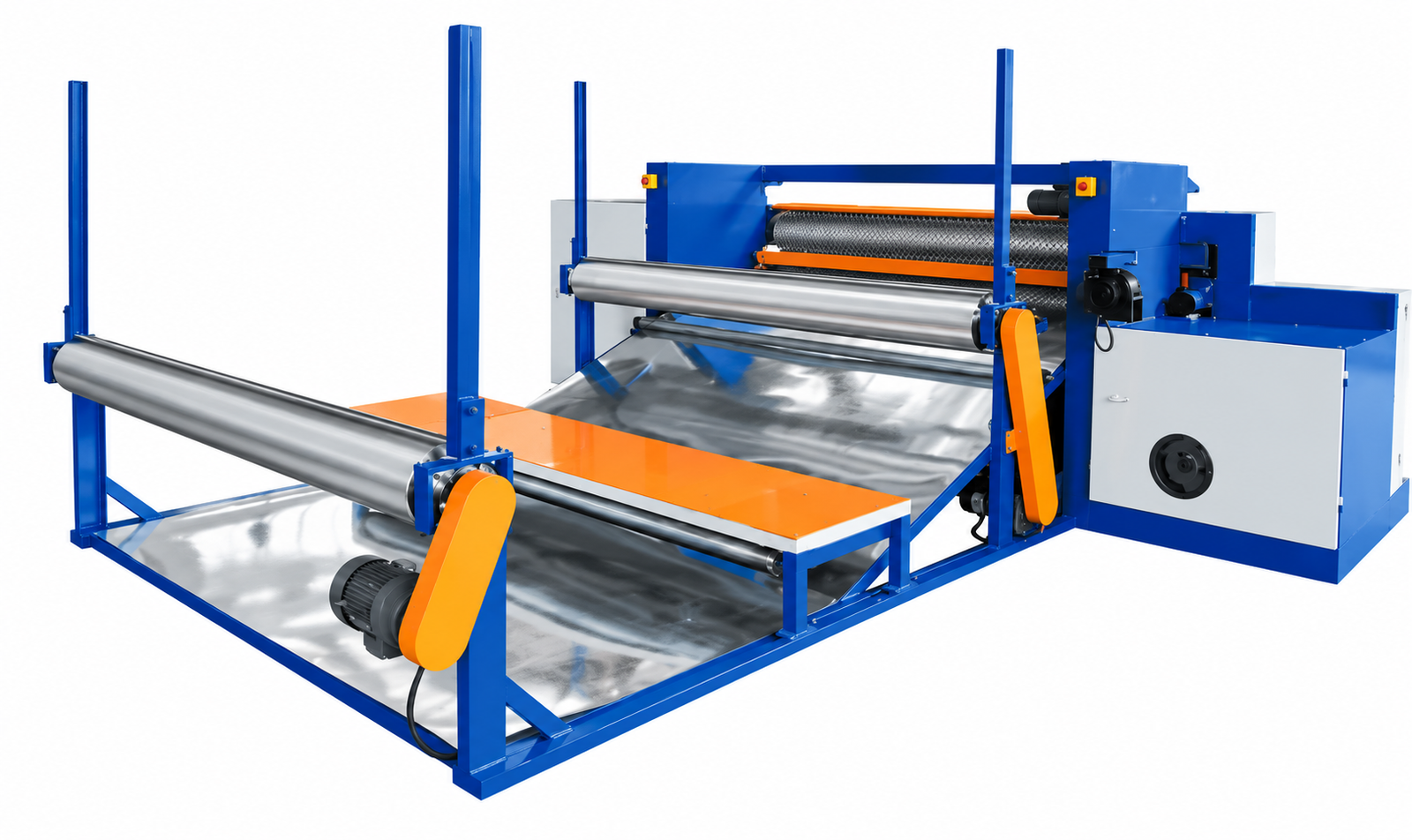

Uses profiled compression rollers to split foam into patterned sheets. The described configuration has automatic roller-depth adjustment, enlarged rollers and a powered-height roller feed table.
Equipment
Automatic Foam Profile Cutting Machine
Application
Thick Profiled Foam
Configuration
1 listed option
Product Overview

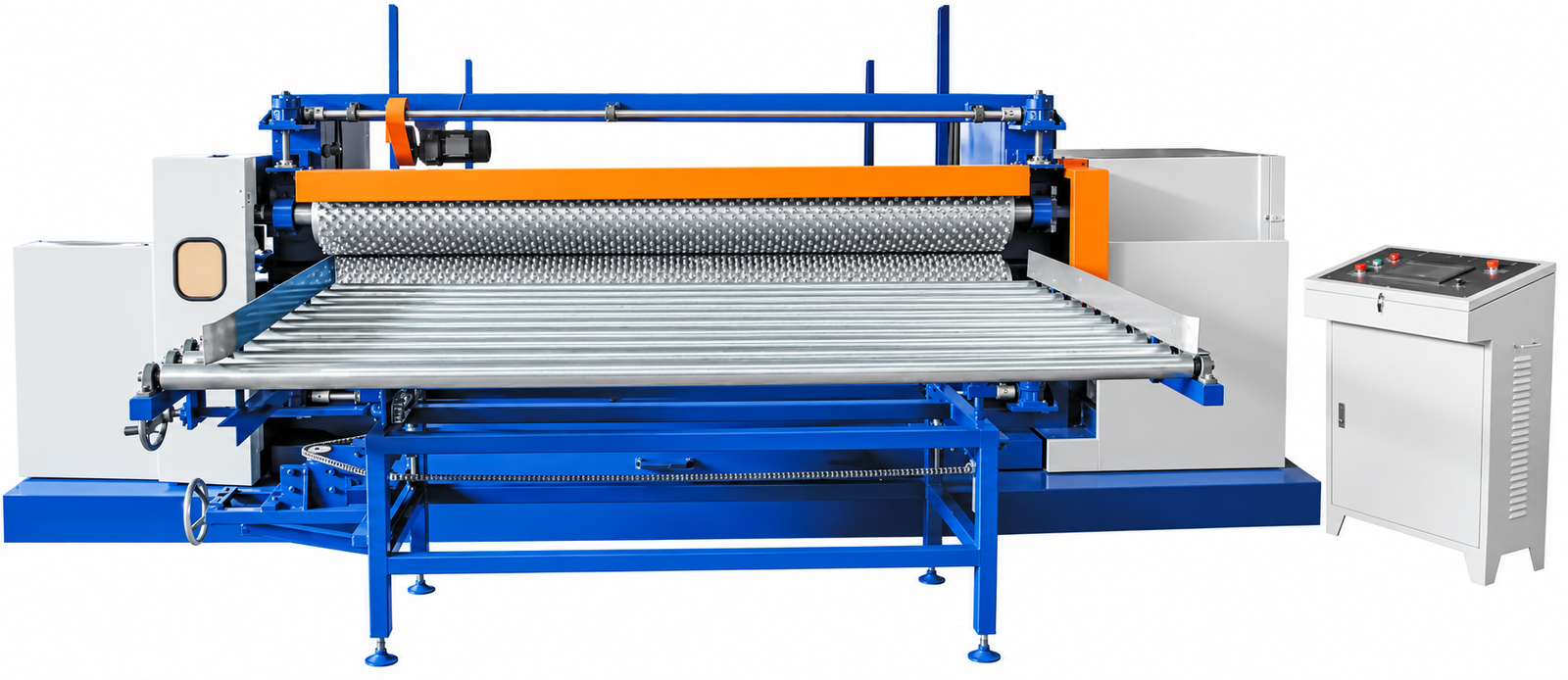

Uses profiled compression rollers to split foam into patterned sheets. The described configuration has automatic roller-depth adjustment, enlarged rollers and a powered-height roller feed table.
Uses profiled compression rollers to split foam into patterned sheets. The described configuration has automatic roller-depth adjustment, enlarged rollers and a powered-height roller feed table.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval. A listed zero setting endpoint does not establish a zero-thickness processing capability.
| Technical Parameter | Configuration A |
|---|---|
| Dimensions (L×W×H) | 5780 × 4700 × 1600 mm |
| Working width | 2300 mm |
| Listed thickness range | 0–300 mm |
| Linear feed speed | 0–30 m/min |
| Blade length | 9800 mm |
| Total power | 11.54 kW |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Automatic roller-depth adjustment
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Powered-height roller feed table
Included in the described equipment arrangement; confirm implementation for the selected configuration.

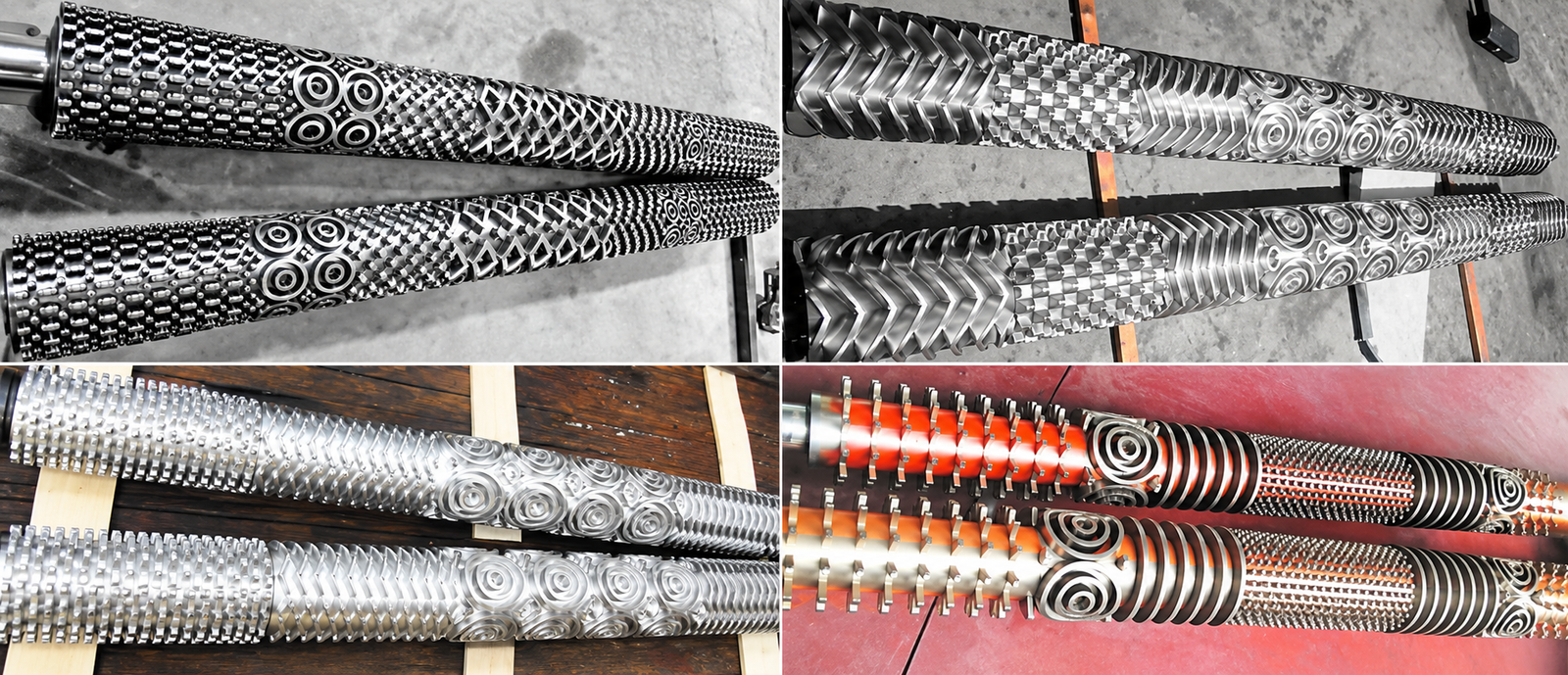

Custom roller profiles
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Optional automatic loading and receiving
Optional configuration to be agreed for the application.
Related Foam Processing Equipment
Compare equipment options for the selected process. Not every listed machine is required for every project.
Foam Convoluting Machine | Profiled Foam Sheets
Polyurethane Machinery &Equipment

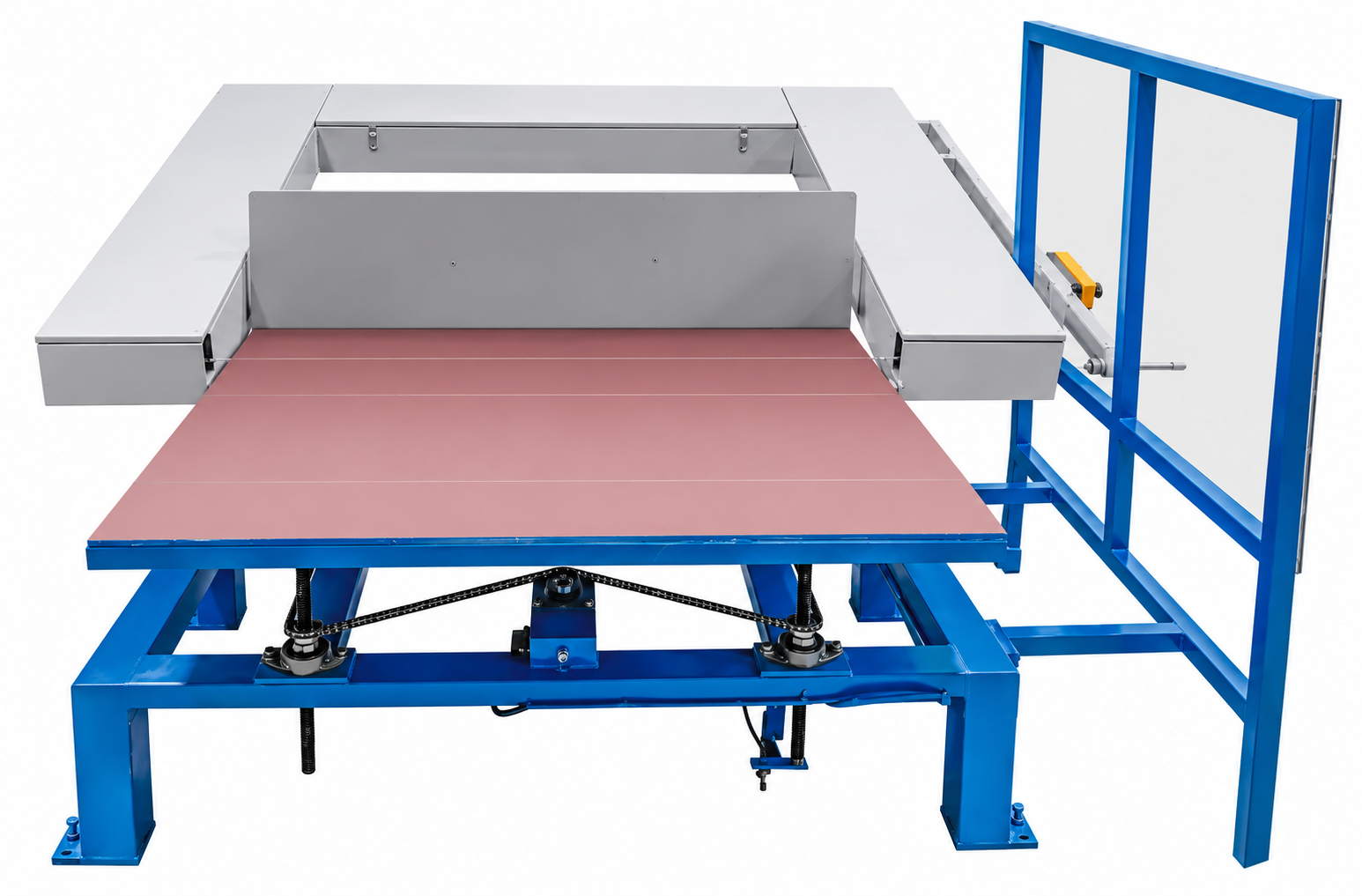

Manual Foam Contour Cutter | Shaped Foam Components
Polyurethane Machinery &Equipment

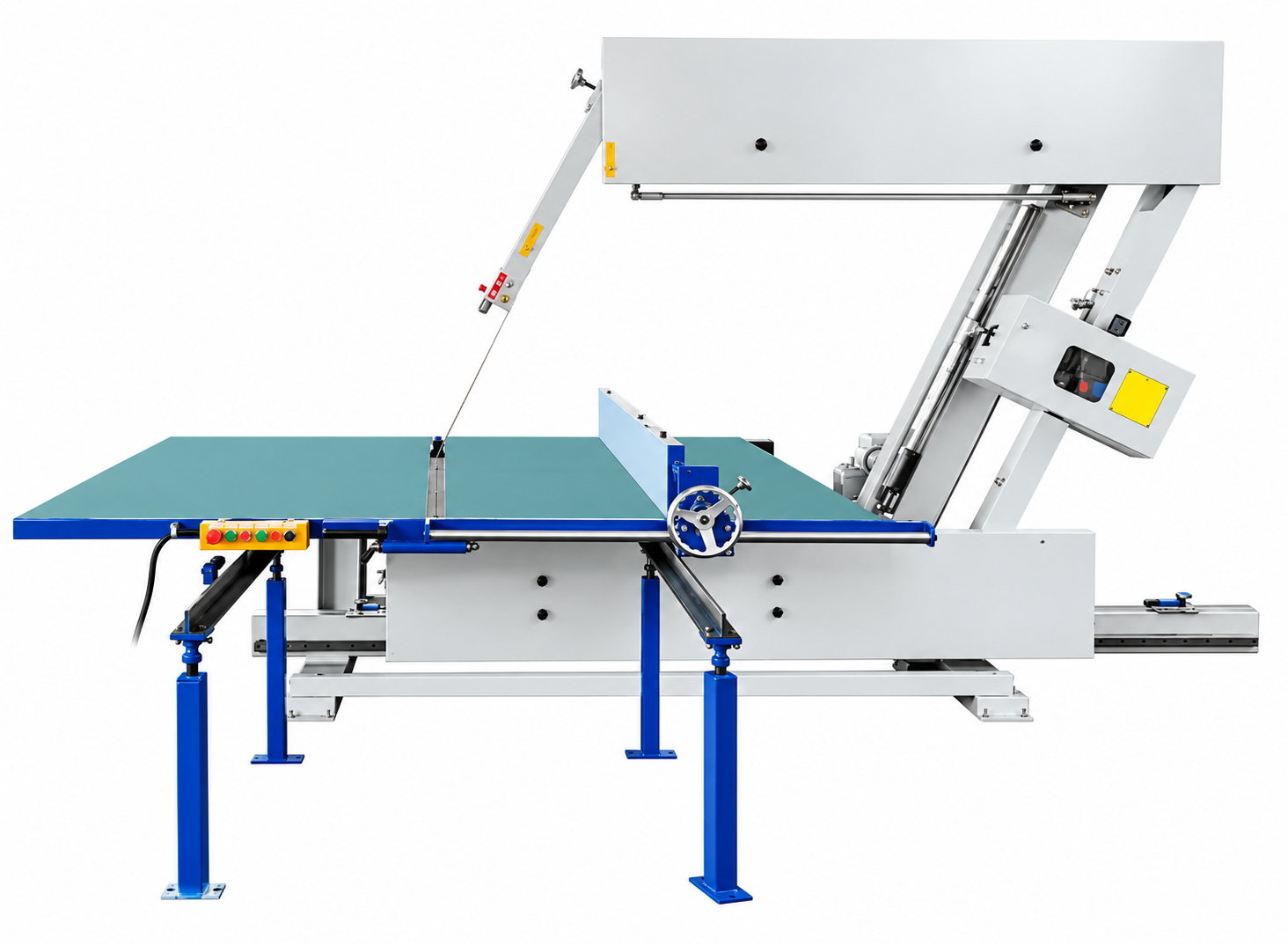

Four Wheel Foam Angle Cutter | Angled Foam Sheets
Polyurethane Machinery &Equipment

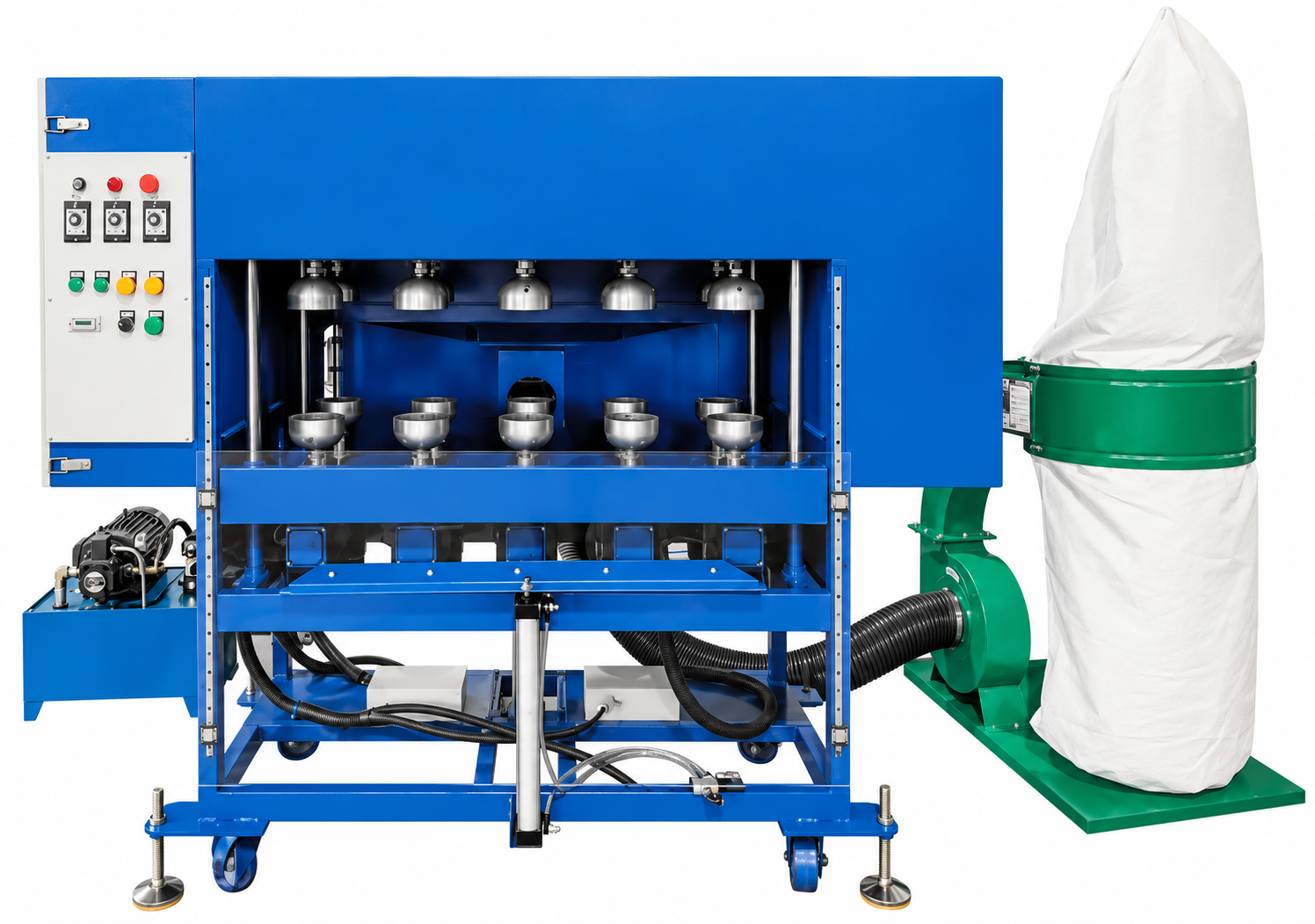

Automatic Foam Ball Shaping Machine | Foam and EVA Balls
