Foam Skin Splitting Machine | Foam and EVA Splitting
Splits top and bottom foam skins and can be reviewed for EVA splitting applications. Material suitability and the finished sheet requirement are checked before selecting the setup.
Equipment
Foam Skin Splitting Machine
Application
Foam and EVA Splitting
Configuration
2 listed options
Product Overview
Splits top and bottom foam skins and can be reviewed for EVA splitting applications. Material suitability and the finished sheet requirement are checked before selecting the setup.
Splits top and bottom foam skins and can be reviewed for EVA splitting applications. Material suitability and the finished sheet requirement are checked before selecting the setup.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.

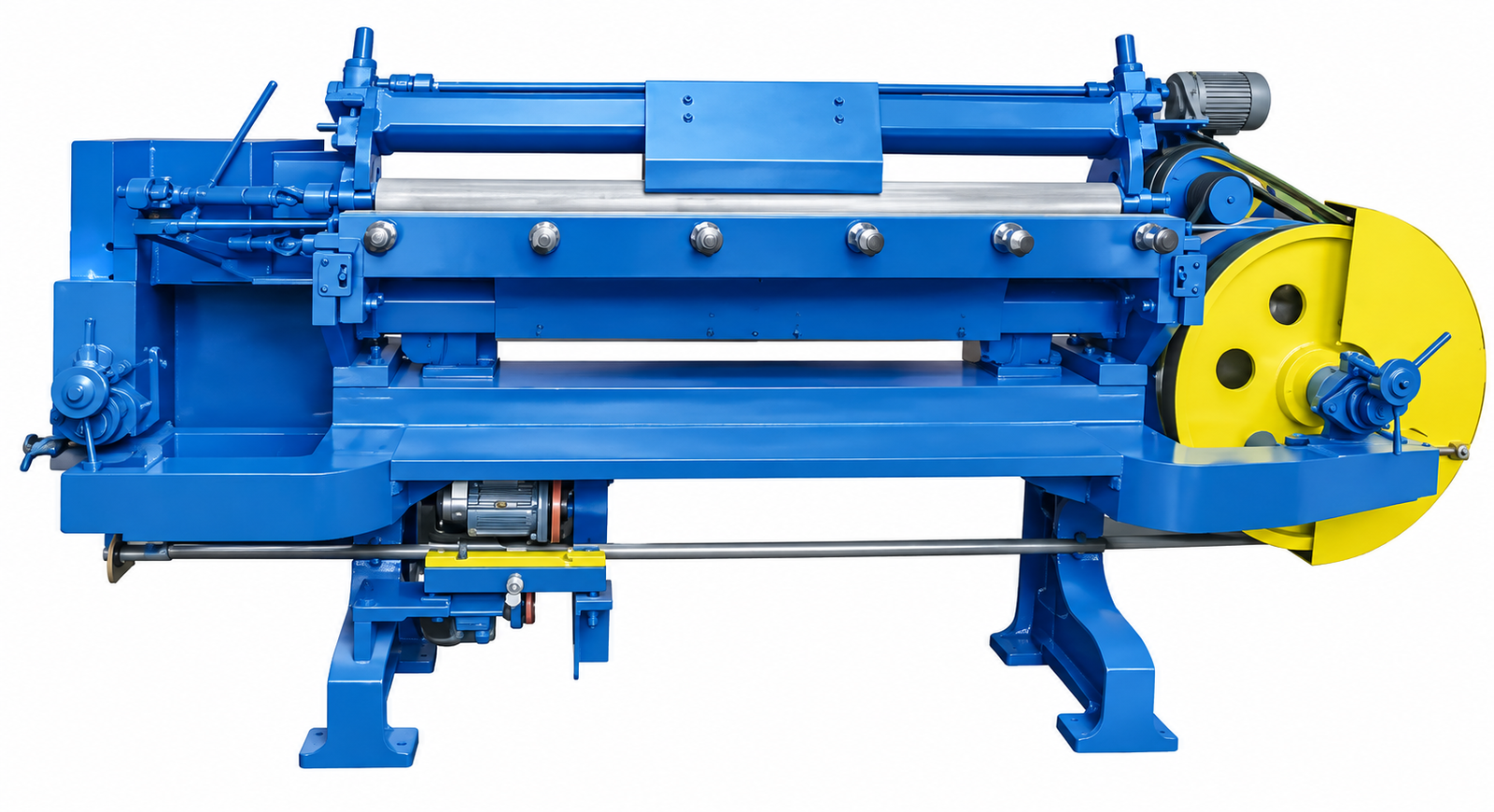

Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval. A listed zero setting endpoint does not establish a zero-thickness processing capability.
| Technical Parameter | Configuration A | Configuration B |
|---|---|---|
| Dimensions (L×W×H) | 4200 × 1300 × 1600 mm | 4800 × 1300 × 1600 mm |
| Working width | 1650 mm | 2150 mm |
| Listed thickness range | 0–200 mm | 0–200 mm |
| Linear feed speed | 0–30 m/min | 0–30 m/min |
| Blade length | 8800 mm | 9800 mm |
| Total power | 10.74 kW | 10.74 kW |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Foam-skin splitting
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Adjustable linear feed
Included in the described equipment arrangement; confirm implementation for the selected configuration.
EVA application review
Included in the described equipment arrangement; confirm implementation for the selected configuration.
