Foam Rotary Peeling Machine | Continuous Foam Rolls
Peels cylindrical foam into a continuous sheet and rewinds it into rolls. Cutting and rewinding settings are adjusted to the required thickness and foam density.
Equipment
Foam Rotary Peeling Machine
Application
Continuous Foam Rolls
Configuration
1 listed option

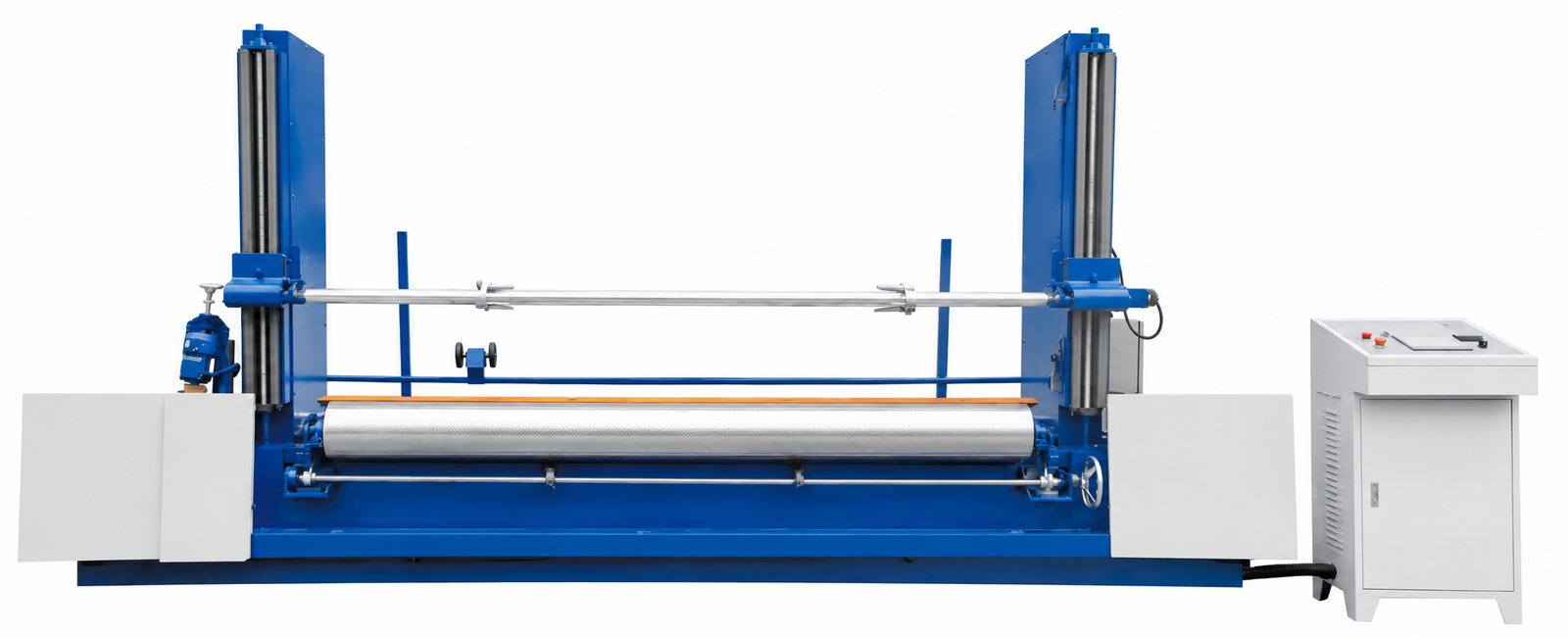

Product Overview
Peels cylindrical foam into a continuous sheet and rewinds it into rolls. Cutting and rewinding settings are adjusted to the required thickness and foam density.
Peels cylindrical foam into a continuous sheet and rewinds it into rolls. Cutting and rewinding settings are adjusted to the required thickness and foam density.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval. The speed entry uses m/min, not revolutions/minute.
| Technical Parameter | Configuration A |
|---|---|
| Dimensions (L×W×H) | 4600 × 1700 × 2000 mm |
| Foam cylinder size (diameter × width) | Ø2000 × 2150 mm |
| Cutting thickness | 1–30 mm |
| Listed linear speed | 0–30 m/min |
| Blade length | 8940 mm |
| Total power | 4.67 kW |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Cylindrical-bun peeling
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Continuous sheet rewinding
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Adjustable feed and winding settings
Included in the described equipment arrangement; confirm implementation for the selected configuration.
