Foam Cell Opening Compression Machine | Flexible Foam Conditioning
Compresses flexible foam through rollers for cell-opening conditioning. The required compression setting and material response are reviewed for the foam formulation.
Equipment

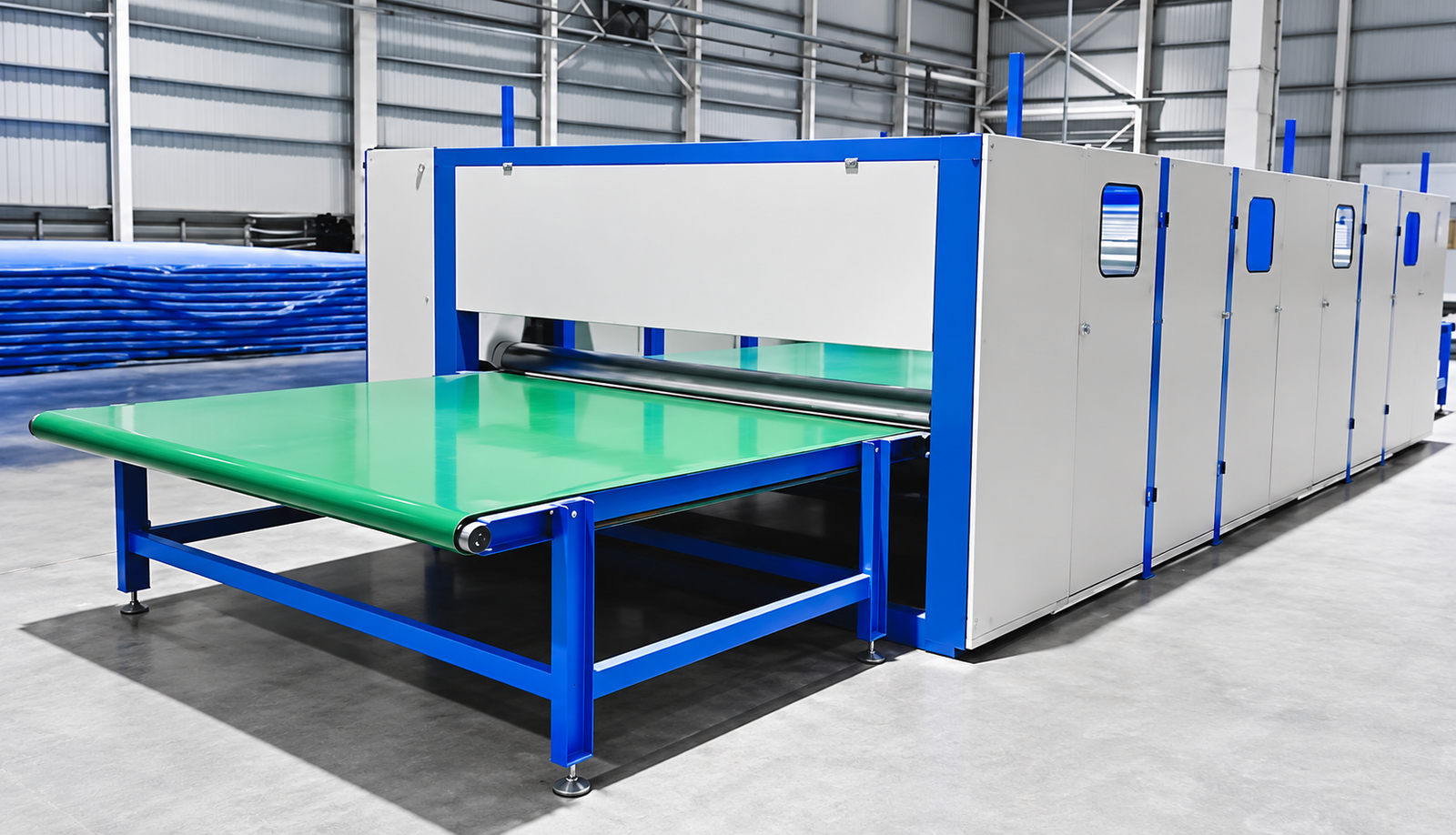

Foam Cell Opening Compression Machine
Application
Flexible Foam Conditioning
Configuration
2 listed options
Product Overview
Compresses flexible foam through rollers for cell-opening conditioning. The required compression setting and material response are reviewed for the foam formulation.
Compresses flexible foam through rollers for cell-opening conditioning. The required compression setting and material response are reviewed for the foam formulation.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval. No quantified cell-opening efficiency or resulting foam quality is documented. A listed zero setting endpoint does not establish a zero-thickness processing capability.
| Technical Parameter | Configuration A | Configuration B |
|---|---|---|
| Dimensions (L×W×H) | 5000 × 3500 × 1600 mm | 16500 × 3800 × 2000 mm |
| Working width | 2300 mm | 2300 mm |
| Total power | 3.7 kW | 20 kW |
| Listed foam thickness range | 0–200 mm | 0–1200 mm |
| Linear feed speed | 0–60 m/min | 0–60 m/min |
| Compression roller diameter | 300 mm | 300 mm |
| Conveyor frame size (W × L) | 2300 × 2000 mm | 2300 × 2500 mm |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Roller compression
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Adjustable linear feed
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Conveyor integration
Included in the described equipment arrangement; confirm implementation for the selected configuration.
