Dual Blade CNC Foam Contour Cutter | Foam Component Conversion
Cuts programmed foam contours with computer-controlled multi-axis motion, servo drives and circulating band blades. Front and rear lifting platforms support loading and unloading.
Equipment
Dual Blade CNC Foam Contour Cutter
Application
Foam Component Conversion
Configuration
1 listed option

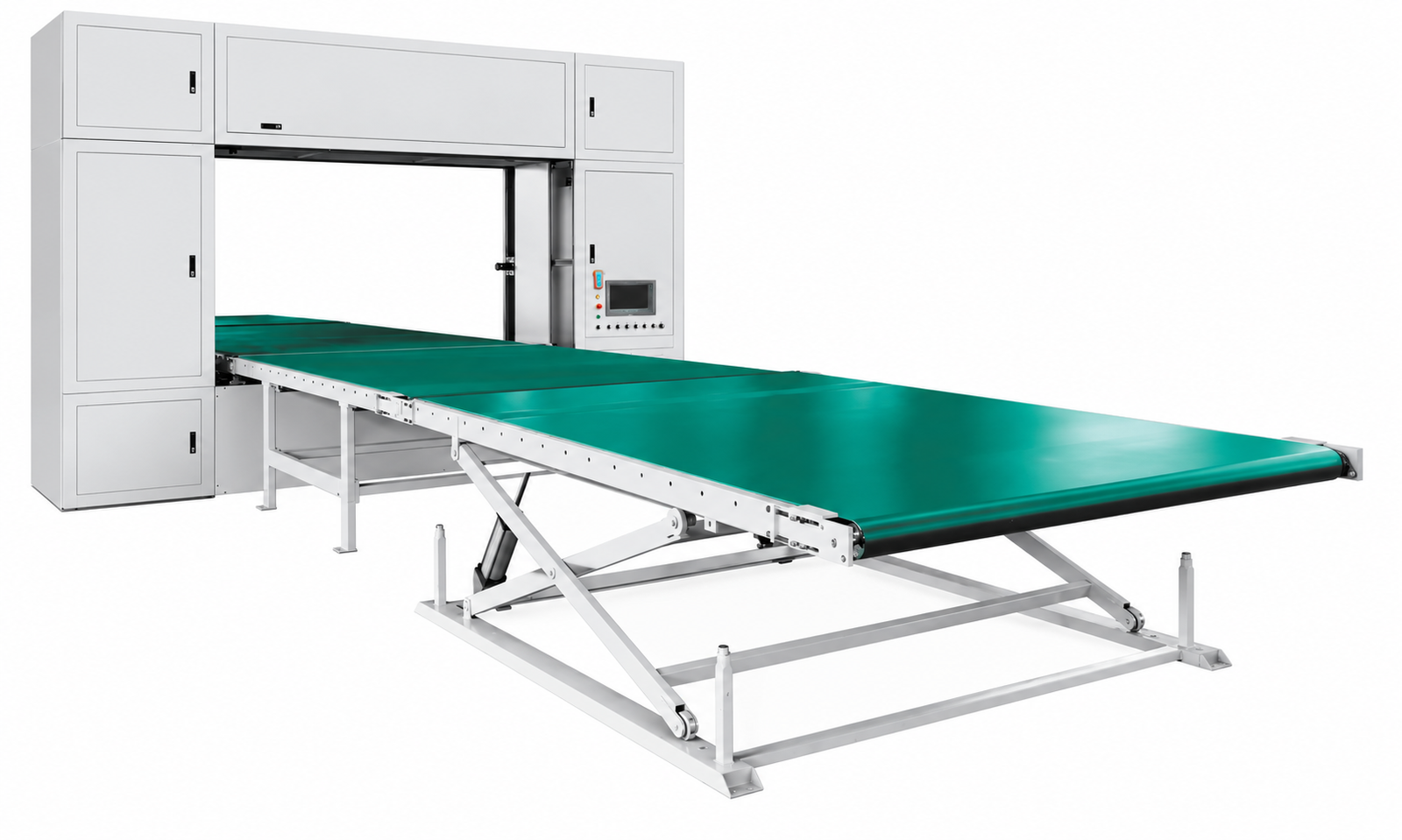

Product Overview
Cuts programmed foam contours with computer-controlled multi-axis motion, servo drives and circulating band blades. Front and rear lifting platforms support loading and unloading.
Cuts programmed foam contours with computer-controlled multi-axis motion, servo drives and circulating band blades. Front and rear lifting platforms support loading and unloading.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval. The listed cutting accuracy is a configuration reference. Confirm foam properties, contour, cutting speed, blade condition, measurement method and acceptance criteria; software supply and licensing follow the agreed scope.
| Technical Parameter | Configuration A |
|---|---|
| Dimensions (L×W×H) | 10500 × 4500 × 3250 mm |
| Foam block size (L × W × H) | 2200 × 2000 × 1200 mm |
| Cutting travel speed | 0–50 m/min |
| Listed accuracy reference | ±0.5 mm, reference subject to acceptance conditions |
| Cutting method | Circulating band blades |
| Blade speed | 500–1800 m/min |
| Software arrangement | Dedicated foam contour software; supply to be agreed |
| Control arrangement | PC with multi-axis motion control card |
| Blade arrangement | Loop sawtooth or straight blades |
| Total power | 15.5 kW |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Computer-controlled contour cutting
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Servo drives
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Front and rear lifting platforms
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Optional pressure roller
Optional configuration to be agreed for the application.
