Carousel Horizontal Foam Slicer | Multiple Foam Blocks
Slices several foam blocks arranged on a rotating table. Digital thickness settings and reversible table rotation support repeated sheet cutting.
Equipment
Carousel Horizontal Foam Slicer
Application
Multiple Foam Blocks
Configuration
3 listed options

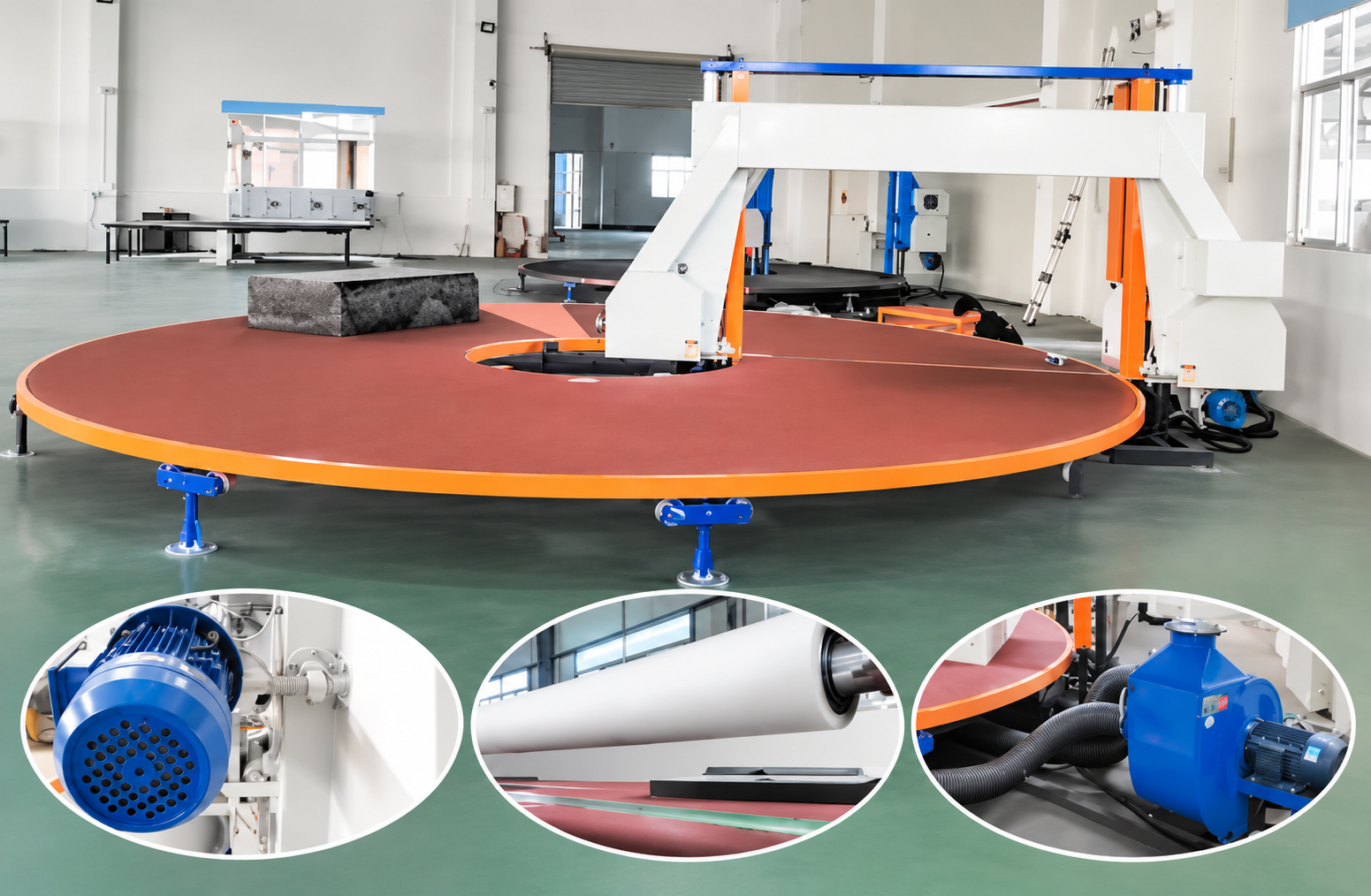

Product Overview
Slices several foam blocks arranged on a rotating table. Digital thickness settings and reversible table rotation support repeated sheet cutting.
Slices several foam blocks arranged on a rotating table. Digital thickness settings and reversible table rotation support repeated sheet cutting.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval. Block-position count is table loading capacity, not cycle output or guaranteed production rate.
| Technical Parameter | Configuration A | Configuration B | Configuration C |
|---|---|---|---|
| Dimensions (L×W×H) | 7000 × 6500 × 2500 mm | 7500 × 7000 × 2500 mm | 11500 × 11000 × 2500 mm |
| Individual block size (L × W × H) | 2000 × 1500 × 1200 mm | 2000 × 1500 × 1200 mm | 2000 × 1500 × 1200 mm |
| Listed block positions | 4 | 5 | 8 |
| Cutting thickness | 2–150 mm | 2–150 mm | 2–150 mm |
| Table rotation speed | 0–3.5 rpm | 0–3.5 rpm | 0–2.5 rpm |
| Table diameter | 6 m | 7 m | 10.5 m |
| Blade length | 8940 mm | 10000 mm | 10380 mm |
| Total power | 8.92 kW | 8.92 kW | 10.52 kW |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Digital thickness settings
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Reversible rotating table
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Optional vacuum and pressure rollers
Optional configuration to be agreed for the application.
Optional blade-frame angle adjustment
Optional configuration to be agreed for the application.
