Automatic Vertical Foam Cutter | Foam Block Conversion
Cuts foam vertically with touchscreen and PLC settings for multiple thicknesses. A fixed aluminum worktable holds foam between retaining plates while the blade carriage travels on linear guides.
Equipment
Automatic Vertical Foam Cutter
Application
Foam Block Conversion
Configuration
1 listed option

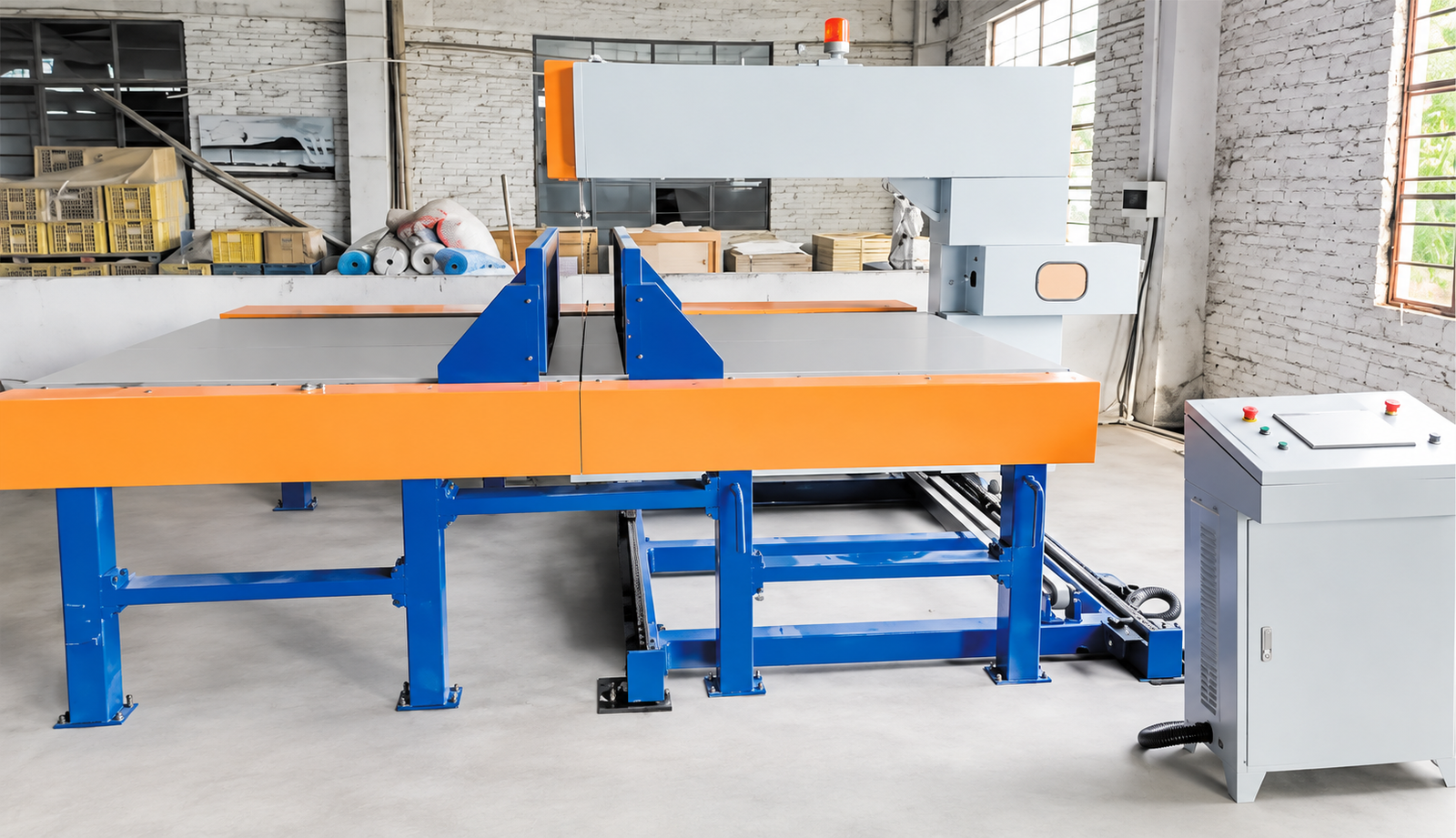

Product Overview
Cuts foam vertically with touchscreen and PLC settings for multiple thicknesses. A fixed aluminum worktable holds foam between retaining plates while the blade carriage travels on linear guides.
Cuts foam vertically with touchscreen and PLC settings for multiple thicknesses. A fixed aluminum worktable holds foam between retaining plates while the blade carriage travels on linear guides.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval. Cutting thickness is printed as an incomplete 2– mm range; do not infer the upper limit.
| Technical Parameter | Configuration A |
|---|---|
| Inner table size (W × L) | 1700 × 2440 mm |
| Outer table size (W × L) | 1700 × 2440 mm |
| Cutting height | 1100 mm |
| Cutting thickness | To be confirmed |
| Blade length | 9720 mm |
| Blade carriage travel speed | 0–30 m/min |
| Retaining plate travel speed | 0–10 m/min |
| Total power | 4.92 kW |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Multiple thickness settings
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Fixed aluminum worktable
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Moving blade carriage
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Automatic blade-guard movement
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Optional pressure roller
Optional configuration to be agreed for the application.
Related Foam Processing Equipment
Compare equipment options for the selected process. Not every listed machine is required for every project.

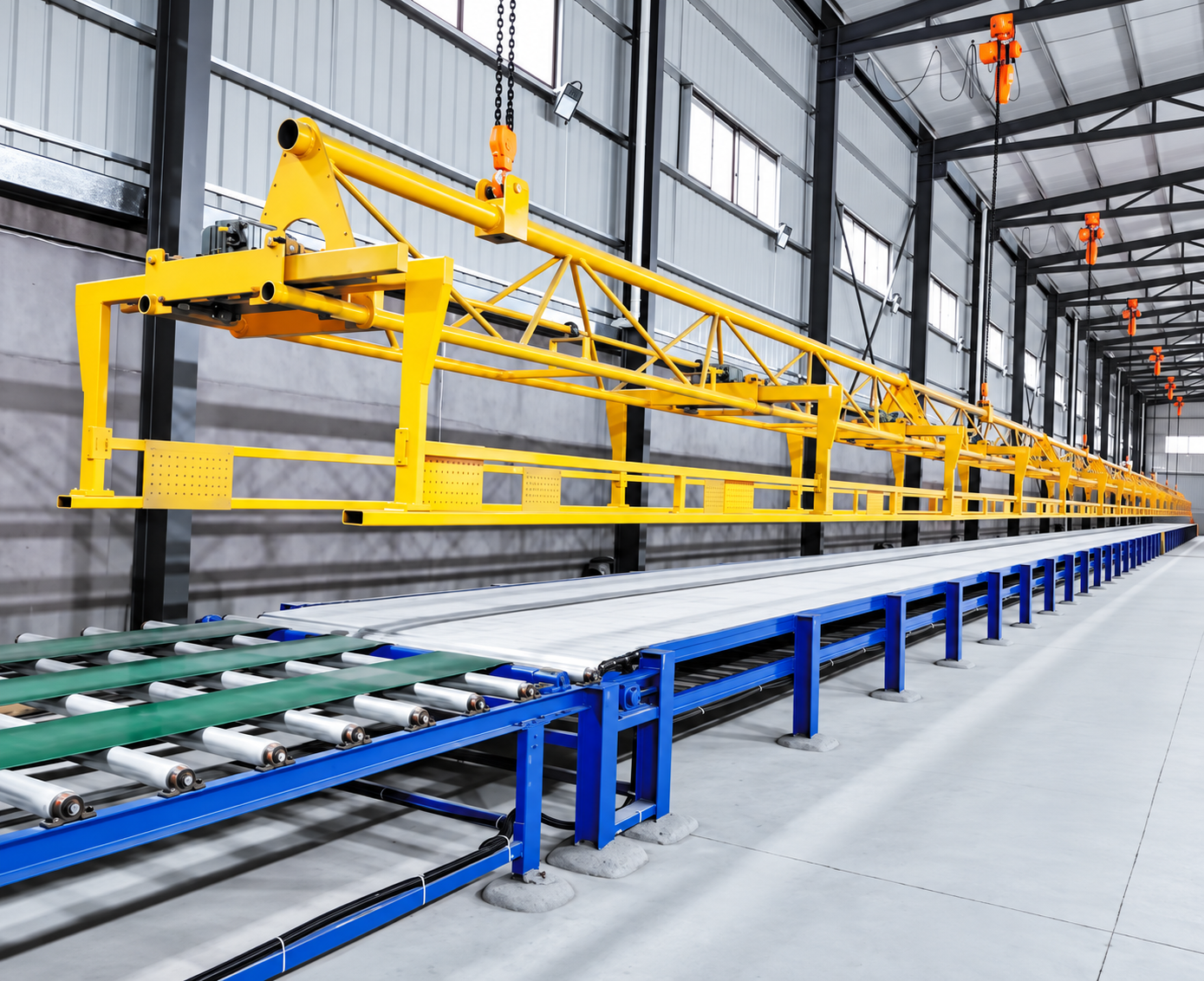

Foam Handling Clamp | Slabstock Foam Handling
Polyurethane Machinery &Equipment
Foam Sheet Joining Machine | Continuous Foam Webs
Polyurethane Machinery &Equipment

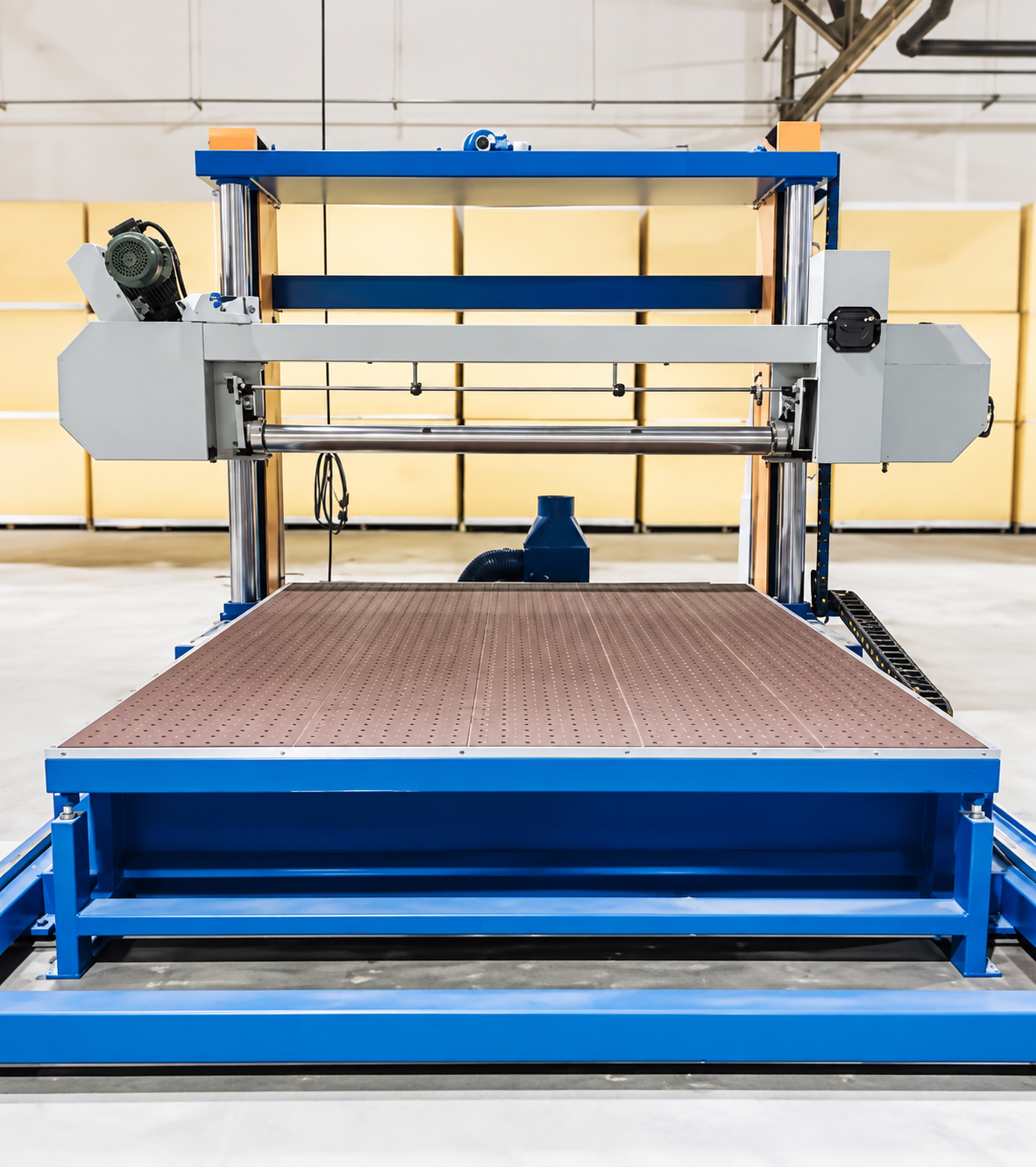

Precision Vacuum Horizontal Foam Cutter | Thin Foam Sheets
Polyurethane Machinery &Equipment

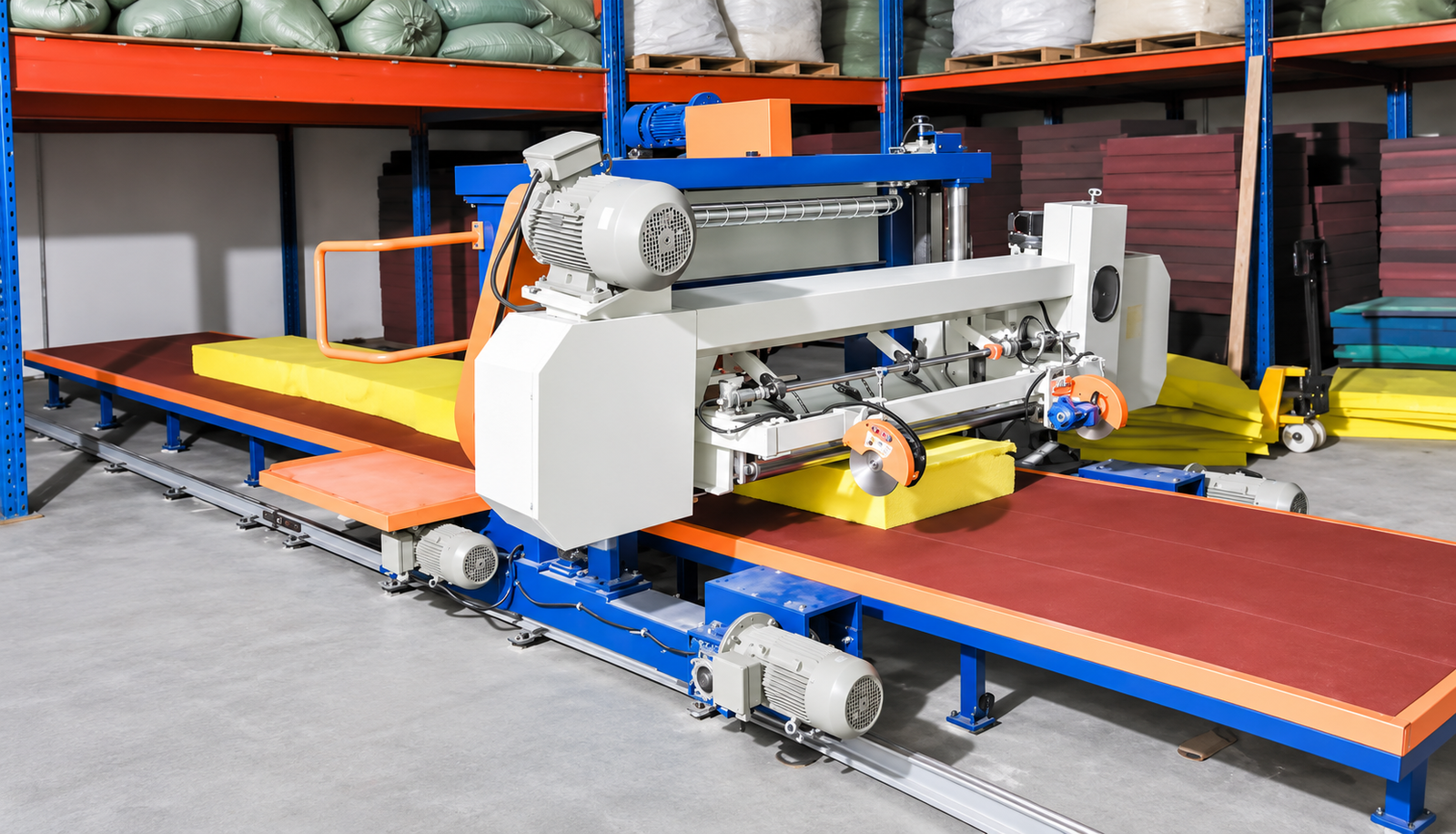

High Density Rail Foam Slicer | High Density Foam Sheets
