Automatic Foam Mattress Perforating Machine | Perforated Foam Mattresses

Perforates foam mattresses using servo-controlled feeding and an automatic punching arrangement. Waste removal is included in the described process.

Working Width

2150 mm

Punching Thickness

150 mm

Hole Pitch

80 × 80 mm

Hole Diameter

8 mm

Availability on Request Delivery Schedule on Quotation 1-Year Warranty
Perforated Foam Mattresses

Product Overview

Perforates foam mattresses using servo-controlled feeding and an automatic punching arrangement. Waste removal is included in the described process.

Perforates foam mattresses using servo-controlled feeding and an automatic punching arrangement. Waste removal is included in the described process.

Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.

Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.

Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.

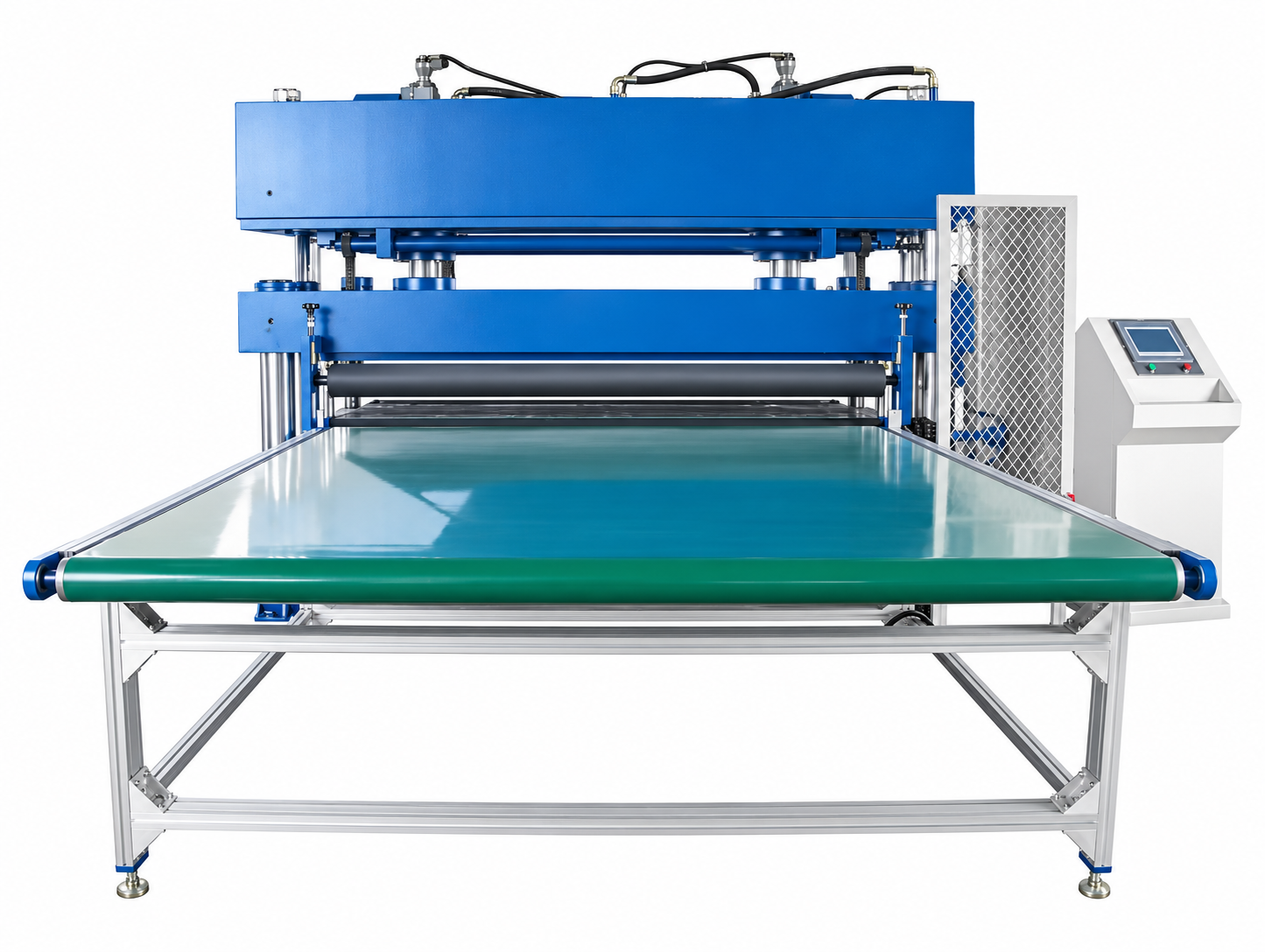

Foam mattress perforating machine with a green feed conveyor, overhead working assembly and touchscreen control stand

Haifeng

Perforated Foam Mattresses

Equipment Selection and Integration

Position the Mattress

Set the mattress and select the intended perforation arrangement for the material.

Feed and Perforate

Coordinate servo-controlled feeding with the automatic punching sequence.

Remove Waste and Inspect

Complete the described waste removal and check the finished perforations and mattress dimensions.

Need a quote for this equipment?

Request a Quote
Equipment Configuration

Technical Specifications

Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval. 80 t is a force entry rather than a hydraulic pressure unit. Confirm total force rating and tooling scope.

Technical ParameterConfiguration A
Working width2150 mm
Listed punching thickness150 mm
Hole pitch80 × 80 mm
Hole diameter8 mm
Rows processed per stroke5 rows
Perforated Foam Mattresses

Equipment Functions

Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.

Servo-controlled feeding

Included in the described equipment arrangement; confirm implementation for the selected configuration.

Automatic punching

Included in the described equipment arrangement; confirm implementation for the selected configuration.

Waste-removal arrangement

Included in the described equipment arrangement; confirm implementation for the selected configuration.

Discuss Your Equipment Configuration

Share your product, materials, tooling and production requirements so we can review the equipment and interfaces for your project.

Foam Production and Finishing

Compare equipment options for the selected process. Not every listed machine is required for every project.

Equipment Selection

Frequently Asked Questions

What is this equipment used for?
Perforates foam mattresses using servo-controlled feeding and an automatic punching arrangement. Waste removal is included in the described process.
Which configuration should I select?
Provide input material, density, block or web dimensions, finished geometry, target production schedule and available factory space. Haifeng will review the working envelope and process interfaces.
Are all listed rates and tolerances guaranteed?
Listed technical values are reference configuration data. Confirm material conditions, operating settings, trials and acceptance criteria for the final order.
What must be confirmed before installation?
Confirm the electrical supply, utilities, guarding, access clearances, loading method and included auxiliary equipment.
