Automatic Foam Angle Cutter | Furniture Foam Components
Cuts angles in upholstery and furniture foam. PLC digital input positions the machine to the selected cutting angle.
Equipment
Automatic Foam Angle Cutter
Application
Furniture Foam Components
Configuration
1 listed option
Product Overview
Cuts angles in upholstery and furniture foam. PLC digital input positions the machine to the selected cutting angle.
Cuts angles in upholstery and furniture foam. PLC digital input positions the machine to the selected cutting angle.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.

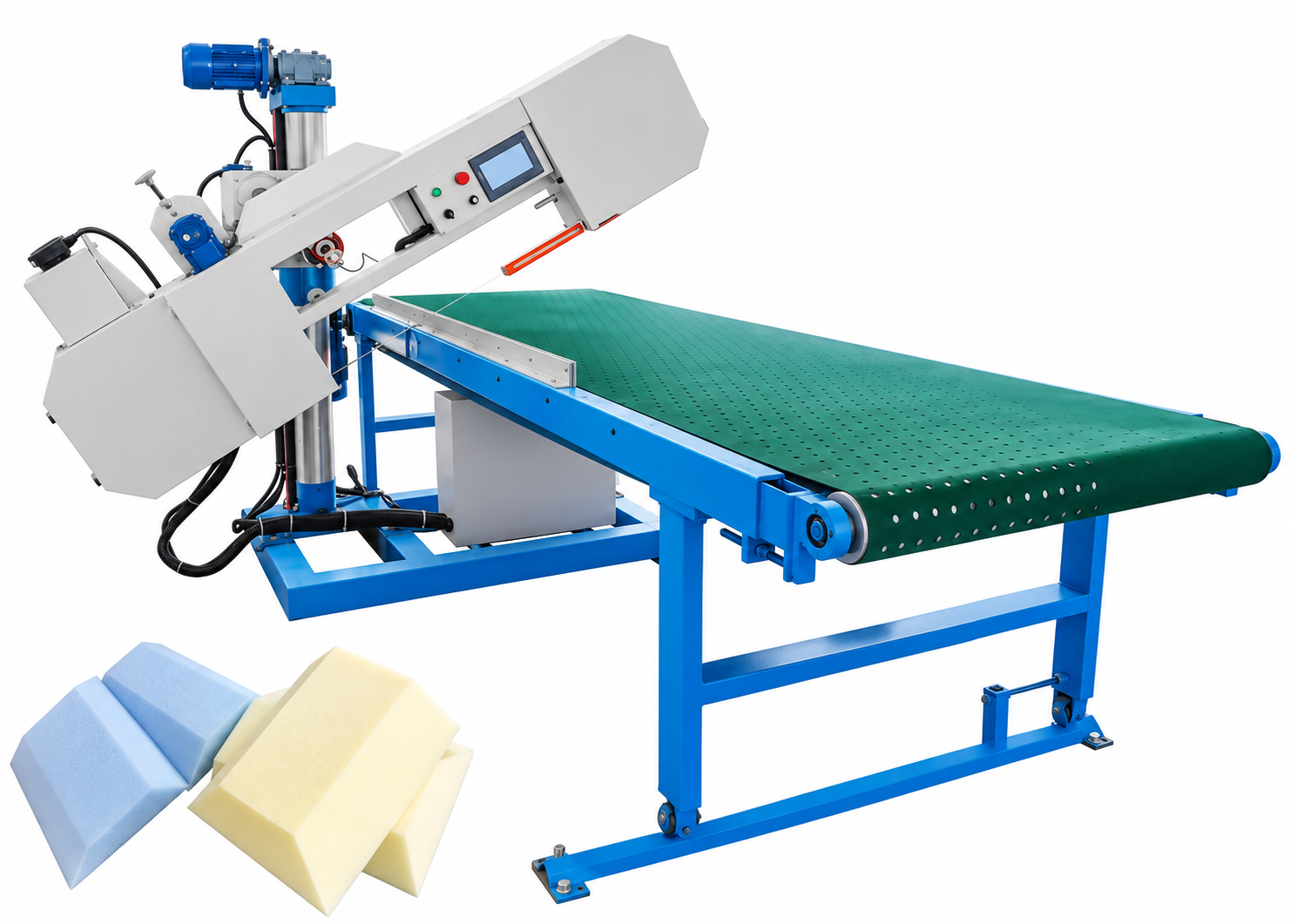

Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval.
| Technical Parameter | Configuration A |
|---|---|
| Weight | 800 kg |
| Dimensions (L×W×H) | 3000 × 2180 × 2200 mm |
| Cutting angle | 0–175° |
| Blade length | 4600 mm |
| Total power | 5.49 kW |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
PLC angle input
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Automatic angle positioning
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Upholstery component cutting
Included in the described equipment arrangement; confirm implementation for the selected configuration.
