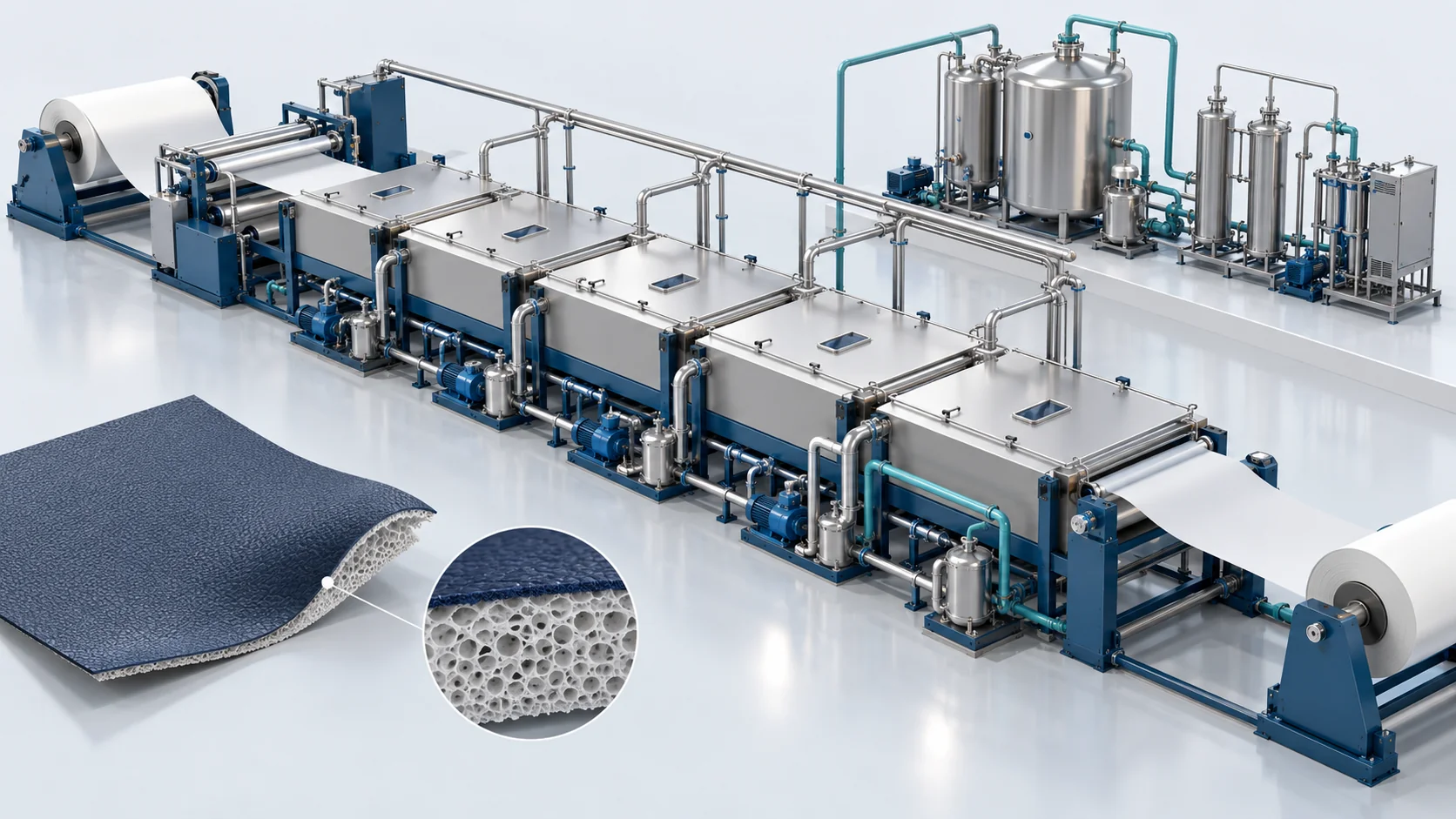

Wet-Process DMF Coagulation Solution
A multistage DMF/water coagulation and countercurrent washing package with monitored circulation and recovery interfaces.
Dramatic Steam and Solvent Cost Reduction for Wet Synthetic Leather
A multistage DMF/water coagulation and countercurrent washing package with monitored circulation and recovery interfaces.
Equipment and process scope
Configured coagulation/washing tanks, circulation pumps, fluid monitoring and web-handling interfaces. Distillation, extraction, wastewater treatment and upstream coating scope are separately agreed.
Validation and production planning
Effluent concentration is not a liquid resin mix ratio, and refractometer Brix requires composition/temperature calibration before it represents DMF concentration. Recovery purity, water use and steam savings require process mass/energy balances. Enclosed washing does not by itself prove emissions or wastewater compliance.

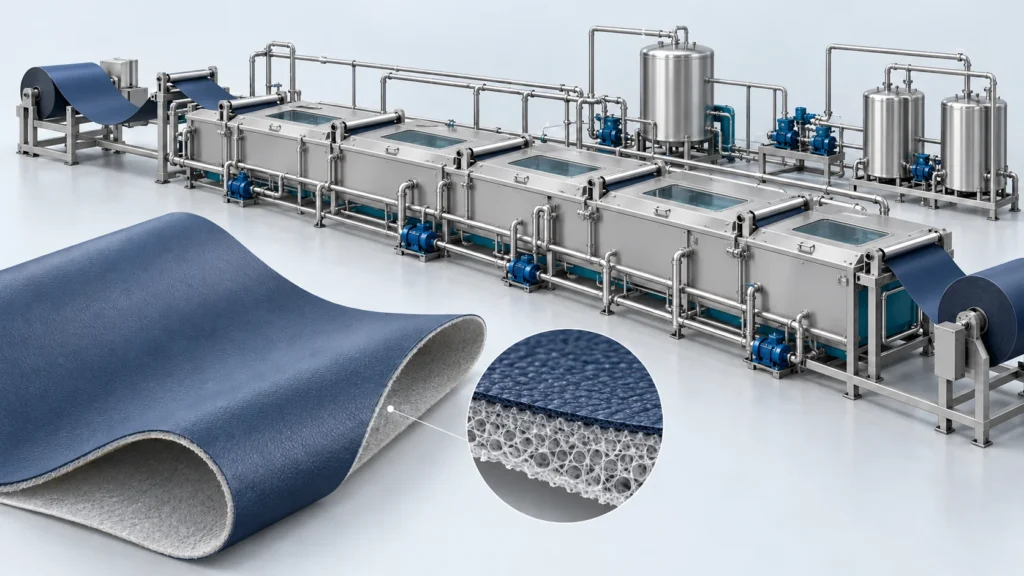

Configured coagulation/washing tanks, circulation pumps, fluid monitoring and web-handling interfaces. Distillation, extraction, wastewater treatment and upstream coating scope are separately agreed. Effluent concentration is not a liquid resin mix ratio, and refractometer Brix requires composition/temperature calibration before it represents DMF concentration. Recovery purity, water use and steam savings require process mass/energy balances. Enclosed washing does not by itself prove emissions or wastewater compliance.Generated concept illustration for process discussion; not a photograph of the specified machine, a customer facility or a delivered project.
Turnkey Countercurrent Washing Retrofit Process
Configuration sequence from the supplied brief. Material, tool, pressure/temperature basis and complete line balance require verification. Effluent concentration is not a liquid resin mix ratio, and refractometer Brix requires composition/temperature calibration before it represents DMF concentration. Recovery purity, water use and steam savings require process mass/energy balances. Enclosed washing does not by itself prove emissions or wastewater compliance.
Pre-Washing Mechanical Fluid Squeegee
Supplied process reference: Microfiber bases exiting the coagulation tank pass through high-pressure pneumatic squeegee rollers to squeeze out initial heavy DMF liquor.
Clean Fresh Water Countercurrent Infeed
Supplied process reference: Deionized fresh water enters only at the final wash tank (Stage 6), flowing backward through upstream tanks against base fabric travel.
Optical Refractometer Dosing & Balancing
Supplied process reference: Submersible digital refractometers monitor concentration in each tank, commanding proportional valves to maintain exact cascade gradients.
Reference Solution Engineering Envelope
Supplied configuration and validation references; material/component results are separate from equipment ratings.
| Parameter | Value / Unit | Applicable Configuration / Conditions |
|---|---|---|
| Effluent Discharged DMF Concentration | 18.0% to 22.0% Steady Window | Closed-loop optical refractometer proportional valve control; supplied configuration or material target, pending the applicable original records |
| Distillation Plant Steam Energy Cut | Greater than or equal to 32% | Verified on steam mass flow meters per ton of recovered DMF; supplied configuration or material target, pending the applicable original records |
| Fresh Water Consumption Reduction | Greater than or equal to 50% | Multi-stage countercurrent cascade recycling array; supplied configuration or material target, pending the applicable original records |
| Fugitive DMF Vapor Suppression | Less than 0.05% leakage | Fully enclosed negative-pressure stainless canopies; supplied configuration or material target, pending the applicable original records |
| Base Fabric Residual DMF Content | Less than 200 ppm | Gas chromatography extraction after final stage squeeze roll; supplied configuration or material target, pending the applicable original records |
| Retrofit Installation Shutdown Dwell | 10 to 14 Operating Days | Modular drop-in tank skid design matching scheduled maintenance; supplied configuration or material target, pending the applicable original records |
Core Equipment for This Solution
Configured coagulation/washing tanks, circulation pumps, fluid monitoring and web-handling interfaces. Distillation, extraction, wastewater treatment and upstream coating scope are separately agreed.
Core Advantages of Haifeng Wet Retrofit Systems
Configured equipment functions and interfaces for the selected material and tooling.
32% Steam Energy Savings
Supplied configuration function: Concentrating wash effluent to 18%–22% DMF cuts the water volume boiled in distillation towers in half. Project-dependent performance requires validation.
50% Fresh Water Cut
Supplied configuration function: Countercurrent cascade recycling reuses wash water five times backward, cutting water intake by half. Project-dependent performance requires validation.
Complete Vapor Containment
Supplied configuration function: Enclosed negative-pressure covers keep fugitive solvent fumes under 0.05%, ensuring worker health. Project-dependent performance requires validation.
Rapid 12-Month ROI
Supplied configuration function: Massive reductions in monthly boiler steam bills and water fees typically recover capital costs within one year. Project-dependent performance requires validation.
Related Project Draft
An anonymous project brief from the supplied document. Original attribution, dates, acceptance and outcome records require verification before public use.
Frequently Asked Questions
Why is 18%–22% considered the ideal concentration window for DMF recovery?
Can our existing production line be retrofitted without moving the foundation?
What maintains the accuracy of digital refractometers in dirty wash water?
How does the negative-pressure hood prevent condensation droplets on the base?
