Steering Wheel Integral Skin PU Molding Solution
High-precision reaction molding systems for automotive steering wheels, combining in-mold coating technology with seamless, wear-resistant integral skin comfort.
Precision PU Integral Skin Solutions for Steering Wheels

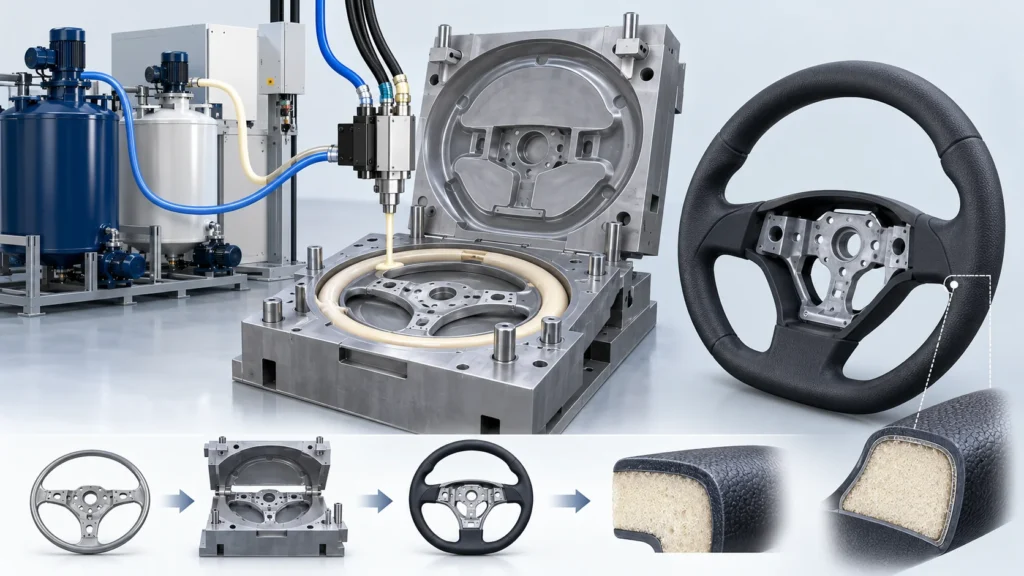

Steering wheels serve as the primary tactile interface between driver and vehicle, demanding an optimal balance of soft touch, ergonomic grip, and heavy wear resistance. Conventional post-demold painting processes involve labor-intensive sanding and primer application, frequently resulting in surface blistering, hand sweat degradation, and coating delamination over time. Haifeng’s automated high-pressure polyurethane integral skin solution integrates In-Mold Coating (IMC) chemistry. As reactive precursors are injected into the closed mold over a pre-sprayed barrier coating, the resin forms a dense, seamless outer skin that chemically crosslinks with the coating at the molecular level, enclosing a shock-absorbing microcellular core.
Permanent Molecular Coating Bond (IMC)
In-mold coating molecules chemically crosslink with the polyurethane substrate during foaming exotherm, completely eliminating peeling, chipping, and blistering.
Wide Thermal Grip Stability (-40°C to 120°C)
Formulated integral skin elastomer retains flexibility without low-temperature brittleness or high-temperature tackiness, resisting hand sweat, sunscreen, and UV radiation.
Haifeng delivers complete steering wheel production lines—from precision closed-loop high-pressure dosing skids to ergonomic tilting mold clamps and automated IMC spray booths—enabling Tier-1 manufacturers to scale high-yield steering wheel production.
Steering Wheel Integral Skin Molding Workflow
A synchronized four-stage workflow delivering durable, seamless steering wheels with flawless grain replication.

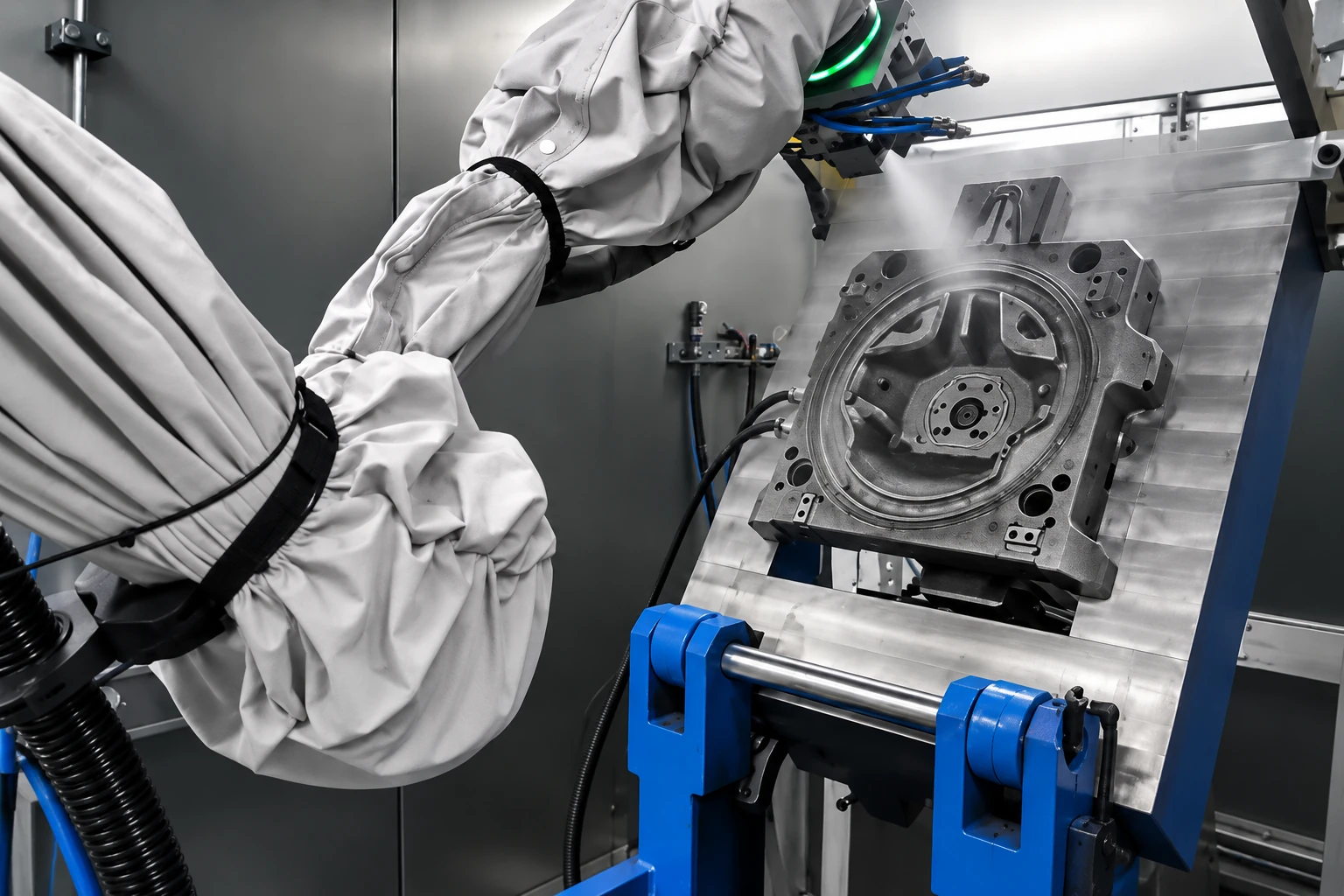

Insert Loading & IMC Spraying
The magnesium-aluminum armature is clamped; an automated robot sprays the water-based or solvent-based IMC coating into the open mold
Thermal Balancing & Dosing
Dynamic TCU units stabilize chemical stream temperatures within ±0.5°C; closed-loop pumps meter precursors precisely
High-Pressure Impingement Injection
The self-cleaning head executes a 0.3s sharp injection into the closed tooling; skin densification occurs against mold walls while the core foams
Engineering Specifications & Technical Parameters
Technical parameters for this Haifeng automotive production system.
| Technical Parameter | Standard Specification / Value | Engineering Context & Verification |
|---|---|---|
| Target Application | Steering Wheels, Armrests, Gear Shift Knobs | Tactile automotive control interfaces |
| Material Matrix | Polyurethane Integral Skin Elastomer + IMC | Solid skin with microcellular core |
| Surface Hardness Range | Shore A 40 to Shore D 90 (Customizable) | Tailored from plush luxury to firm grip |
| Operational Thermal Range | -40°C to +120°C | No low-temp cracking or high-temp stickiness |
| Coating Adhesion Standard | 100% Cross-Hatch Adhesion (Class 0) | Direct molecular crosslinking during cure |
| Metering Output Capacity | 10 – 35 kg/min (Customizable) | High-speed axial piston pumps with Ratio Lock |
| Demolding Cycle Time | 100 – 140 seconds (Standard 120 s) | Optimized for multi-station production cells |
| Scope of Supply | Turnkey (Integral Skin Skid, TCU, Master PLC + Clamps) | Complete workcell or press retrofit |

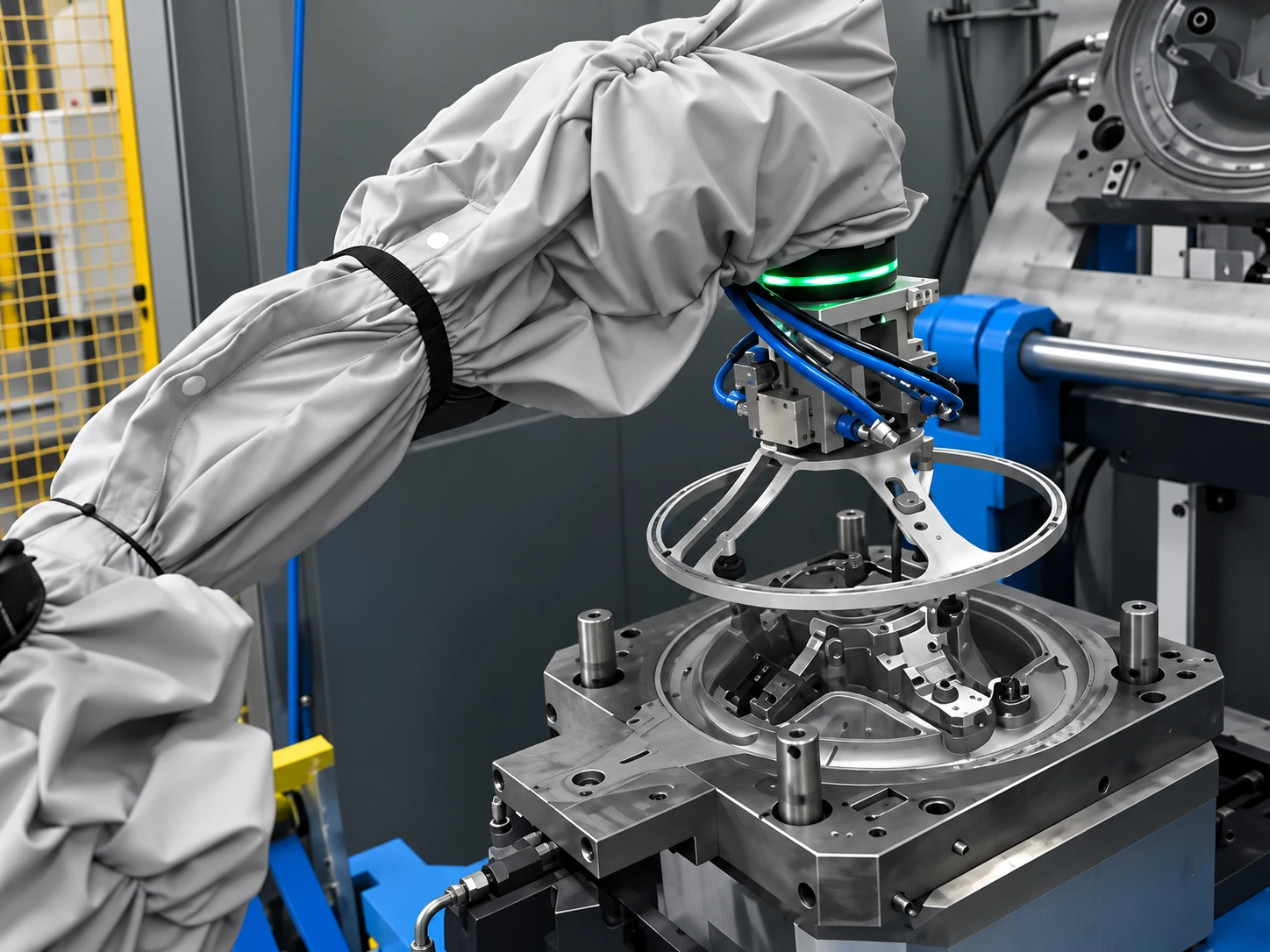

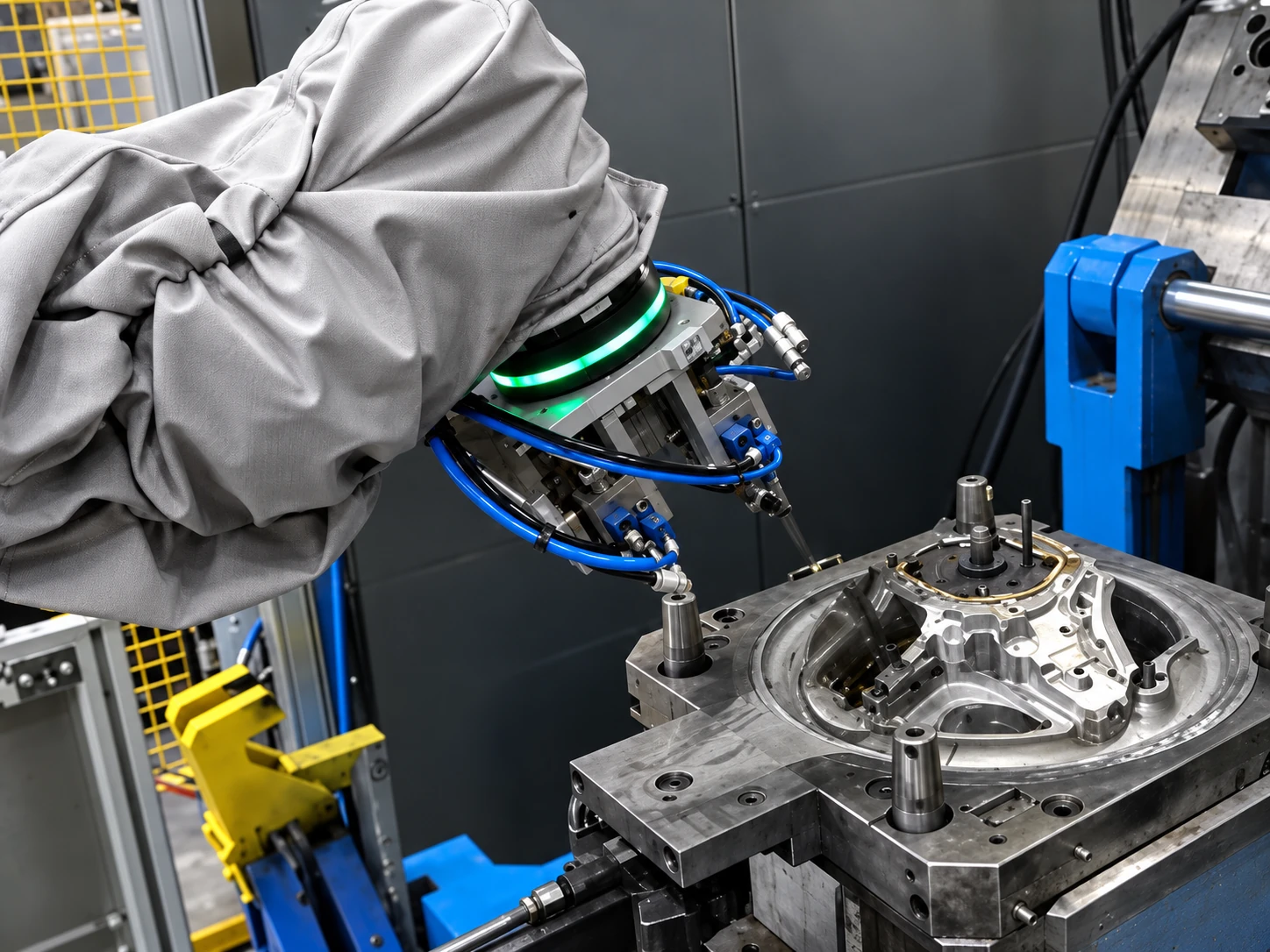

Robot Handling and Steering Wheel Mold Reference Gallery
Equipment and process reference illustrations show molding stations, robotic handling and mold interfaces. Confirm the installed equipment arrangement and operating settings for the selected formulation, tooling and line configuration.
Key Engineering Advantages
For Steering Wheel PU Integral Skin Molding Line, assess material compatibility, process control, equipment interfaces and changeover needs against your production brief.
100% In-Mold Coating Adhesion
Monolithic molecular bond eliminates secondary painting lines and prevents coating delamination.
All-Weather Grip Resilience
Retains supple touch from -40°C to +120°C, fully impervious to hand sweat and UV aging.
Rapid 120s Production Cadence
Rapid polymerization kinetics maximize parts output per tooling set.
Vibration Damping Grip Comfort
The microcellular core absorbs high-frequency chassis kickback, reducing driver hand fatigue.
Related Automotive Project
See the production line delivery and measured project outcomes.
Frequently Asked Questions
Engineering and purchasing questions about this polyurethane production route.
How does In-Mold Coating (IMC) work on steering wheels?
Can this system produce water-blown eco-friendly integral skin foams?
What is the typical on-site commissioning timeline?
