PU Steering Wheel Foaming Line Solution
With more than two decades in polyurethane complete equipment, Haifeng Polyurethane Machinery delivers a turnkey PU foaming line for steering wheels, built around delicate surface, precise multi-color, safe efficiency and flexible batch production. The line integrates an HF-HPM series high-pressure foaming machine for steering wheels, a six-station hydraulic mold frame line, a two-pigment six-mixing-head system and an electrical safety control system, covering the full process from raw material metering and mixing, multi-station metered pouring, integral-skin foaming and curing, to mold opening and part removal. Dosing accuracy reaches ≤±0.3% with injection accurate to 0.01 s, and the line suits integral-skin foaming of steering wheels, armrests and other interior parts.
Precision Multi-Color Foaming
Closed-loop two-pigment metering with pigment mixed inside the mixing head; injection time accurate to 0.01 s for small-shot steering wheels.
Safety & Eco-friendly
Six safety light curtains interlocked with PLC, with solvent-free self-cleaning keeping VOC ≤35 mg/m³.
Customized to your steering wheel mold structure and two-color process, the turnkey line is delivered with factory commissioning, pilot production support and after-sales service for stable, high-quality output.
Implementation Process
Our turnkey service covers the full journey from on-site survey and recipe design to commissioning, pilot production and long-term after-sales support.
Customized Solution Planning
Engineers survey on site and customize the solution based on steering wheel mold structure, two-color process, target cycle time and environmental standards.
Integral-Skin Recipe Design
The R&D center completes customized integral-skin recipe and two-color process design with feasibility verification.
Turnkey Equipment Delivery
Core equipment including the high-pressure foaming machine, six-station hydraulic mold frames and electrical safety system is built in our factory, and field engineers complete installation and commissioning.
Technical Parameters
Core equipment specifications for the steering wheel high-pressure foaming machine and the line composition.
| Equipment Unit | Qty | Function |
|---|---|---|
| HF-HPM High-Pressure Foaming Machine | 1 set | 1 hydraulic unit, 2 component metering units, 2 pigment metering units, 6 mixing heads; high-pressure impingement mixing & metered pouring |
| Hydraulic Mold Frames | 6 units | Driven by 2 hydraulic units; opening, closing, locking, core-pulling and ejection, PLC-controlled |
| Electrical & Safety Control System | 1 set | 1 main control cabinet + 2 pigment cabinets + 6 mold frame boxes + 6 safety light curtains |
| Temperature Control Unit | 1 set | Heating 4×3 kW, cooling 15,000 kcal/h |
| Parameter | Value |
|---|---|
| Model | HF-HPM-1A1B-SteeringWheel |
| Pouring rate | 50–800 g/s |
| Mix ratio | Polyether : Isocyanate = 100 : 50~70 |
| Tank capacity | 100L / 150L per tank, optional |
| Mixing head speed | 6,000–10,000 r/min |
| Dosing accuracy | ≤±0.3%, full dynamic range |
| Tank configuration | 1A1B two-component independent temp control + circulation stirring |
| Temperature control | 20–45℃ |
| Mixing pressure | 10–18 MPa |
| Cleaning system | Automatic air purge, solvent-free |
| Power | 5.5–7.5 kW |
| Control system | PLC + touch screen + multi-formula storage |
| Application system | Polyurethane integral-skin foam system |
| Certification | CE, ISO9001 |

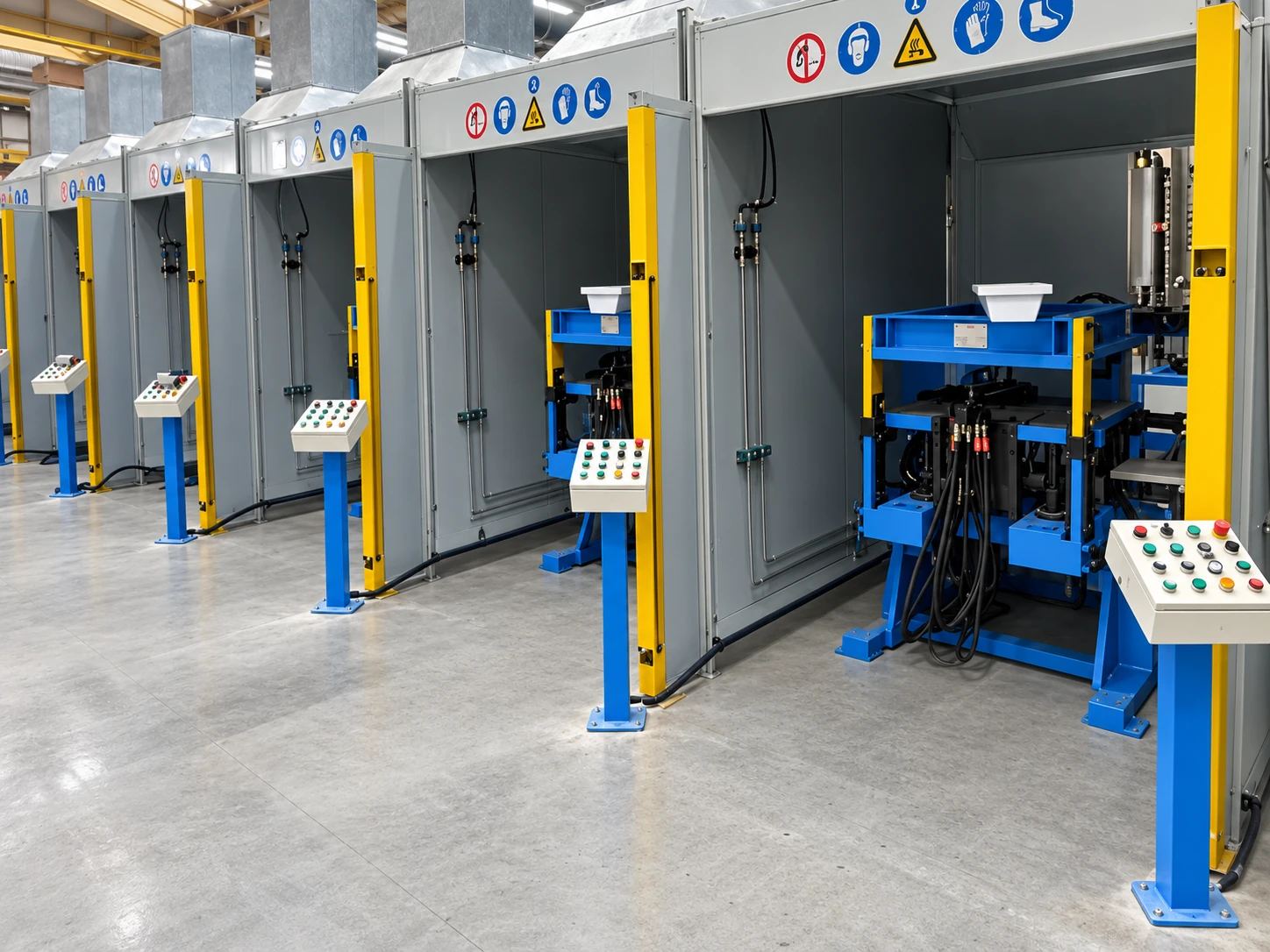

Steering Wheel Molding Line and Robot Cell Gallery
Equipment and process reference illustrations show molding stations, robotic handling and mold interfaces. Confirm the installed equipment arrangement and operating settings for the selected formulation, tooling and line configuration.
Supporting Equipment for Your Foaming Line
This turnkey line is built around core equipment available as standalone solutions.
Why Choose Haifeng's Steering Wheel Line
Engineered for delicate surface, precise multi-color, safe efficiency and flexible batch production of steering wheels.
Precision Metering & Injection
Dosing accuracy ≤±0.3% with injection time accurate to 0.01 s for small-shot steering wheels.
Consistent Multi-Color
Closed-loop two-pigment metering, with each pigment unit feeding all six mixing heads independently.
Man-Machine Safety
Six safety light curtains interlocked with PLC protect operators in the mold frame area.
Eco-friendly & Low VOC
Solvent-free self-cleaning keeps VOC ≤35 mg/m³, compliant with GB/T 27630-2011.
