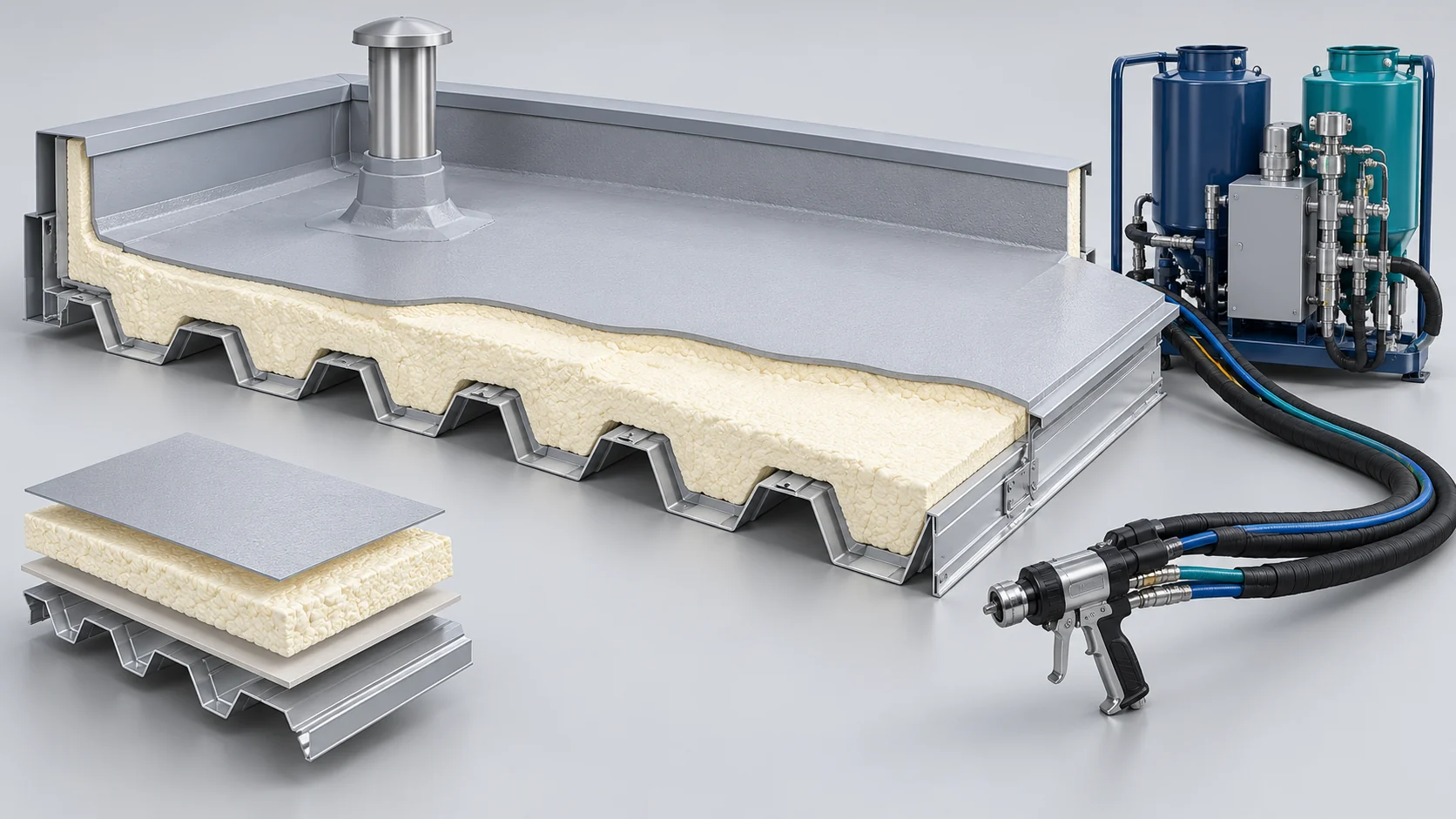

Roof Spray PU Foam Insulation Solution
Engineered high-pressure spray foam systems for industrial and warehouse roofing, eliminating roof leaks, thermal bridges, and fasteners in one continuous layer.
Monolithic High-Pressure Spray Polyurethane Foam Solutions for Industrial Roofs
Large-scale logistics hubs, manufacturing plants, and storage facilities lose up to 40% of HVAC heating and cooling energy through defective roof structures. Traditional mechanically fastened insulation boards (such as EPS, XPS, or mineral wool) introduce thousands of thermal bypass points through metal screws, while sheet seams eventually tear under wind uplift, resulting in chronic roof leaks. Haifeng’s high-pressure Spray Polyurethane Foam (SPF) roofing solution atomizes formulated polyol and isocyanate precursors under extreme hydraulic pressure. Expanding 30 times in volume within seconds, the liquid reaction creates an impenetrable, self-adhering monolithic foam blanket that seals penetrations, eliminates condensation, and withstands gale-force winds.
100% Seamless Monolithic Air-Water Seal
Forms a continuous elastomeric cellular shield across roof valleys, parapet walls, and HVAC curbs, eliminating fasteners and perimeter leakage seams.
Severe Wind Uplift Resistance
Direct in-situ chemical adhesion bonds permanently to steel, concrete, and asphalt decks, increasing composite structural roof strength and preventing wind peel-off.
Haifeng delivers complete mobile spray engineering setups—from hydraulic high-pressure proportioners and heated multi-zone hoses to specialized airless spray guns—enabling commercial roofing contractors to finish expansive roof projects rapidly. Haifeng provides equipment and process integration, on-site commissioning and operator training, a 1-year machine warranty and long-term spare parts support. Site construction and material supply follow the project delivery scope.
Production Workflow for Roof Spray Polyurethane Foam Insulation Line
The workflow for Roof Spray Polyurethane Foam Insulation Line covers Surface Prep, Thermal Conditioning, In-Situ Spraying, UV Topcoating. Confirm the sequence and equipment interfaces against the selected material system and product design.
Roof Deck Cleaning & Moisture Verification
The metal or concrete substrate is swept, oil-degreased, and checked with moisture meters; loose rust is treated to secure high chemical bonding strength.
Proportional Fluid Heating & Recirculation
The hydraulic proportioner and heated hose system heat precursors up to 50°C–60°C, lowering fluid viscosity for perfect atomization and balanced stoichiometry.
High-Pressure Impingement Atomization
Precursors collide at 140–180 bar inside the self-cleaning spray gun chamber, atomizing into a fan pattern and expanding into a high-density closed-cell foam layer in 5 seconds.
Technical Specifications
Configuration and application values from the supplied engineering brief. Material properties and project results apply to their stated conditions.
| Technical Parameter | Standard Specification / Value | Engineering Context & Verification |
|---|---|---|
| Target Application | Industrial Roofs, Logistics Warehouses, Vaulted Ceilings | Commercial roof thermal envelope & waterproofing |
| Material Matrix | Rigid Closed-Cell Polyurethane Foam (SPF) | High-index MDI and polyol formulation |
| Core Foam Density | 40 – 50 kg/m³ (Roof grade) | Optimized for foot traffic and load bearing |
| Thermal Conductivity (λ) | ≤0.020 – 0.022 W/(m·K) | ASTM C518 heat flow meter verification |
| Closed-Cell Content | ≥95% | Eliminates water absorption & capillary action |
| Proportioner Fluid Output | 8 – 18 kg/min | Variable hydraulic pumping displacement |
| Max Fluid Pressure | Up to 200 bar (2900 psi) | High-velocity mechanical impingement |
Reference Haifeng Insulation Equipment
Listed equipment shows its current application configuration. The metering unit, hose, gun or injection head and optional modules are selected for this project.
PU Spray Machine | Cold Storage Insulation
PU spraying machine designed for cold storage and refrigerated facility insulation, delivering high adhesion and closed-cell structure for superior thermal performance. Ideal for large cold rooms and pipe insulation.
PU Spray Machine | Building Waterproofing
PU spraying equipment designed for waterproofing engineering, delivering high adhesion and seamless membrane formation. Ideal for roof, tunnel, and basement waterproofing in building and infrastructure projects.
Key Engineering Advantages
Application-specific process controls, tooling and equipment integration.
Zero Seam Waterproof Shield
Eliminates mechanical fasteners, overlaps, and flashings, forming a leak-proof monolithic blanket.
40% HVAC Operational Savings
Superb insulating performance (λ ≤ 0.022) blocks radiant summer heat gain and prevents winter heat escape.
Gale-Force Wind Uplift Defense
In-situ chemical adhesion glues roof decks into a composite unit, enduring hurricane-force wind uplift.
Lightweight Structural Retrofit
Minimal dead weight (approx. 2.0 kg/m² at 50mm thickness) allows installation directly over sound existing roofs.

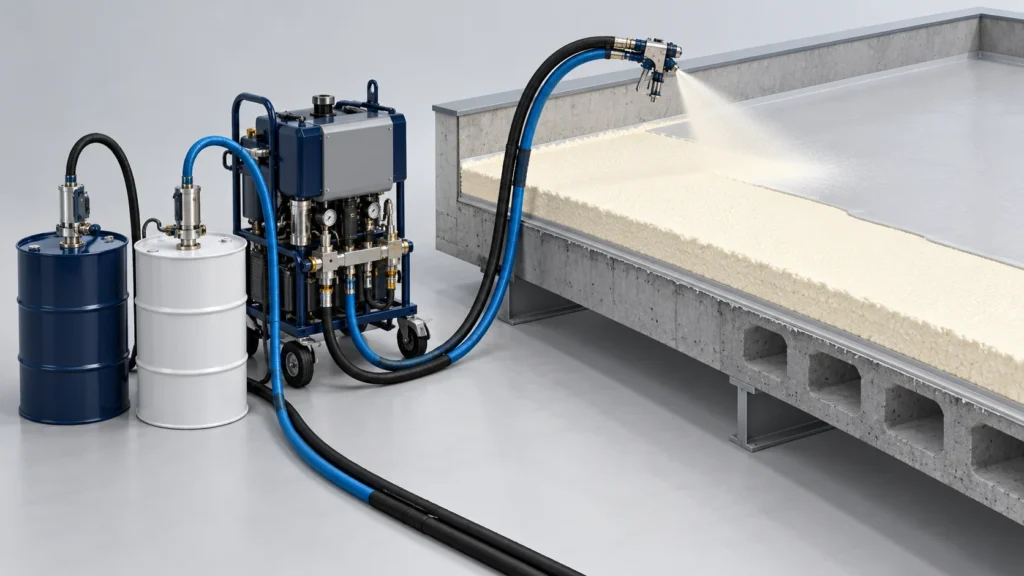

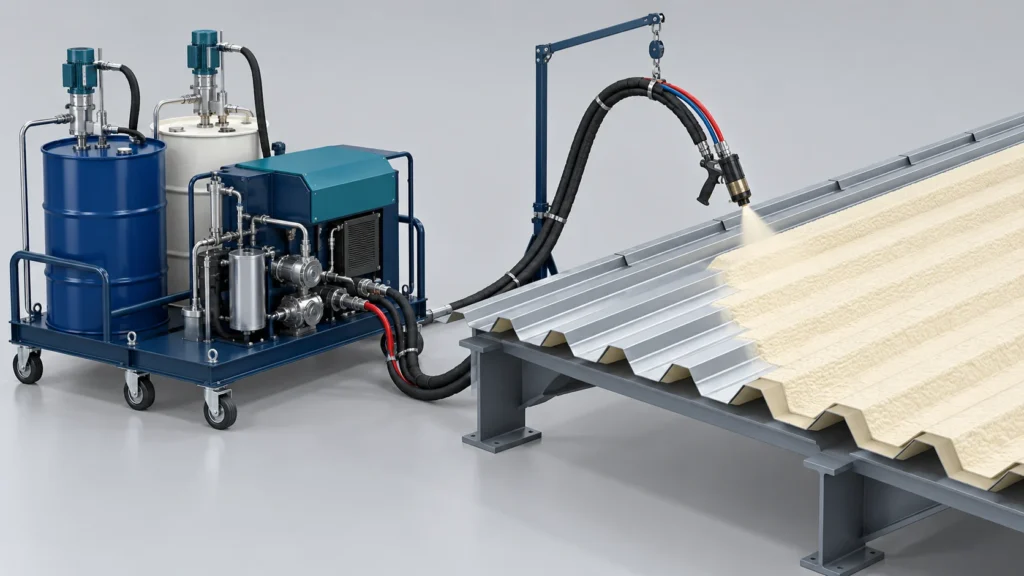

Related Equipment Delivery and Application Cases
Review two supplied cases, their equipment delivery, implementation and application results.
Frequently Asked Questions
Process selection, site conditions and equipment integration.
Can spray foam be applied over existing rusted metal roofs?
Can workers walk on the sprayed polyurethane foam roof?
Why is an elastomeric topcoat required over SPF?
What is the maximum hose length supported by Haifeng proportioners?
Discuss Your Insulation Equipment and Application
For Roof Spray Polyurethane Foam Insulation Line, send finished-product drawings or samples, material data, target output, automation needs and factory conditions. Haifeng can use these inputs to discuss the line configuration and technical interfaces.
