Automotive Spoiler RIM Molding Solution
High-precision reaction injection molding systems engineered for automotive aerodynamic spoilers, eliminating sink marks and slashing tooling Capex by 55%.
Precision RIM Solutions for Class-A Aerodynamic Spoilers
Automotive aerodynamic spoilers feature complex, sweeping 3D geometries with significant wall thickness variations—from slender 2mm trailing edges to heavy 6mm structural rib mounts. Conventional thermoplastic injection molding requires extreme injection pressures, frequently causing turbulent flow lines, warpage, and unsightly sink marks that compromise the final Class-A paint finish. Haifeng’s high-pressure Reaction Injection Molding (PU-RIM) solution operates at low internal cavity pressures, utilizing the liquid reaction’s natural polymerization expansion to pack the mold homogeneously without stress, delivering dead-flat surfaces ready for high-gloss automotive painting.
Flawless Class-A Substrate Surface
Eliminates high-pressure packing sink marks across variable wall sections (3mm–6mm) and functional rib intersections, providing an ultra-smooth substrate for high-gloss painting.
55% Tooling Capital Cost Savings
Low internal cavity pressures eliminate mold-erosion stress, enabling the use of cost-effective steel or aluminum tooling and cutting upfront tooling Capex by 55%.

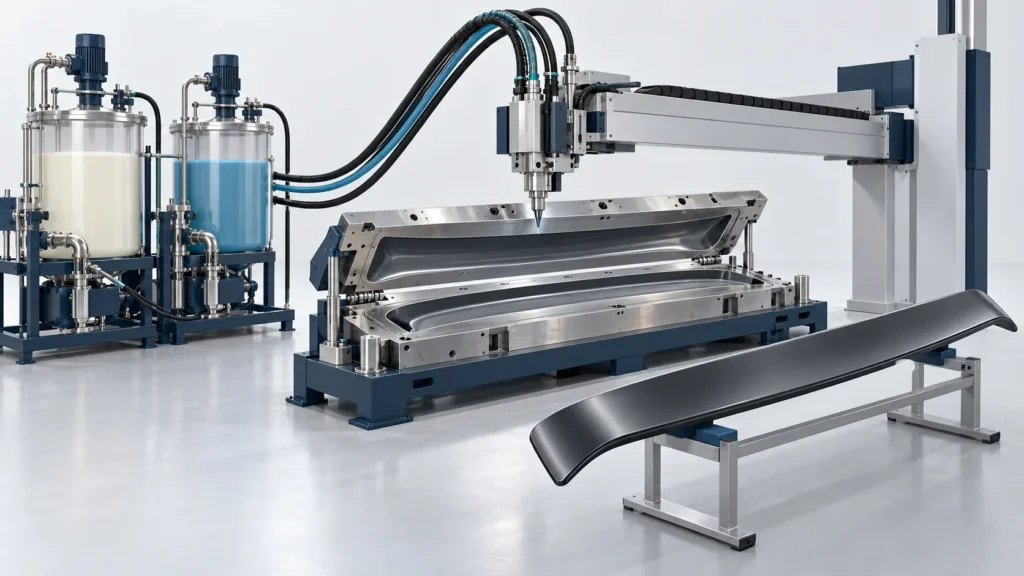

Haifeng delivers complete RIM exterior workcells—from precision closed-loop dosing units and mold temperature balancers to optional tilting clamping presses—guaranteeing high-yield exterior production for global automotive Tier-1 suppliers.
Automotive Spoiler RIM Production Workflow
A synchronized four-stage workflow delivering continuous, stress-free aerodynamic spoilers with flawless surface finishes.
Fluid & Mold Thermal Preconditioning
Polyol and isocyanate raw materials are conditioned in dual-jacketed storage tanks. Dynamic heat exchangers stabilize chemical temperatures within ±0.5°C to lock in flow front kinetics.
High-Pressure Impingement Dispensing
Servo axial piston pumps meter precursors into an L-shaped impingement mixing head at high velocity, initiating molecular mixing before laminar injection into the closed tooling.
Low-Pressure Polymerization & Packing
The reacting liquid fills the aerodynamic cavity under low pressure. Exothermic polymerization crosslinks the polyurethane, accommodating 0.4%–0.6% linear shrinkage without sink defects.
Technical Specifications & Engineering Capacity
Operational parameters for the Haifeng automotive spoiler RIM production system.
| Technical Parameter | Standard Specification / Value | Engineering Context & Verification |
|---|---|---|
| Target Application | Sedan Rear Spoilers, SUV Wing Panels, Side Skirts | Aerodynamic exterior body styling |
| Material Matrix | High-Modulus Exterior Polyurethane Matrix | Resilient elastomeric thermoset PU system |
| Metering Output Capacity | 20 – 60 kg/min (Customizable) | Servo axial piston pumps with Ratio Lock |
| Stoichiometric Ratio Accuracy | ±0.5% | Continuous digital flowmeter feedback |
| Linear Shrinkage Control | 0.4% – 0.6% (0.004 – 0.006 in/in) | Compensated through mold geometry design |
| Mold Temperature Window | 55°C – 75°C | Multi-zone dynamic oil/water TCU regulation |
| Demolding Cycle Time | 160 – 210 seconds (Standard 180 s) | Optimized for multi-shift high-volume assembly |
| Surface Quality Standard | Class-A Finish Capable (Zero Sink Marks) | Verified across 3mm–6mm variable wall sections |
| Scope of Supply | Turnkey (RIM Dosing Skid, TCU, Master PLC + Optional Press/Tooling) | Full equipment integration or retrofit to existing press |
Advanced Machinery for Exterior Body Panels
High-pressure metering machines, precision TCU units, and press interfaces engineered for Class-A exterior molding.
RIM Composite PU Foaming Machine | Auto Parts
RIM composite PU foaming machine for automotive parts, processing glass fiber/filler-reinforced systems. Delivers lightweight high-strength components for interior, exterior, and structural applications.
General RIM PU Molding Machine | Composite Parts
General-purpose RIM PU molding machine for glass fiber/filler-reinforced composites, producing lightweight high-strength parts. Widely used in automotive, construction, and heavy industrial applications.
Key Engineering Advantages
Why leading automotive exterior suppliers choose Haifeng spoiler RIM systems.
55% Tooling Capex Savings
Low-pressure cavity filling eliminates high clamping force and steel fatigue, allowing cost-effective tooling and saving 55% in capital investment.
Zero Surface Sink Marks
Liquid reaction expansion fills variable wall sections (3mm–6mm) evenly, completely preventing surface depressions behind heavy mounting ribs.
Superior Stone Impact Resilience
The elastomeric polyurethane thermoset network provides high toughness and elongation, preventing cracking caused by high-speed road debris.
Rapid 180s Production Cadence
Accelerated reaction kinetics compress molding cycles down to 3 minutes, meeting aggressive Tier-1 daily production schedules.
Proven Manufacturing Project
See how a premier automotive joint venture deployed Haifeng's RIM dosing system to manufacture sink-mark-free sedan spoilers.
Frequently Asked Questions
Engineering and purchasing questions about this polyurethane production route.
How does RIM eliminate sink marks on spoilers compared to thermoplastic injection?
What draft angles and wall thickness are recommended for RIM automotive spoilers?
Can this RIM dosing system integrate with our existing hydraulic clamping press?
Does Haifeng provide complete turnkey lines including presses and tooling?
What is the typical installation and commissioning timeline on-site?
Discuss Your Exterior Spoiler Project with Haifeng
Contact our engineering team for part manufacturability reviews, mold flow analyses, and turnkey equipment quotations.
