Three-Color Additive Mixer | PU Production

High-precision multi-component additive mixer for PU lines with 3 independent color/functional channels

Additive Channels

3 sets (independently controlled)

Flow per Channel

0.1 - 100 g/sec

Metering Accuracy

≤±0.5%

Additive Tank Capacity

5 - 20 L (standard, customizable)

Availability on Request Delivery Schedule on Quotation 1-Year Warranty
Three-Color Additive Mixer for Polyurethane Color & Additive Dosing

Product Overview

A high-precision special auxiliary equipment for polyurethane production lines, enabling precise metering and injection of 3 kinds of independent color pastes/liquid functional additives.

This three-color additive mixer is a high-precision auxiliary equipment for polyurethane production lines, enabling precise metering and injection of 3 independent color pastes and liquid functional additives with uniform mixing and no cross-contamination. Three independently controlled channels deliver ≤±0.5% accuracy and 0.1–100 g/sec per channel, compatible with viscosities up to 10,000 mPa·s. The low-shear mixing structure ensures uniform fusion without local color difference. An automatic purge and cleaning system enables one-click cleaning and color/raw material switching in only 2 minutes, while intelligent formula management stores hundreds of formulas for one-click recall. Ethernet and RS485 interfaces link the mixer with the main PU line PLC for integrated automated production, serving customized and small-batch flexible production.

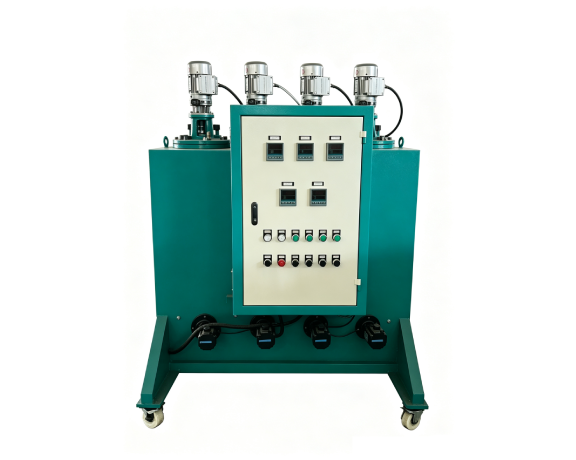

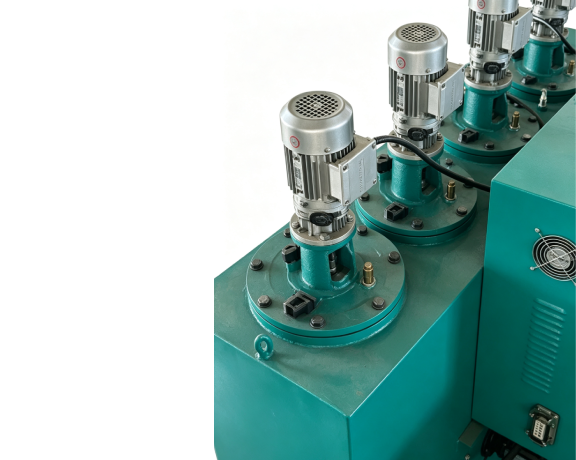

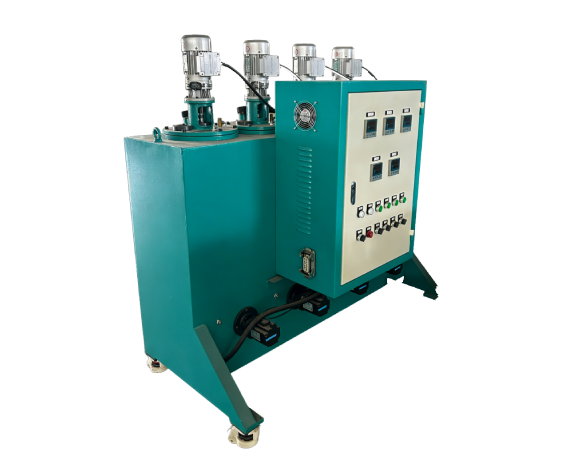

Row of small motor-driven mixing vessels beside an electrical enclosure

Configured

To Your Production Brief

Operation Workflow

Additive Loading & Formula Selection

Load up to 3 color pastes or liquid functional additives into the 5-20 L additive tanks; select the target formula from the touchscreen, which stores hundreds of formulas for one-click recall.

Metering & Injection Parameter Setting

Set the flow rate per channel (0.1-100 g/sec) via the integrated touchscreen; servo/gear metering units deliver ≤±0.5% accuracy for precise proportioning.

Homogeneous Mixing with Main Material

The low-shear static/dynamic mixing head ensures uniform fusion of additives with the main PU material, without local color difference or uneven additive distribution.

Integrated Line Linkage & Automated Production

Via Ethernet or RS485, the mixer links with the main PU line PLC; the 3 channels operate synchronously or independently for precise color customization or functional additive addition.

Need a quote for this equipment?

Request a Quote
Three-Color Additive Mixer (Customizable configurations)

Technical Specifications

Standard configuration parameters for the three‑color additive mixer. Customizations including tank capacity, channel adaptability, and viscosity range are available upon request.

Technical Parameter
Number of Additive Channels3 sets (independently controlled)
Metering Accuracy≤±0.5%
Flow Rate Range (per channel)0.1 - 100 g/sec
Additive Tank Capacity5 - 20 L (standard, customizable)
Viscosity CompatibilityUp to 10,000 mPa·s
Control InterfaceIntegrated touchscreen (compatible with host machine PLC)
Cleaning MethodAutomatic solvent purge / compressed air blow
Communication InterfaceEthernet, RS485 (support system integration)
WHY CHOOSE US

Key Features & Advantages

Engineered for precision, flexibility, and seamless line integration in polyurethane color/functional additive mixing.

Independent High‑Precision Metering

3 sets of servo/gear metering units with accuracy ≤±0.5% ensure precise proportioning and eliminate batch deviations for consistent color and additive distribution.

2‑Minute Rapid Production Change

One‑click automatic purge and cleaning system enables color number/raw material switching in only 2 minutes, adapting to flexible, small‑batch production.

Intelligent Formula Management

Touchscreen operation with storage and recall of hundreds of formulas. One‑click switching of production tasks reduces human error and simplifies operation.

Low‑Shear Uniform Mixing

Optimized static/dynamic mixing head ensures uniform fusion without damaging main material performance. Mixing achieves no blind spots or color difference.

Seamless Integrated Line Connection

Ethernet and RS485 communication interfaces enable linkage with the main PU production line PLC, integrating into automated production processes.

High Adaptability & Customization

Compatible with viscous components up to 10,000 mPa·s. Additive tank capacity and channel adaptability are customizable to meet specific production needs.

Discuss Your Equipment Configuration

Share your product, materials, tooling and production requirements so we can review the equipment and interfaces for your project.

MORE EQUIPMENT

Browse other equipment in our catalog. These listings are for product discovery; compatibility and production-line scope are confirmed separately for your material, process and output requirements.

SUPPORT

Frequently Asked Questions

What applications is this additive mixer designed for?
This mixer is designed for color customization and functional additive addition in custom shoe materials, automotive interiors, consumer electronics accessories, designer furniture, and general polyurethane products.
How many channels does the mixer have and how are they controlled?
The mixer has 3 independent channels for color pastes or liquid functional additives. Each channel can operate synchronously or independently, enabling precise color matching or multi‑additive formulations.
What is the metering accuracy and flow rate range?
Metering accuracy is ≤±0.5% with a flow rate range of 0.1–100 g/sec per channel, ensuring precise proportioning and eliminating batch deviations.
How fast is production changeover?
The one‑click automatic purge and cleaning system enables color number/raw material switching in only 2 minutes, adapting to flexible, small‑batch production.
What viscosity materials can the mixer handle?
The mixer is compatible with viscous components up to 10,000 mPa·s, making it suitable for a wide range of color pastes and functional additives.
Can the mixer be integrated with existing PU production lines?
Yes. The mixer is equipped with Ethernet and RS485 communication interfaces, enabling seamless linkage with the main PU production line PLC for integrated automated production. Professional engineers assist with interconnected control docking.
