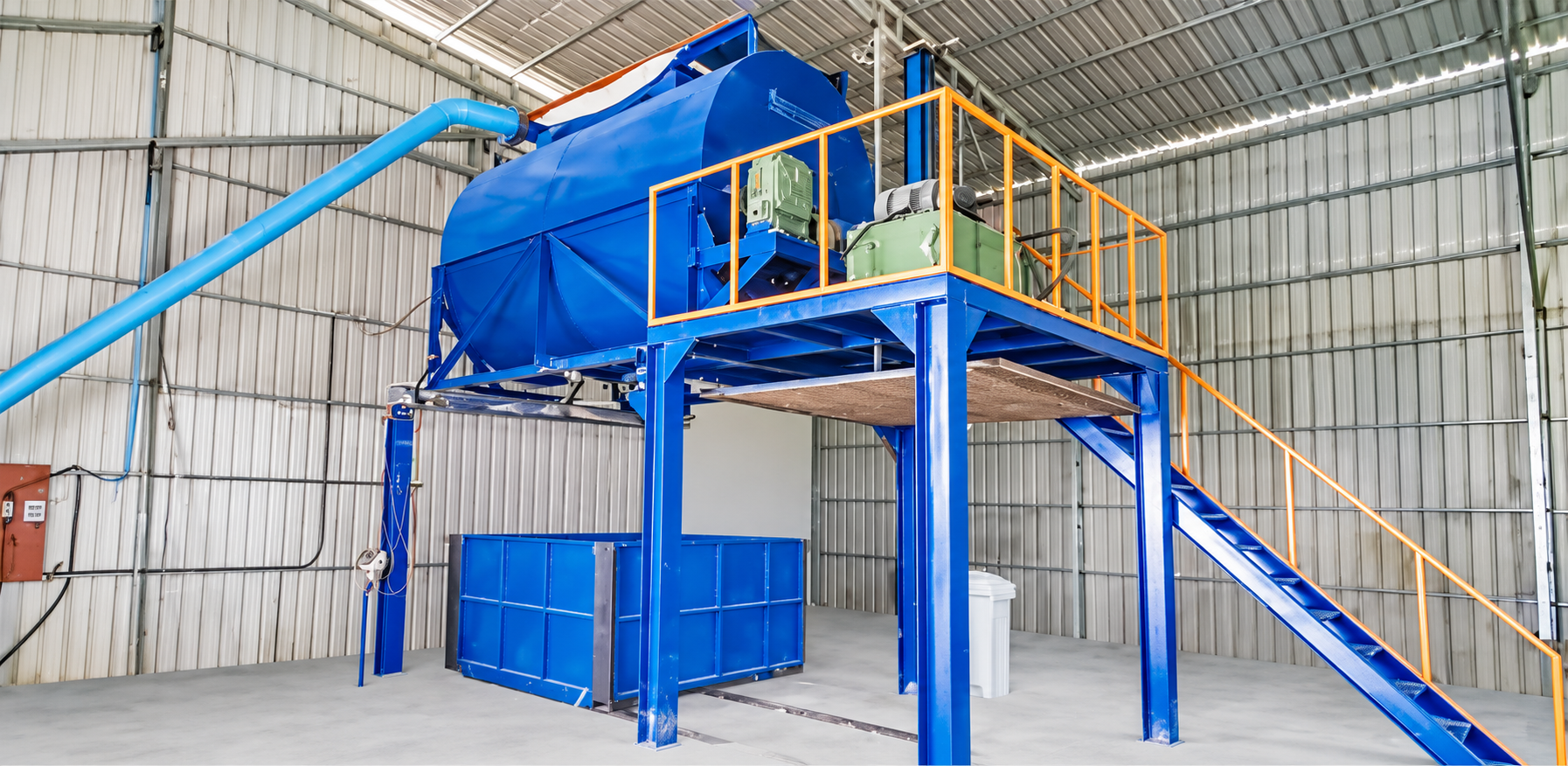

Rebond Foam Production Machine | Recycled Foam Blocks
Mixes shredded foam with binder, charges molds and compresses the mixture hydraulically to form rebonded foam blocks. Manual-mold and steam-assisted automatic-mold configurations are described.
Equipment
Rebond Foam Production Machine
Application
Recycled Foam Blocks
Configuration
2 listed options

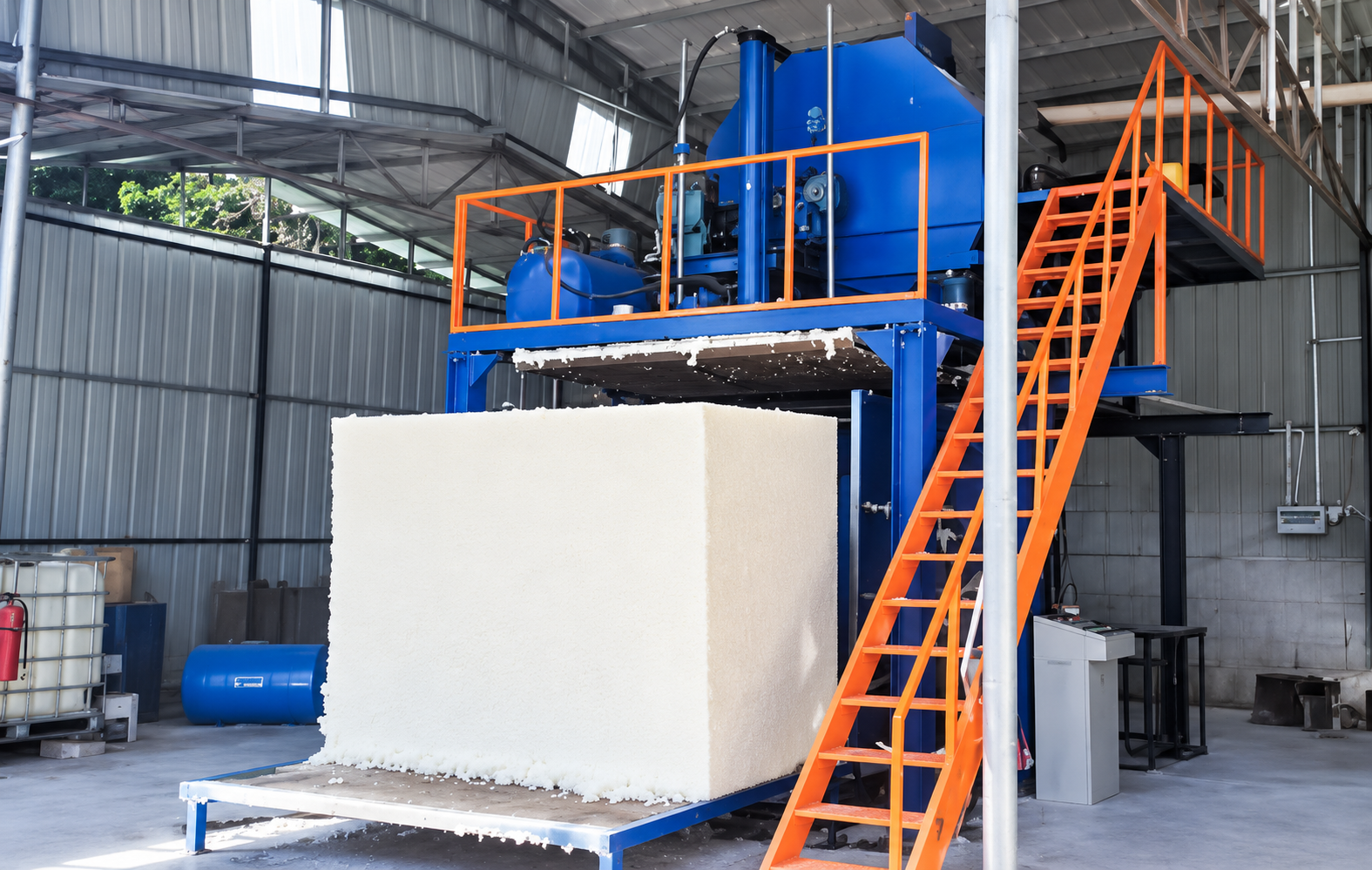

Product Overview
Mixes shredded foam with binder, charges molds and compresses the mixture hydraulically to form rebonded foam blocks. Manual-mold and steam-assisted automatic-mold configurations are described.
Mixes shredded foam with binder, charges molds and compresses the mixture hydraulically to form rebonded foam blocks. Manual-mold and steam-assisted automatic-mold configurations are described.
Review the material, dimensions, handling sequence and interface requirements with Haifeng to define the final supply scope.
Reference photographs have been reconstructed for clarity. Check equipment details against the approved configuration and drawings.
Review this equipment within the Sponge Foam Turnkey Plant. Compare the Continuous Slabstock Foaming Solution for upstream foam production; cutting, recycling and packaging equipment are separate downstream modules.
Equipment Selection and Integration
Define the Material
Provide the foam type, density, input dimensions and intended finished product.
Select the Configuration
Confirm the working envelope, material-handling arrangement and required options.
Review Process Interfaces
Coordinate upstream preparation, this equipment operation and downstream receiving.
Agree Acceptance Conditions
Define sample trials, settings, measurement method and final supply scope.
Technical Specifications
Listed values describe reference configurations. Final capacity, finished dimensions and tolerances depend on the selected material, settings and acceptance conditions. Confirm site utilities and access clearances before layout approval.
| Technical Parameter | Configuration A | Configuration B |
|---|---|---|
| Dimensions (L×W×H) | 6000 × 3600 × 4500 mm | 6000 × 3600 × 4500 mm |
| Mixing chamber volume | 10 m³ | 10 m³ |
| Mixing speed | 40 rpm | 40 rpm |
| Total power | 11 kW | 12 kW |
| Mold size (L × W × H) | 2050 × 1550 × 1000 mm | 2100 × 1600 × 1850 mm |
| Mold arrangement | 2 molds; manual arrangement | 1 mold; steam-assisted automatic arrangement |
Equipment Functions
Functions described for the listed arrangement. Optional items require confirmation in the final supply scope.
Foam-granule and binder mixing
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Hydraulic mold compression
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Manual and steam-assisted mold options
Included in the described equipment arrangement; confirm implementation for the selected configuration.
Optional feeding, weighing and binder dosing
Optional configuration to be agreed for the application.
Related Foam Processing Equipment
Compare equipment options for the selected process. Not every listed machine is required for every project.

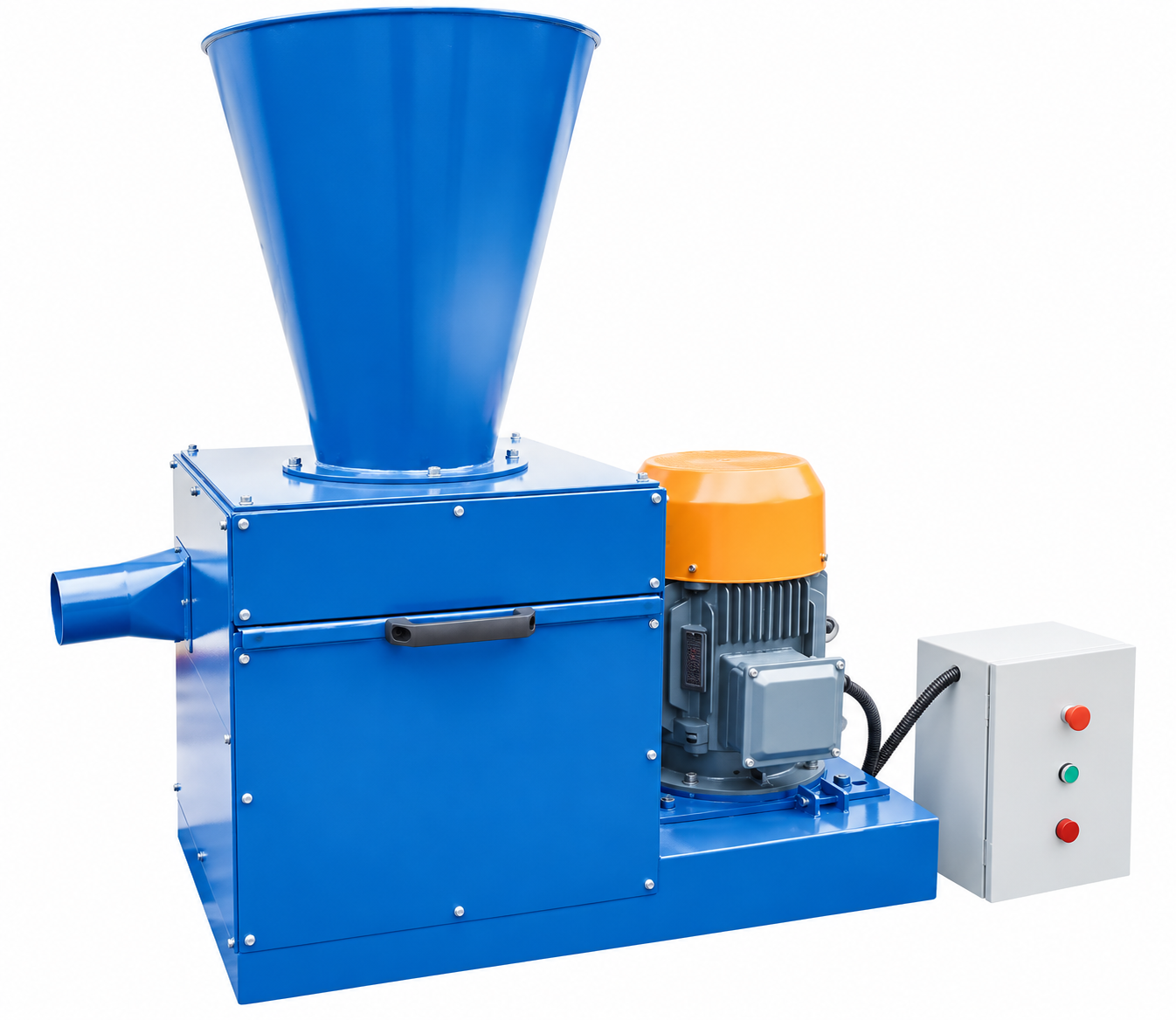

Foam Scrap Shredder | Foam Recycling
Polyurethane Machinery &Equipment

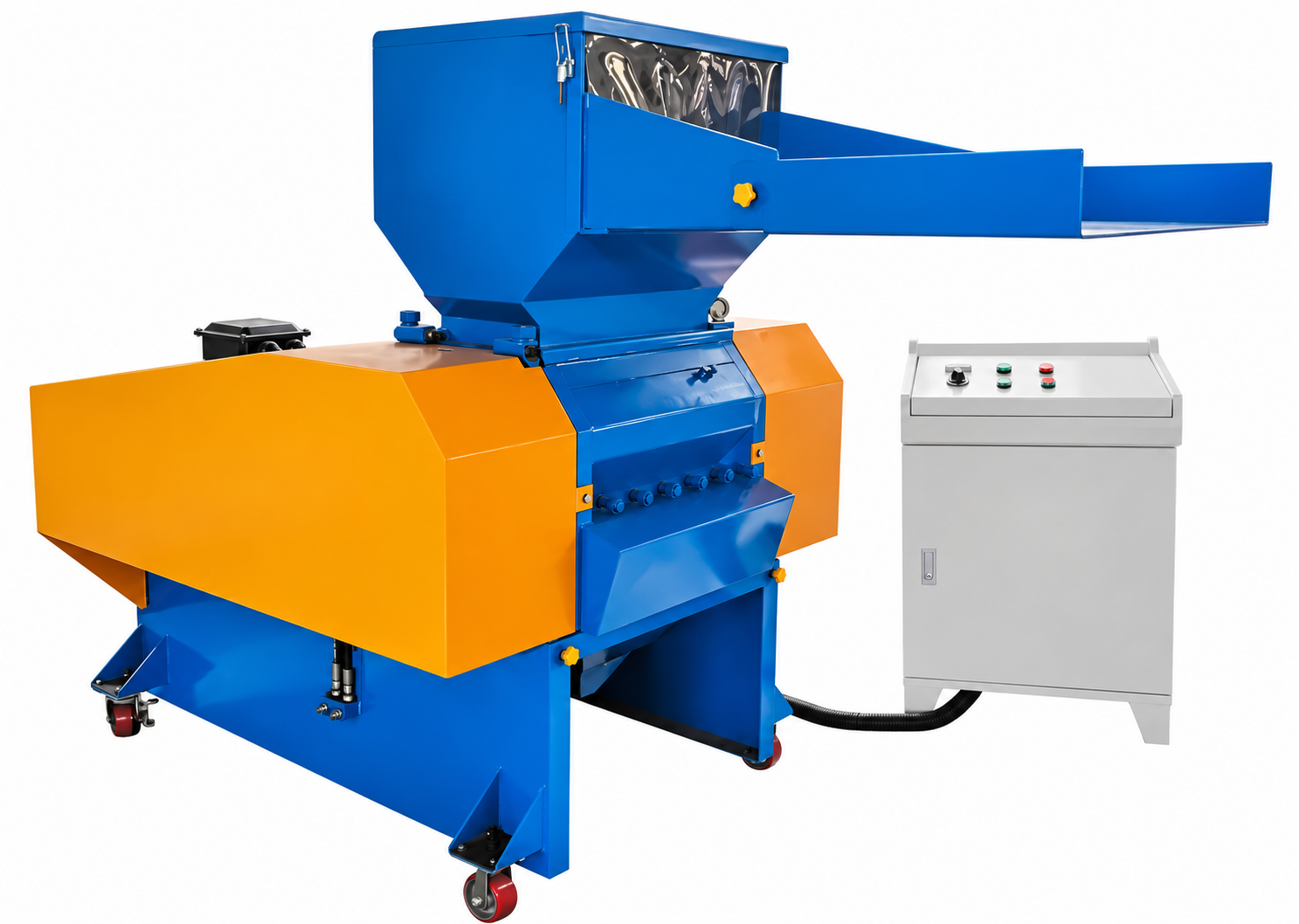

Heavy Duty Foam Scrap Shredder | Rebond Foam Preparation
