Semi-Automatic Liquid Ingredient Batching Solution

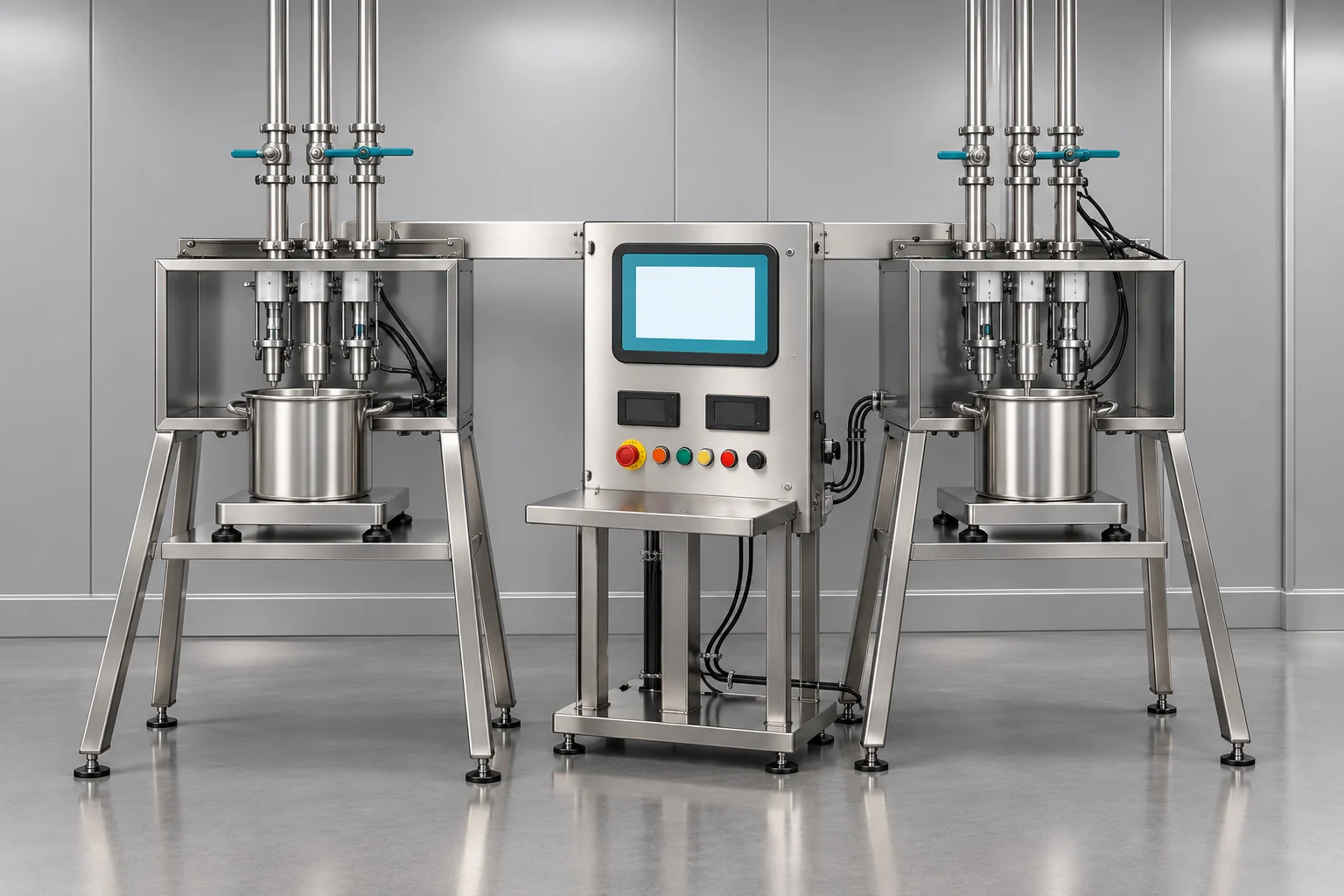

Concept illustration · Configuration varies
Combine configured liquid dispensing and weighing with operator-managed container handling. Select ingredient circuits, scale ranges and dosing sequences for the intended batch mass and material behavior.
Scope and Material Requirements
Combine configured liquid dispensing and weighing with operator-managed container handling. Select ingredient circuits, scale ranges and dosing sequences for the intended batch mass and material behavior.
Application Boundary
This route prepares liquid ingredient batches. Manual container placement, recipe confirmation, movement, mixing and cleaning responsibilities are defined in the operating sequence. It is not an automatic packaging line or a guarantee of unmanned operation.
Configuration Inputs
Share ingredient identities and material data, minimum additions, batch sizes, container details, output goals and site interfaces. Equipment selection and acceptance are agreed for the actual application.
Concept illustration: the equipment views on this page are generated engineering visualizations, not photographs of delivered installations.
Material Preparation and Batching Process
Coordinate the selected equipment, recipe, material conditions and receiving-process interfaces. The workflow below describes the planning scope rather than a fixed configuration for every installation.
Define ingredients and batch duties
Provide ingredient compatibility, viscosity, supply form, minimum addition and batch-size range.
Select the scale and receiving container
Match rated load and the required measurement tolerance; confirm tare and access.
Position and identify the container
The operator places the receiving container and confirms the recipe and material identity.
Parameters and Operating Conditions
All numerical values describe selected reference configurations. Confirm the material properties, minimum dose, batch size, weighing conditions and acceptance method before equipment selection. Scale readability, ingredient dosing error and total batch tolerance are separate quantities.
All numerical values describe selected reference configurations. Confirm the material properties, minimum dose, batch size, weighing conditions and acceptance method before equipment selection. Scale readability, ingredient dosing error and total batch tolerance are separate quantities.
Semi-Automatic Liquid Batching Reference
| Parameter | Reference configuration | Scope and conditions |
|---|---|---|
| Material type | Liquid ingredients | Compatibility and operating viscosity follow the material data. |
| Dispensing valves | 1–18 | Choose the actual ingredient and service circuits. |
| Scale capacity range | 30–1,500 kg across configurations | A range of scale selections, not one universal scale. |
| 30 kg scale figure | ±1 g; optional ±0.1 g stated | Define readability, calibrated error and the complete dosing test separately. |
| 300 kg scale figure | ±2 g; optional ±0.5 g stated | Applies only to the selected scale/configuration and agreed conditions. |
| 1,500 kg scale figure | ±50 g; optional ±10 g stated | Do not transfer small-scale figures to this batch range. |
| Batch-time examples | 30 kg: 3–4 min; 300 kg: 6–10 min; 1,500 kg: 20–30 min | Recipe, viscosity, operator handling and ancillary operations affect total cycle time. |
Related Production Routes
Dry-process synthetic leather production · PU synthetic leather solutions
Operator and Control Responsibilities
Define the manual loading, container placement and confirmation steps separately from controlled dosing. Agree ingredient identification, tare confirmation and the response to an out-of-tolerance addition.
Related Preparation Systems
Chemical Processing Turnkey Plant · Batching-room integration
Equipment and Integration Scope
The workcell uses selected liquid supply circuits, dispensing valves, receiving-container weighing and operator controls. Container handling, mixing and cleaning can remain manual unless included in the quoted scope. The catalog supply station below is an adjacent material-feeding family; its ratings do not define this batching workcell.
Configuration Benefits
Benefits depend on the agreed material, equipment and operating workflow. Validate dosing, handling and product acceptance separately.
Matched weighing ranges
Size the scale around the batch and minimum ingredient addition rather than applying one tolerance to every batch.
Operator-controlled handling
Retain defined manual tasks while coordinating the selected dispensing and recording functions.
Incremental integration
Specify container identification, recipe records and upstream supply connections as needed.
Production Planning FAQ
Clarify the configuration, measurement conditions and delivery scope before requesting a proposal.
Which tasks remain manual?
Does the 30 kg precision apply at 1,500 kg?
Are the listed batch times guaranteed?
What should we provide for configuration?
Which tasks remain with the operator?
Discuss Your Liquid Batching Requirements
Share your material data, batch or sample requirements, receiving-process details and factory conditions. Our team will reply within one business day. Once requirements are clear, we provide a preliminary proposal within two business days.
