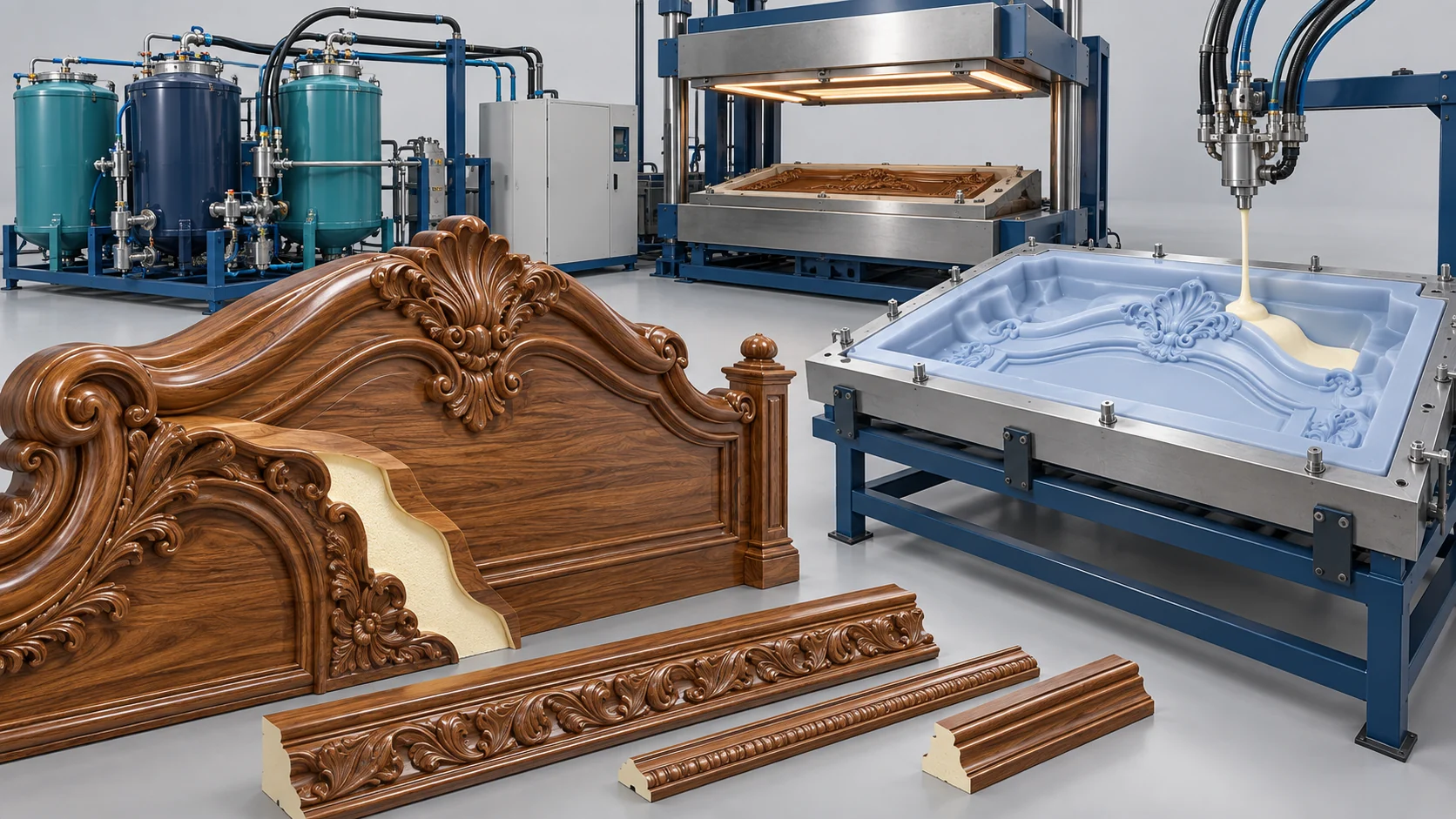

Rigid PU Imitation Wood Molding Solution
High-density structural polyurethane casting systems for intricate carved furniture, delivering authentic wood density (250–600 kg/m³) without cracking.
Structural Rigid PU Solutions for Intricate Imitation Wood Carvings
Classical ornate furniture and architectural millwork historically require skilled manual woodcarvers or multi-axis CNC routers cutting solid hardwood. These legacy approaches result in high timber waste, severe skilled labor bottlenecks, and warranty claims caused by natural wood warping, shrinking, and humidity cracking. Haifeng’s structural rigid polyurethane imitation wood molding solution injects high-density thermoset liquid formulations into silicone or composite tooling. Under controlled microcellular expansion, the resin flows into delicate relief undercuts, replicating microscopic grain textures and delivering finished components with authentic wood density (250–600 kg/m³) that can be nailed, sawed, sanded, and stained like natural timber.
Application-Specific Process Configuration
Classical ornate furniture and architectural millwork historically require skilled manual woodcarvers or multi-axis CNC routers cutting solid hardwood. These legacy approaches result in high timber waste, severe skilled labor bottlenecks, and warranty claims caused by natural wood warping, shrinking, and humidity cracking. Haifeng’s structural rigid polyurethane imitation wood molding solution injects high-density thermoset liquid formulations into silicone or composite tooling. Under controlled microcellular expansion, the resin flows into delicate relief undercuts, replicating microscopic grain textures and delivering finished components with authentic wood density (250–600 kg/m³) that can be nailed, sawed, sanded, and stained like natural timber.
Integrated Delivery and Training
Haifeng delivers complete structural imitation wood processing workcells—from high-pressure metering units and oil-heated clamping presses to automated in-mold staining interfaces—enabling luxury furniture makers to scale ornate designs profitably. Haifeng provides a 1-year comprehensive machine warranty, on-site installation, tooling commissioning and operator training, with long-term spare parts and remote PLC diagnostic support.
Haifeng delivers complete structural imitation wood processing workcells—from high-pressure metering units and oil-heated clamping presses to automated in-mold staining interfaces—enabling luxury furniture makers to scale ornate designs profitably. Haifeng provides a 1-year comprehensive machine warranty, on-site installation, tooling commissioning and operator training, with long-term spare parts and remote PLC diagnostic support.
From Material Preparation to Finished Components
Coordinate formulation, metering, forming, curing and finishing around the selected product and production schedule.
Mold Coating & Grain Barrier Conditioning
High-definition flexible silicone molds supported in steel mother-frames are sprayed with specialized wood-barrier release coatings or water-based stains to facilitate authentic surface timber tinting.
High-Pressure Rapid Cavity Filling
High-output axial piston pumps meter structural rigid polyol and polymeric isocyanate at up to 190 bar, injecting through an impingement head in 2–5 seconds before reaction gelation begins.
Exothermic Expansion & Deep Undercut Compaction
The liquid formulation expands with positive internal microcellular pressure (up to 0.4 MPa), packing into deep 3D floral carvings and grain crevices while heated oil platens accelerate structural curing.
Technical Specifications
Application and configuration data from the supplied engineering brief; final selection follows the product, formulation and factory layout.
| Technical Parameter | Standard Specification / Value | Engineering Context & Verification |
|---|---|---|
| Target Application | Bed Headboard Carvings, Ornate Wall Panels, Mirror Frames | High-density architectural furniture millwork |
| Material Matrix | High-Density Structural Rigid Polyurethane Foam | Fast-curing microcellular imitation wood |
| Part Density Range | 250 – 600 kg/m³ (Customizable per wood species) | Replicates pine, oak, mahogany, or teak |
| Screw/Nail Holding Force | Confirm against the selected fastener and specimen | Specify the fastener withdrawal method and source report |
| Metering Output Capacity | 30 – 80 kg/min (Customizable) | High-volume fast shot injection |
| Demolding Cycle Time | 4 – 8 minutes (Thickness dependent) | Rapid curing for heavy-section castings |
| Moisture Absorption | <0.5% (24-hour water immersion) | Verify dimensional stability and moisture response for the intended conditions |
Key Engineering Advantages
Process-specific equipment and controls selected for the furniture application.
70% Carving Labor Cost Savings
Eliminates expensive hand-carving artisans, translating master carvings into repeatable mass-molded components.
Zero Splitting, Warping, or Rotting
Thermoset polyurethane will not swell in humid environments or crack in dry heated homes, ensuring lifetime durability.
Full Carpentry Workability
Finished parts can be drilled, screwed, planed, and finished using standard woodworking saws and automated lacquer booths.
Optimized Structural Weight
Provides authentic solid surface density while reducing shipping weight by up to 30% compared to heavy damp hardwoods.
Related Project Case
Review the production configuration, delivery and results.
Rigid PU Imitation Wood Headboard Line Project in Saudi Arabia

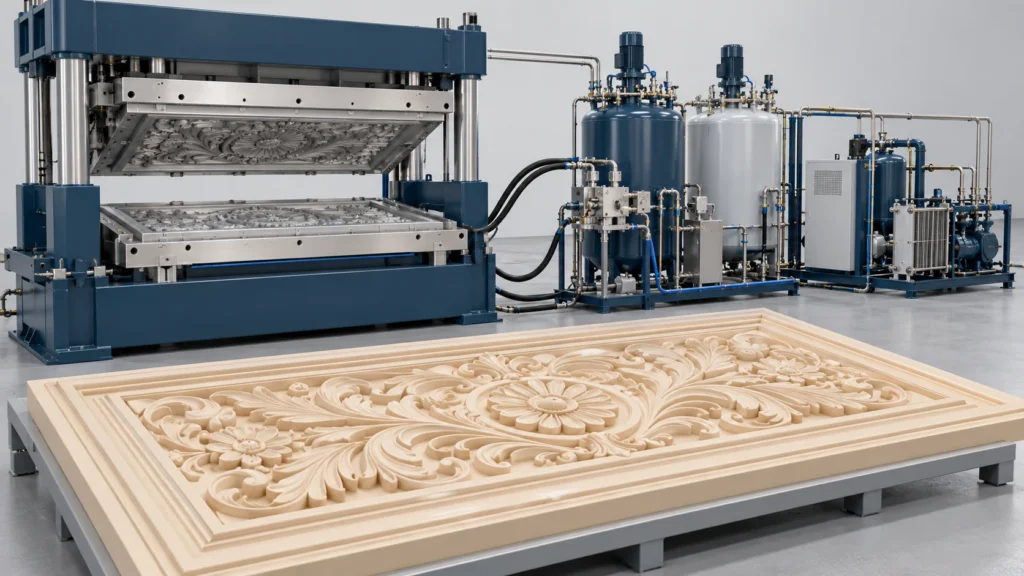

Carved Decorative Panel Rigid PU Molding Line Project in China
Frequently Asked Questions
Answers on process selection, equipment integration and delivery support.
Can rigid PU imitation wood be finished with standard furniture stains and paints?
Can screws and nails be driven into molded PU wood without cracking?
What type of mold is best for imitation wood carvings?
What is the typical installation and commissioning timeline on-site?
Discuss Your Furniture Production Project
For Rigid PU Imitation Wood Molding Plant Solution, send finished-product drawings or samples, material data, target output, automation needs and factory conditions. Haifeng can use these inputs to discuss the line configuration and technical interfaces.
