Polyurethane Foaming Machine | Lab RandD

High‑precision laboratory foaming system for PU material R&D with traceable data and fast formula switching

Discharge Flow Rate

10–130g/s, freely adjustable

Mix Ratio (A:B)

A:B = 100:5 ~ 100:300, wide range for formula testing

Metering Accuracy Reference

≤±0.3%

Temperature Control Configuration

Multipoint material temperature control with PLC recipe settings

Availability on Request Delivery Schedule on Quotation 1-Year Warranty

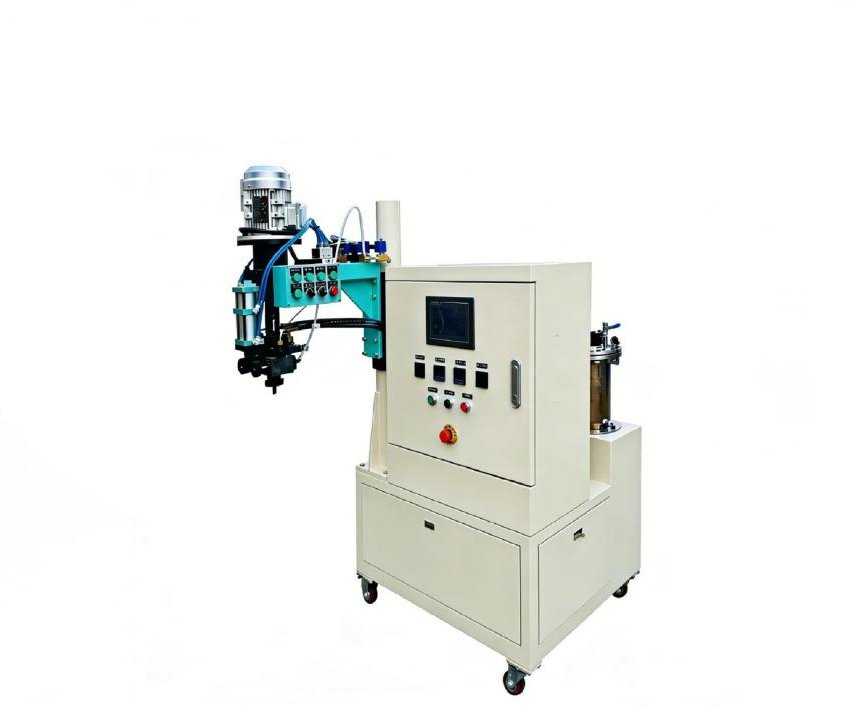

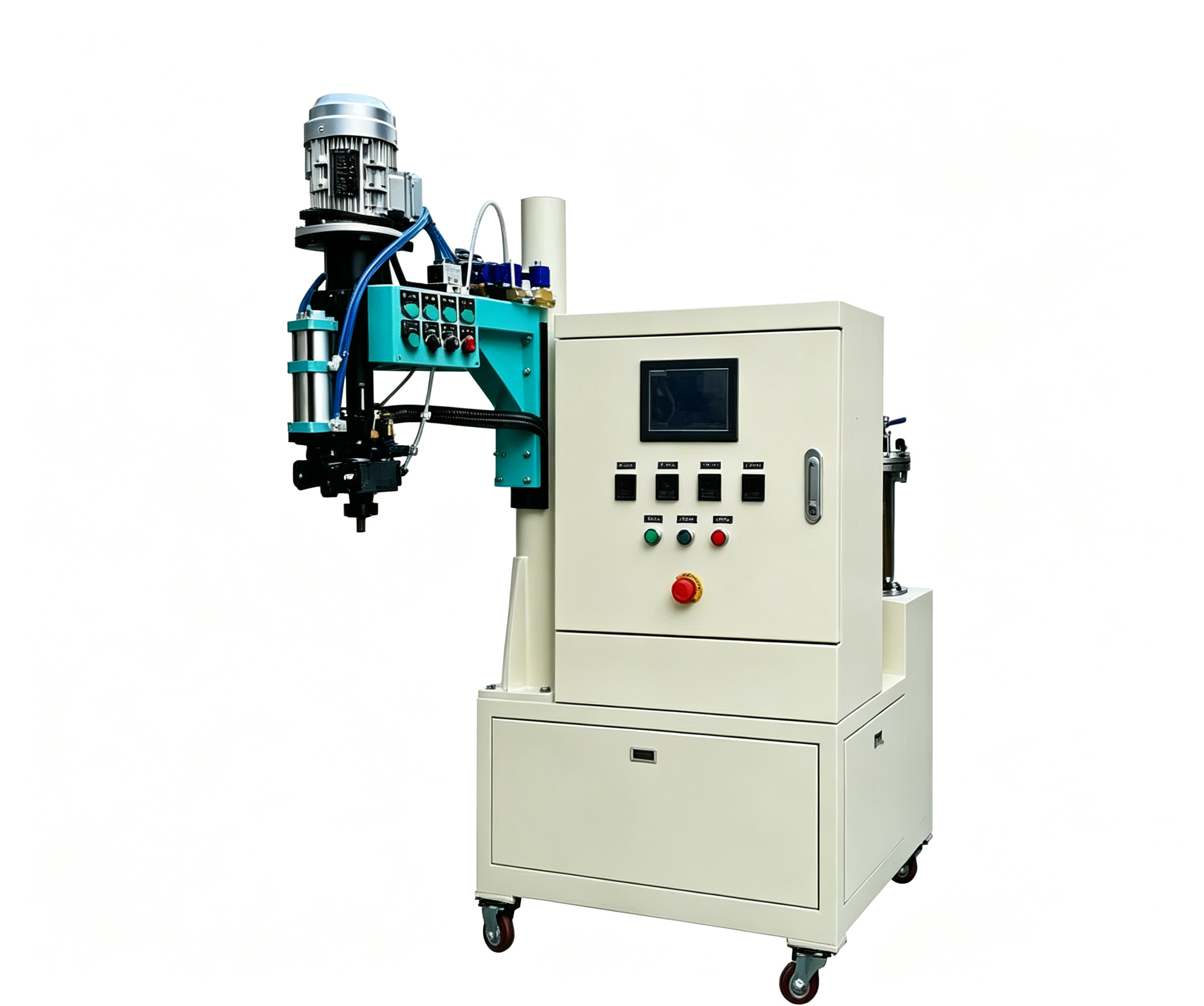

Polyurethane Foaming Machine for Chemical R&D & Small-Batch Sample Preparation

Product Overview

Specially designed for chemical enterprise R&D and small‑batch sample preparation, delivering high‑precision, traceable and efficient foaming test support for new material development and mass production pre‑verification.

The HF-LPM-1A1B-C is intended for polyurethane R&D and small-batch sample preparation. The described configuration combines servo-driven metering, closed-loop flow control, material temperature regulation and recipe recording. Mixer selection follows the material viscosity and reaction process. The listed ±0.3% metering reference requires agreed material, flow and measurement conditions; minimum sample mass must be established by dispensing trials. Changeover time and material loss depend on the feed circuits, chemistry, cleaning method and acceptable carryover.

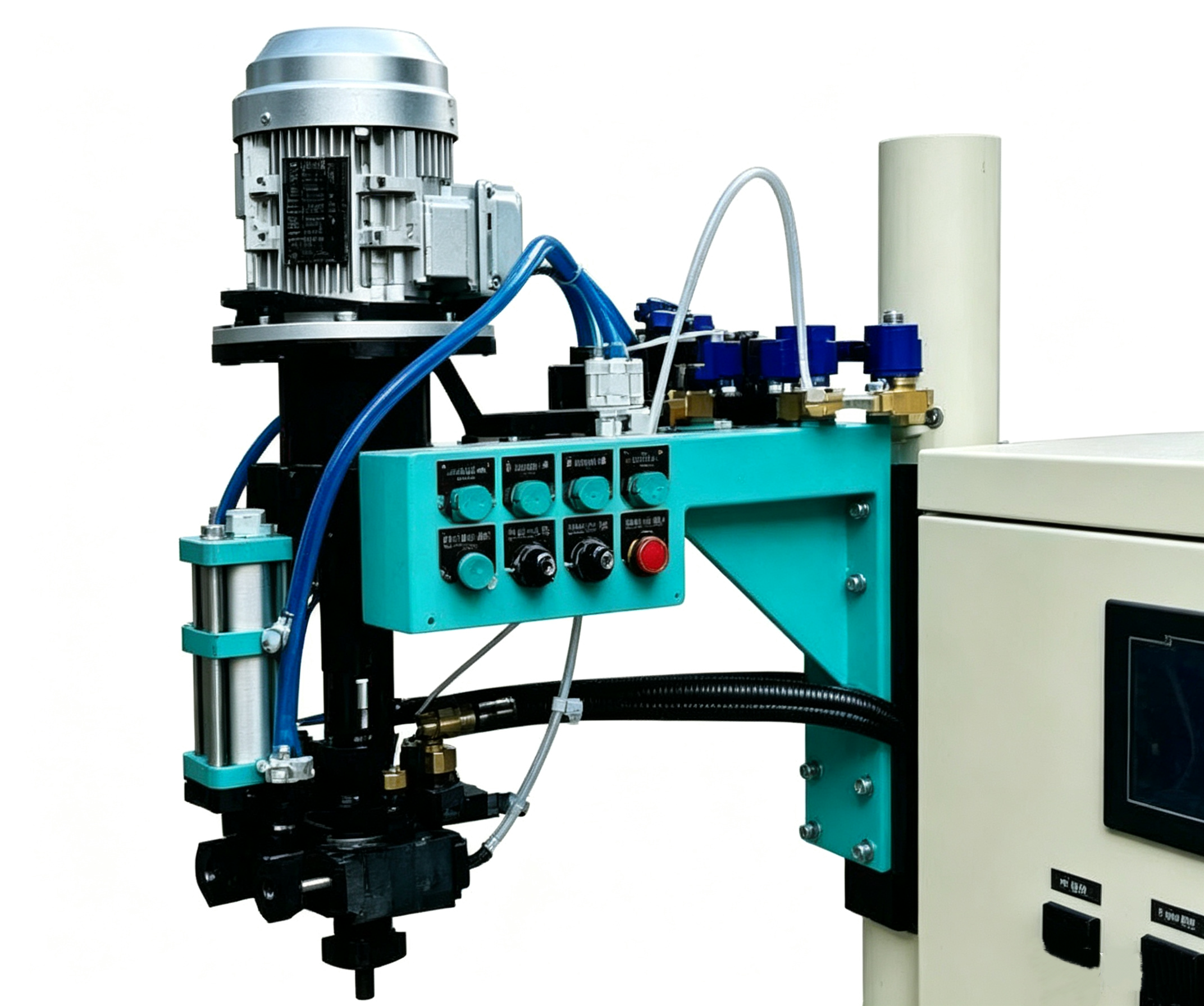

Close-up of a laboratory polyurethane mixing head with a drive motor, connecting tubes and a compact control panel

Configured

To Your Production Brief

Operation Workflow

Raw Material Loading & Formula Selection

Load polyol and isocyanate into the 30–80 L customizable tanks. Select or create the target formula on the touch screen; the system supports wide ratio testing (A:B = 100:5 ~ 100:300).

Parameter Setting & Verification

Set flow rate (10–130 g/s), temperature, and pressure via PLC touch screen. Multi‑point temperature control and precision pressure regulating valve ensure stable working conditions for reproducible testing.

Metering, Mixing & Pouring

The servo‑driven metering pump dispenses materials precisely. The mixing head operates at 1,500–4,500 rpm (adjustable), combining dynamic and static mixers to adapt to different viscosity raw materials.

Data Acquisition & Sample Curing

The intelligent data acquisition system automatically records all parameters for each sample. Samples cure for physical property testing or customer delivery.

Need a quote for this equipment?

Request a Quote
HF-LPM-1A1B-C

Technical Specifications

Standard configuration parameters for the laboratory PU foaming machine. Customizations including tank capacity, split design for fume hoods, and glove box configurations are available.

Technical ParameterHF-LPM-1A1B-C
Output Flow10–130g/s, freely adjustable
Mixing Ratio RangeA:B = 100:5 ~ 100:300, wide range for formula testing
Raw Material Tank Capacity30–80L, customizable volume
Installed Power9kW
Mixing Head Speed1500–4500rpm, adjustable
Metering Accuracy≤±0.3%
Total Machine Weight650kg
Warranty1-year full machine warranty
CertificationsConfirm applicable documents for the quoted configuration
BrandHaifeng
Temperature Control ConfigurationMultipoint material temperature control with PLC recipe settings
WHY CHOOSE US

Key Features & Advantages

Engineered for precision, reproducibility, and efficiency in polyurethane material R&D.

High‑Precision Metering to Minimize R&D Cost

Servo‑driven metering pump with closed‑loop flow control ensures error within ±0.3%. A single experiment requires only tens of grams or even grams of raw materials, greatly reducing R&D expenditure.

Controllable Mixing & Stable Temperature‑Pressure

Dynamic and static mixers adapt to different viscosities. Multi‑point temperature control and precision pressure regulating valve ensure stable working conditions for reproducible, traceable testing.

Compact Design for Low Space Requirement

Integrated compact frame structure on a single base requires no independent supporting station or complex circulating water system. Split design available for fume hoods and glove boxes.

Easy Cleaning & Fast Formula Switching

The described low-residue mixing head and cleaning valves support formulation changes. Changeover time and material loss depend on chemistry, material circuits, cleaning method and carryover limits; establish these values through representative trials.

Digital R&D Platform for Traceable Data

Built‑in intelligent data acquisition automatically generates complete records for each sample. PLC touch screen supports storing multiple formula parameters for one‑click recall and real‑time monitoring.

Wide Application in R&D & Pre‑Mass Production

Supports basic formula development, process reproduction, pre‑mass production validation, special material research (high‑viscosity, water‑based, CO₂ foaming), and small‑batch sample preparation.

Discuss Your Equipment Configuration

Share your product, materials, tooling and production requirements so we can review the equipment and interfaces for your project.

MORE EQUIPMENT

Browse other equipment in our catalog. These listings are for product discovery; compatibility and production-line scope are confirmed separately for your material, process and output requirements.

SUPPORT

Frequently Asked Questions

What R&D applications is this lab machine designed for?
This machine is designed for basic formula development, process parameter reproduction & comparison, pre‑mass production validation, special material research (high‑viscosity, water‑based, CO₂ foaming), and small‑batch sample preparation.
How does the machine reduce R&D material costs?
The listed ±0.3% value is a metering reference under agreed operating and measurement conditions. Establish the minimum practical sample mass by dispensing trials with the selected material, mixing head and reaction process. Material use and R&D cost depend on those trial conditions.
How does the machine ensure experiment reproducibility?
The machine combines dynamic and static mixers to adapt to different viscosities, with multi‑point temperature control and precision pressure regulation ensuring stable working conditions. Every test is traceable with complete data records for reliable comparison.
What is the advantage of the compact design?
The integrated compact frame structure has a small footprint and requires no independent supporting station or complex circulating water system. Split design is available for special scenarios such as fume hoods and glove boxes.
How fast is formula switching?
Review material circuits, chemistry, cleaning method and acceptable carryover before changing formulations. The described low-residue head and cleaning valves support this procedure. Agree changeover time and material-loss targets from representative trials rather than a universal minutes-or-percentage claim.
Can the machine support scaling up to mass production?
Yes. The built‑in data acquisition system provides complete records for each test. We also provide full Turnkey Projects for scaling up from lab testing to industrial mass production lines, ensuring smooth technology transfer.
