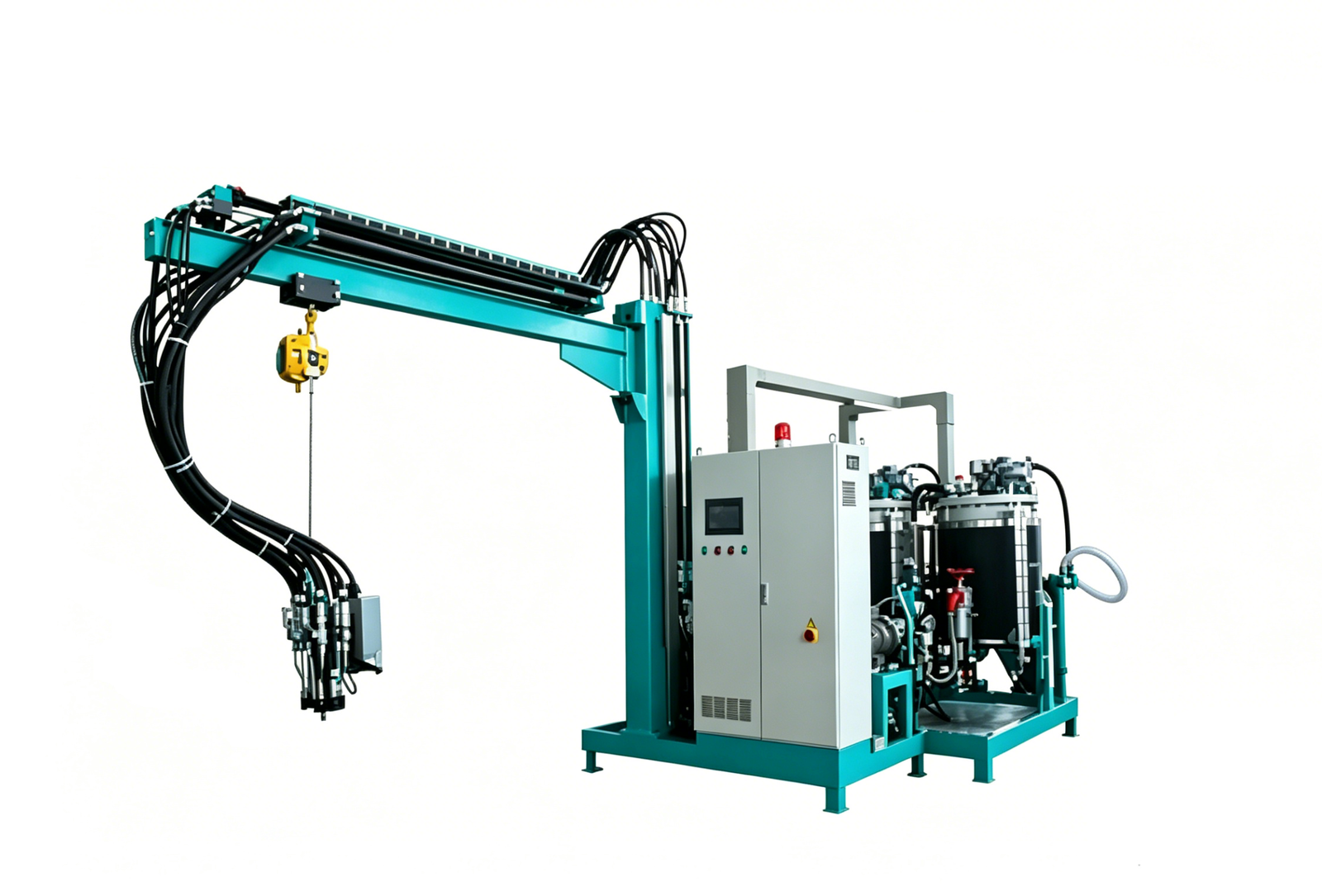

Sandwich Panel High Pressure PU Equipment 1
High Pressure Polyurethane Machine
53 Views

High-Pressure PU Foaming Machine | Sandwich Panels

High-pressure continuous foaming system for building insulation sandwich panels with large-flow precise mixing

Two-Component PU Reference

2A2B tank arrangement; separate A/B material circuits

Configured Metering

Calibration and flow selected for panel duty

Request Specs & Pricing Download Brochure
Delivery and warranty according to contract

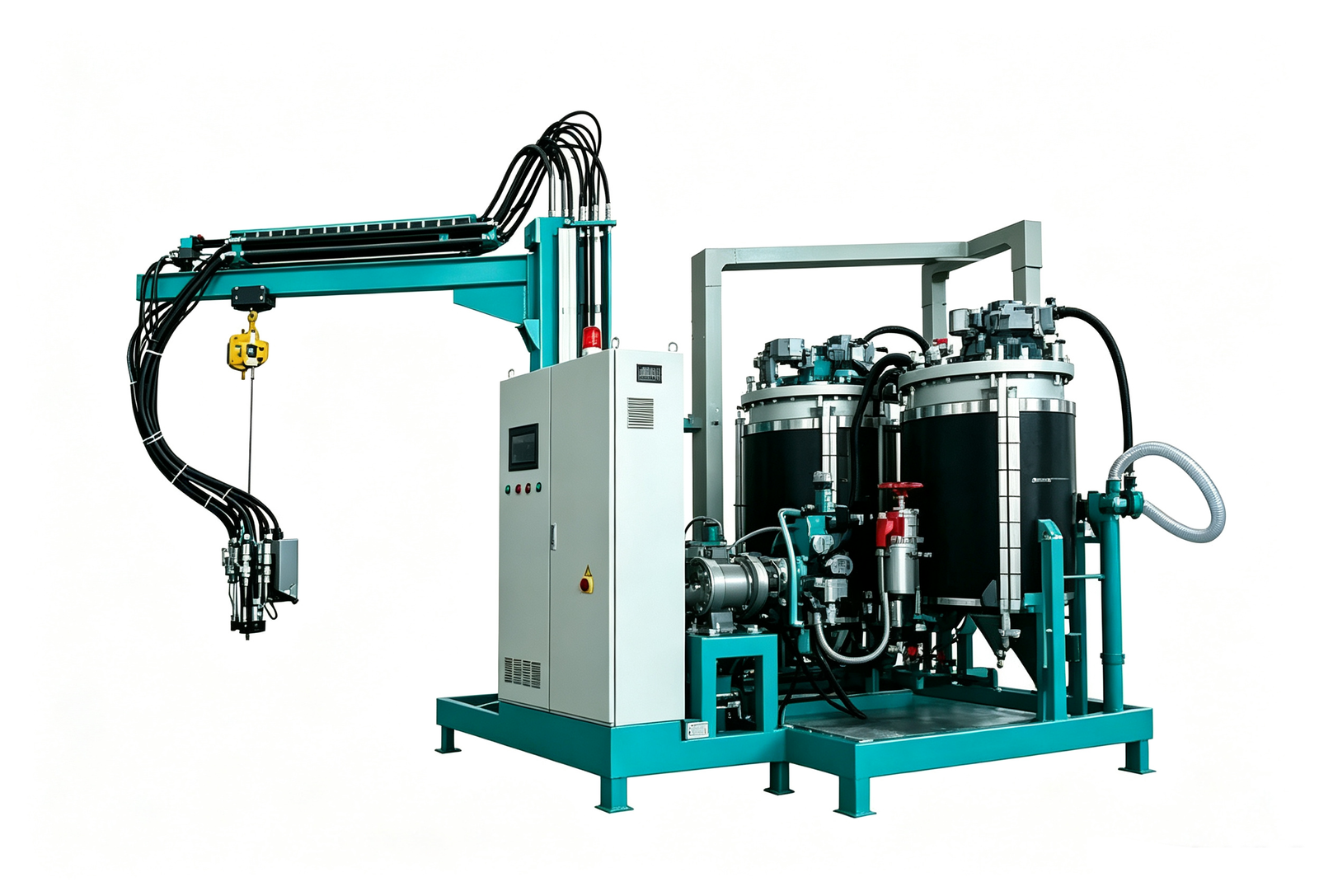

High-Pressure PU Foaming Machine for Sandwich Panels

Product Overview

Specially designed for continuous foaming production of building exterior wall insulation panels, clean panels and prefabricated building sandwich panels.

The HF-HPM-2A2B-SandwichPanel is a two-component PU metering reference with a 2A2B tank arrangement, material conditioning, circulation and PLC control. Listed pressure is 10–18 MPa and flow is 300–2,200 g/s. Match actual flow, formulation, mixing-head configuration and laydown arrangement to panel duty. Cell structure, conductivity and compression strength require panel tests.

Product Overview

Configured

To Your Production Brief

Operation Workflow

Raw Material Preparation

Prepare polyether polyol and isocyanate at the target mix ratio (100:100-130) for rigid foam insulation, with proper conditioning for uniform cell formation.

Tank Loading & Temperature Setting

Load polyol into Tank A and isocyanate into Tank B; the 2A2B temperature control maintains 20-45°C with circulation stirring for consistent material quality.

High-Pressure Mixing & Large-Flow Pouring

Calibrate the two-component delivery for the selected material. Listed mixing pressure is 10–18 MPa and flow is 300–2,200 g/s; head selection, cell structure and panel properties are validated separately.

Continuous Panel Foaming & Face Composite

Continuously pour foam between color steel or aluminum foil face materials; full-line linkage enables quick switching of multi-specification, multi-thickness panel production.

HF-HPM-2A2B-SandwichPanel

Technical Specifications

Standard configuration parameters for the sandwich panel high-pressure PU equipment. Customizations including tank capacity are available upon request.

Download PDF Spec Sheet Talk to an Engineer
Technical ParameterHF-HPM-2A2B-SandwichPanel
Pouring Rate300～2200 g/s
Mix RatioPolyether: Isocyanate = 100:100~130
Tank Capacity200L / 300L (Optional, Per Tank)
Dosing Accuracy≤±0.3% (Full Dynamic Range)
Tank Configuration2A2B Two-Component Independent Temp Control + Circulation Stirring
Temperature Control20～45℃
Mixing Pressure10～18 MPa
Vacuum DefoamingNone
Cleaning SystemAutomatic Air Purge Cleaning (Solvent-Free & Eco-Friendly)
Power11～15 kW
Control SystemPLC + Touch Screen + Multi-Formula Storage
Application SystemPolyurethane Rigid Foam Insulation System
Warranty1 Year
CertificationConfirm applicable documents for the quoted configuration
WHY CHOOSE US

Key Features & Advantages

Engineered for high efficiency, precision, and flexibility in building insulation panel continuous production.

Large-Flow Continuous Production Support

Pouring rate of 300–2200 g/s is ideally suited for panel continuous production lines, greatly improving foaming efficiency and capacity.

High-Pressure Precise Mixing

High-pressure metering and mixing are configured for the selected material. Calibrate flow and ratio; verify finished-panel quality separately.

Accurate Two-Component Ratio Control

Dosing accuracy ≤±0.3% minimizes raw material loss, making the system suitable for large-scale continuous production with cost efficiency.

Full-Line Linkage Control

Enables quick switching of production of multi-specification and multi-thickness panels, providing flexibility for diverse building material requirements.

2A2B Two-Component Independent Temp Control

Independent temperature control with circulation stirring ensures consistent material quality for rigid foam insulation across all production batches.

Solvent-Free Eco-Friendly Cleaning

Automatic air purge cleaning system is solvent-free and eco-friendly, complying with modern factory environmental standards.

COMPLETE SOLUTIONc

Complete Your Production Line

Integrate the product with our full range of auxiliary equipment for a turnkey polyurethane processing system.

Epoxy Pouring Machine | Printing Rollers

Epoxy Pouring Machine | Printing Rollers

Low Pressure Polyurethane Machine

View Details
View Details
View Details
View Details
SUPPORT

Frequently Asked Questions

What sandwich panel applications is this equipment designed for?
This equipment is specially designed for continuous foaming production of building exterior wall insulation panels, clean panels, and prefabricated building sandwich panels, suitable for composite of color steel, aluminum foil and other face materials.
What is the advantage of the large-flow pouring capability?
The pouring rate of 300–2200 g/s is ideally suited for panel continuous production lines, greatly improving foaming efficiency and production capacity compared to traditional equipment.
How does the equipment ensure panel insulation quality?
Select the recipe, dosing flow, ratio, head and cure conditions together. Test cell structure, conductivity and compression strength on the actual finished panel.
What is the dosing accuracy and why is it important?
The dosing accuracy is ≤±0.3% across the full dynamic range. This precise ratio control minimizes raw material loss and ensures consistent product quality for large-scale continuous production.
Can the equipment handle different panel specifications?
Yes. Full-line linkage control enables quick switching of production of multi-specification and multi-thickness panels, providing flexibility for diverse building material requirements.
What certifications does this equipment hold?
Documentation and conformity requirements are reviewed for the selected equipment configuration and destination market. Request the applicable declarations and supporting records for the quoted model. A company quality-management certificate does not certify the equipment or finished-part performance.
