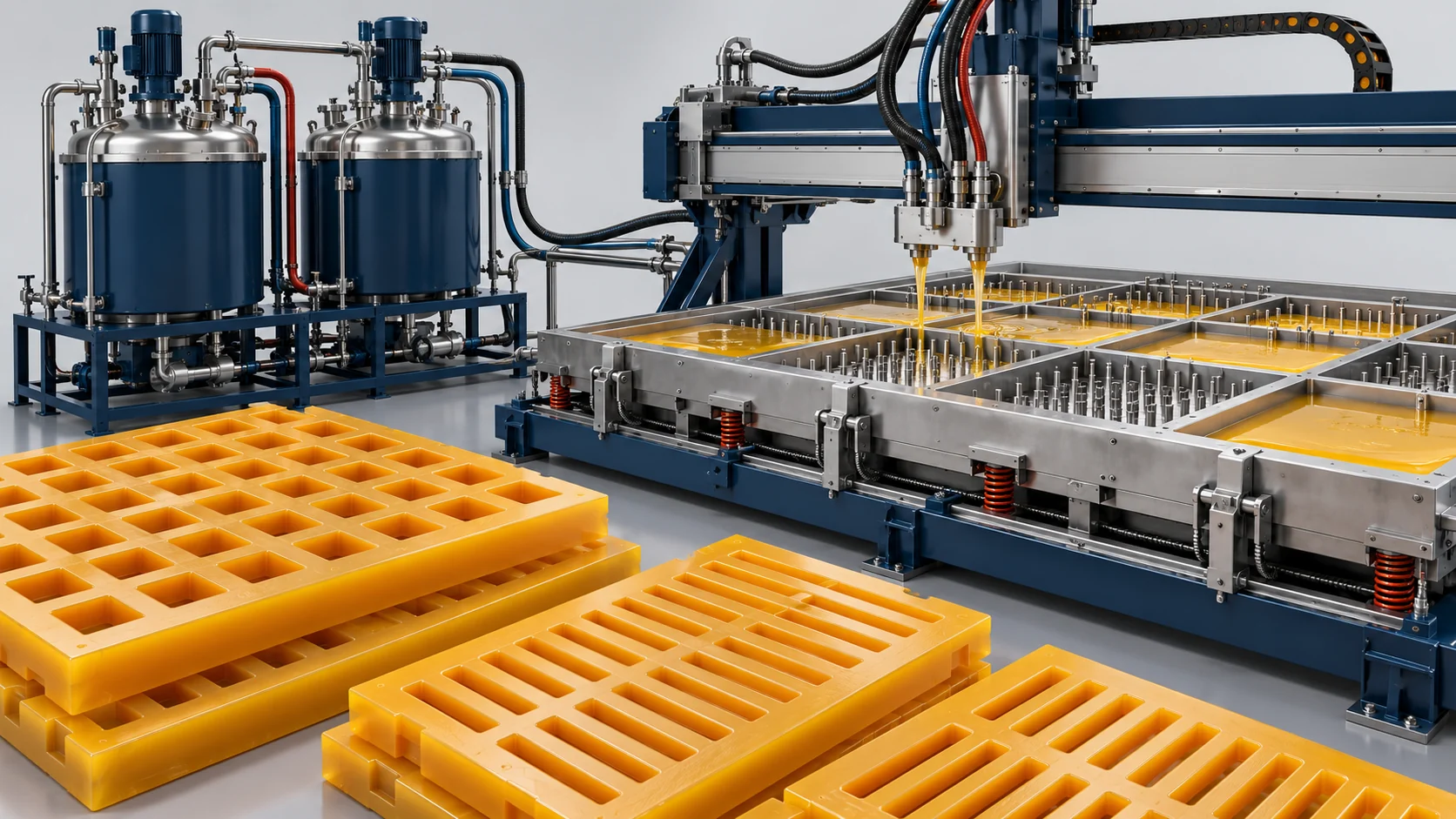

Polyurethane Screen Plate Casting Production Solution
Coordinate cast elastomer processing with screen aperture tooling, inserts and the required screening duty.
Build the Process Around Your Product
Coordinate cast elastomer processing with screen aperture tooling, inserts and the required screening duty.
Product and material first
Start with the finished-product drawing, material system and acceptance requirements. The process route and equipment configuration are assessed together.
Capacity across the whole process
Define output with preparation, forming/reaction, curing, handling and inspection included. The slowest stage and product changes determine practical line capacity.
Haifeng provides the metering and casting core; mold tooling, insert preparation, cure handling and inspection interfaces are defined for each screen design.
From Preparation to Qualified Product
A planning sequence for the specified route. Final settings and acceptance conditions are established through material and part review.
Specify the screen
Review overall dimensions, aperture pattern, mounting details and wear environment.
Prepare molds and inserts
Confirm aperture-forming features, reinforcing elements, release system and venting.
Condition materials
Stabilize the selected wear-resistant formulation and prepare metering recipes.
Information Needed to Configure the Line
Provide these inputs so the equipment range, interfaces and validation plan can be defined.
| Design input | Information required |
|---|---|
| Screen drawing | Aperture dimensions, panel size, reinforcement and mounting pattern |
| Material selection | Hardness, abrasion duty and chemical exposure |
| Process plan | Shot mass, cure time, mold population and part handling |
| Quality checks | Aperture tolerance, flatness, insert retention and wear test method |
Core Equipment and Integrated Interfaces
Haifeng provides the metering and casting core; mold tooling, insert preparation, cure handling and inspection interfaces are defined for each screen design.
Coordinate the Equipment With the Process
Evaluate repeatability, handling and acceptance across the full workflow.
Material-specific configuration
Component circuits, thermal control, mixing and receiving equipment are matched to the approved chemistry and processing window.
Defined interfaces
Haifeng provides the metering and casting core; mold tooling, insert preparation, cure handling and inspection interfaces are defined for each screen design.
Documented acceptance
The proposal defines trials, process records, inspection responsibilities and product-specific acceptance conditions.
Frequently Asked Questions
Clarify the production route before selecting a machine.
What determines line capacity?
What information is needed to size the production line?
What is included in the equipment package?
Are cycle time and finished-product performance fixed?
Submit Your Production Goals
Share the finished product, material, target capacity, automation requirements and factory conditions to discuss a project-specific line configuration.

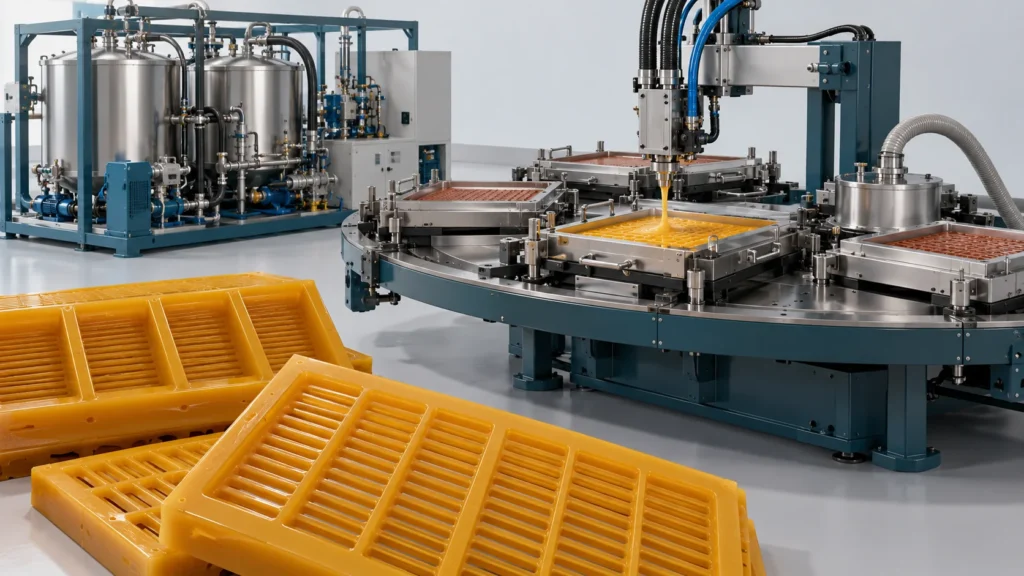

Related Application References
Review the material, product geometry, equipment scope and reference conditions within each record when assessing a comparable application.
