EV Battery Cell Flame-Retardant PU Potting Line in China

Illustration notice. Process illustrations are not verified photographs of this installation.

Project reference basis. Figures and configuration details are reported in the supplied project brief. They are reference values for the stated application, rather than verified acceptance results or a guarantee for another installation. Confirm the source records, material, tooling, operating schedule and test method when assessing a comparable project.

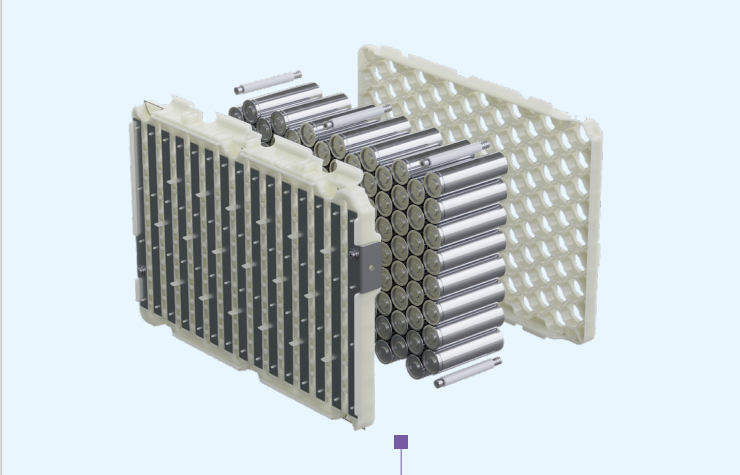

Haifeng successfully delivered and commissioned a fully automated polyurethane potting and encapsulation system for a Tier-1 Chinese EV power battery manufacturer, achieving zero-void micro-gap filling and compliant thermal barrier protection for high-energy battery cell packs. The project encompassed the turnkey engineering of closed-loop high-pressure dual-component metering units, multi-axis automated dispensing gantries, precision thermal conditioning skids, and integrated module visual inspection stations.

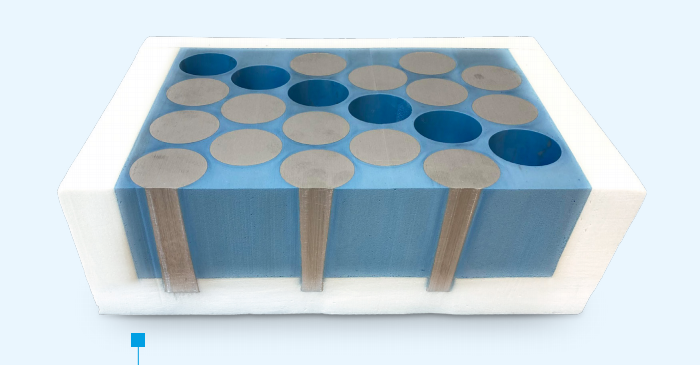

Driven by the stringent GB 38031-2025 regulatory requirements—mandating that a battery system must endure 120 minutes without fire or explosion following a single-cell thermal runaway—the client needed to transition from legacy silicone or low-pressure dispensing. Previous setups exhibited cycle bottlenecks, inconsistent chemical ratios, and micro-air entrapments between closely packed cells, creating localized hot spots and dielectric breakdown risks under 150J shock vibrations. The customer required a rapid-curing, high-pressure dispensing solution capable of dosing flame-retardant (UL94 V-0) PU formulations with micro-second cut-off accuracy and closed-loop temperature control.

Operational since mid-2025, the automated potting cell delivers continuous two-shift production across an efficient 260 m² footprint. By deploying Haifeng's closed-loop Ratio Lock metering algorithms and high-velocity impingement heads, the plant sustains uninterrupted battery pack assembly with rigorous dielectric insulation and optimal cell-to-cell thermal mitigation.

Haifeng deployed an advanced high-pressure closed-loop dispensing architecture specifically optimized for low-viscosity, fast-foaming flame-retardant polyurethane potting systems, achieving 35% shorter cycle times and continuous bubble-free cell penetration:

1. Closed-Loop Stoichiometric Ratio Lock: Isocyanate and formulated flame-retardant polyol are continuously metered via servo-driven magnetic coupling pumps, maintaining a ±0.5% stoichiometric precision despite viscosity swings.
2. Dual-Channel Thermal Conditioning: Integrated heat exchangers and dual-jacketed storage tanks maintain raw resin temperatures within ±0.5°C, ensuring predictable rise profiles and controlled reaction exotherm during in-module foaming.
3. Multi-Axis Robotic Gantry & Anti-Drip Dispensing: An L-shaped self-cleaning high-pressure mixing head mounted on a 3-axis CNC gantry delivers high-speed dynamic trajectory pouring into narrow cell crevices (<3 mm) with 0.3-second sharp needle shut-off to eliminate dripping.
4. End-to-End Inline Quality Telemetry: The master PLC system records flow rate, injection pressure curves, shot weights, and mold fixture temperatures per battery pack, synchronizing with the customer's MES for complete traceability.

Implementation & Training:
– Installation & Commissioning Timeline: 18 days from mechanical positioning and piping hookup to battery module trial runs.
– Operator Training: 4 days covering precision calibration, recipe parameter adjustment, automated flush validation, and daily seal preventative maintenance.
– Key Commissioning Milestones: Dry-run servo repeatability tests, chemical ratio verification, high-pressure impingement cell penetration trials, and post-cure foam dielectric breakdown testing.
