High-Pressure PU Foaming Line | Reefer Sidewalls

Six-head PU delivery and vertical fixture control for long reefer-container sidewalls, with part-specific fill and curing sequences.

Discharge Flow Rate

80–240 kg/min, combined chemical output across the configured six-head system

Mix Ratio

100:110 to 100:150 (By weight)

Accuracy Reference

±0.3% (Under continuous Coriolis mass flow tracking)

Material Conditioning Reference

24°C ±0.5°C in the listed day-tank conditioning

Availability on Request Delivery Schedule on Quotation 1-Year Warranty
Monolithic Cold Chain Container Insulating Automation

High-Capacity Vertical Foaming for 40ft Intermodal Reefer Panels

Six-head PU delivery and vertical fixture control for long reefer-container sidewalls, with part-specific fill and curing sequences.

The HF-RFC40-VPR coordinates six-head PU delivery with a vertical clamping fixture for long reefer sidewall panels. The listed combined chemical-output range is 80–240 kg/min.

For a 110 kg reference shot, 240 kg/min constant combined output gives a calculated injection time of 27.5 seconds. This is a sizing calculation, not a measured production result. Actual shot timing also depends on the flow profile, head sequencing and material reaction window.

Panel geometry, fixture loading and curing conditions are agreed for the project. Whole-container heat transmission and thermal-bridge performance are tested on the complete assembly.

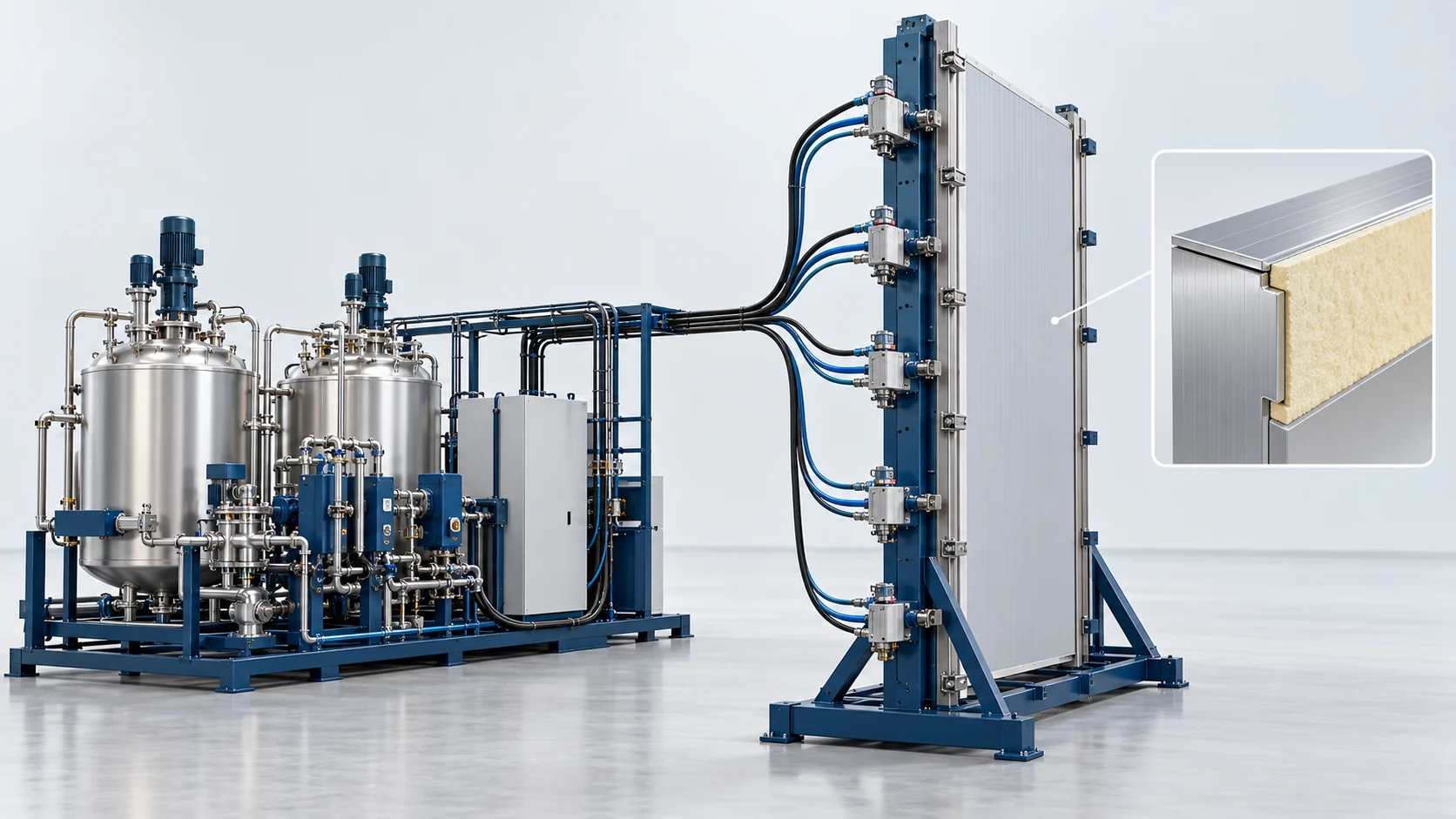

Concept illustration: Generated concept illustration for process discussion; not a photograph of the specified machine, a customer facility or a delivered project.

High-Capacity Vertical Foaming for 40ft Intermodal Reefer Panels

Material Flow and Working Principle

Sheet Positioning & Vertical Mold Clamping

Exterior corrugated stainless steel sheets and interior food-grade lining skins are loaded into the vertical press bed; hydraulic toggle locks clamp the 13.5m platens under 1.2 bar counter-pressure.

High-Pressure Chemical Conditioning

Specialized low-k polyol blends and polymeric isocyanates are conditioned in dual 500 L jacketed day tanks at 24°C ± 0.5°C under dry nitrogen blankets to maintain reaction kinetics.

Synchronous Six-Head Impingement Injection

The configured six-head system meters the selected formulation within an 80–240 kg/min combined-output range. For a 110 kg reference shot, 27.5 s is calculated at constant 240 kg/min; actual timing follows the qualified flow profile.

Vertical Rising Core Expansion & Curing

The liquid matrix creams rapidly, rising vertically through the 70 mm core gap; precision water-heated platens maintain 48°C to cure the panel within 20 minutes without density gradients.

Vertical Mold Opening & Overhead Extraction

Hydraulic cylinders retract the vertical clamping platens; automated overhead cranes grip the finished 12-meter monolithic panel and transfer it to container box assembly.

Need a quote for this equipment?

Request a Quote
Configuration data

Model and Technical Parameters

Reference combined output: 80–240 kg/min across six configured heads. A 110 kg reference shot requires 27.5 s at constant 240 kg/min; this is a calculation rather than a measured shot time. Fixture loading, material reaction window, flow profile and finished-container thermal tests are defined separately.

Technical ParameterHF-RFC40-VPR
Components2 Components (A: Polyol blend + Cyclopentane, B: Polymeric MDI)
Output Range80–240 kg/min, combined chemical output across the configured six-head system
Mixing Ratio Range100:110 to 100:150 (By weight)
Accuracy Reference±0.3% (Under continuous Coriolis mass flow tracking)
Power Supply380V, 3-Phase, 50Hz (Custom 440V/480V 60Hz optional)
Working Pressure15.0 to 17.5 MPa (High-pressure metering and delivery lines)
Tank / Hopper CapacityDay tanks: 2 x 500 L (Stainless steel with N2 blanket)
Weight24,500 kg (Combined vertical press frame and metering skid)
Dimensions (L×W×H)14,200 mm x 3,600 mm x 4,200 mm
Shot Mass and Calculated Injection-Time Reference110 kg reference shot. At 240 kg/min constant combined output, calculated injection time is 27.5 s; actual timing follows the qualified flow profile and material window.
Equipment configuration

Key Equipment Features

Material conditioning, multi-head metering, vertical clamping fixture and synchronized controls. Shell geometry, molds, blowing-agent system, exhaust and site interfaces are agreed separately.

Configured Vertical Clamping

Long vertical platens and hydraulic locking are selected for the panel dimensions and foaming load. Frame height and panel length are separate quantities.

Six-Head Combined Delivery: 80–240 kg/min

Coordinate head sequencing and the liquid distribution profile for the selected shot and available reaction time.

Finished-Container Thermal Assessment

Panel joints, insulation material and complete enclosure construction determine heat transmission; assess them through assembly testing.

Long-Panel Tooling Interfaces

Panel lengths up to the supplied 12,200 mm reference are reviewed with skins, molds, handling and installation clearances.

Discuss Your Equipment Configuration

Share your product, materials, tooling and production requirements so we can review the equipment and interfaces for your project.

Planning questions

Frequently Asked Questions

How are shot mass, flow and injection time related?
Time equals shot mass divided by combined output. A 110 kg shot at constant 240 kg/min gives 27.5 seconds. Actual production timing depends on the qualified flow profile and material window.
Does vertical foaming guarantee uniform density?
No. Material conditioning, head distribution, shell geometry, venting and cure conditions must be validated together.
Does panel production establish whole-container thermal performance?
No. The complete enclosure, joints, insulation and thermal bridges require assembly-level testing.
What does the fixture length describe?
It describes the long-panel tooling direction. Overall machine height, clearances and structural loading are specified separately.
