High-Pressure PU Foaming Equipment
132 Views

High-Pressure PU Foaming Machine | Headrests

High-pressure PU metering and impingement mixing for headrests, with configured material conditioning, mold interfaces and controls.

Discharge Flow Rate

50-1000 g/s

Mix Ratio

Polyether: Isocyanate = 100:45-60

Metering Accuracy Reference

≤±0.3% (Full Dynamic Range)

Temperature Control

20-45°C

Availability on Request Delivery Schedule on Quotation 1-Year Warranty

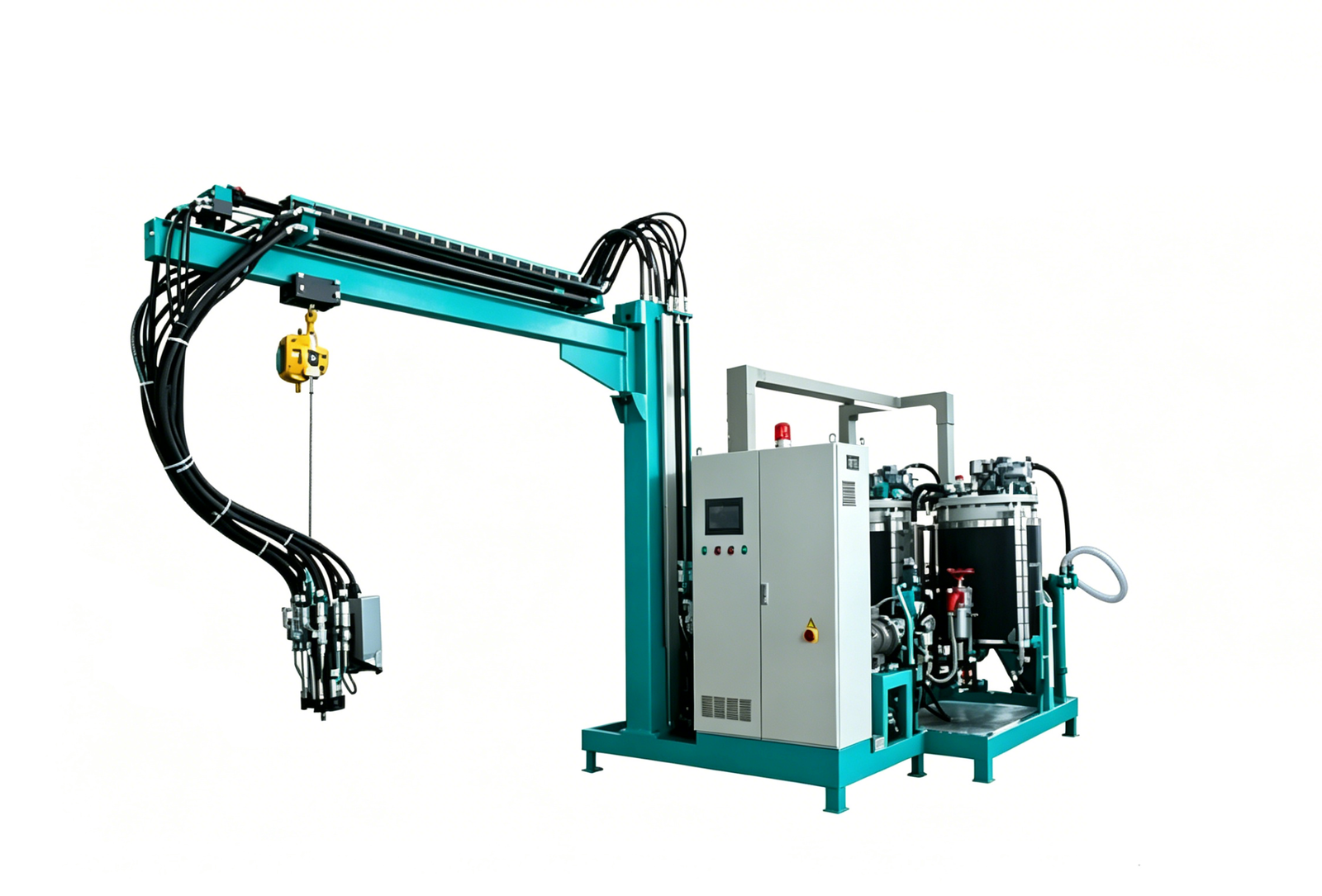

High-Pressure PU Foaming Machine for Automobile Headrests

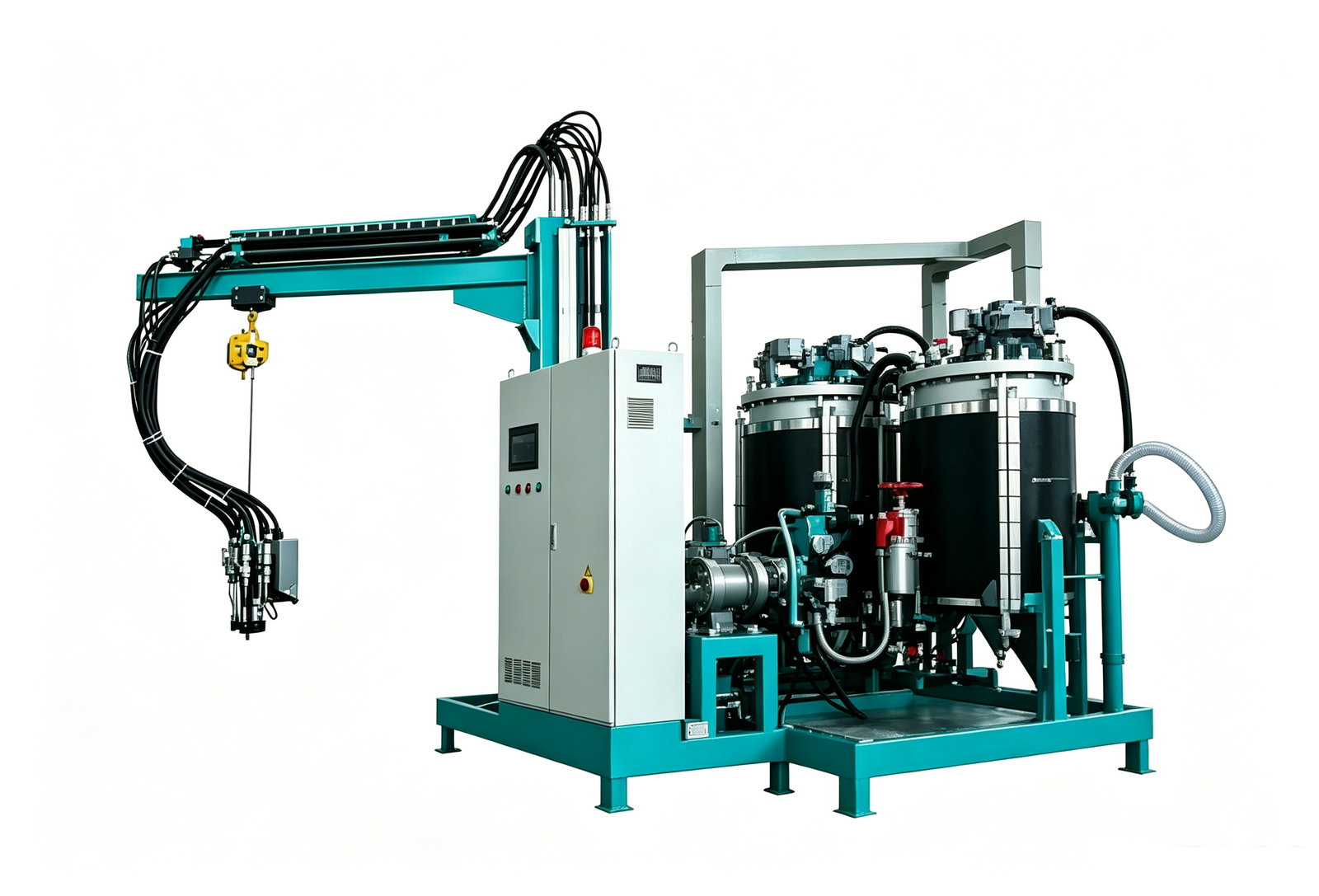

Engineered for High-Resilience, Precision-Foamed Automobile Headrests

High-pressure PU metering and impingement mixing for headrests, with configured material conditioning, mold interfaces and controls.

This high-pressure PU equipment meters polyol and isocyanate and combines them by high-pressure impingement mixing for headrests. The listed combined dispensing range is 50–1,000 g/s; the selected shot and operating point follow the formulation and tooling.

Material conditioning, circulation, mixing-head configuration and mold or line interfaces are defined for the supplied package. Finished-part density, surface quality and service performance require material, mold and process validation.

Engineered for High-Resilience, Precision-Foamed Automobile Headrests

Configured

To Your Production Brief

Production Workflow

Raw Material Preparation

Prepare polyether polyol and isocyanate at the target mix ratio (100:45-60) for the high-resilience headrest foam recipe, with proper conditioning for uniform cells.

Turntable & Temperature Setting

Load polyol into Tank A and isocyanate into Tank B; the 1A1B temperature control maintains 20-45°C, while the 8/10/12-station turntable positions molds for cyclic production.

High-Pressure Impingement Mixing and Pouring

The two components are metered into the impingement mixing head. Dispensing within the listed 50–1,000 g/s configuration range is coordinated with the selected shot, mold filling and line controls.

Foaming, Curing & Mold Cycle

The material foams and cures in the turntable mold; the line advances to the next station, with solvent-free air purge cleaning preparing the system for the next cycle.

Need a quote for this equipment?

Request a Quote
Precision parameters for high-resilience, small-shot automobile headrest foaming

Technical Specifications

Specifications are based on standard configurations. Custom tank sizes, formula recipes, and 8/10/12-station turntable line integration are available upon request.

Technical Parameter
ModelHF-HPM-1A1B-HeadrestPIP
Pouring Rate50-1000 g/s
Mix RatioPolyether: Isocyanate = 100:45-60
Tank Capacity100L / 150L (Optional, Per Tank)
Dosing Accuracy≤±0.3% (Full Dynamic Range)
Metering UnitsPolyether / Isocyanate, one each (metering pump + safety valve + VFD motor)
Flow ControlPolyether polyol & isocyanate component flow control
Recirculation SystemHigh/low-pressure cycle switching system
Pressure ProtectionPressure limiting and control system
Tank Configuration1A1B Two-Component Independent Temp Control + Circulation Stirring
Temperature Control20-45℃
Mixing Pressure10-18 MPa
Cleaning SystemAutomatic Air Purge Cleaning (Solvent-Free & Eco-Friendly)
Power5.5-7.5 kW
Control SystemPLC + Touch Screen + Multi-Formula Storage
Application SystemPU high-resilience flexible foam system (headrest)
Warranty1 Year
CertificationConfirm applicable documents for the quoted configuration
Why Choose Our High-Pressure PU Foaming Machine for Automobile Headrests

Key Advantages

Six equipment and process features to consider when configuring a high-pressure PU foaming machine for automobile headrests.

Precise Injection with Closed-Loop Flow Control

Calibrate component delivery at the agreed material viscosity, temperature, operating flow and shot. Metering control supports repeatable processing; finished-part dimensions and properties require separate validation.

Stable High/Low-Pressure Circulation

Automatic high/low-pressure cycle switching keeps pressure stable between injections, preventing material settling, pressure build-up and dripping.

Flexible Turntable Customization

8/10/12-station turntable options; the complete line is customizable or units can be purchased separately, with one-click multi-formula changeover for flexible production.

Configured Mixing-Head Cleaning

The cleaning sequence and consumables are specified for the selected head and formulation. Cleaning arrangements do not establish finished-part emissions or odor performance.

PLC Intelligent Control with Multi-Formula Storage

PLC control with one-click multi-formula switchover and fault self-check reduces manual errors and enables rapid changeovers between headrest styles.

Small-Shot Mass Production Efficiency

High-resilience foam metering and stable circulation deliver consistent density, comfortable resilience and fine molding for mass small-shot headrest production.

Discuss Your Equipment Configuration

Share your product, materials, tooling and production requirements so we can review the equipment and interfaces for your project.

SUPPORT

Frequently Asked Questions

What material system does the high-pressure PU foaming machine process for automobile headrests?
It processes PU high-resilience flexible foam systems for headrests, with a polyether-to-isocyanate mix ratio of 100:45-60, customized per headrest recipe.
Does the machine support a turntable production line?
Yes. It can form a headrest PIP line with an 8/10/12-station turntable for multi-station cyclic continuous production, customizable to customer requirements.
How does the machine ensure precise injection for small-shot headrests?
The listed ≤±0.3% is a metering reference for the specified configuration. Define its measured quantity, material condition, flow and shot range, calibration and acceptance method. It is not a finished-part dimensional or performance tolerance.
Can individual units be purchased separately?
Yes. The complete line is customizable, or individual units such as the foaming machine, mixing head, and turntable can be purchased separately.
