Medical Freezer VIP Foaming Solution

Plan gentle polyurethane dispensing around vacuum insulation panels, with positioning, cavity pressure control, temperature management and insulation inspection.

Production objective

Extreme Thermal Isolation for Life-Critical Bio-Specimen Storage

Plan gentle polyurethane dispensing around vacuum insulation panels, with positioning, cavity pressure control, temperature management and insulation inspection. The described package covers metering and mixing, a low-momentum outlet, fixture interfaces and controlled cavity evacuation. VIP supply, holders, foam formulation, enclosure safety and thermal inspection are confirmed separately. Finished-freezer storage suitability depends on the full validated refrigeration system.

Product, material and tooling

The described package covers metering and mixing, a low-momentum outlet, fixture interfaces and controlled cavity evacuation. VIP supply, holders, foam formulation, enclosure safety and thermal inspection are confirmed separately. Finished-freezer storage suitability depends on the full validated refrigeration system.

Capacity and acceptance

Review all preparation, dispensing, curing, handling and inspection stages. Material and component results require separate agreed test conditions.

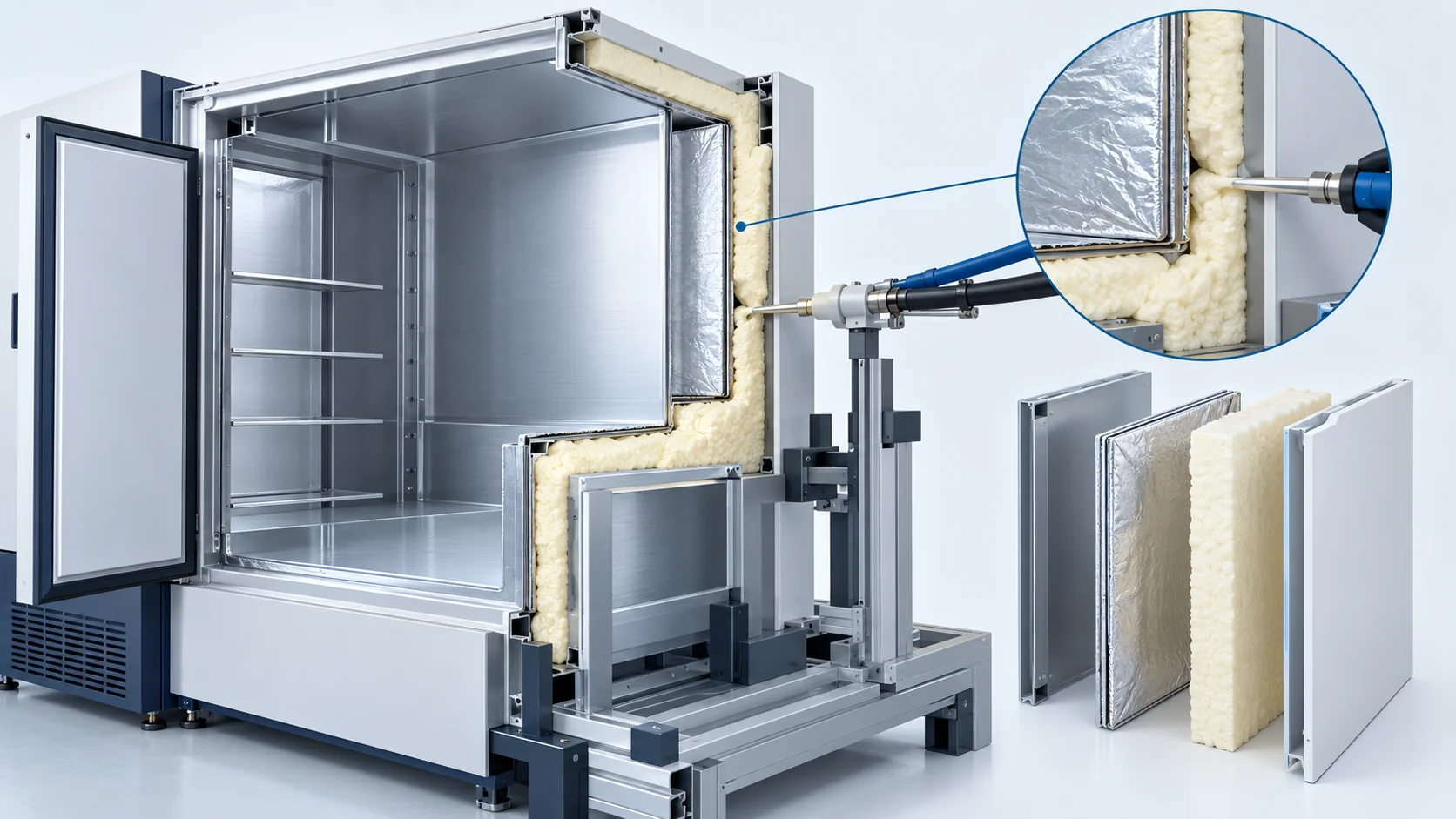

Keep VIP internal pressure, foam-cavity evacuation and material preparation distinct. Plan support, positioning and low-momentum filling around the panel and its fragile interfaces, followed by the finished-freezer insulation test.

Manufacturing workflow

Turnkey Medical VIP Composite Foaming Process

The supplied process sequence is a configuration reference. Temperature, pressure, output and cure settings are confirmed for the selected material and tooling.

01

VIP Magnetic Positioning & Core Pre-Assembly

Configured reference: reported vacuum insulation panels (VIP) are positioned onto stainless liners using non-damaging magnetic holders.

VIP THICKNESS 15–25 MM; VACUUM LEVEL < 0.1 PA
02

Mold Clamping & 85 kPa Soft-Vacuum Drawing

Configured reference: The cabinet assembly is locked in a precision hydraulic fixture and evacuated to 85 kPa absolute pressure.

CLAMPING FORCE 150 KN; CAVITY VACUUM 80–85 KPA
03

Hermetic Nitrogen Conditioning & Metering

Configured reference: High-functionality polyol and isocyanate are metered at 15.0 MPa by servo pumps under Coriolis mass flow measurement.

METERING PRESSURE 14.0–16.0 MPA; RATIO TOLERANCE ±0.2%
Engineering inputs

Reference Solution Engineering Envelope

Values transcribed from the supplied configuration brief. Material properties and finished-product benchmarks are separate validation targets, not general equipment guarantees.

ParameterValue / UnitApplicable Configuration / Conditions
Chemical Dosing Output30.0 to 120.0 kg/minLow-momentum servo axial piston proportioning skid; supplied reference requiring configuration or test verification
Injection Stream Exit VelocityLess than or equal to 8.0 m/sMulti-port stream diffuser head preventing VIP tear; supplied reference requiring configuration or test verification
Mold Cavity Evacuation Level80 to 85 kPa (Absolute)Soft-vacuum evacuation skid with digital pressure switch; supplied reference requiring configuration or test verification
Composite Insulation R-Value Gain+40% higher thermal resistanceMeasured vs conventional rigid polyurethane alone; supplied reference requiring configuration or test verification
Emergency Off-Grid Hold DurationGreater than or equal to 4.2 hoursMaintains cabinet interior below -60°C during blackout; supplied reference requiring configuration or test verification
VIP Board Puncture Rejection Rate0% (Zero defect)reported via low-momentum diffused fluid stream; supplied reference requiring configuration or test verification
Low-temperature performance and defect rates apply to the selected sample and test conditions. Product-storage suitability is assessed separately. Mold-cavity pressure and VIP internal vacuum are distinct parameters.
Shared equipment references

Core Equipment for This Solution

The foaming platform needs its selected outlet, fixtures and evacuation interfaces. VIP supply, holders and any cleanroom integration are separately defined.

Process configuration

Core Advantages of Haifeng Medical VIP Systems

Engineering functions and interfaces developed for the specified product and material system.

VIP support

Confirm panel holders, clearances and protection of vulnerable edges.

Low-momentum delivery

Trial the outlet and filling path with the actual cavity.

Cavity conditions

Monitor the specified evacuation and allowed panel exposure.

Composite inspection

Check VIP integrity and finished-cabinet thermal performance separately.

Related project brief

Related Projects

The medical-freezer reference supports its documented composite insulation; it does not confer medical or cleanroom qualification by equipment selection.

Review Project
Planning questions

Frequently Asked Questions

Technical questions to establish the equipment scope, material window and validation plan.

Why is outlet momentum considered for VIP assemblies? +
A diffused outlet can reduce local jet loading on fragile VIP barrier films. No-puncture performance requires trials with the actual panel construction, supports and shot profile.
How is the foam-to-VIP interface developed? +

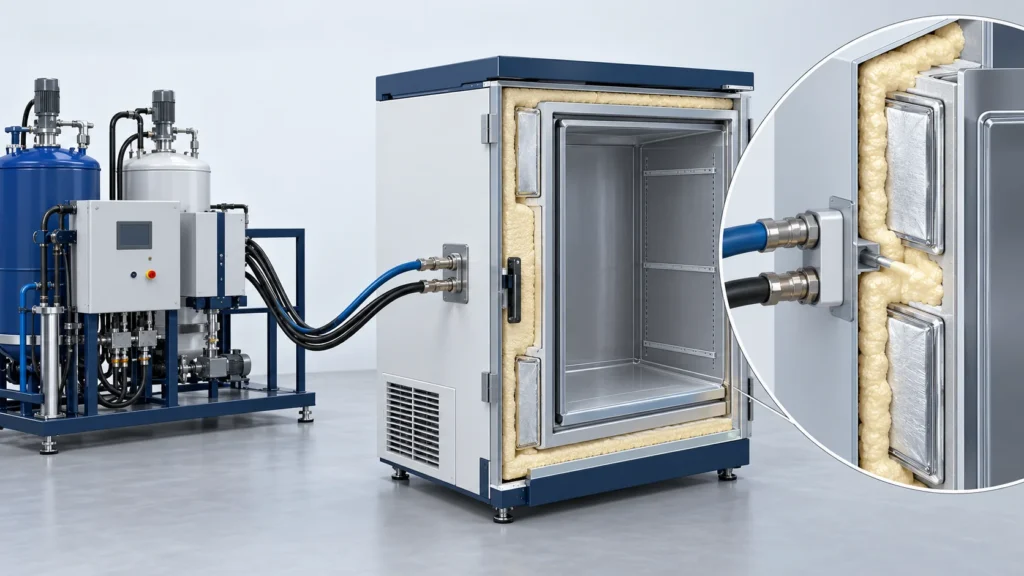

Cavity evacuation and compatible foam flow can support interface filling. The brief gives 80–85 kPa absolute cavity pressure; this is distinct from pressure inside the VIP panel.
How is finished-freezer holdover time assessed? +
Holdover time depends on freezer design, load, initial and ambient temperatures, sealing and refrigeration-system behavior. The supplied 4.2-hour result is not a universal safe storage period for biological materials.
What is required for cleanroom manufacturing integration? +
Cleanroom suitability requires an agreed cleanliness class, materials, particle and emission controls, maintenance and qualification. Enclosed pipes or stainless covers do not establish compliance.
What inputs are needed for this configuration? +
VIP and cabinet drawings, holders, material, allowable pressure/temperature, shot, cavity evacuation and finished-freezer tests. Identify retained equipment and the required acceptance documents.
How should VIP damage and the foam interface be evaluated? +
Trial positioning and support, dispensing momentum and cure on the actual panel/enclosure. Inspect panel integrity and the completed insulation construction; a cavity vacuum setting is not the VIP internal vacuum.
