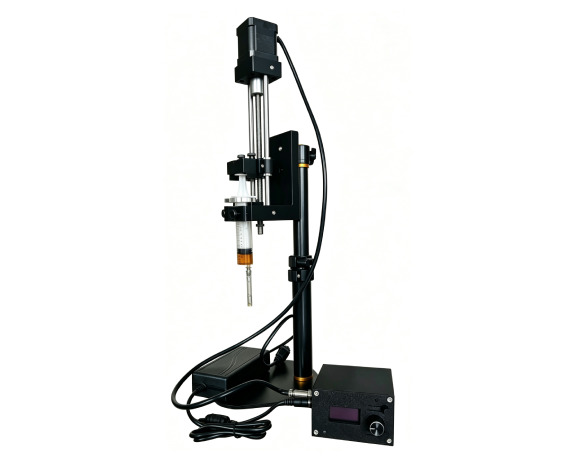

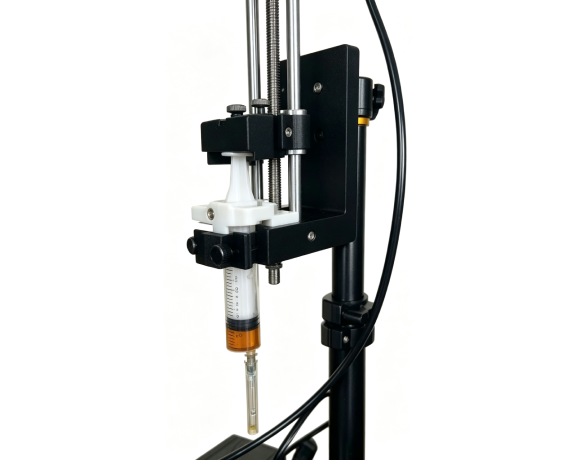

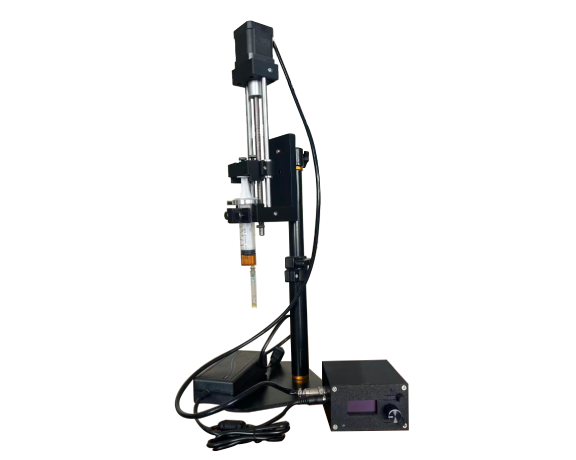

High Precision Laboratory Syringe Pump
Programmable precision fluid delivery system with wide flow range and high accuracy for lab and industrial use
Flow Range
0.001 μL/min ～ 50 mL/min
Flow Accuracy
≤ ±0.5%
Repeatability
≤ ±0.2%
Max Back Pressure
0‑500 psi (adjustable alarm)
Product Overview
A high‑precision, programmable automated device for fluid delivery, driving the syringe plunger via a motor to deliver fluid at a controllable rate.
This syringe pump is a high‑precision, programmable automated device for fluid delivery. It drives the syringe plunger via a motor to deliver fluid at a controllable rate, enabling precise regulation of fluid flow and dispensing volume. It supports full‑range delivery control from microliter‑level to conventional flow rates with excellent accuracy and repeatability. Flow accuracy ≤±0.5% and repeatability ≤±0.2% meet stringent experimental and industrial production standards. Equipped with a closed‑loop control system with encoder feedback, it achieves precise plunger positioning and eliminates step loss during long‑term operation. The device supports multiple operating modes including constant flow, constant volume, time gradient, volume gradient and external trigger, adapting to diverse delivery requirements. Parameter setting is available via a simple rotary knob interface, with optional PC software for advanced features. The pump is widely used in life sciences, pharmaceutical R&D, chemical synthesis, and industrial precision liquid dispensing, serving as a core device for precision fluid delivery in laboratory experiments and industrial production.
Operation Workflow
Syringe Selection & Installation
Select the appropriate syringe (1 mL–50 mL) and install it into the pump. Ensure proper syringe barrel seating and secure the plunger drive mechanism.
Power Connection & Interface Setup
Connect the pump to AC 100–240V, 50/60 Hz power supply. Connect via USB, RS‑232, RS‑485, Ethernet, or Digital I/O as required for your control system.
Parameter Setting & Mode Selection
Set flow rate (0.001 μL/min–50 mL/min) and volume via the rotary knob interface. Select operating mode: constant flow, constant volume, time gradient, volume gradient, or external trigger.
Calibration & System Priming
Prime the system to remove air bubbles. The closed‑loop control system with encoder feedback ensures precise plunger positioning for accurate fluid delivery.
Request a Customized Laboratory Syringe Pump Solution
Get a QuoteTechnical Specifications
Available in single‑channel and four‑channel models to match diverse laboratory and industrial fluid delivery needs. Customization is available upon request.
| Technical Parameter | IP-1S (Single Channel) | IP-4M (Four-Channel) |
|---|---|---|
| Flow Range | 0.001 μL/min – 50 mL/min | 0.001 μL/min – 50 mL/min (Per Channel) |
| Flow Accuracy | ≤±0.5% | ≤±0.5% |
| Repeatability | ≤±0.2% | ≤±0.2% |
| Compatible Syringe Specifications | 1 mL–50 mL | 1 mL–50 mL (Per Channel) |
| Maximum Back Pressure | 0–500 psi (Adjustable alarm threshold)Actual value depends on syringe and fluid properties | 0–500 psi (Adjustable alarm threshold)Actual value depends on syringe and fluid properties |
| Communication Interface | USB, RS-232Interfaces located on rear panel | USB, RS-485, Ethernet, Digital I/OInterfaces located on rear panel |
| Power Supply | AC 100–240V, 50/60 Hz | AC 100–240V, 50/60 Hz |
| Total Machine Power | 30 W | 100 W |
| Overall Dimensions (L×W×H) | 280×200×150 mm | 420×320×200 mm |
| Equipment Weight | 3.5 kg | 8.2 kg |
Key Features & Advantages
Engineered for precision, versatility, and reliability in laboratory and industrial fluid delivery.
Wide Flow Range
Flow range of each channel reaches 0.001 μL/min–50 mL/min, supporting precise full‑range control from microliter to conventional flow rates for diverse applications.
High Accuracy & Repeatability
Flow accuracy ≤±0.5% and repeatability ≤±0.2% meet stringent experimental and industrial production standards.
Flexible Multi‑Mode Operation
Supports constant flow, constant volume, time gradient, volume gradient and external trigger modes, adapting to diverse delivery requirements.
Stable Closed‑Loop Delivery Control
Equipped with encoder feedback closed‑loop control, it achieves precise plunger positioning and eliminates step loss during long‑term equipment operation.
Simple Knob & Display Interface
Parameter setting via rotary knob; optional PC software for advanced features, delivering efficient and straightforward operation.
Single‑Channel & Four‑Channel Models
Available in IP‑1S (single channel) and IP‑4M (four‑channel) configurations to match different throughput and application requirements.
Enhance Your Fluid Delivery Precision with High‑Quality Laboratory Syringe Pumps
Our engineering team specializes in precision fluid delivery solutions. Contact us to discuss your specific application requirements, channel configuration needs, and software integration preferences.
Application Scenarios
Life sciences, pharmaceutical R&D, chemical synthesis, and industrial precision liquid dispensing.
